NSN 5310-00-098-2780 14401291, 14-40129-1, 4401291
Product Details | LOCK WASHER
5310-00-098-2780 A washer which is usually round with a centrally located hole. Its edges and two bearing surfaces are so designed that applied pressure brings into play the spring tension and/or frictional locking principle which materially resists any tendency toward turning. It may be made of one or two pieces
Part Alternates: 14401291, 14-40129-1, 4401291, 4-40129-1, 5310-00-098-2780, 00-098-2780, 5310000982780, 000982780
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 06 DEC 1972 | 00-098-2780 | 14218 ( WASHER, LOCK ) |

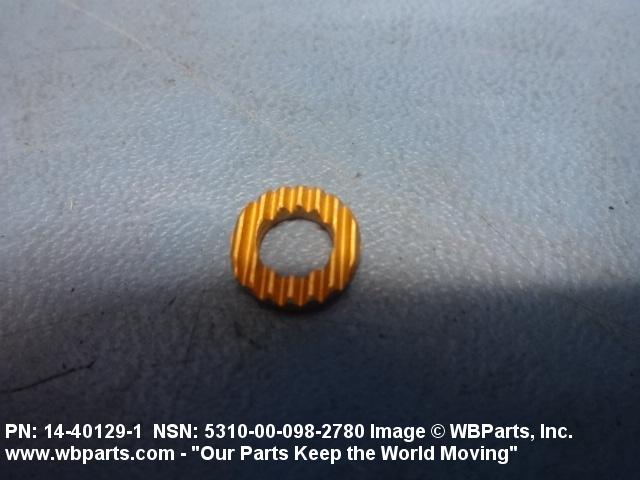

Drawings & Photos | NSN 5310-00-098-2780
Demand History | NSN 5310-00-098-2780
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-098-2780 | 2018-08-238 | 50 | DIBBS |
| 5310-00-098-2780 | 2017-11-306 | 20 | United States |
| 5310-00-098-2780 | 2017-09-268 | 20 | DIBBS |
| 5310-00-098-2780 | 2017-07-197 | 20 | DIBBS |
| 5310-00-098-2780 | 2016-02-49 | 3 | DIBBS |
| 5310-00-098-2780 | 2016-02-41 | 3 | DIBBS |
| 5310-00-098-2780 | 2013-12-338 | 8 | Malaysia |
| 5310-00-098-2780 | 2009-05-151 | 309 | DIBBS |
| 5310-00-098-2780 | 2009-05-132 | 8 | DIBBS |
Cross Reference | NSN 5310-00-098-2780
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-098-2780
Related Products | NSN 5310-00-098-2780
Technical Data | NSN 5310-00-098-2780
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4340 OVERALL |
| STYLE DESIGNATOR | 113 SERRATED |

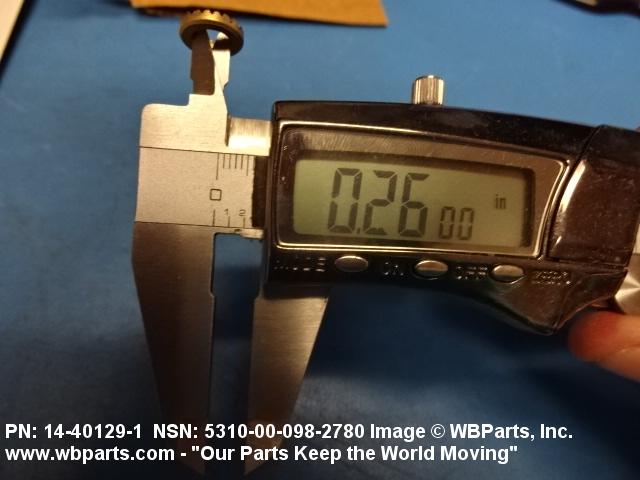

| HOLE DIAMETER | 0.258 INCHES MINIMUM AND 0.261 INCHES MAXIMUM |

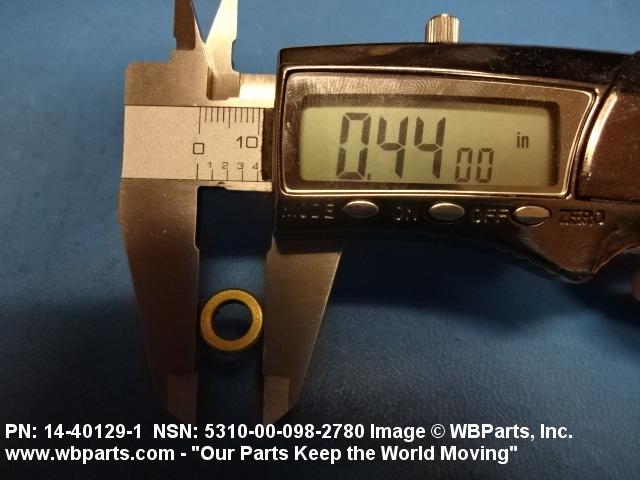

| OUTSIDE DIAMETER | 0.438 INCHES MINIMUM AND 0.442 INCHES MAXIMUM |
| MATERIAL THICKNESS | 0.100 INCHES NOMINAL |
| SPECIAL FEATURES | STYLE VARIES-NO SPLIT IN WASHER/ HEAT TREAT TO 160,000-180,000 PSI PER HT-21/SERRATIONS PER 85Z100-16/ MAGNETIC PARTICLE INSPECT PER PS IT-61/DIA AFTER PLATING 0.439-0.444 |
Restrictions/Controls & Freight Information | NSN 5310-00-098-2780
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194160 | WASHER OR GASKETS, IRON OR STEEL, |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-098-2780
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Materiel Management Aggregation Code | XJ | SU:F-5 FREEDOM FIGHTER |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
