NSN 5310-00-159-3556 2585520, 00-159-3556, 001593556
Product Details | HEXAGON PLAIN NUT
5310-00-159-3556 A nut, flat on top and bottom having 6 flat sides. For items which have internal tapered or straight (parallel) pipe threads, specific electrical conduit size designation, and which when installed, provide a method of tightening to lock the connection, see LOCKNUT, ELECTRICAL CONDUIT. See also LOCKNUT, TUBE FITTING. For items having a thickness (or height) exceeding two times the width across the flats, use POST, ELECTRICAL-MECHANICAL EQUIPMENT. (When height or thickness and/or width across the flats is designated as a tolerance dimension, the maximum dimension will be used to determine compliance.
Part Alternates: 2585520, 5310-00-159-3556, 00-159-3556, 5310001593556, 001593556
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 24 OCT 1971 | 00-159-3556 | 01857 ( NUT, PLAIN, HEXAGON ) |

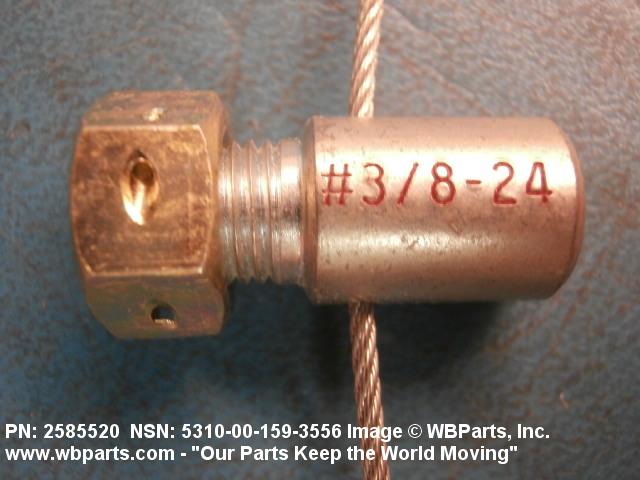

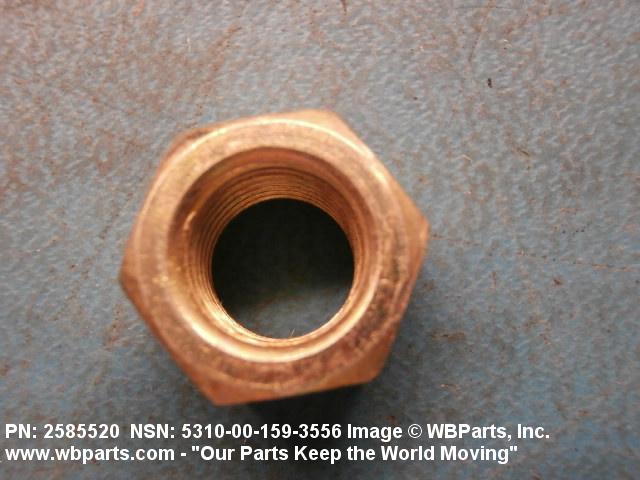

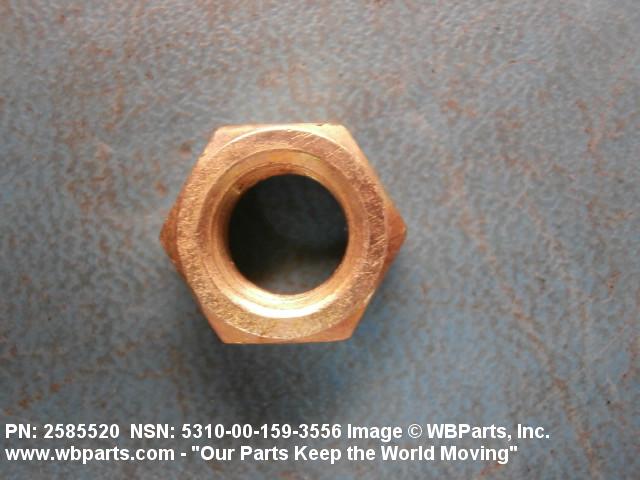

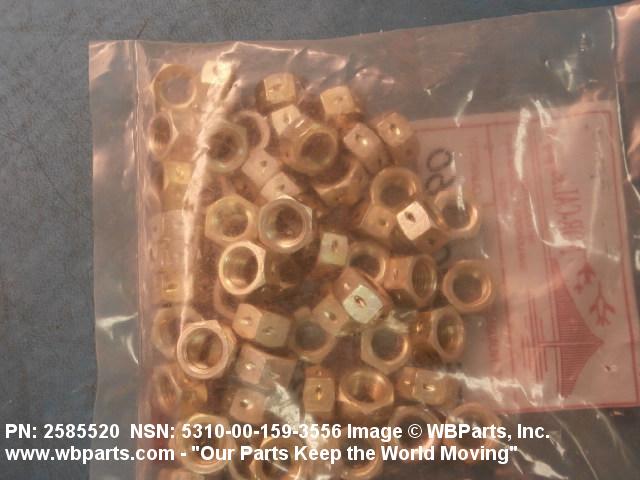

Drawings & Photos | NSN 5310-00-159-3556
Demand History | NSN 5310-00-159-3556
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-159-3556 | 2025-07-202 | 218 | DIBBS |
| 5310-00-159-3556 | 2025-04-102 | 10 | US |
| 5310-00-159-3556 | 2024-09-266 | 218 | DIBBS |
| 5310-00-159-3556 | 2019-08-227 | 108 | DIBBS |
| 5310-00-159-3556 | 2016-07-209 | 60 | us |
| 5310-00-159-3556 | 2016-06-173 | 60 | United States |
Cross Reference | NSN 5310-00-159-3556
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2585520 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-159-3556
Related Products | NSN 5310-00-159-3556
Technical Data | NSN 5310-00-159-3556
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.375 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-624,COMP 1335 FED SPEC SINGLE MATERIAL RESPONSE OR QQ-S-624 COMP 4130 THRU 4140 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A12 HEXAGON |

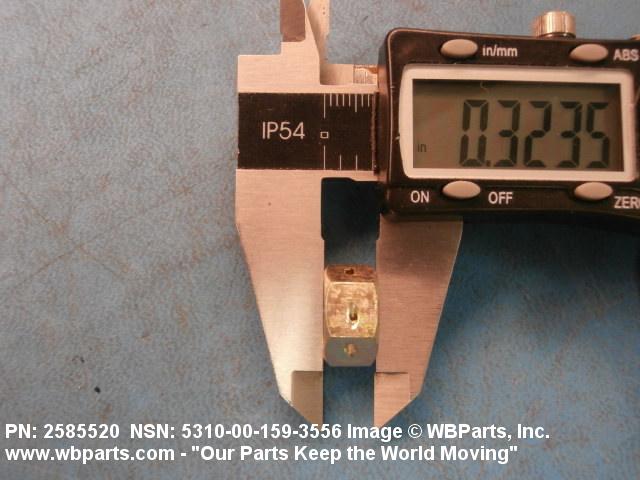

| NUT HEIGHT | 0.320 INCHES MINIMUM AND 0.337 INCHES MAXIMUM |

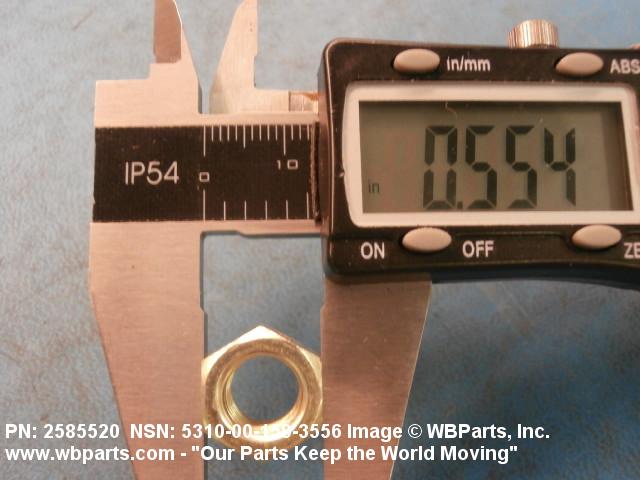

| WIDTH ACROSS FLATS | 0.551 INCHES MINIMUM AND 0.562 INCHES MAXIMUM |
| HOLE CONFIGURATION STYLE | H2 CONFIGURATION B |

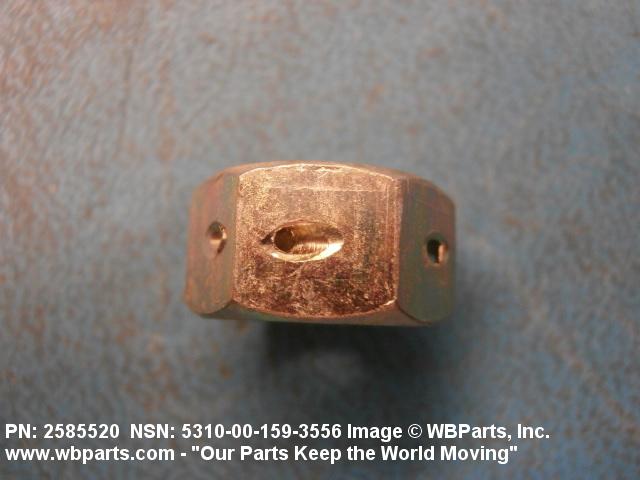

| HOLE TYPE AND QUANTITY | 3 DRILLED |

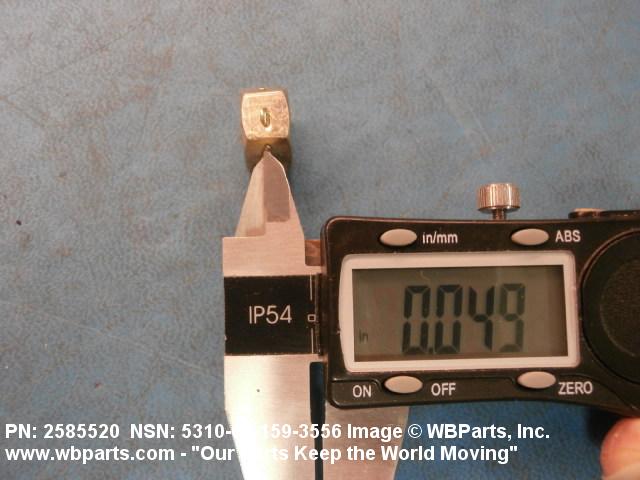

| DRILLED HOLE DIAMETER | 0.052 INCHES NOMINAL |
| BEARING SURFACE TYPE | WASHER FACED |
| TEMP RATING | NOT RATED |
Restrictions/Controls & Freight Information | NSN 5310-00-159-3556
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | PA | Marine Corps Logistics Base Albany, GA 31704-1128 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-159-3556
Navy
Marines| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 2 | Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Echelon Identification Code | K | Reserved |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
H EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
H EA : Each |
