NSN 5310-00-167-0752 AN960D10L, NAS1149D0316, NAS1149D0316H

Product Details | FLAT WASHER

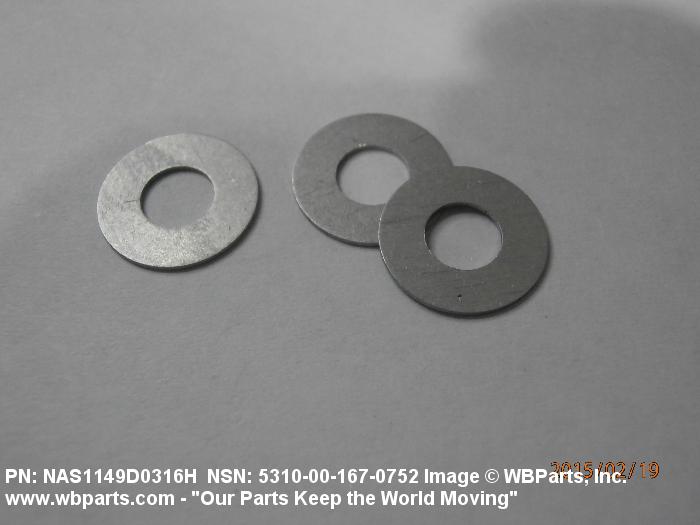

5310-00-167-0752 A washer having a centrally located hole with a solid or laminated cross-section and two flat parallel bearing surfaces. The hole must be 75 percent or less than the largest dimension and the bearing surface finish is greater than 32 microinch (0.8 micrometer). The thickness cannot exceed 25 percent of the largest outside dimension. When the largest outside dimension is less than 1/4 inch or 6mm, the thickness must be 0.006 inches (0.15mm) or greater and for items 1/4 inch (6mm) or larger, the thickness must be 0.016 inches (0.4mm) or greater. The maximum tolerance is applied to dimensions and used as a determining factor. Items with separable lamination use SHIM. For items fabricated from ceramic or electrically rated materials by specification or industry standards use INSULATOR (1), WASHER. Excludes DISK, VALVE, graphite impregnated and lubricated items.

Part Alternates: AN960D10L, NAS1149D0316, NAS1149D0316H, 7601688, 8812816, 10087990, 2411596, 5310-00-167-0752, 00-167-0752, 5310001670752, 001670752

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-167-0752	13393 ( WASHER, FLAT )

Drawings & Photos | NSN 5310-00-167-0752

Part Number	Request Date	QTY	Origin
NAS1149D0316H	2025-09-262	10	United States
NAS1149D0316	2025-09-255	1000	United States
NAS1149D0316H	2025-08-213	480	United States
5310-00-167-0752	2025-02-41	8	US
5310-00-167-0752	2024-09-271	127600	United States
AN960D10L	2024-04-113	4	United States
5310-00-167-0752	2023-07-188	6	US
NAS1149D0316H	2023-07-188	250	United States
NAS1149D0316H	2023-05-144	20	United States
NAS1149D0316H	2022-04-109	4	United Arab Emirates
5310-00-167-0752	2021-11-329	1090	Malaysia
5310-00-167-0752	2020-09-274	500	United States
NAS1149D0316H	2020-05-147	1000	US
NAS1149D0316H	2020-04-100	4	United States
NAS1149D0316	2019-12-343	500	United States
5310-00-167-0752	2019-12-336	2000	Singapore
5310-00-167-0752	2019-11-331	2000	Singapore
AN960D10L	2019-09-252	15	us
AN960D10L	2019-09-252	15
NAS1149D0316	2019-09-248	750	us
NAS1149D0316H	2019-08-226	500	United States
5310-00-167-0752	2019-07-210	300	United States
AN960D10L	2019-07-210	4	US
NAS1149D0316H	2019-04-106	475	United States
NAS1149D0316H	2019-03-73	754	Germany
5310-00-167-0752	2019-02-38	1100	us
5310-00-167-0752	2019-02-34	1	DIBBS
NAS1149D0316H	2018-11-306	35	United States
AN960D10L	2018-09-271	5000	US
NAS1149D0316	2018-09-271	5000	US
NAS1149D0316H	2018-09-271	5000	US
NAS1149D0316H	2018-09-269	10	US
5310-00-167-0752	2018-09-267	5000	Singapore
NAS1149D0316H	2018-09-253	1	United States
NAS1149D0316H	2018-05-143	16	United States
NAS1149D0316H	2018-04-115	300	United States
NAS1149D0316H	2018-04-108	200	United Arab Emirates
NAS1149D0316H	2017-06-172	120	United States
NAS1149D0316H	2017-05-129	500	United States
5310-00-167-0752	2017-02-53	18	MANUAL
NAS1149D0316H	2017-01-23	24	US
AN960D10L	2016-12-340	8	Philippines
AN960D10L	2016-06-154	11	United States
5310-00-167-0752	2016-05-132	15	United States
NAS1149D0316H	2016-02-60	125	United States
NAS1149D0316H	2015-07-211	1000	United States
5310-00-167-0752	2015-06-160	25	United States
AN960D10L	2015-06-159	50	United States
NAS1149D0316H	2015-05-134	20	SA
AN960D10L	2015-04-118	50	United States
AN960D10L	2015-04-105	3	US
AN960D10L	2015-02-56	350	Ukraine
5310-00-167-0752	2015-02-56	350	MANUAL
AN960D10L	2015-02-56	350	Ukraine
5310-00-167-0752	2015-02-51	300	United States
NAS1149D0316H	2014-09-251	4	United States
NAS1149D0316H	2014-06-171	100	United States
AN960D10L	2014-04-104	500	Brazil
5310-00-167-0752	2014-04-99	100	United States
AN960D10L	2014-04-91	10	United States
AN960D10L	2013-12-364	4	Singapore
NAS1149D0316H	2013-12-364	4	Singapore
NAS1149D0316H	2013-12-336	14	US
NAS1149D0316H	2013-12-336	14	US
AN960D10L	2013-11-331	50	United States
AN960D10L	2013-11-331	100	United States
AN960D10L	2013-11-331	250	United States
AN960D10L	2013-11-331	500	United States
AN960D10L	2013-10-304	3	China
NAS1149D0316H	2013-09-268	250	United States
AN960D10L	2013-09-259	1	United States
AN960D10L	2013-09-259	2	United States
AN960D10L	2013-09-259	4	United States
5310-00-167-0752	2013-08-221	1	DIBBS
5310-00-167-0752	2013-07-212	2	DIBBS
NAS1149D0316H	2013-07-210	250	United States
5310-00-167-0752	2013-07-206	2	MANUAL
5310-00-167-0752	2013-07-203	4	DIBBS
5310-00-167-0752	2013-07-198	1	DIBBS
5310-00-167-0752	2013-07-198	28	DIBBS
AN960D10L	2013-03-67	100	United States
AN960D10L	2012-11-310	61
NAS1149D0316H	2012-10-278	100	TR
AN960D10L	2012-08-228	68	US
5310-00-167-0752	2012-08-228	68	US
NAS1149D0316H	2012-03-66	750	us
AN960D10L	2012-02-38	3	AR
5310-00-167-0752	2012-02-38	3	MANUAL
AN960D10L	2012-02-34	670	United States
5310-00-167-0752	2012-02-32	300	AR
NAS1149D0316H	2011-05-146	90	United States
NAS1149D0316H	2011-05-145	84	United States
NAS1149D0316	2011-05-129	200	United States
5310-00-167-0752	2011-05-123	30	US
5310-00-167-0752	2011-05-123	30	US
AN960D10L	2011-04-103	5	US
NAS1149D0316H	2011-04-97	12	JO
NAS1149D0316H	2011-03-62	100	US
5310-00-167-0752	2011-01-24	50	Spain
5310-00-167-0752	2011-01-21	150	US
AN960D10L	2010-07-209	1000	US
5310-00-167-0752	2009-11-307	24	United States
NAS1149D0316H	2009-10-279	100	us
5310-00-167-0752	2009-08-243	8256	Brazil
5310-00-167-0752	2009-08-238	18	MX
5310-00-167-0752	2009-08-238	10	Philippines
AN960D10L	2009-08-217	1980	US
AN960D10L	2009-08-217	1	AM
AN960D10L	2009-07-204	190	US
5310-00-167-0752	2009-06-155	100	US
NAS1149D0316H	2009-02-41	2000	IE
AN960D10L	2009-01-29	100	US
AN960D10L	2008-12-346	100	Thailand
NAS1149D0316H	2008-09-270	100	US
AN960D10L	2008-04-112	100	India
5310-00-167-0752	2008-04-100	60	United States
NAS1149D0316H	2008-01-11	43	US
NAS1149D0316H	2007-11-318	300	United States
NAS1149D0316	2007-11-305	100	United States
AN960D10L	2007-10-282	300	China
NAS1149D0316	2007-04-120	1000	United States
5310-00-167-0752	2006-09-264	5000	Canada
AN960D10L	2006-09-258	120	US
NAS1149D0316H	2006-04-116	100	US

Cross Reference | NSN 5310-00-167-0752

Part Number	Cage Code	Manufacturer
2411596	001JK	EMBRAER S/A
2411596	FB459	EMBRAER AVIATION INTERNATIONAL
2411596	S4956	EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA
7601688	19203	PICATINNY ARSENAL
8812816	19203	PICATINNY ARSENAL
AN960D10L	10630	ANILLO INDUSTRIES, INC. DBA ANILLO INDUSTRIES
AN960D10L	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
NAS1149D0316	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
NAS1149D0316H	10630	ANILLO INDUSTRIES, INC. DBA ANILLO INDUSTRIES

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-167-0752

Compare

Related Products | NSN 5310-00-167-0752

5310-00-167-0753, 5310-00-167-0754, 5310-00-167-0755, 5310-00-167-0757, 5310-00-167-0758

Technical Data | NSN 5310-00-167-0752

Characteristic	Specifications
MATERIAL	ALUMINUM ALLOY 2024 OVERALL

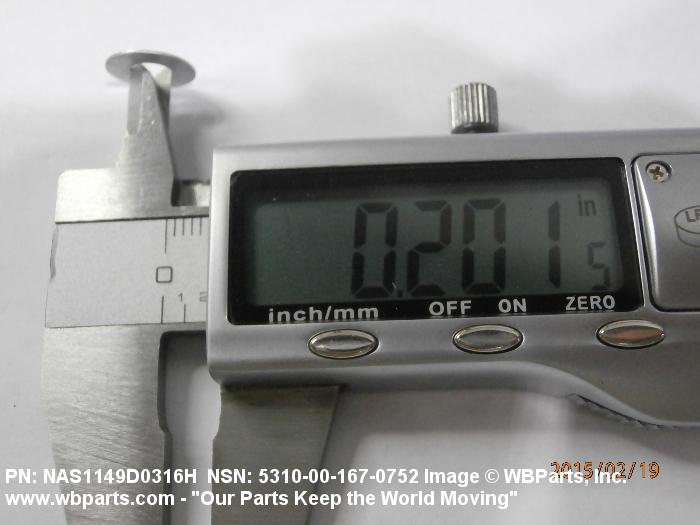

HOLE DIAMETER	0.203 INCHES NOMINAL
PERIPHERAL SHAPE STYLE	1 ROUND

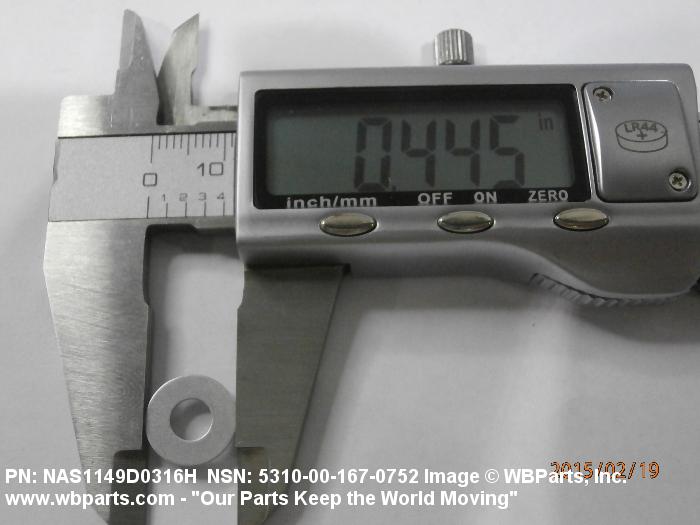

OVERALL DIAMETER	0.438 INCHES NOMINAL
CENTER HOLE SHAPE STYLE	1 ROUND
CROSS-SECTIONAL SHAPE STYLE	1 RECTANGULAR

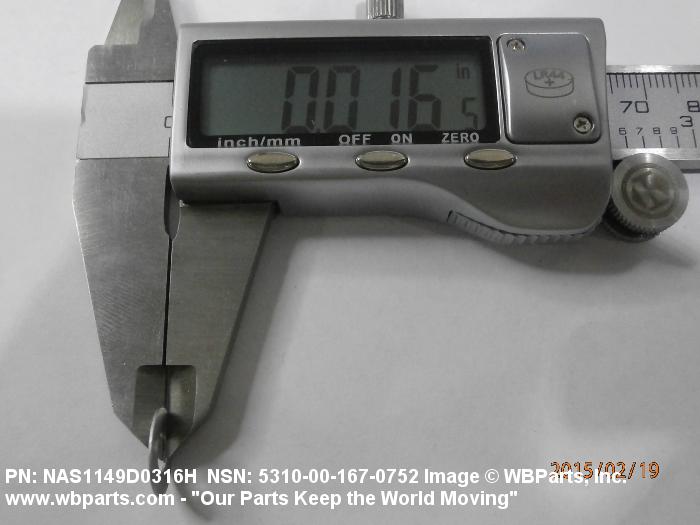

THICKNESS	0.016 INCHES NOMINAL
III HEAT TREATMENT	T-3 SOLUTION HEAT TREATED, COLD WORKED OR T-4 SOLUTION HEAT TREATED, NATURAL AGED
MANUFACTURERS CODE	88044
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	AN960D10L

Restrictions/Controls & Freight Information | NSN 5310-00-167-0752

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	194120	WASHERS/GASKETS/PCKG DVCS NOI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-00-167-0752

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	V	TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	V	TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	V	TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	V	TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable.
Controlled Item Code	U	UNCLASSIFIED
