NSN 5310-00-167-0823 MCD412211TEM6, MCD4122-11TEM6, NAS1149F0683P

Product Details | FLAT WASHER

5310-00-167-0823 A washer having a centrally located hole with a solid or laminated cross-section and two flat parallel bearing surfaces. The hole must be 75 percent or less than the largest dimension and the bearing surface finish is greater than 32 microinch (0.8 micrometer). The thickness cannot exceed 25 percent of the largest outside dimension. When the largest outside dimension is less than 1/4 inch or 6mm, the thickness must be 0.006 inches (0.15mm) or greater and for items 1/4 inch (6mm) or larger, the thickness must be 0.016 inches (0.4mm) or greater. The maximum tolerance is applied to dimensions and used as a determining factor. Items with separable lamination use SHIM. For items fabricated from ceramic or electrically rated materials by specification or industry standards use INSULATOR (1), WASHER. Excludes DISK, VALVE, graphite impregnated and lubricated items.

Part Alternates: MCD412211TEM6, MCD4122-11TEM6, NAS1149F0683P, A16382, A1638-2, A25M6504, AN960816, AN960-816, E172052576, E-172-052-576, YN120396, Z00.N5741503510, Z00N5741503510, 02250, 194655, 21C1530216, 21C1530-216, 2410081, 3188572PC23, 407 569, 407569, 5-4-1305-110, 69302651 REFERENCE 16, 69302651/16, 6930265116, 69302651REFERENCE16, 79154090340, 791-540-90340, 80001900, 800019-00, 8812909, 938.77.11.123, 9387711123, 5310-00-167-0823, 00-167-0823, 5310001670823, 001670823, 541305110

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-167-0823	13393 ( WASHER, FLAT )

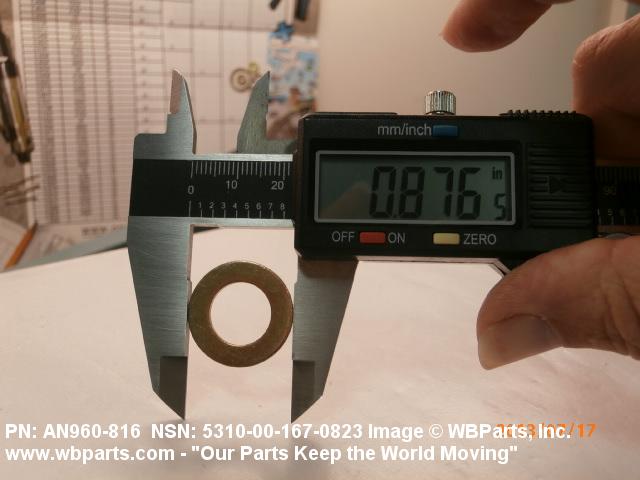

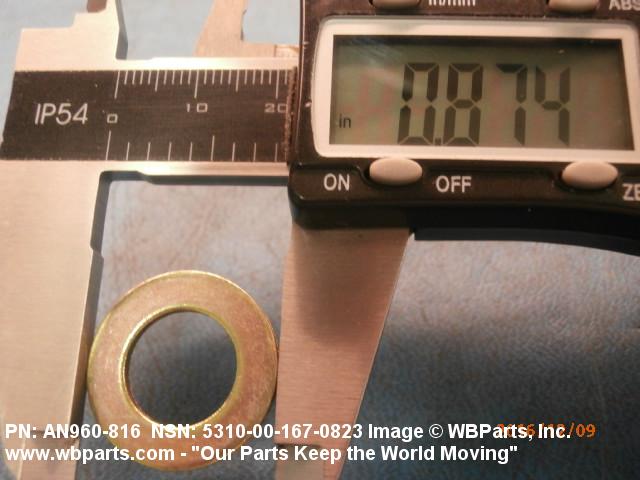

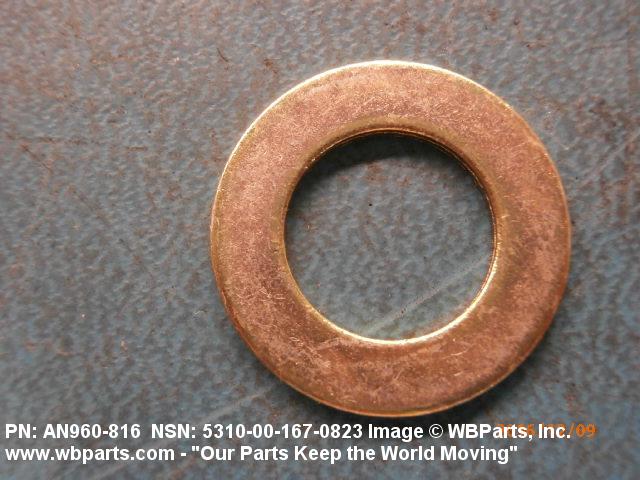

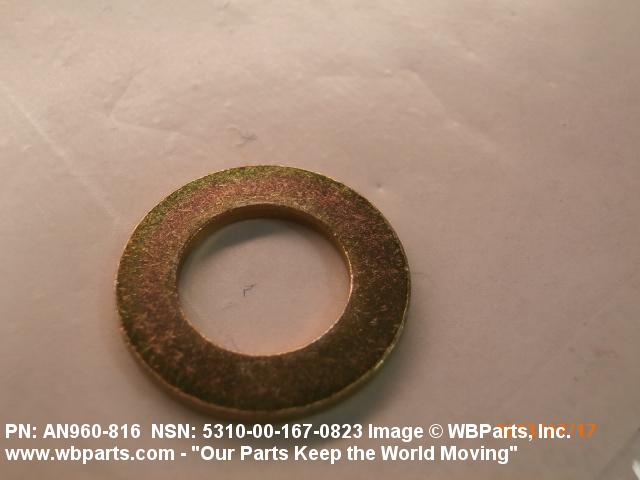

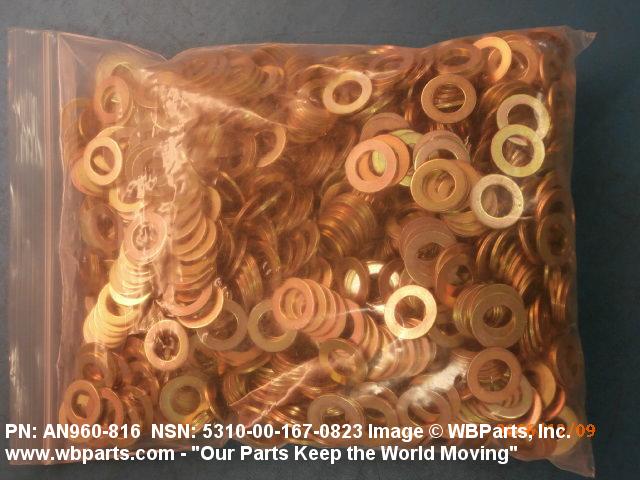

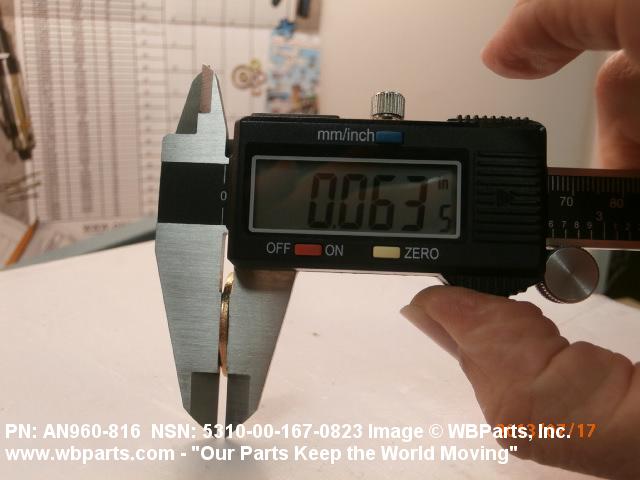

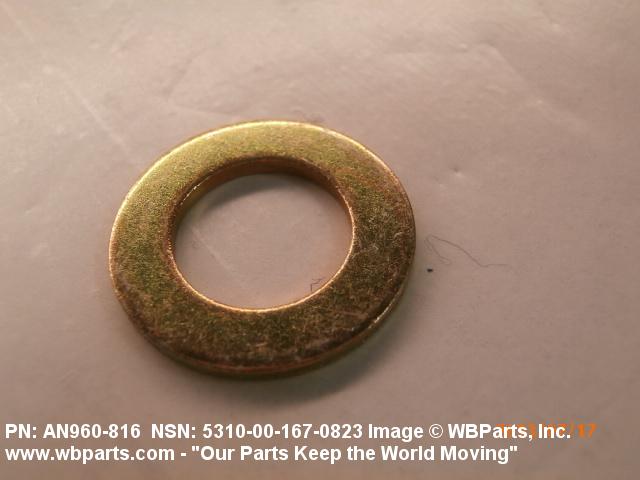

Drawings & Photos | NSN 5310-00-167-0823

Part Number	Request Date	QTY	Origin
AN960816	2024-10-299	19	United States
AN960816	2023-04-115	3	us
5310-00-167-0823	2022-12-349	1	US
AN960-816	2022-01-06	150	IN
AN960816	2021-10-292	21	United States
AN960816	2021-04-104	10	United States
5310-00-167-0823	2020-12-339	2	US
2410081	2020-03-91	1	US
AN960816	2020-01-16	6	MX
AN960816	2019-11-309	7	United States
AN960816	2018-07-197	40	SA
AN960816	2018-04-102	20	SA
AN960816	2018-03-78	36	United States
AN960816	2018-03-73	14	United States
AN960816	2018-01-16	20	SA
AN960816	2017-03-61	10	us
AN960816	2017-01-04	132	United States
AN960816	2016-11-334	6000	us
AN960816	2016-06-180	20	South Korea
AN960816	2016-02-41	12	US
AN960-816	2015-05-138	18	United States
AN960-816	2015-05-138	6	United States
AN960-816	2015-05-138	6	United States
AN960-816	2015-05-138	18	United States
AN960-816	2015-05-138	6	United States
AN960-816	2015-05-138	6	United States
AN960816	2015-03-79	56	Singapore
5310-00-167-0823	2014-09-255	26	US
AN960816	2014-08-223	170	US
AN960816	2014-05-125	100	US
AN960816	2014-03-78	28	United States
AN960-816	2014-03-71	92	United States
AN960816	2014-03-70	8000	US
AN960816	2014-03-70	11000	US
AN960816	2014-03-70	23000	US
AN960816	2014-03-70	45000	US
AN960816	2013-08-241	28	United States
AN960816	2013-08-241	100	Ukraine
AN960816	2013-08-232	18	US
AN960816	2013-08-232	34	US
AN960816	2013-07-193	16	United States
AN960816	2013-06-163	200	Turkey
AN960816	2013-05-123	200	United States
AN960816	2013-04-120	16	United States
AN960-816	2013-04-115	20	United States
AN960816	2013-04-106	25	United States
AN960-816	2013-02-38	352	United States
AN960-816	2013-01-30	35200	United States
AN960-816	2012-11-310	50
AN960816	2012-08-216	150	US
AN960816	2012-05-131	25	US
AN960816	2012-05-130	2	US
5310-00-167-0823	2012-05-125	130	India
AN960816	2012-03-83	1	US
AN960-816	2012-02-40	120	TR
AN960816	2011-12-347	6	United States
AN960816	2011-11-325	176	United States
AN960816	2011-09-264	18	Malaysia
AN960816	2011-07-189	24	India
5310-00-167-0823	2011-01-25	1	US
5310-00-167-0823	2010-10-301	60	India
AN960816	2010-05-139	13	United States
5310-00-167-0823	2010-03-64	282	US
AN960816	2009-11-321	110	US
5310-00-167-0823	2009-11-321	6	US
5310-00-167-0823	2009-11-316	146	US
5310-00-167-0823	2009-07-205	2	United States
5310-00-167-0823	2009-06-175	4	US
AN960816	2009-04-93	500	Italy
AN960816	2008-10-288	6	HU
AN960816	2008-07-210	80	US
5310-00-167-0823	2008-05-126	12	US
AN960816	2006-05-144	2	MX

Cross Reference | NSN 5310-00-167-0823

Part Number	Cage Code	Manufacturer
02250	17023	BRUCE AEROSPACE INC. DIV BRUCE AEROSPACE INC
194655	62983	EATON AEROSPACE LLC
21C1530-216	07482	GENERAL ELECTRIC COMPANY DBA GE
2410081	001JK	EMBRAER S/A
2410081	FB459	EMBRAER AVIATION INTERNATIONAL
2410081	S4956	EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA
3188572PC23	59364	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
407 569	77294	PIPER AIRCRAFT INC.
5-4-1305-110	05699	BRUNSWICK CORP DEFENSE DIV
5-4-1305-110	81337	ARMY, UNITED STATES DEPARTMENT OF THE
5310001670823	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
69302651 REFERENCE 16	U1918	FLIGHT REFUELLING LTD DBA COBHAM MACHINE EQUIPMENT
69302651/16	U1918	FLIGHT REFUELLING LTD DBA COBHAM MACHINE EQUIPMENT
791-540-90340	99193	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
800019-00	32345	DEFENSE REDUCTION AGENCY
8812909	19203	PICATINNY ARSENAL
938.77.11.123	S4080	PILATUS AIRCRAFT LTD
A1638-2	76275	CESSNA AIRCRAFT CO MCCAULEY ACCESSORY DIV
A25M6504	86796	ROFLAN ASSOCIATES INC
AN960-816	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
E-172-052-576	11440	ALSTOM POWER INC.
MCD4122-11TEM6	24082	GARY STEEL PRODUCTS CORP
NAS1149F0683P	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
YN120396	03240	LAL ACQUISITION INC. DBA LIFT-A-LOFT CORPORATION
Z00.N5741503510	F0086	SOCATA

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-167-0823

Compare

Related Products | NSN 5310-00-167-0823

5310-00-167-0824, 5310-00-167-0825, 5310-00-167-0826, 5310-00-167-0827, 5310-00-167-0828

Technical Data | NSN 5310-00-167-0823

Characteristic	Specifications
MATERIAL	STEEL OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	MIL-S-7952 MIL SPEC SINGLE MATERIAL RESPONSE OR QQ-S-698 FED SPEC SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	CADMIUM AND CHROMATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HOLE DIAMETER	0.505 INCHES MINIMUM AND 0.525 INCHES MAXIMUM
PERIPHERAL SHAPE STYLE	1 ROUND
OVERALL DIAMETER	0.870 INCHES MINIMUM AND 0.895 INCHES MAXIMUM
CENTER HOLE SHAPE STYLE	1 ROUND
CROSS-SECTIONAL SHAPE STYLE	1 RECTANGULAR
THICKNESS	0.053 INCHES MINIMUM AND 0.073 INCHES MAXIMUM
NONDEFINITIVE SPEC/STD DATA	A TYPE AND 1 GRADE AND A CLASS
MANUFACTURERS CODE	88044
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	AN960-816

Restrictions/Controls & Freight Information | NSN 5310-00-167-0823

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	194160	WASHER OR GASKETS, IRON OR STEEL,
Less than car load rating
Less than truck load rating	U	50.0
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-00-167-0823

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	B	Rotary Wing Aircraft
Weapons Systems/End Item or Homogeneous Group	BX	OH-58D Army Helicopter Improvement Program (AHIP)
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	V	TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	V	TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	V	TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	V	TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each
