NSN 5310-00-167-1344 A1942, A6348, A63-48
Product Details | HEXAGON PLAIN NUT
5310-00-167-1344 A nut, flat on top and bottom having 6 flat sides. For items which have internal tapered or straight (parallel) pipe threads, specific electrical conduit size designation, and which when installed, provide a method of tightening to lock the connection, see LOCKNUT, ELECTRICAL CONDUIT. See also LOCKNUT, TUBE FITTING. For items having a thickness (or height) exceeding two times the width across the flats, use POST, ELECTRICAL-MECHANICAL EQUIPMENT. (When height or thickness and/or width across the flats is designated as a tolerance dimension, the maximum dimension will be used to determine compliance.
Part Alternates: A1942, A6348, A63-48, AN3154, AN315-4, AN3154R, AN315-4R, FFN836, FF-N-836, N521, 1159, 20296, 278156, 278-156, 404 225, 404225, 5W1268FA22, 80213100, 802131-00, 938.03.27.106, 9380327106, 982737, 5310-00-167-1344, 00-167-1344, 5310001671344, 001671344
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-167-1344 | 01857 ( NUT, PLAIN, HEXAGON ) |

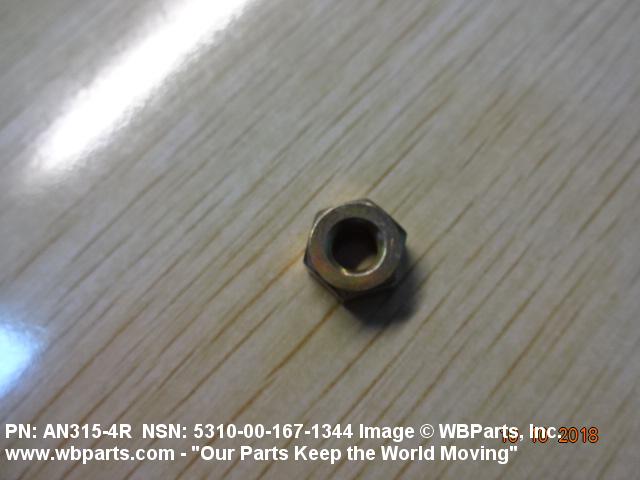

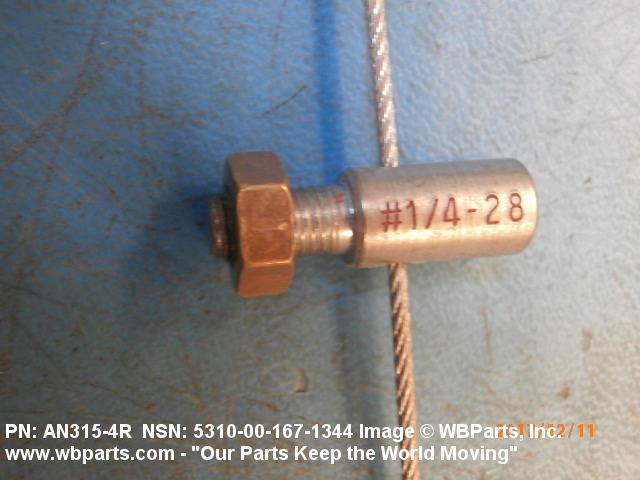

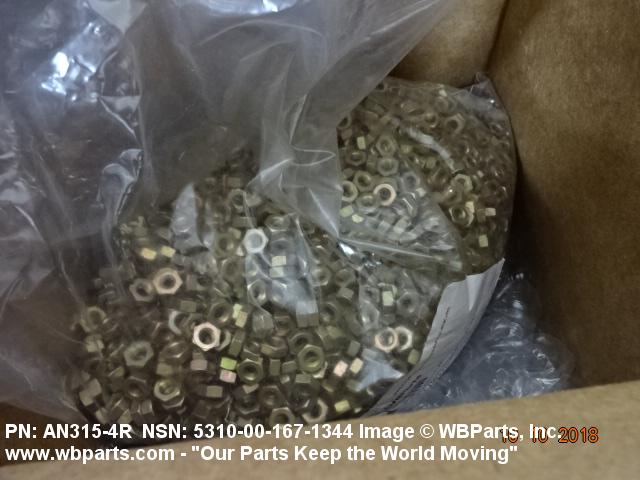

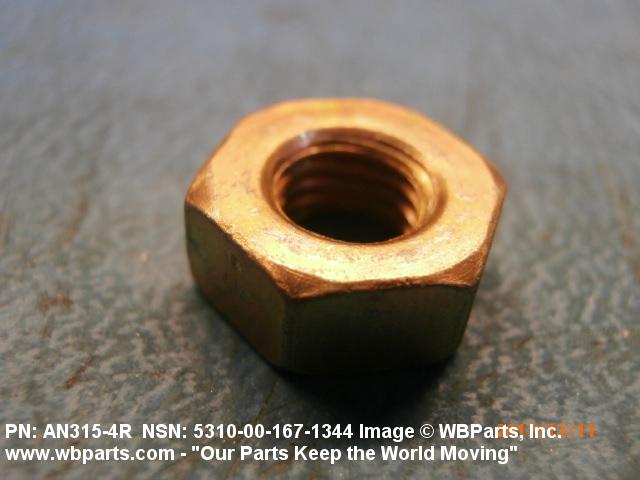

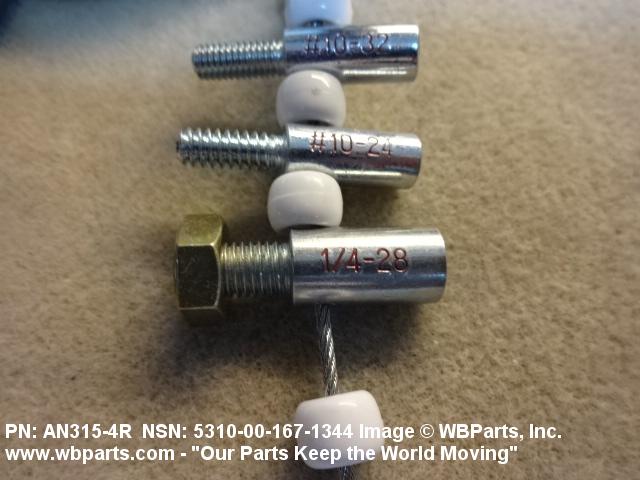

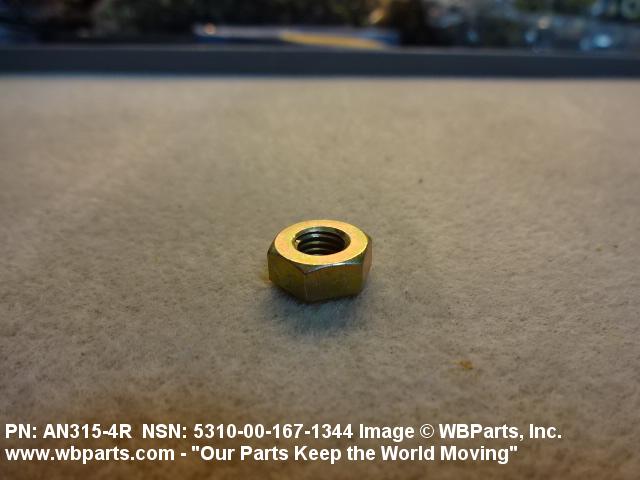

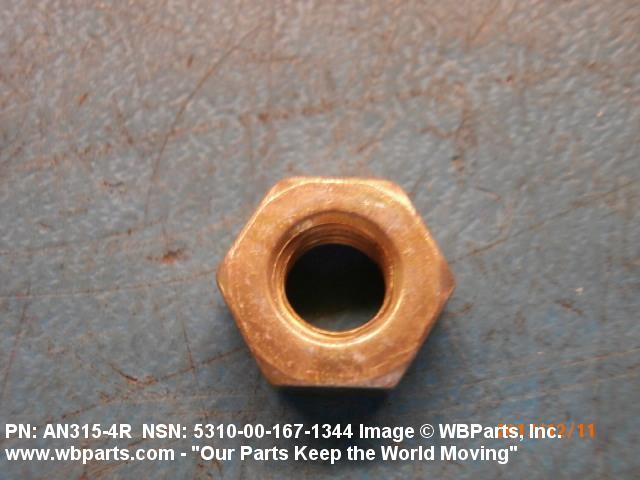

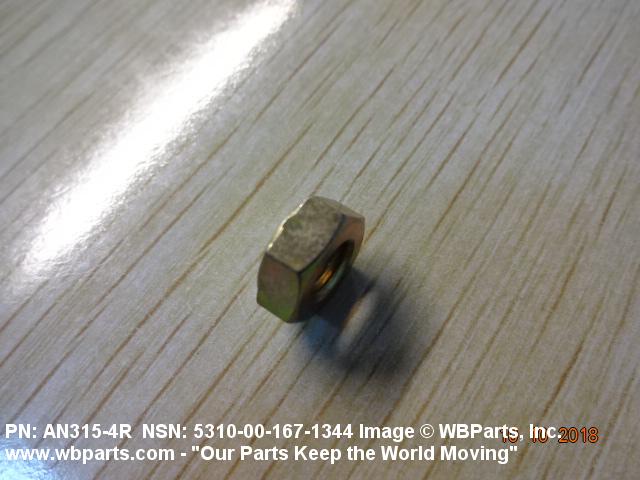

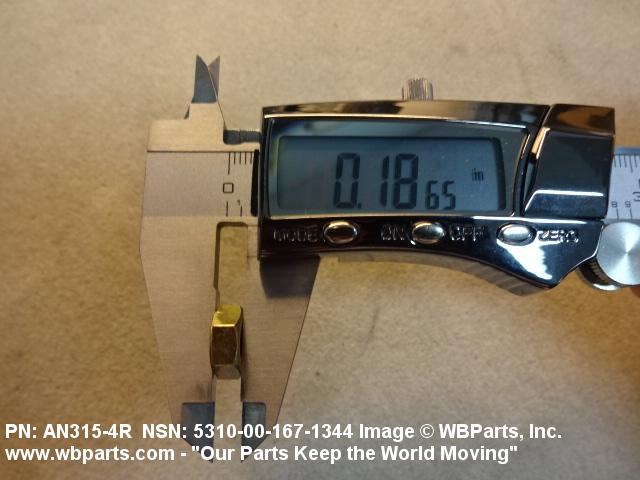

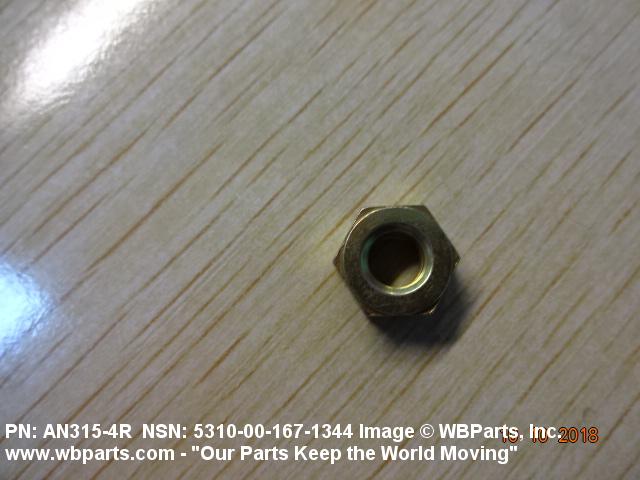

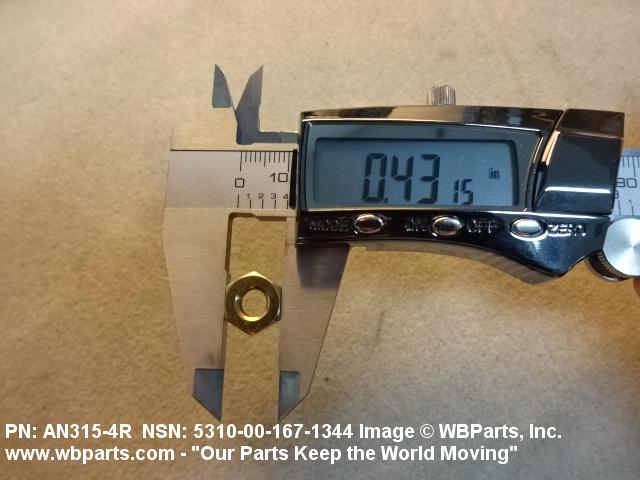

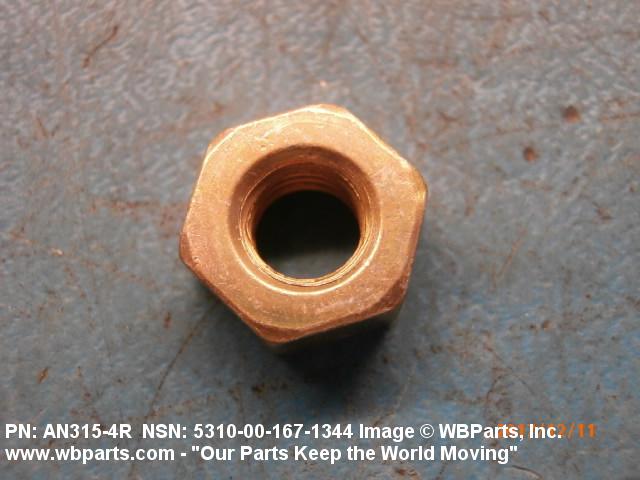

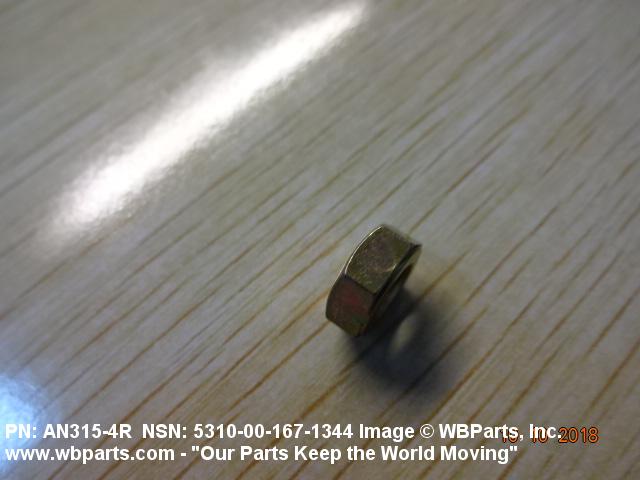

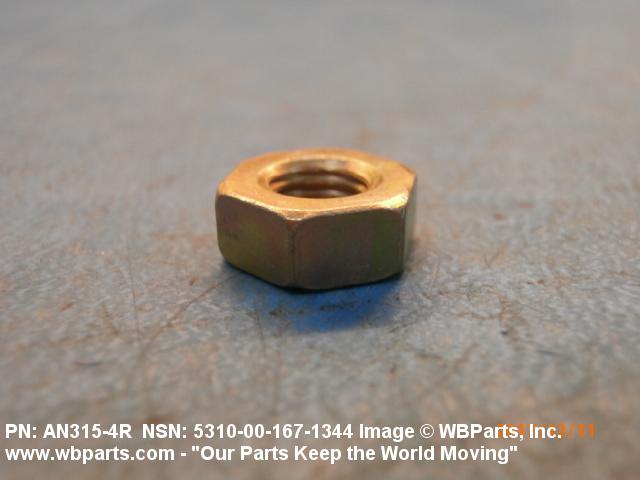

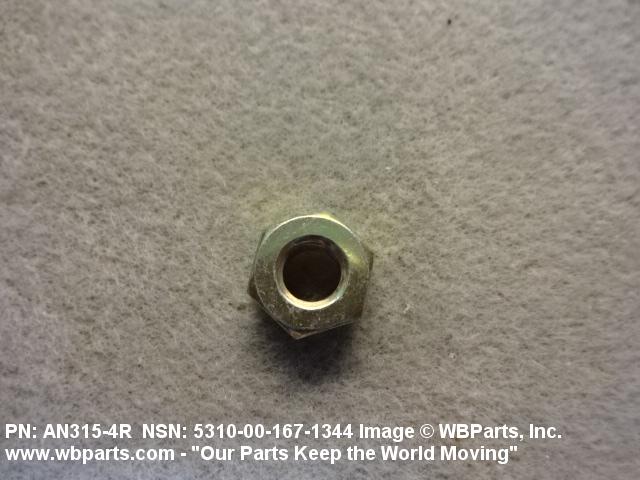

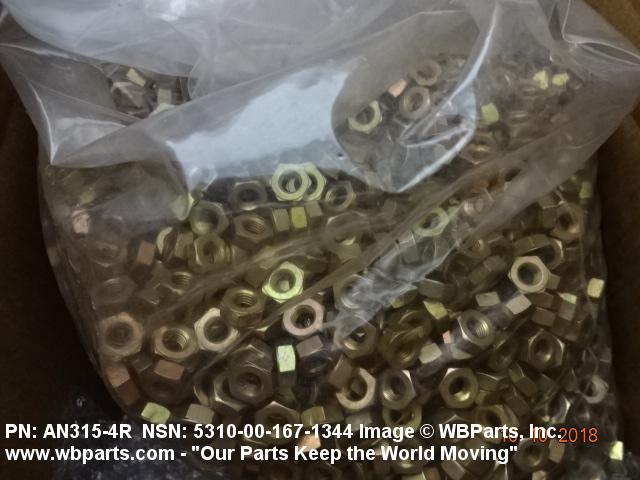

Drawings & Photos | NSN 5310-00-167-1344
Demand History | NSN 5310-00-167-1344
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| FFN836 | 2025-03-84 | 32 | Japan |
| 5310-00-167-1344 | 2025-02-57 | 713 | DIBBS |
| 5310-00-167-1344 | 2025-02-44 | 196 | DIBBS |
| FFN836 | 2024-10-291 | 190 | US |
| 5310-00-167-1344 | 2024-07-213 | 159 | DIBBS |
| 5310-00-167-1344 | 2024-04-112 | 670 | DIBBS |
| 5310-00-167-1344 | 2024-04-93 | 14 | DIBBS |
| AN3154R | 2023-12-348 | 9913 | United States |
| AN3154R | 2023-12-348 | 9913 | United States |
| FFN836 | 2023-09-258 | 100 | TR |
| AN3154R | 2022-09-265 | 500 | United States |
| 5310-00-167-1344 | 2022-08-223 | 746 | DIBBS |
| 5310-00-167-1344 | 2022-07-212 | 746 | DIBBS |
| AN3154R | 2022-04-108 | 40 | United States |
| FFN836 | 2021-11-307 | 200 | United States |
| FFN836 | 2021-08-228 | 100 | United States |
| AN3154R | 2019-10-301 | 100 | Taiwan |
| FFN836 | 2019-02-44 | 288 | US |
| 5310-00-167-1344 | 2019-01-27 | 3030 | DIBBS |
| 5310-00-167-1344 | 2019-01-02 | 2130 | DIBBS |
| 5310-00-167-1344 | 2018-10-281 | 4272 | DIBBS |
| AN3154R | 2018-06-172 | 50 | Taiwan |
| FFN836 | 2018-02-32 | 2 | US |
| 5310-00-167-1344 | 2017-11-326 | 1000 | United States |
| FFN836 | 2017-05-123 | 25 | United States |
| 5310-00-167-1344 | 2016-09-270 | 652 | DIBBS |
| 5310-00-167-1344 | 2016-09-262 | 652 | DIBBS |
| FF-N-836 | 2016-05-145 | 48 | Spain |
| AN3154R | 2016-02-34 | 600 | US |
| AN3154R | 2016-02-34 | 600 | US |
| AN3154R | 2015-05-148 | 2 | US |
| AN315-4R | 2014-08-232 | 50 | Australia |
| AN315-4R | 2014-08-232 | 50 | United States |
| AN315-4R | 2014-08-232 | 50 | United States |
| AN315-4R | 2014-08-227 | 50 | Australia |
| AN3154 | 2013-11-316 | 360 | US |
| AN3154R | 2013-10-284 | 800 | United States |
| AN3154R | 2013-07-193 | 10 | United States |
| AN315-4R | 2013-07-190 | 1 | HK |
| AN3154R | 2013-04-120 | 24 | United States |
| FFN836 | 2012-12-341 | 1 | US |
| AN315-4R | 2012-11-310 | 50 | |
| AN3154R | 2010-12-355 | 6000 | US |
| FFN836 | 2010-11-322 | 100 | United Kingdom |
| FFN836 | 2010-08-218 | 1 | US |
| FFN836 | 2010-08-218 | 1 | US |
| FFN836 | 2010-08-218 | 1 | US |
| FFN836 | 2010-08-218 | 1 | US |
| FFN836 | 2010-03-90 | 4 | us |
| 5310-00-167-1344 | 2010-03-84 | 778 | DIBBS |
| FFN836 | 2010-03-81 | 50 | United States |
| FFN836 | 2010-02-46 | 50 | United States |
| 5310-00-167-1344 | 2009-10-277 | 840 | Malta |
| FFN836 | 2009-07-183 | 1000 | US |
| FFN836 | 2009-05-141 | 580 | US |
| AN3154R | 2009-05-138 | 1200 | China |
| 5310-00-167-1344 | 2009-01-21 | 5 | United States |
| 5310-00-167-1344 | 2008-09-268 | 50 | US |
| FFN836 | 2008-07-195 | 20 | US |
| FFN836 | 2008-06-171 | 200 | US |
| 5310-00-167-1344 | 2008-03-84 | 20 | us |
| FFN836 | 2008-02-39 | 1 | US |
| FFN836 | 2007-10-298 | 100 | US |
Cross Reference | NSN 5310-00-167-1344
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1159 | 00198 | PRATT & WHITNEY CANADA CIE DIVPRATT & WHITNEY CANADA CORP. |
| 1159 | R1120 | SATAIR A/S |
| 20296 | 55176 | AIR PARTS & SUPPLY CO. DBA APSCO AIR PARTS & SUPPLY COMPANY |
| 278-156 | 45934 | ONTIC ENGINEERING AND MANUFACTURING, INC. |
| 278-156 | 56705 | DONALLCO INC |
| 404 225 | 77294 | PIPER AIRCRAFT INC. |
| 5W1268FA22 | 11530 | LOCKHEED MARTIN CORPORATION DIV LOCKHEED MARTIN INFORMATION |
| 802131-00 | 32345 | DEFENSE REDUCTION AGENCY |
| 938.03.27.106 | S4080 | PILATUS AIRCRAFT LTD |
| 982737 | F0302 | HISPANO SUIZA GROUPE SAFRAN |
| A1942 | 11599 | TRIUMPH ENGINE CONTROL SYSTEMS, LLC |
| A63-48 | 74080 | HARVARD INDUSTRIES |
| AN315-4 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| AN315-4R | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| AN315-4R | 81352 | AIR FORCE-NAVY AERONAUTICAL SPECIFICATIONS |
| AN315-4R | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| FF-N-836 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| N521 | 57733 | STEWART-WARNER CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-00-167-1344
Technical Data | NSN 5310-00-167-1344
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A12 HEXAGON |
| NUT HEIGHT | 0.172 INCHES MINIMUM AND 0.204 INCHES MAXIMUM |

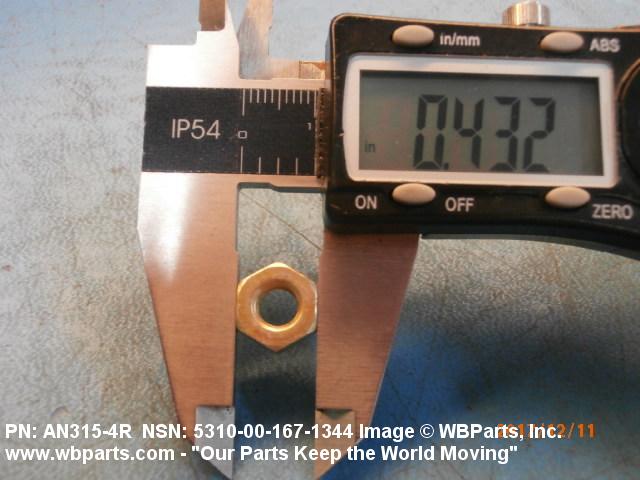

| WIDTH ACROSS FLATS | 0.428 INCHES MINIMUM AND 0.440 INCHES MAXIMUM |
| BEARING SURFACE TYPE | CHAMFERED OR WASHER FACED |
| TEMP RATING | NOT RATED |
| III BEARING SURFACE FINISH | 125.0 MICROINCHES |
| MANUFACTURERS CODE | 88044 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | FF-N-836 |
Restrictions/Controls & Freight Information | NSN 5310-00-167-1344
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
