NSN 5310-00-176-8112 A63458, A63-45-8, A6347
Product Details | HEXAGON SLOTTED PLAIN NUT

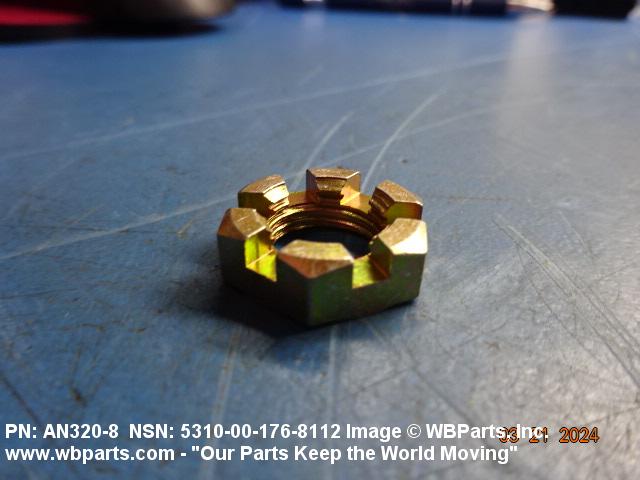

5310-00-176-8112 A nut having a flat bearing surface and 6 flat sides with slots in its upper portion. It is designed to provide positive locking when used with a solid or split (cotter) pin. Excludes NUT (1), PLAIN, CASTELLATED, HEXAGON.
Part Alternates: A63458, A63-45-8, A6347, A63-47, AN3208, AN320-8, F3758, 69947, 0603, 13629, 1752, 175-2, 175S2, 21C1530214, 21C1530-214, 2210332, 23AN3208, 23AN320-8, 5310-00-176-8112, 00-176-8112, 5310001768112, 001768112
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-176-8112 | 01859 ( NUT, PLAIN, SLOTTED, HEXAGON ) |

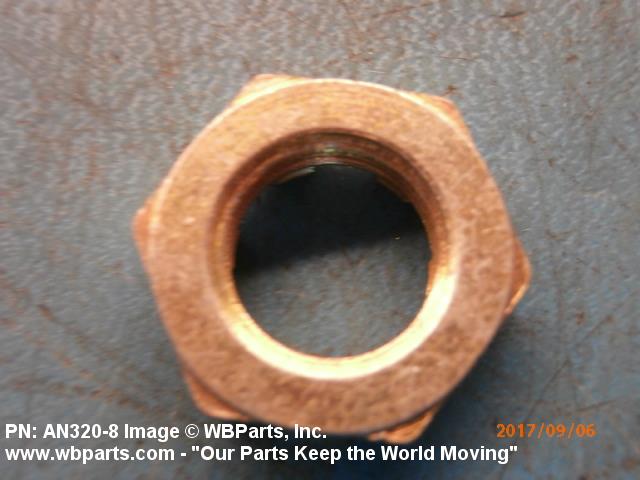

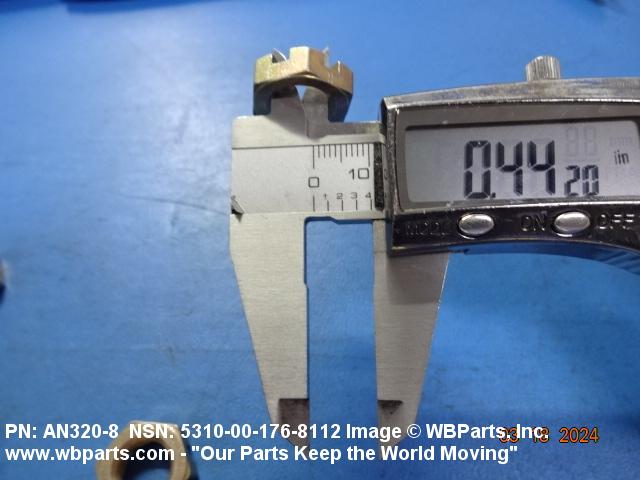

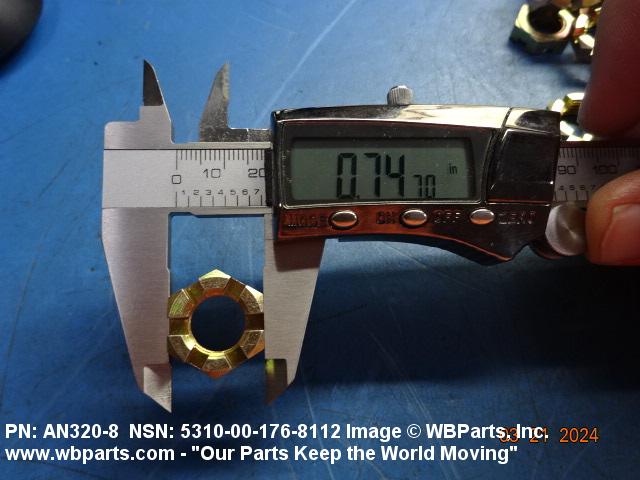

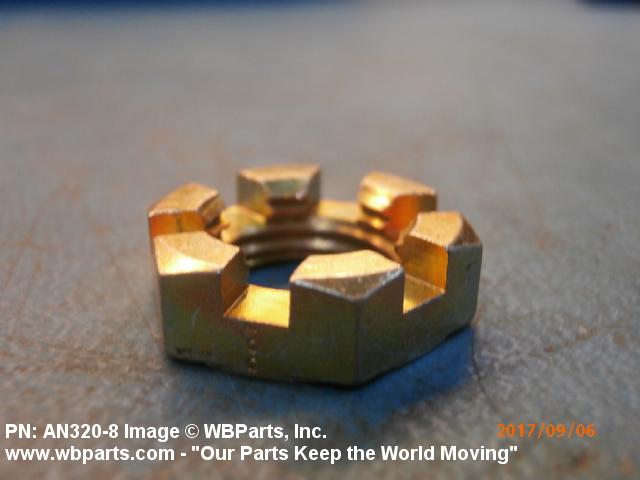

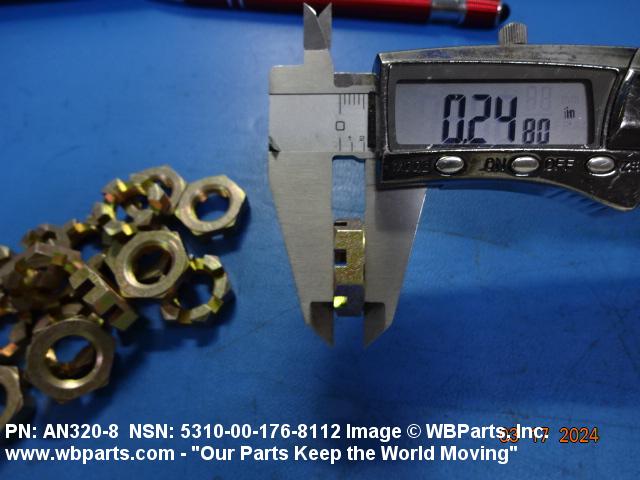

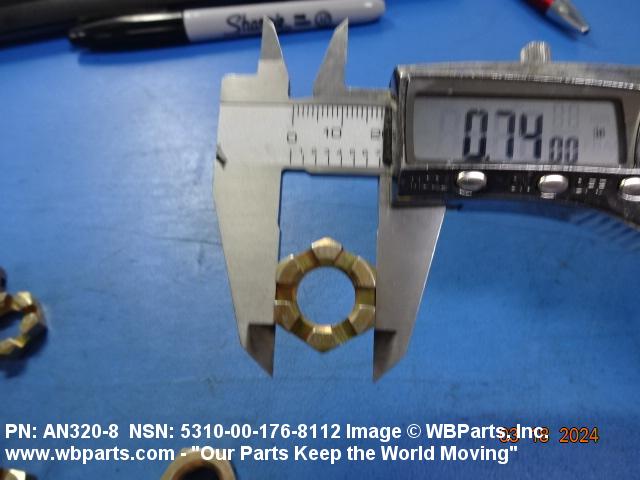

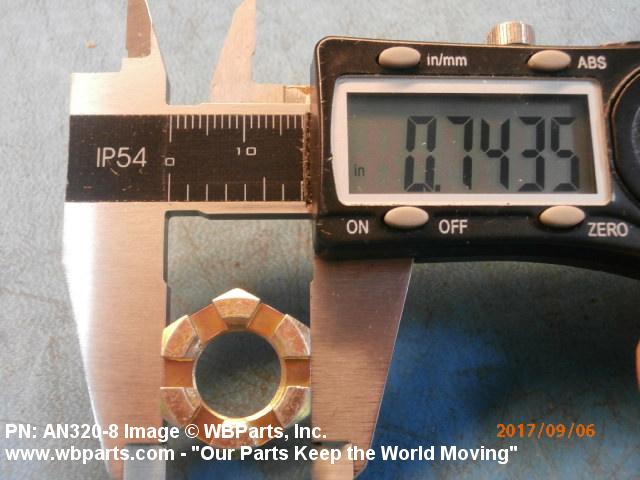

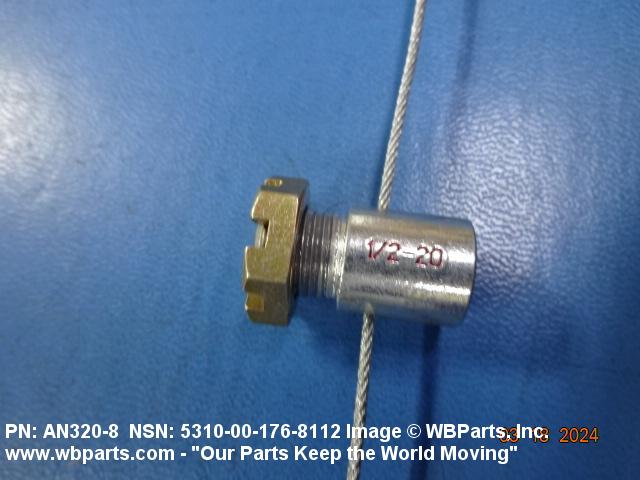

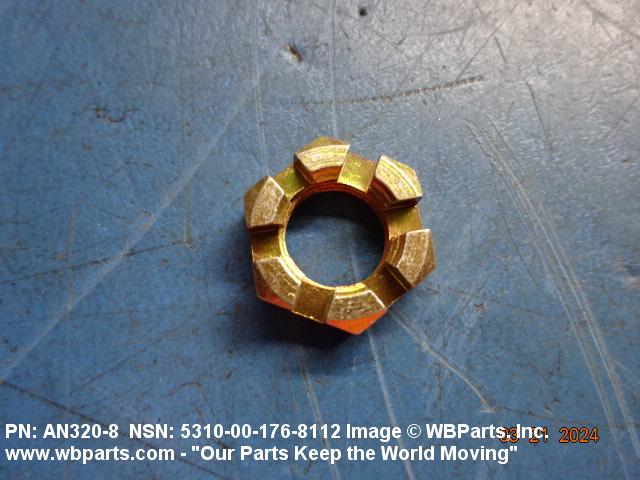

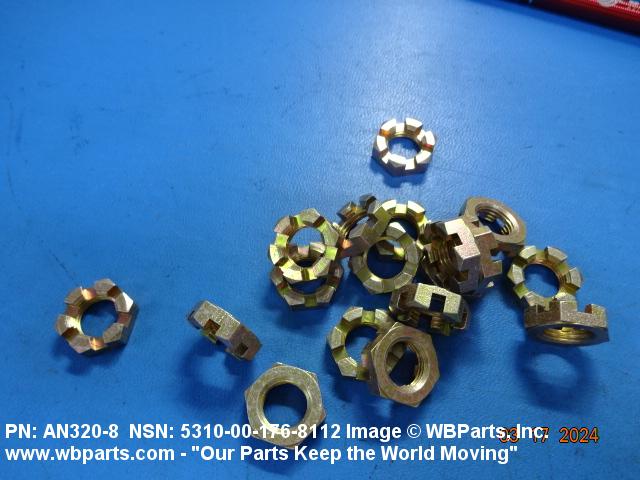

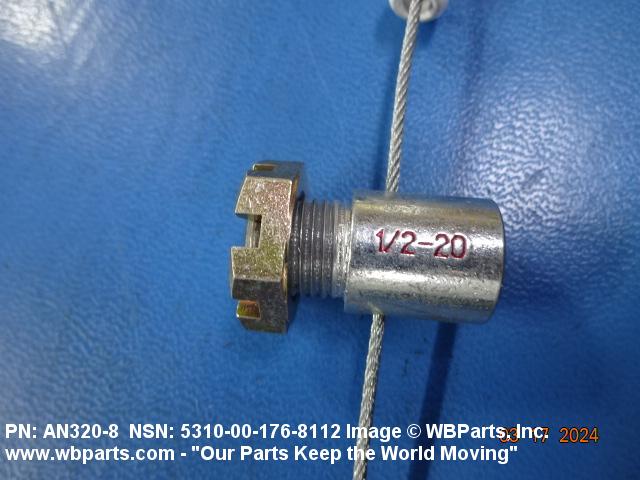

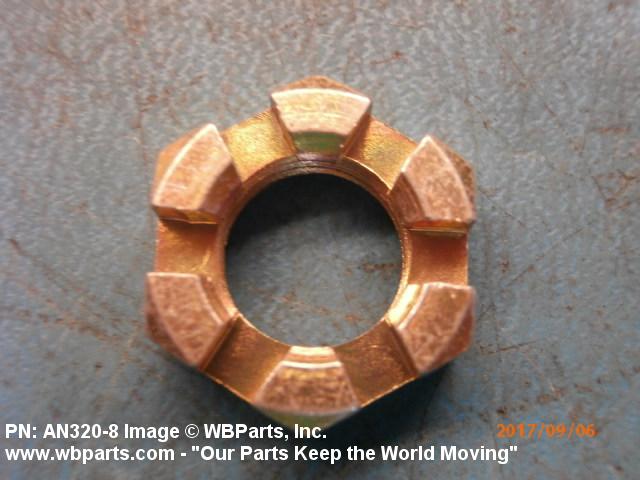

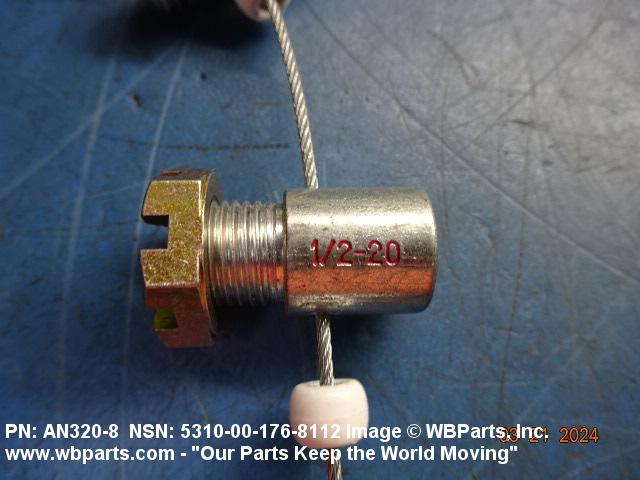

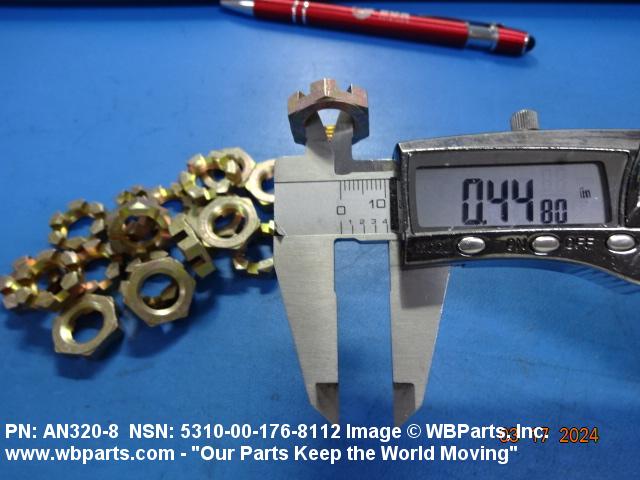

Drawings & Photos | NSN 5310-00-176-8112
Demand History | NSN 5310-00-176-8112
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN3208 | 2025-12-356 | 2 | US |
| AN3208 | 2025-03-78 | 2 | United States |
| AN3208 | 2024-02-44 | 50 | United States |
| AN3208 | 2024-01-25 | 50 | United States |
| AN3208 | 2023-05-136 | 10 | South Korea |
| AN3208 | 2023-05-122 | 6 | South Korea |
| AN3208 | 2023-04-115 | 3 | us |
| AN3208 | 2022-04-108 | 30 | United States |
| 5310-00-176-8112 | 2019-04-114 | 800 | United States |
| 5310-00-176-8112 | 2018-11-305 | 301 | DIBBS |
| AN3208 | 2018-10-292 | 18 | South Africa |
| 5310-00-176-8112 | 2018-08-231 | 56 | DIBBS |
| 5310-00-176-8112 | 2018-08-230 | 56 | DIBBS |
| 5310-00-176-8112 | 2018-08-219 | 449 | DIBBS |
| 5310-00-176-8112 | 2018-07-190 | 988 | DIBBS |
| 1752 | 2018-06-174 | 4 | US |
| 5310-00-176-8112 | 2018-06-168 | 2365 | DIBBS |
| 175S2 | 2018-05-127 | 1 | US |
| 5310-00-176-8112 | 2018-04-94 | 7 | DIBBS |
| 5310-00-176-8112 | 2018-03-81 | 50 | US |
| 5310-00-176-8112 | 2018-03-81 | 25000 | US |
| 5310-00-176-8112 | 2018-03-74 | 436 | DIBBS |
| 5310-00-176-8112 | 2018-03-72 | 1 | DIBBS-RFPs |
| 5310-00-176-8112 | 2018-03-67 | 509 | DIBBS |
| 5310-00-176-8112 | 2018-03-65 | 195 | DIBBS |
| 5310-00-176-8112 | 2018-03-60 | 195 | DIBBS |
| 5310-00-176-8112 | 2018-02-56 | 195 | DIBBS |
| 5310-00-176-8112 | 2018-02-43 | 1031 | DIBBS |
| AN3208 | 2017-09-244 | 25 | United States |
| 5310-00-176-8112 | 2017-04-107 | 1200 | DIBBS |
| 5310-00-176-8112 | 2017-03-88 | 1400 | DIBBS |
| 5310-00-176-8112 | 2017-03-60 | 2 | DIBBS |
| 5310-00-176-8112 | 2017-02-58 | 1 | DIBBS |
| 5310-00-176-8112 | 2017-02-57 | 1268 | DIBBS |
| AN3208 | 2016-10-302 | 50 | United States |
| 5310-00-176-8112 | 2016-10-300 | 3132 | DIBBS |
| 5310-00-176-8112 | 2016-10-297 | 3051 | DIBBS |
| 5310-00-176-8112 | 2016-07-208 | 1500 | DIBBS |
| 5310-00-176-8112 | 2016-04-115 | 1588 | DIBBS |
| 5310-00-176-8112 | 2016-04-94 | 625 | DIBBS |
| 5310-00-176-8112 | 2016-02-52 | 460 | DIBBS |
| 5310-00-176-8112 | 2016-01-21 | 2313 | DIBBS |
| 5310-00-176-8112 | 2016-01-19 | 749 | DIBBS |
| 5310-00-176-8112 | 2015-12-354 | 675 | DIBBS |
| 5310-00-176-8112 | 2015-09-265 | 889 | DIBBS |
| 5310-00-176-8112 | 2015-06-179 | 607 | DIBBS |
| 5310-00-176-8112 | 2015-03-67 | 326 | DIBBS |
| AN3208 | 2015-01-21 | 10 | Canada |
| AN320-8 | 2014-11-308 | 5000 | United States |
| 5310-00-176-8112 | 2014-10-287 | 555 | DIBBS |
| 5310-00-176-8112 | 2014-08-236 | 453 | DIBBS |
| 5310-00-176-8112 | 2014-05-138 | 505 | DIBBS |
| AN3208 | 2014-04-118 | 22 | South Korea |
| AN320-8 | 2012-11-310 | 246 | |
| 5310-00-176-8112 | 2012-07-195 | 2079 | DIBBS |
| 5310-00-176-8112 | 2012-07-193 | 2079 | DIBBS |
| 5310-00-176-8112 | 2011-12-361 | 2547 | DIBBS |
| 5310-00-176-8112 | 2011-12-356 | 2547 | DIBBS |
| AN320-8 | 2011-05-146 | 50 | Spain |
| AN3208 | 2011-05-132 | 20 | Spain |
| 5310-00-176-8112 | 2010-05-130 | 110 | US |
| AN3208 | 2010-02-32 | 8 | US |
| AN3208 | 2009-09-245 | 16 | Netherlands |
| 5310-00-176-8112 | 2009-06-180 | 60 | US |
| AN3208 | 2009-05-125 | 100 | Italy |
| 5310-00-176-8112 | 2009-04-93 | 435 | DIBBS |
| 5310-00-176-8112 | 2008-11-316 | 4 | US |
| AN3208 | 2008-05-139 | 2 | FX |
| 5310-00-176-8112 | 2008-04-109 | 1780 | DIBBS |
Cross Reference | NSN 5310-00-176-8112
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0603 | 75547 | LAWRENCE AERONAUTICAL CORP |
| 13629 | 35510 | PRESTOLITE ELECTRIC INC |
| 175-2 | 13002 | GOODRICH CORPORATION DBA GOODRICH LANDING GEAR DIVISION |
| 175S2 | 06840 | BENDIX CORP THE |
| 175S2 | 13002 | GOODRICH CORPORATION DBA GOODRICH LANDING GEAR DIVISION |
| 175S2 | 17576 | GOODRICH CORP DBA GOODRICH CORP |
| 175S2 | 55284 | HONEYWELL INTERNATIONAL INC DBA HONEYWELL |
| 21C1530-214 | 99207 | GENERAL ELECTRIC COMPANY DBA GE |
| 2210332 | 001JK | EMBRAER S/A |
| 2210332 | S4956 | EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA |
| 23AN320-8 | 80045 | L-3 COMMUNICATIONS CINCINNATI ELECTRONICS CORPORATION |
| 69947 | 19315 | HONEYWELL INTL INC DEFENSE AVIONICS SYSTEMS FORMER BENDIX NAVIGATION AND |
| 69947 | 99551 | GOODRICH CORPORATION DIV POWER TRANSMISSION SYSTEMS |
| A63-45-8 | 74080 | HARVARD INDUSTRIES |
| A63-47 | 74080 | HARVARD INDUSTRIES |
| AN320-8 | 05QS6 | LM PRODUCTS, INC |
| AN320-8 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| AN320-8 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN320-8 | H2896 | NEDAERO COMPONENTS B.V. B.V. |
| F3758 | 0CSK6 | WINCO, INC. |
| F3758 | 77260 | PIERCE CO INC THE SUB OF AVIS INDUSTRIAL CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-176-8112
Related Products | NSN 5310-00-176-8112
Technical Data | NSN 5310-00-176-8112
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |

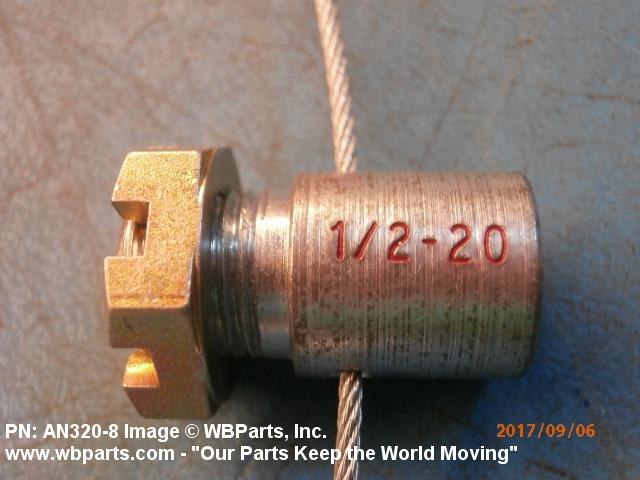

| NOMINAL THREAD SIZE | 0.500 INCHES |
| THREAD QUANTITY PER INCH | 20 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A17 SLOTTED, HEXAGON |

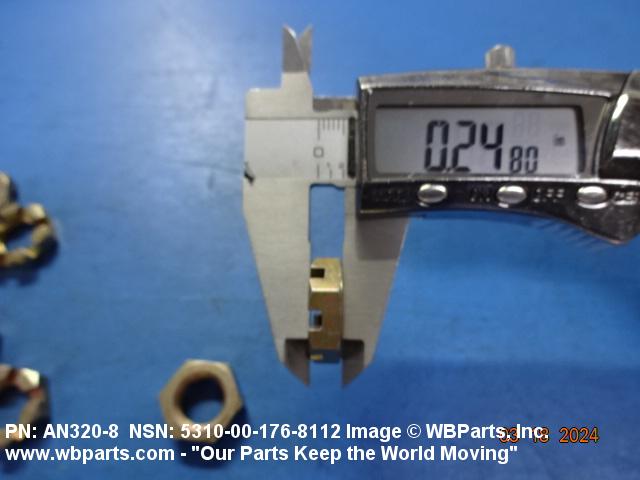

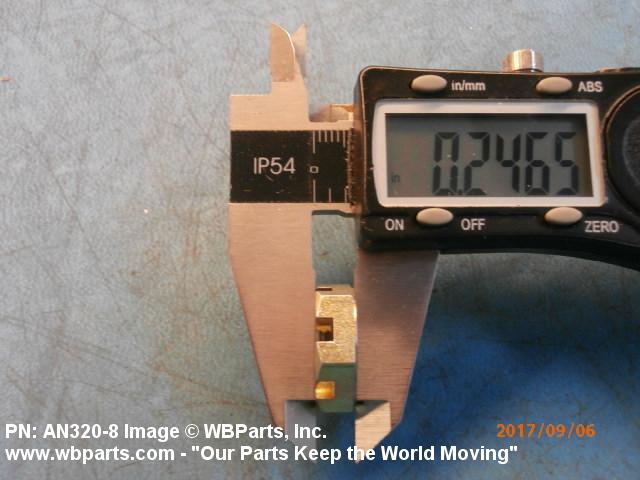

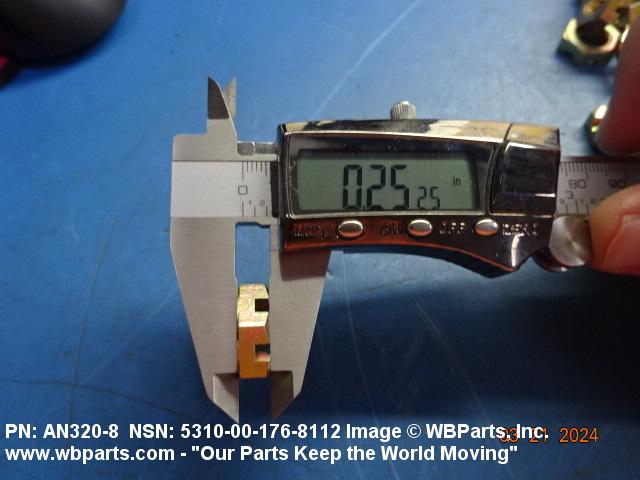

| NUT HEIGHT | 0.234 INCHES MINIMUM AND 0.266 INCHES MAXIMUM |

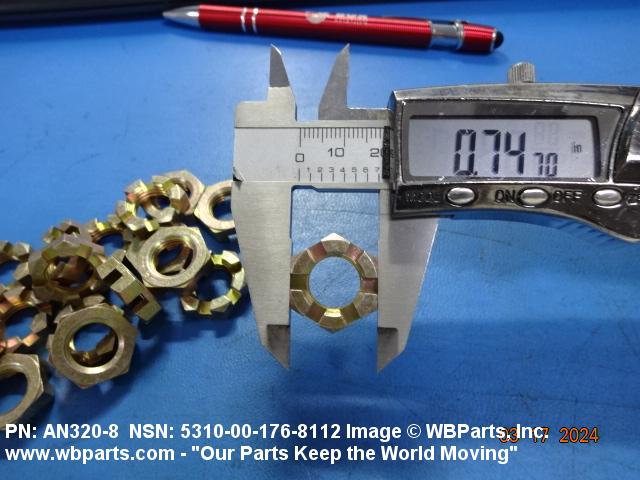

| WIDTH ACROSS FLATS | 0.738 INCHES MINIMUM AND 0.752 INCHES MAXIMUM |
| BEARING SURFACE TYPE | CHAMFERED OR WASHER FACED |
| TEMP RATING | NOT RATED |
| III BEARING SURFACE FINISH | 125.0 MICROINCHES |
Restrictions/Controls & Freight Information | NSN 5310-00-176-8112
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-176-8112
Navy
Marines| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 PG : Package |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 PG : Package |
