NSN 5310-00-176-8170 AN3358, AN335-8, FFB571
Product Details | HEXAGON PLAIN NUT
5310-00-176-8170 A nut, flat on top and bottom having 6 flat sides. For items which have internal tapered or straight (parallel) pipe threads, specific electrical conduit size designation, and which when installed, provide a method of tightening to lock the connection, see LOCKNUT, ELECTRICAL CONDUIT. See also LOCKNUT, TUBE FITTING. For items having a thickness (or height) exceeding two times the width across the flats, use POST, ELECTRICAL-MECHANICAL EQUIPMENT. (When height or thickness and/or width across the flats is designated as a tolerance dimension, the maximum dimension will be used to determine compliance.
Part Alternates: AN3358, AN335-8, FFB571, 63340183, 8519340, 5310-00-176-8170, 00-176-8170, 5310001768170, 001768170
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1961 | 00-176-8170 | 01857 ( NUT, PLAIN, HEXAGON ) |

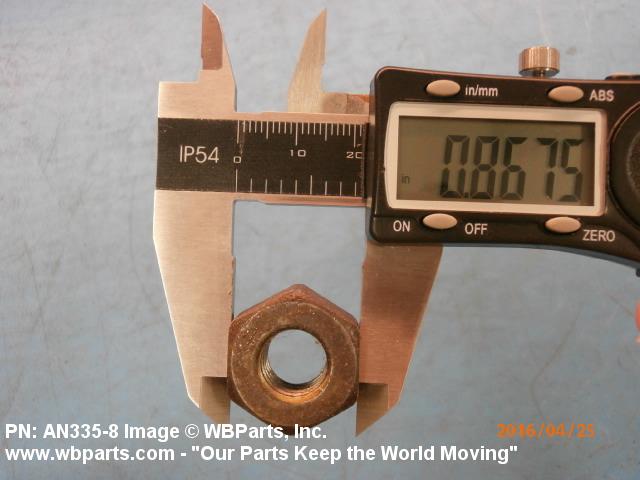

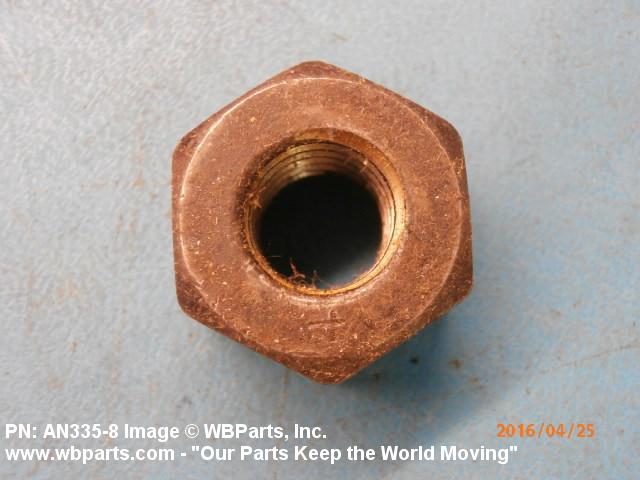

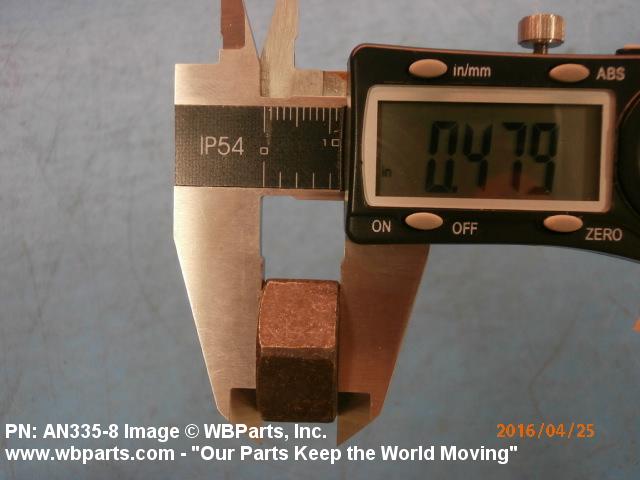

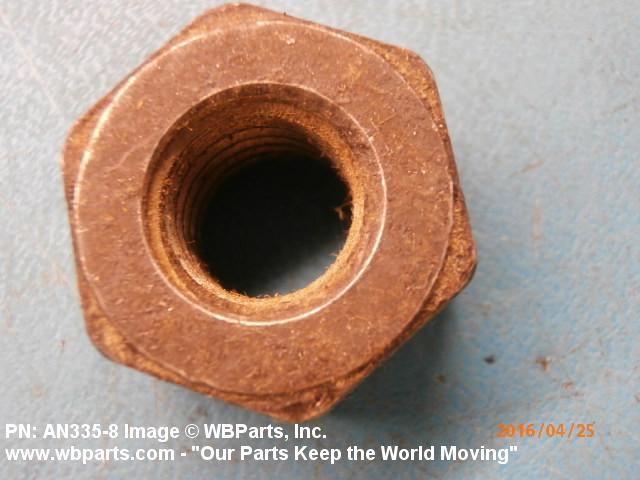

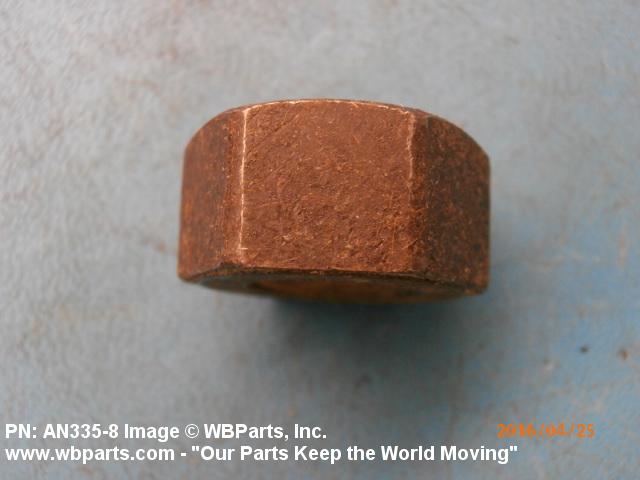

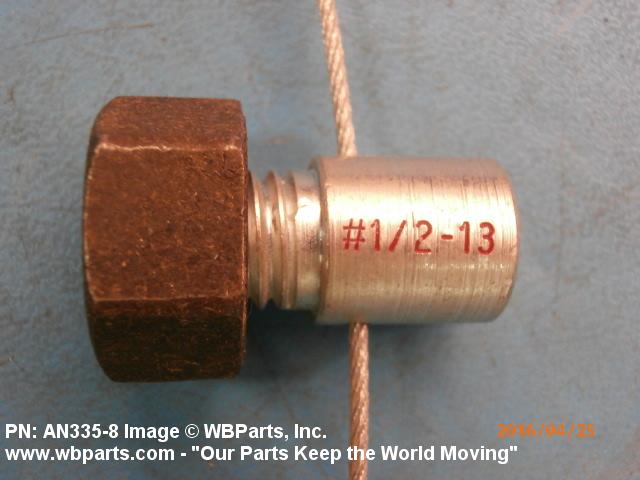

Drawings & Photos | NSN 5310-00-176-8170
Demand History | NSN 5310-00-176-8170
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN3358 | 2023-05-136 | 10 | South Korea |
| AN3358 | 2023-05-122 | 2 | South Korea |
| AN3358 | 2019-10-298 | 468 | us |
| AN3358 | 2016-04-99 | 10 | United States |
| AN3358 | 2015-10-278 | 40 | us |
| AN335-8 | 2013-08-229 | 1000 | Canada |
Cross Reference | NSN 5310-00-176-8170
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 63340183 | 30367 | L-TEC WELDING AND CUTTING SYSTEMS |
| 8519340 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| AN335-8 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN335-8 | K0058 | AGUSTAWESTLAND LTD |
| FFB571 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-00-176-8170
Technical Data | NSN 5310-00-176-8170
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNC |
| NOMINAL THREAD SIZE | 0.500 INCHES |
| THREAD QUANTITY PER INCH | 13 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OR ZINC OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A12 HEXAGON |
| NUT HEIGHT | 0.442 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.812 INCHES NOMINAL |
| BEARING SURFACE TYPE | CHAMFERED OR WASHER FACED |
| TEMP RATING | NOT RATED |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN335-8 |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | FFB571 |
Restrictions/Controls & Freight Information | NSN 5310-00-176-8170
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
