NSN 5310-00-181-6122 MS212446, MS21244-6, FFN836
Product Details | ASSEMBLED WASHER PLAIN NUT
5310-00-181-6122 A plain nut on which has been assembled a nonremovable washer.
Part Alternates: MS212446, MS21244-6, FFN836, FF-N-836, 97706, 9770-6, 10116628 , 5310-00-181-6122, 00-181-6122, 5310001816122, 001816122
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 03 APR 1970 | 00-181-6122 | 21824 ( NUT, PLAIN, ASSEMBLED WASHER ) |

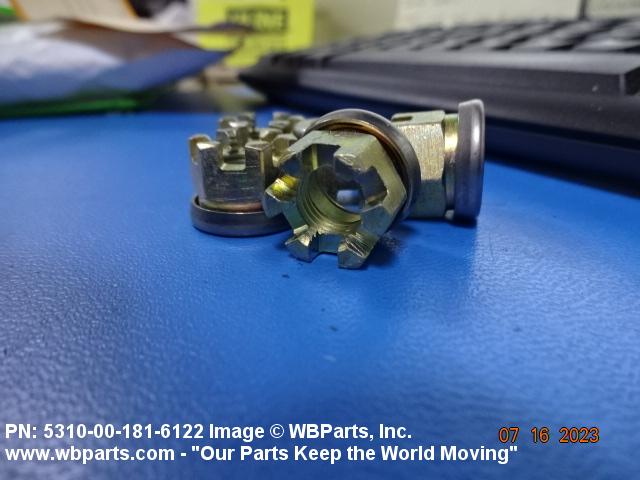

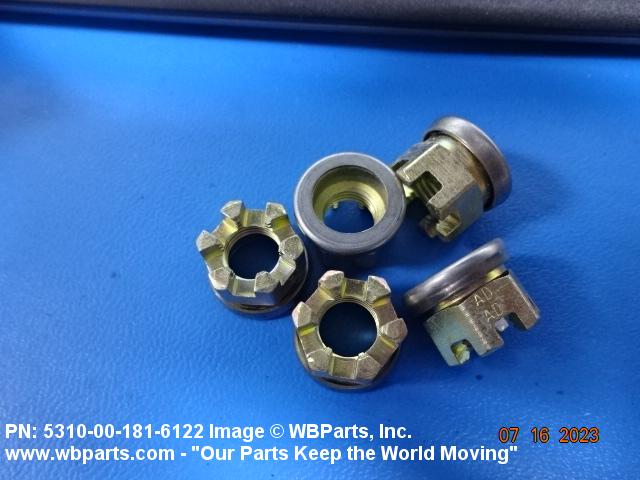

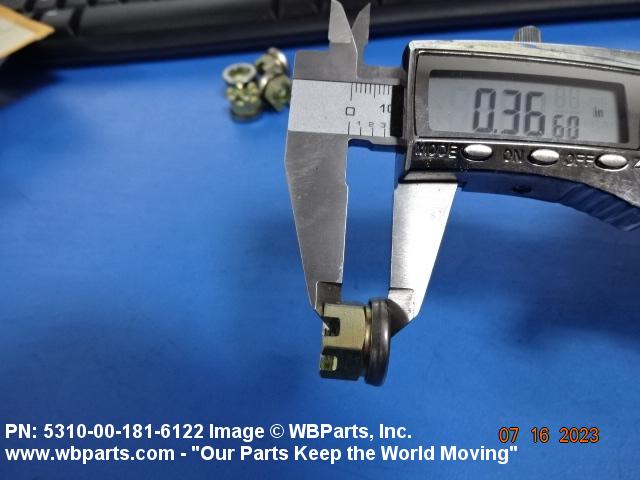

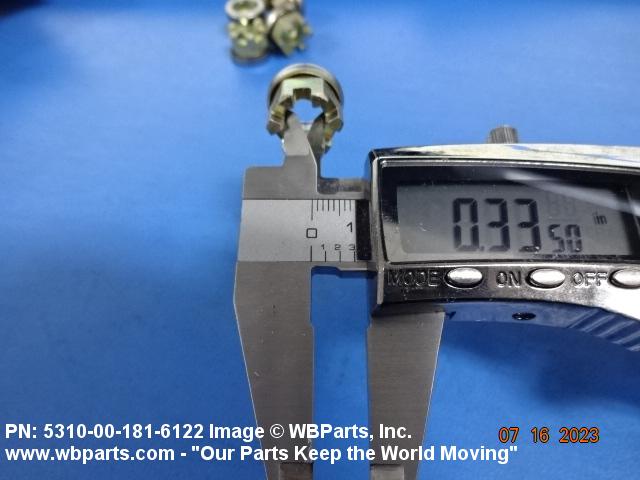

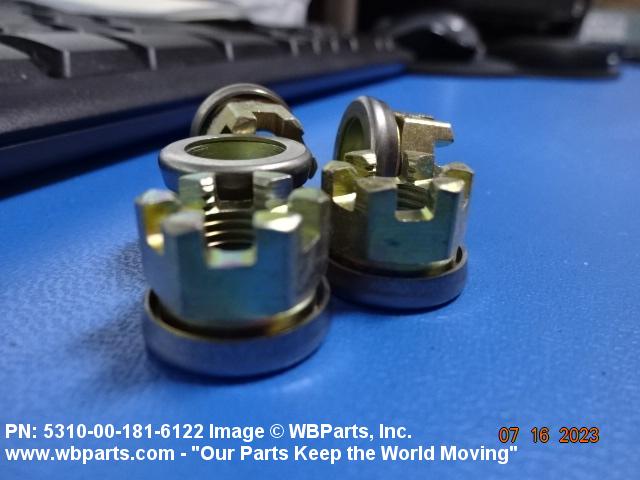

Drawings & Photos | NSN 5310-00-181-6122
Demand History | NSN 5310-00-181-6122
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| FFN836 | 2025-03-84 | 32 | Japan |
| FFN836 | 2024-10-291 | 190 | US |
| 5310-00-181-6122 | 2024-05-128 | 2250 | DIBBS |
| 5310-00-181-6122 | 2024-04-120 | 2250 | DIBBS |
| 5310-00-181-6122 | 2024-02-39 | 1266 | DIBBS |
| 5310-00-181-6122 | 2024-01-31 | 1266 | DIBBS |
| 5310-00-181-6122 | 2024-01-17 | 709 | DIBBS |
| 5310-00-181-6122 | 2024-01-09 | 709 | DIBBS |
| FFN836 | 2023-09-258 | 100 | TR |
| 5310-00-181-6122 | 2023-06-156 | 1 | United States |
| 5310-00-181-6122 | 2023-03-60 | 10 | US |
| FFN836 | 2021-11-307 | 200 | United States |
| FFN836 | 2021-08-228 | 100 | United States |
| 5310-00-181-6122 | 2021-03-67 | 20 | US |
| FFN836 | 2019-02-44 | 288 | US |
| 5310-00-181-6122 | 2018-05-130 | 1 | DIBBS-RFPs |
| FFN836 | 2018-02-32 | 2 | US |
| FFN836 | 2017-05-123 | 25 | United States |
| FF-N-836 | 2016-05-145 | 48 | Spain |
| 5310-00-181-6122 | 2015-06-174 | 3516 | DIBBS |
| MS212446 | 2015-02-54 | 1 | Taiwan |
| 5310-00-181-6122 | 2014-10-287 | 3175 | DIBBS |
| FFN836 | 2012-12-341 | 1 | US |
| FFN836 | 2010-11-322 | 100 | United Kingdom |
| 5310-00-181-6122 | 2010-10-301 | 75 | US |
| FFN836 | 2010-08-218 | 1 | US |
| FFN836 | 2010-08-218 | 1 | US |
| FFN836 | 2010-08-218 | 1 | US |
| FFN836 | 2010-08-218 | 1 | US |
| FFN836 | 2010-03-90 | 4 | us |
| FFN836 | 2010-03-81 | 50 | United States |
| FFN836 | 2010-02-46 | 50 | United States |
| FFN836 | 2009-07-183 | 1000 | US |
| FFN836 | 2009-05-141 | 580 | US |
| FFN836 | 2008-07-195 | 20 | US |
| FFN836 | 2008-06-171 | 200 | US |
| FFN836 | 2008-02-39 | 1 | US |
| FFN836 | 2007-10-298 | 100 | US |
Cross Reference | NSN 5310-00-181-6122
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-181-6122
Related Products | NSN 5310-00-181-6122
Technical Data | NSN 5310-00-181-6122
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.375 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL NUT STEEL WASHER |
| SURFACE TREATMENT | CADMIUM NUT PASSIVATE WASHER |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 TYPE 2 CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE NUT QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE WASHER |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A312 FLAT WITH TURNED BACK EDGE |

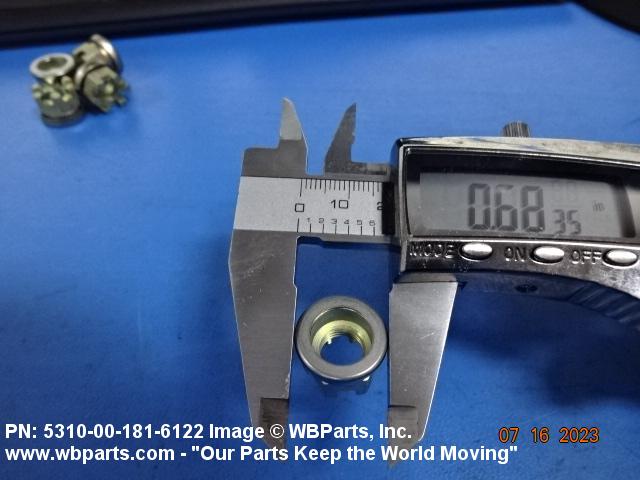

| WASHER OUTSIDE DIAMETER | 0.680 INCHES MINIMUM AND 0.710 INCHES MAXIMUM |

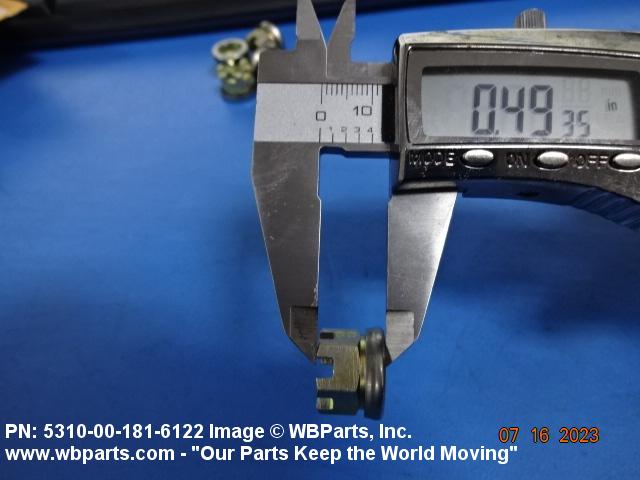

| OVERALL HEIGHT | 0.442 INCHES MINIMUM AND 0.482 INCHES MAXIMUM |
| NUT HEIGHT | ANY ACCEPTABLE |

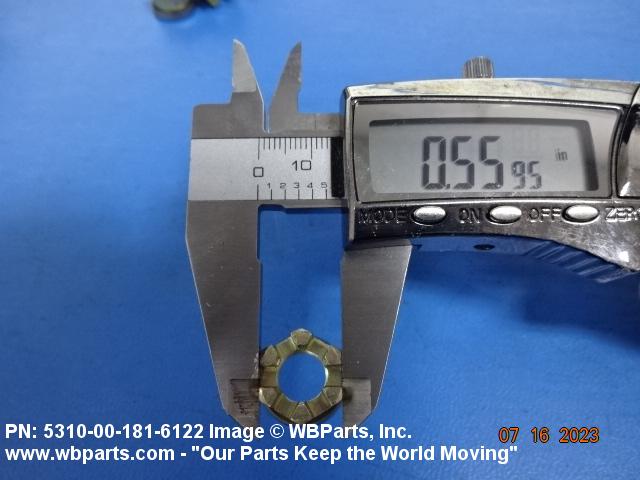

| WIDTH ACROSS FLATS | 0.553 INCHES MINIMUM AND 0.564 INCHES MAXIMUM |
| NUT COUNTERBORE DEPTH | 0.218 INCHES MINIMUM AND 0.238 INCHES MAXIMUM NUT |

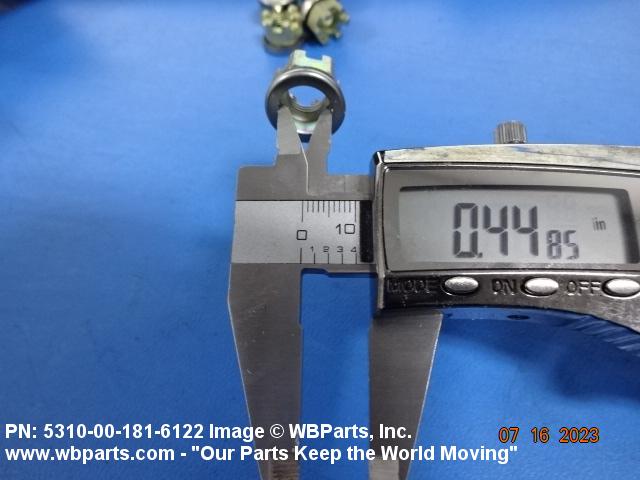

| COUNTERBORE DIAMETER | 0.450 INCHES MINIMUM AND 0.460 INCHES MAXIMUM NUT |
| TEMP RATING | 450.0 DEG FAHRENHEIT MAXIMUM |
| NONDEFINITIVE SPEC/STD DATA | A GRADE |
| III BEARING SURFACE FINISH | 125.0 MICROINCHES |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | FF-N-836 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS21244-6 |
Restrictions/Controls & Freight Information | NSN 5310-00-181-6122
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
