NSN 5310-00-187-2404 AN960PD1216, 2382523826REVCPC13, 23825-23826REVCPC13
Product Details | FLAT WASHER
5310-00-187-2404 A washer having a centrally located hole with a solid or laminated cross-section and two flat parallel bearing surfaces. The hole must be 75 percent or less than the largest dimension and the bearing surface finish is greater than 32 microinch (0.8 micrometer). The thickness cannot exceed 25 percent of the largest outside dimension. When the largest outside dimension is less than 1/4 inch or 6mm, the thickness must be 0.006 inches (0.15mm) or greater and for items 1/4 inch (6mm) or larger, the thickness must be 0.016 inches (0.4mm) or greater. The maximum tolerance is applied to dimensions and used as a determining factor. Items with separable lamination use SHIM. For items fabricated from ceramic or electrically rated materials by specification or industry standards use INSULATOR (1), WASHER. Excludes DISK, VALVE, graphite impregnated and lubricated items.
Part Alternates: AN960PD1216, 2382523826REVCPC13, 23825-23826REVCPC13, 24093265410PC13, 2409-3265410PC13, 24093265410REVCPC13, 2409-3265410REVCPC13, 407 593, 407593, 5310-00-187-2404, 00-187-2404, 5310001872404, 001872404
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-187-2404 | 13393 ( WASHER, FLAT ) |

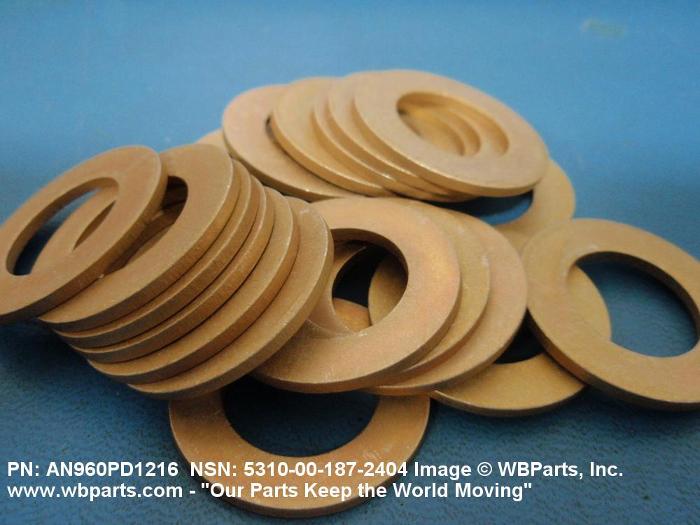

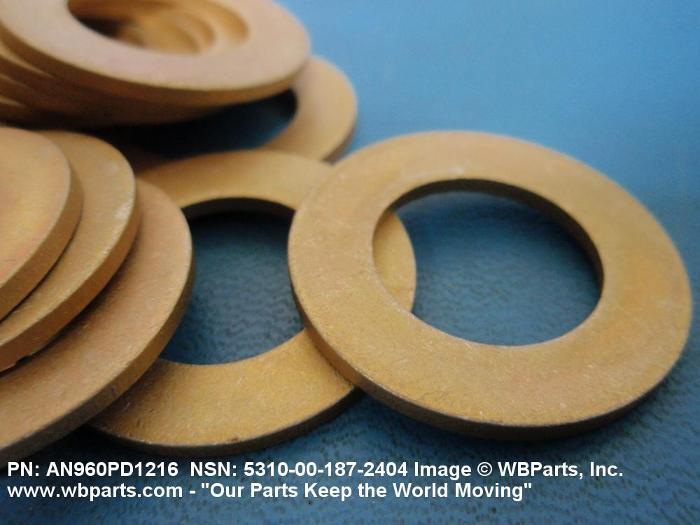

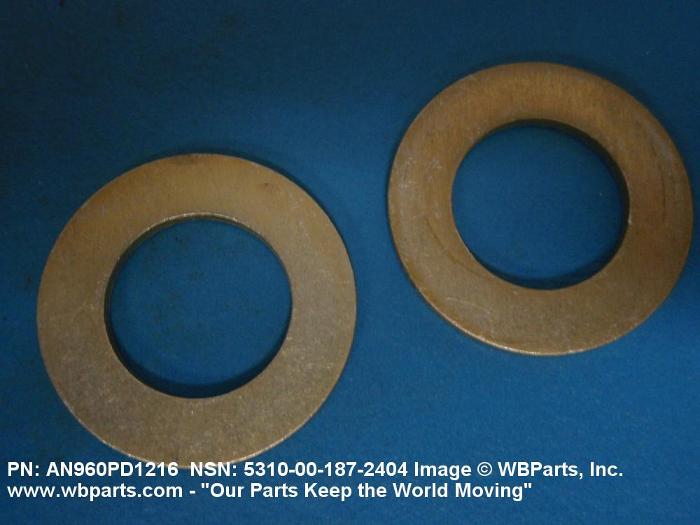

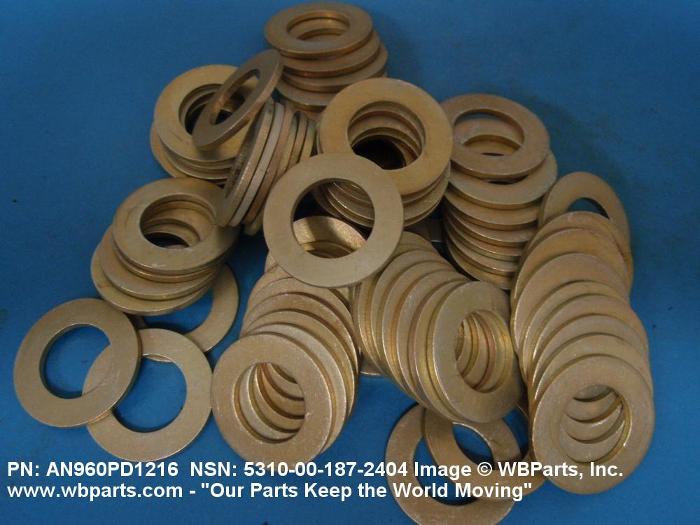

Drawings & Photos | NSN 5310-00-187-2404
Demand History | NSN 5310-00-187-2404
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN960PD1216 | 2012-11-310 | 50 | |
| AN960PD1216 | 2011-04-97 | 20 | United States |
| AN960PD1216 | 2011-04-96 | 20 | United States |
| AN960PD1216 | 2011-03-69 | 50 | Netherlands |
| 5310-00-187-2404 | 2010-04-107 | 2 | US |
| 5310-00-187-2404 | 2009-06-161 | 4 | Malaysia |
| 5310-00-187-2404 | 2009-06-161 | 4 | Malaysia |
| 5310-00-187-2404 | 2009-06-161 | 4 | Malaysia |
Cross Reference | NSN 5310-00-187-2404
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 23825-23826REVCPC13 | 82340 | EDO CORPORATION DIV DEFENSE SYSTEMS |
| 2409-3265410PC13 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 2409-3265410REVCPC13 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 407 593 | 77294 | PIPER AIRCRAFT INC. |
| AN960PD1216 | 72599 | ALLIEDSIGNAL INC DBA ALLIED-SIGNAL AEROSPACE CO |
| AN960PD1216 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN960PD1216 | 99193 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-00-187-2404
Technical Data | NSN 5310-00-187-2404
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-250/5 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-5541 MIL SPEC 1ST TREATMENT RESPONSE AND MIL-A-8625 MIL SPEC 2ND TREATMENT RESPONSE OVERALL |
| HOLE DIAMETER | 0.755 INCHES MINIMUM AND 0.775 INCHES MAXIMUM |
| PERIPHERAL SHAPE STYLE | 1 ROUND |
| OVERALL DIAMETER | 1.307 INCHES MINIMUM AND 1.332 INCHES MAXIMUM |
| CENTER HOLE SHAPE STYLE | 1 ROUND |
| CROSS-SECTIONAL SHAPE STYLE | 1 RECTANGULAR |
| THICKNESS | 0.083 INCHES MINIMUM AND 0.097 INCHES MAXIMUM |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN960PD1216 |
Restrictions/Controls & Freight Information | NSN 5310-00-187-2404
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093490 | BOLT/NUT/SCREW/CLIPS/FASTENER/ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-187-2404
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 HD : Each |
