NSN 5310-00-209-0786 MS3533519, MS35335-19, MS3533533
Product Details | LOCK WASHER
5310-00-209-0786 A washer which is usually round with a centrally located hole. Its edges and two bearing surfaces are so designed that applied pressure brings into play the spring tension and/or frictional locking principle which materially resists any tendency toward turning. It may be made of one or two pieces
Part Alternates: MS3533519, MS35335-19, MS3533533, MS35335-33, AN936B416, AN936-B416, 824636-009 , 8246369, 824636-9 , 853074, 8531013, 853-1013, 69103, 7017833, 70178-33, 76574, 801625-551-003 PC NO 17A, 801625-551-003 PC NO 18A, 801625551003PCNO17A, 801625551003PCNO18A, 0076574, 0740794, 1043S416B, 104-3S416B, 111400, 1114-00, 111413, 1114-13, 114604, 121753, 1938, 193-8, 373-5042-00, 3735042000, 373-5042-000, 407 127, 407127, 453475, 5310-00-209-0786, 00-209-0786, 5310002090786, 402350207, 373504200, 002090786, 824636009
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-209-0786 | 14218 ( WASHER, LOCK ) |

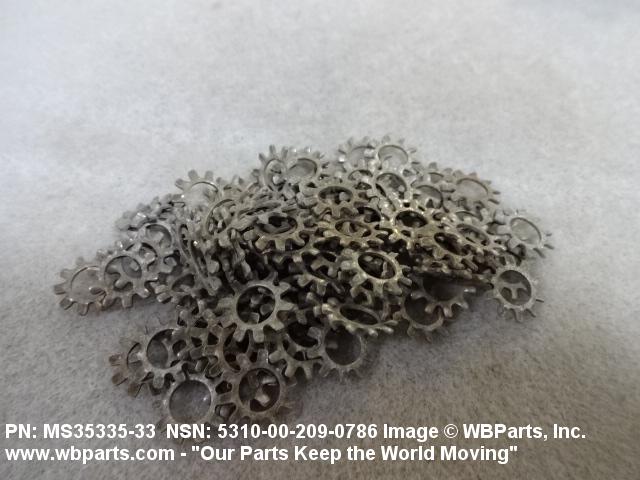

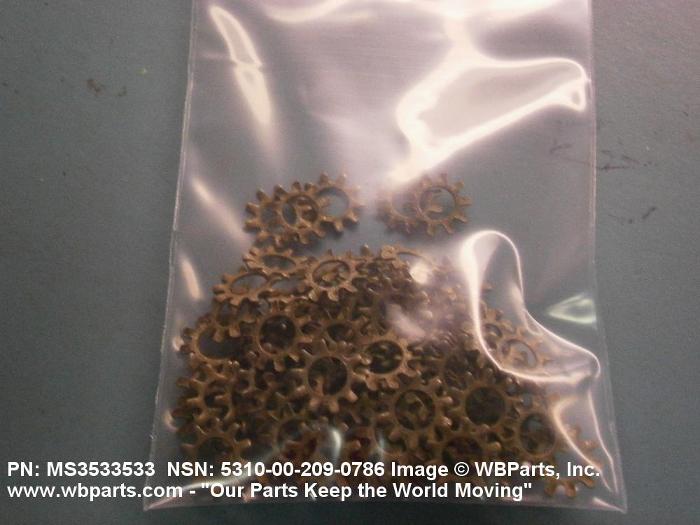

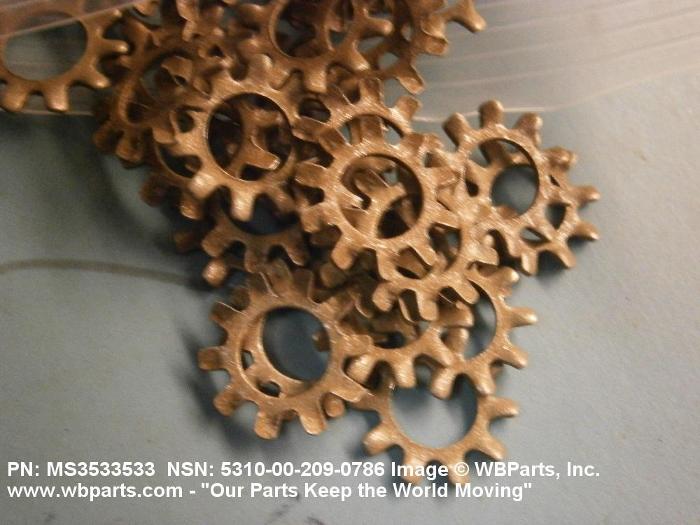

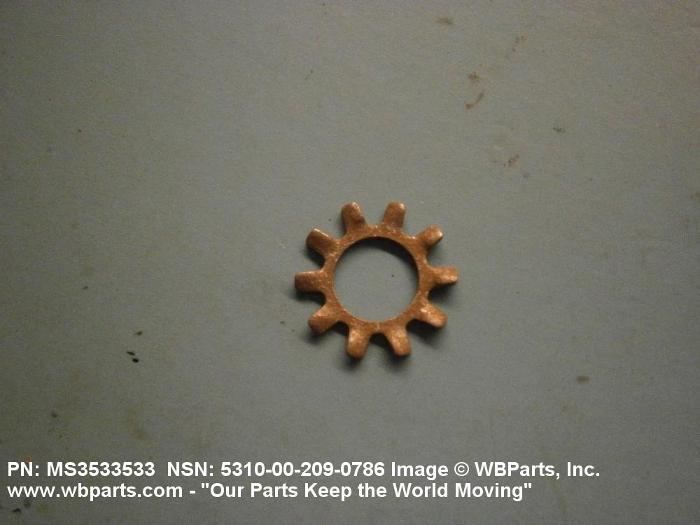

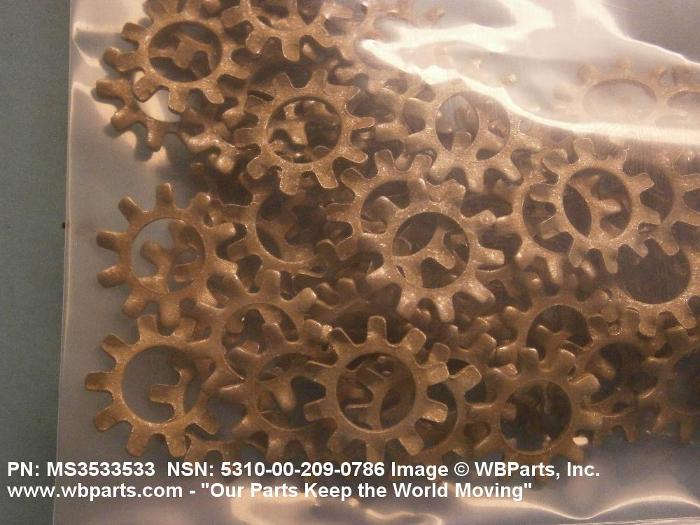

Drawings & Photos | NSN 5310-00-209-0786
Demand History | NSN 5310-00-209-0786
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-209-0786 | 2025-01-22 | 281 | DIBBS |
| 5310-00-209-0786 | 2024-07-199 | 719 | DIBBS |
| MS3533533 | 2024-04-115 | 4640 | US |
| 5310-00-209-0786 | 2020-11-331 | 1366 | DIBBS |
| 5310-00-209-0786 | 2020-11-316 | 1 | United States |
| 5310-00-209-0786 | 2020-09-255 | 895 | DIBBS |
| 5310-00-209-0786 | 2020-09-247 | 895 | DIBBS |
| 5310-00-209-0786 | 2020-06-182 | 228 | MANUAL |
| MS3533533 | 2018-11-319 | 4 | United States |
| 5310-00-209-0786 | 2018-11-316 | 100 | DE |
| MS3533533 | 2018-10-276 | 144 | United States |
| 5310-00-209-0786 | 2017-12-348 | 3648 | US |
| 453475 | 2016-01-18 | 1 | Singapore |
| MS3533533 | 2016-01-18 | 100 | Singapore |
| MS3533533 | 2015-02-54 | 2 | India |
| MS35335-33 | 2014-02-59 | 225 | United States |
| MS3533533 | 2013-04-112 | 120000 | US |
| 5310-00-209-0786 | 2013-02-32 | 100 | US |
| MS3533533 | 2012-07-212 | 100 | United States |
| MS3533533 | 2012-07-212 | 1500 | United States |
| MS3533533 | 2012-06-159 | 5060 | US |
| MS3533533 | 2012-04-121 | 365 | PK |
| 5310-00-209-0786 | 2012-04-94 | 100 | US |
| 5310-00-209-0786 | 2012-02-59 | 2300 | DIBBS |
| MS3533533 | 2011-02-41 | 33 | us |
| 5310-00-209-0786 | 2009-12-341 | 6 | US |
| 5310-00-209-0786 | 2009-08-240 | 1 | us |
| MS3533533 | 2007-05-150 | 820 | United States |
Cross Reference | NSN 5310-00-209-0786
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0076574 | 0B6S1 | INTERNATIONAL BUSINESS MACHINES CORP PARTS ORDER CENTER DEPT E - 54 |
| 0076574 | 30874 | INTERNATIONAL BUSINESS MACHINES CORP |
| 0740794 | S3002 | GENERAL DYNAMICS EUROPEAN,LAND-SYSTEMS-MOWAG GMBH |
| 104-3S416B | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
| 1114-00 | 30323 | ILLINOIS TOOL WORKS INC |
| 1114-00 | 78189 | ITW SHAKEPROOF AUTOMOTIVE PRODUCTS |
| 1114-13 | 78189 | ITW SHAKEPROOF AUTOMOTIVE PRODUCTS |
| 114604 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 121753 | 24617 | GENERAL MOTORS CORP |
| 193-8 | 10988 | CNH INDUSTRIAL AMERICA LLC |
| 373-5042-00 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
| 373-5042-000 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
| 402350207 | S5686 | ISRAEL MILITARY INDUSTRIES LTD DBA TAAS - ISRAEL INDUSTRIES LTD - |
| 407 127 | 77294 | PIPER AIRCRAFT INC. |
| 453475 | 16764 | GENERAL MOTORS CORP DELCO REMY DIV |
| 5310001670870 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 5310002090786 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 69103 | 13841 | TIFFIN PARTS, L.L.C. DIV SUBSIDIARY OF PETTIBONE CORP. |
| 70178-33 | 95097 | LITTLE GIANT CRANE AND SHOVEL INC |
| 76574 | 0B6S1 | INTERNATIONAL BUSINESS MACHINES CORP PARTS ORDER CENTER DEPT E - 54 |
| 76574 | 30874 | INTERNATIONAL BUSINESS MACHINES CORP |
| 801625-551-003 PC NO 17A | 71956 | RELIANCE ELECTRIC COMPANY DBA RELIANCE & DODGE BRANDS |
| 801625-551-003 PC NO 18A | 71956 | RELIANCE ELECTRIC COMPANY DBA RELIANCE & DODGE BRANDS |
| 853-1013 | 44940 | CUMMINS POWER GENERATION INC. |
| 853074 | 19203 | PICATINNY ARSENAL |
| AN936-B416 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| AN936B416 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| MS35335-19 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS35335-33 | 05QS6 | LM PRODUCTS, INC |
| MS35335-33 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-209-0786
Related Products | NSN 5310-00-209-0786
Technical Data | NSN 5310-00-209-0786
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1050 OR STEEL COMP 1551 OR STEEL COMP 1552 OR STEEL COMP 1053 OR STEEL COMP 1055 OR STEEL COMP 1059 OR STEEL COMP 1060 OR STEEL COMP 1561 OR STEEL COMP 1064 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD ALL MATERIAL RESPONSES OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 40.0 ROCKWELL C MINIMUM AND 50.0 ROCKWELL C MAXIMUM |
| STYLE DESIGNATOR | 100 FLAT EXTERNAL TEETH |

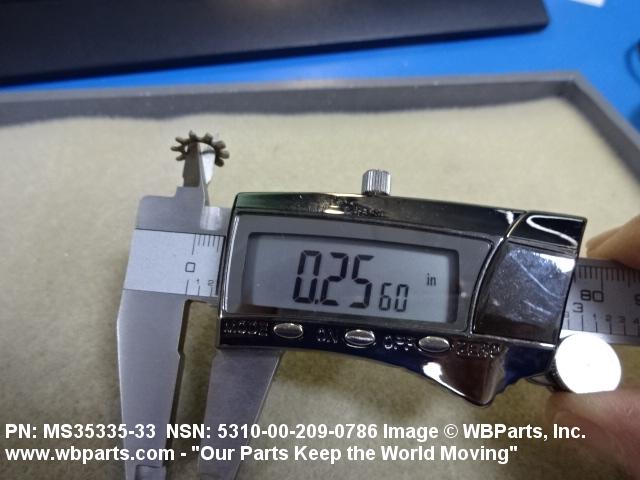

| HOLE DIAMETER | 0.256 INCHES MINIMUM AND 0.267 INCHES MAXIMUM |

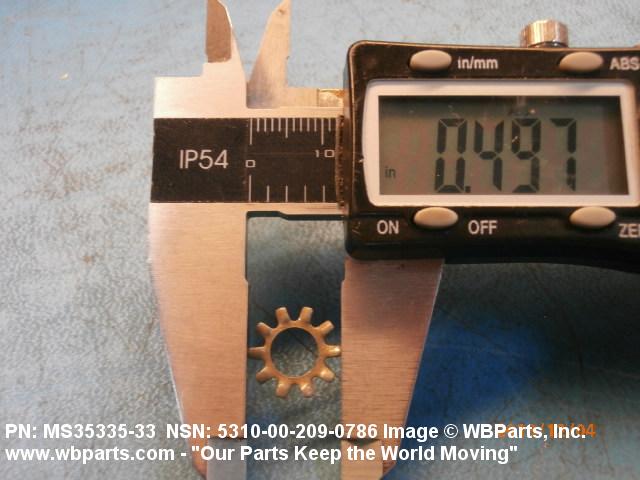

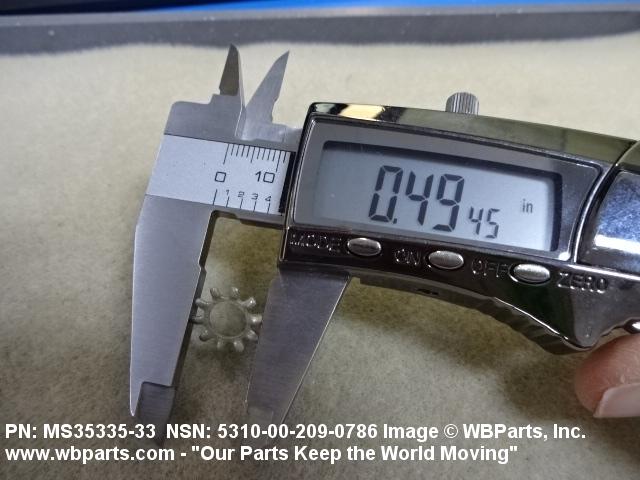

| OUTSIDE DIAMETER | 0.494 INCHES MINIMUM AND 0.510 INCHES MAXIMUM |
| MATERIAL THICKNESS | 0.023 INCHES MINIMUM AND 0.028 INCHES MAXIMUM |
| III END ITEM IDENTIFICATION | W/S:AIRCRAFT, (AC-130H, MC-130H, EC-130E, HC-130); COMPRESSOR, RECIPROCATING M4; AIRBORNE MOBILE DIR AIR SPT CTL (2ID), (02M JUL83)(AN/UYQ-3A); AVIATION ENGINE TEST SYSTEMS (AETS); SUPPORT EQUIPMENT, B-1 AIRCRAFT; CENTRAL MESSAGE SWITCH, AN/TYC-39A; BOILERS, 1200 PSI; SYSTEMS, 02N2; FIRE PUMPS; MAIN FEED PUMPS |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS35335-33 |
Restrictions/Controls & Freight Information | NSN 5310-00-209-0786
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194160 | WASHER OR GASKETS, IRON OR STEEL, |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-209-0786
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 HD : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 HD : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Echelon Identification Code | B | Consumable Repair Parts |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 HD : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 HD : Each |
