NSN 5310-00-226-3911 MS178264, MS17826-4, ESNAF12NE4717
Product Details | HEXAGON SLOTTED SELF-LOCKING NUT
5310-00-226-3911 A nut having a flat bearing surface and 6 flat sides with slots in its upper portion. An integral feature is incorporated for locking on the threads of a mating member. The slots, when used in conjunction with a solid or split (cotter) pin, act as an extra "fail safe", feature in critical applications. Excludes NUT (1), SELF-LOCKING, CASTELLATED, OCTAGON.
Part Alternates: MS178264, MS17826-4, ESNAF12NE4717, F12NE4717048, F12NE4717-048, F12NTEC428, 10088013, 137242, 2134250, 21342-50, 5310-00-226-3911, 00-226-3911, 5310002263911, 002263911
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-226-3911 | 29733 ( NUT, SELF-LOCKING, SLOTTED, HEXAGON ) |

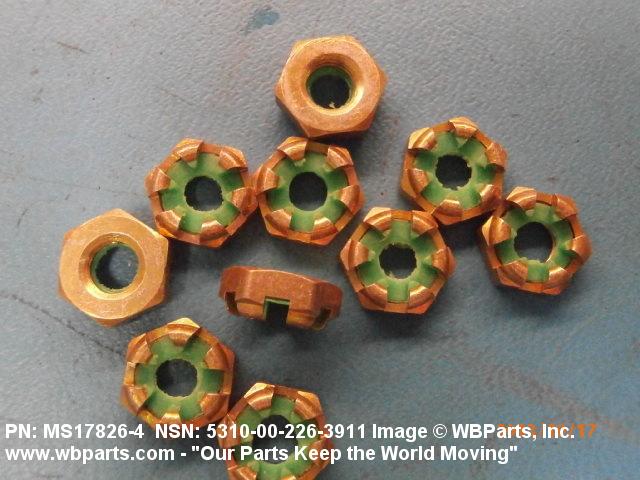

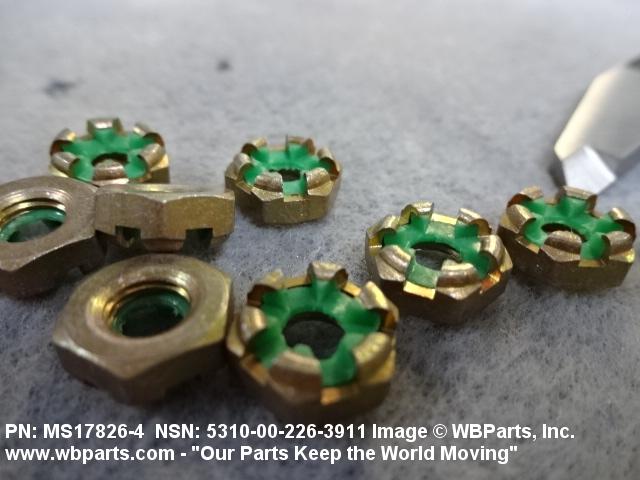

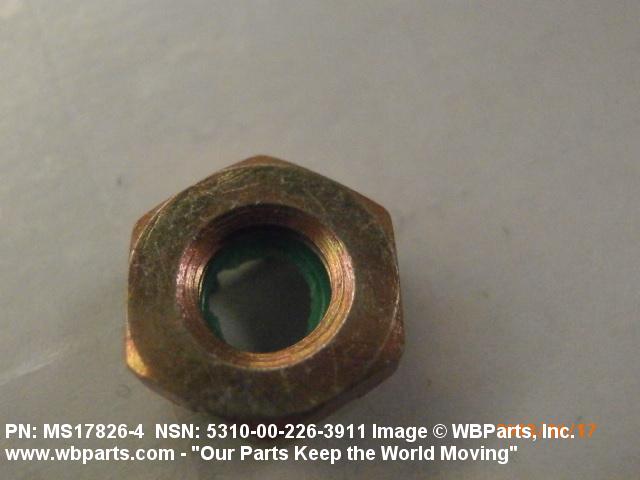

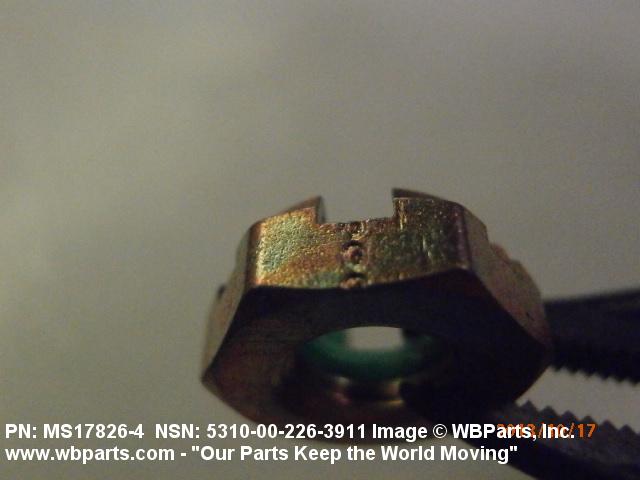

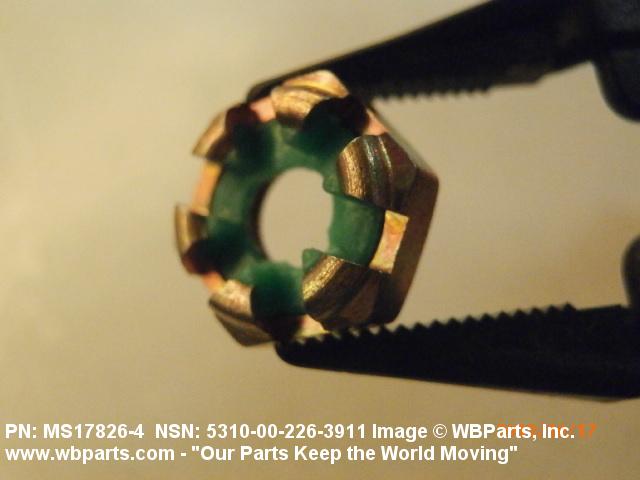

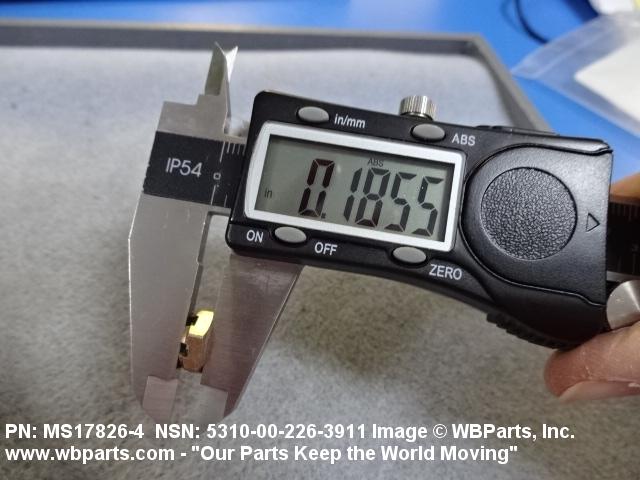

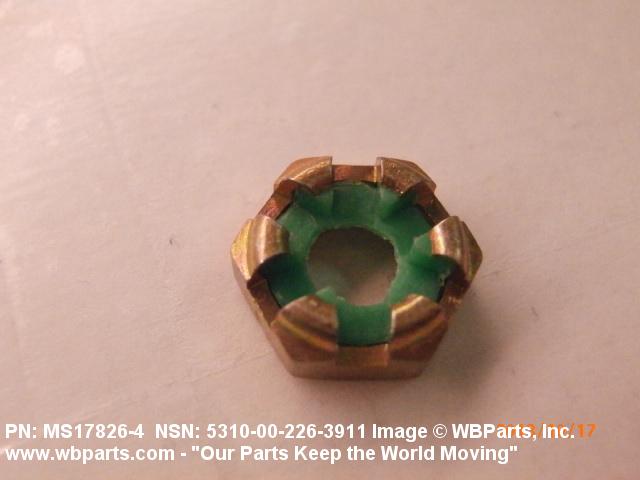

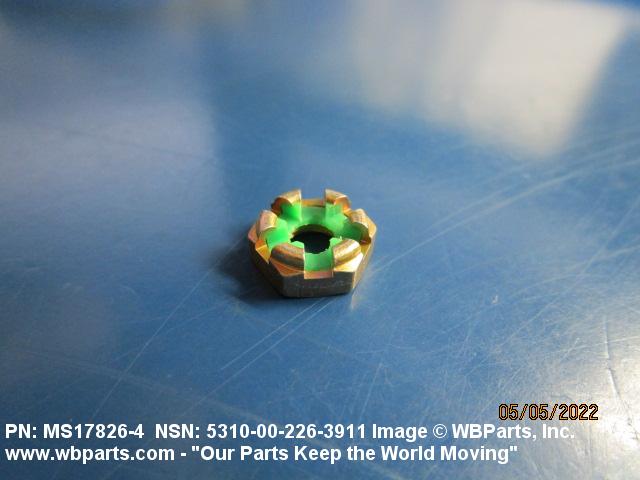

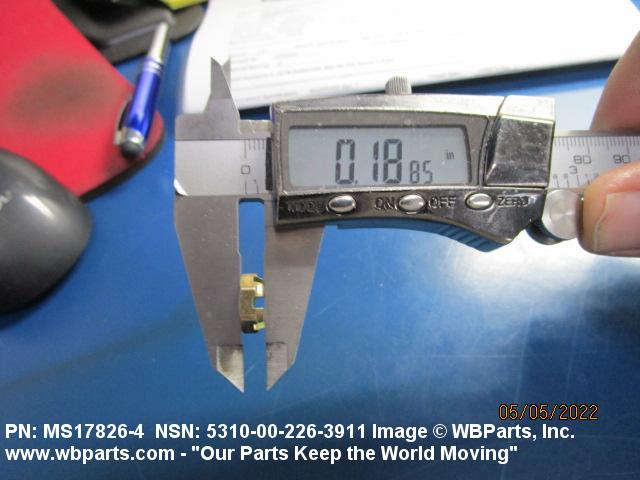

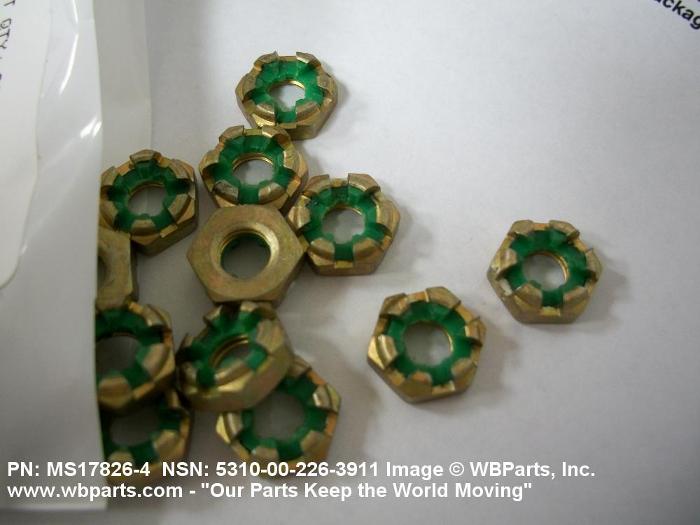

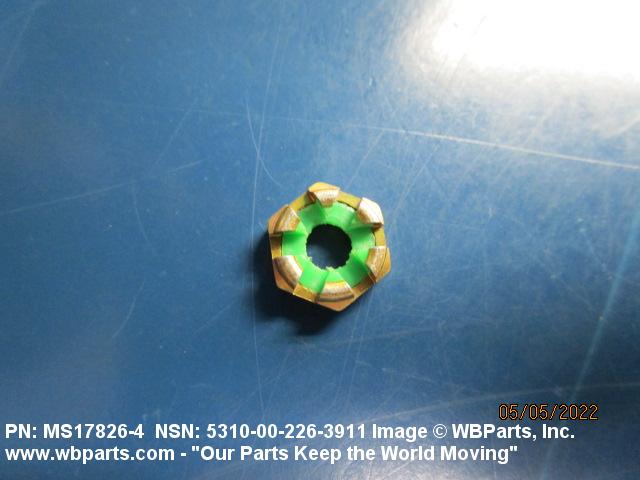

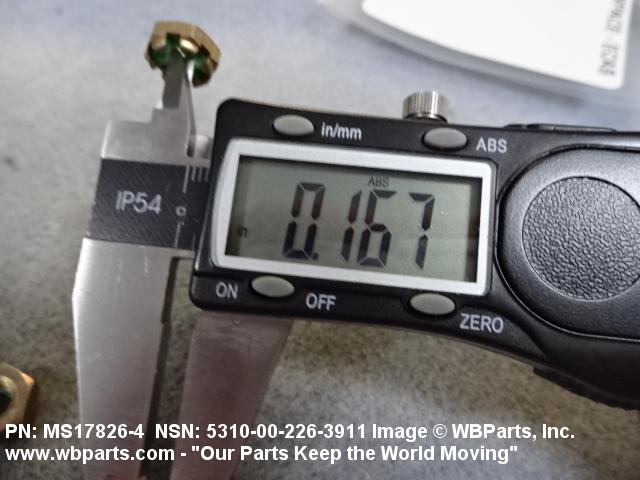

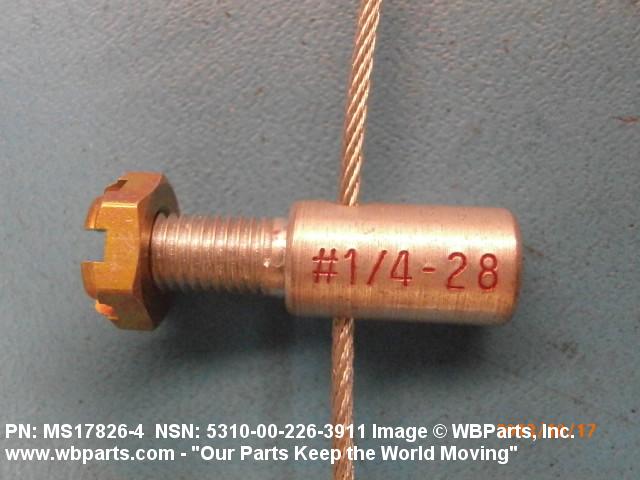

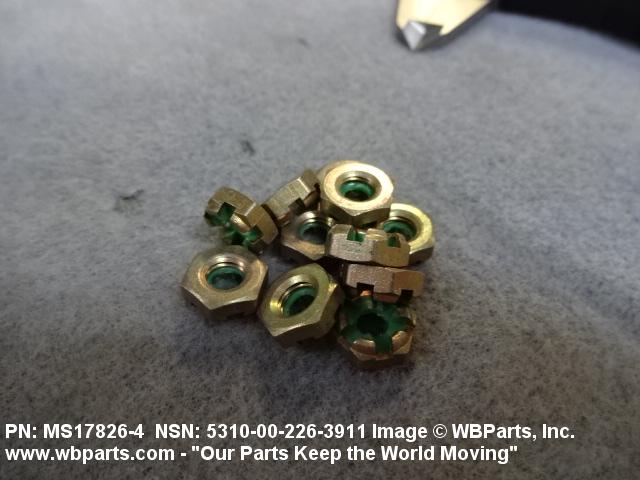

Drawings & Photos | NSN 5310-00-226-3911
Demand History | NSN 5310-00-226-3911
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS178264 | 2022-09-265 | 600 | United States |
| MS178264 | 2022-04-118 | 13 | US |
| MS178264 | 2020-08-230 | 50 | MY |
| MS178264 | 2020-06-170 | 10 | PH |
| MS178264 | 2020-04-113 | 90 | US |
| MS178264 | 2020-01-06 | 50 | United States |
| MS17826-4 | 2019-05-136 | 20 | United States |
| MS17826-4 | 2019-02-42 | 15 | Lebanon |
| 5310-00-226-3911 | 2018-01-01 | 32309 | DIBBS |
| 5310-00-226-3911 | 2017-07-208 | 9000 | US |
| 5310-00-226-3911 | 2017-07-187 | 55886 | DIBBS |
| 5310-00-226-3911 | 2017-06-171 | 29404 | DIBBS |
| MS178264 | 2017-03-89 | 10 | Korea |
| 5310-00-226-3911 | 2016-11-312 | 13204 | DIBBS |
| 5310-00-226-3911 | 2016-08-214 | 18737 | DIBBS |
| 5310-00-226-3911 | 2016-06-165 | 22425 | DIBBS |
| 5310-00-226-3911 | 2016-05-133 | 9090 | DIBBS |
| 5310-00-226-3911 | 2016-03-67 | 26943 | DIBBS |
| 5310-00-226-3911 | 2015-03-88 | 31923 | DIBBS |
| MS178264 | 2014-09-252 | 85 | United States |
| MS178264 | 2014-08-225 | 1 | Thailand |
| 5310-00-226-3911 | 2014-07-190 | 15201 | DIBBS |
| MS178264 | 2014-05-127 | 10 | EC |
| MS178264 | 2014-01-27 | 7 | US |
| MS17826-4 | 2014-01-15 | 3 | CN |
| MS178264 | 2013-09-261 | 7 | United States |
| 5310-00-226-3911 | 2012-02-46 | 1 | United States |
| MS178264 | 2011-08-237 | 20 | United States |
| MS178264 | 2010-10-292 | 2 | EC |
| MS178264 | 2009-09-265 | 500 | Netherlands |
| MS178264 | 2009-03-77 | 1 | Canada |
| MS178264 | 2009-02-50 | 100 | China |
| MS178264 | 2008-12-364 | 10 | US |
| MS178264 | 2008-03-86 | 100 | Singapore |
| 5310-00-226-3911 | 2007-03-87 | 220 | Canada |
| 5310-00-226-3911 | 2007-01-24 | 500 | ZA |
Cross Reference | NSN 5310-00-226-3911
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 137242 | U1607 | TRIUMPH CONTROLS - UK, LTD. DIV TRIUMPH CONTROLS UK LTD |
| 21342-50 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| ESNAF12NE4717 | K5673 | SPS TECHNOLOGIES LTD TJ BROOKS DIVISION |
| F12NE4717-048 | 019L2 | MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA |
| F12NE4717-048 | 72962 | HARVARD INDUSTRIES INC |
| F12NTEC428 | 27687 | GREER STOP NUT INC. |
| MS17826-4 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-226-3911
Related Products | NSN 5310-00-226-3911
Technical Data | NSN 5310-00-226-3911
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |

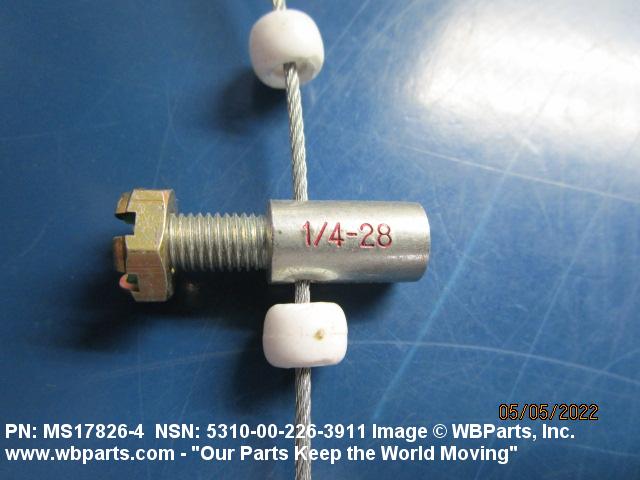

| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | PLASTIC POLYAMIDE LOCKING INSERT STEEL NUT |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL EXCEPT INSERT |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE 2,CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL EXCEPT INSERT |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A17 SLOTTED, HEXAGON |

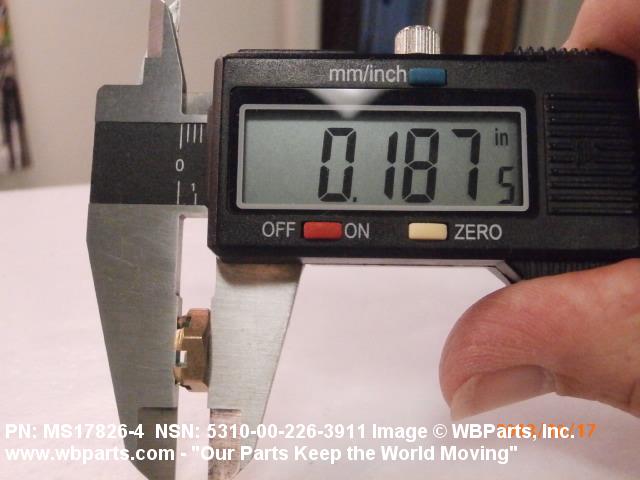

| NUT HEIGHT | 0.173 INCHES MINIMUM AND 0.203 INCHES MAXIMUM |

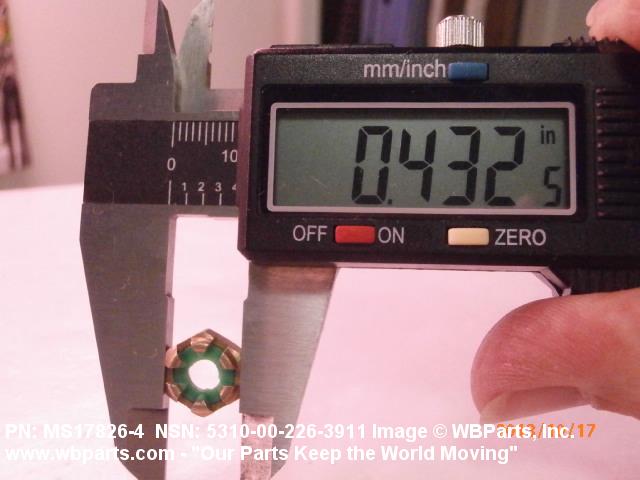

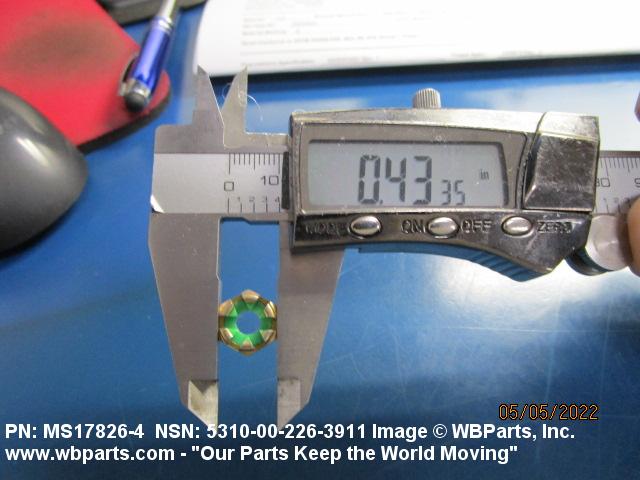

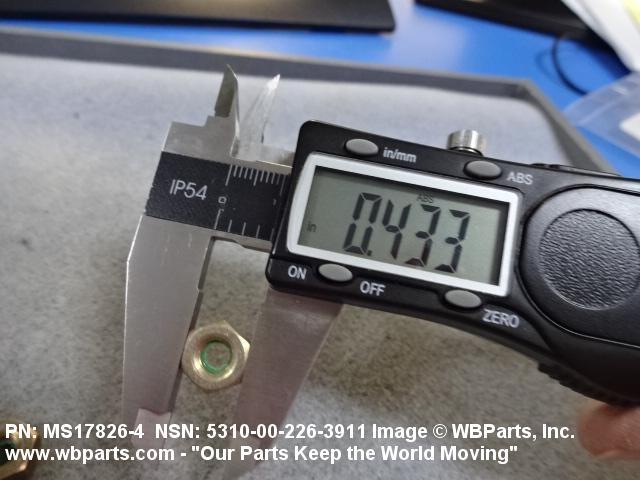

| WIDTH ACROSS FLATS | 0.430 INCHES MINIMUM AND 0.439 INCHES MAXIMUM |
| BEARING SURFACE TYPE | WASHER FACED |
| LOCKING FEATURE | PREVAILING TORQUE WITH NONMETALLIC INSERT |
| TEMP RATING | 250.0 DEG FAHRENHEIT NOMINAL |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS17826-4 |
Restrictions/Controls & Freight Information | NSN 5310-00-226-3911
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
