NSN 5310-00-232-8195 MS2718321, MS27183-21, D301087 FIND NO 138
Product Details | FLAT WASHER
5310-00-232-8195 A washer having a centrally located hole with a solid or laminated cross-section and two flat parallel bearing surfaces. The hole must be 75 percent or less than the largest dimension and the bearing surface finish is greater than 32 microinch (0.8 micrometer). The thickness cannot exceed 25 percent of the largest outside dimension. When the largest outside dimension is less than 1/4 inch or 6mm, the thickness must be 0.006 inches (0.15mm) or greater and for items 1/4 inch (6mm) or larger, the thickness must be 0.016 inches (0.4mm) or greater. The maximum tolerance is applied to dimensions and used as a determining factor. Items with separable lamination use SHIM. For items fabricated from ceramic or electrically rated materials by specification or industry standards use INSULATOR (1), WASHER. Excludes DISK, VALVE, graphite impregnated and lubricated items.
Part Alternates: MS2718321, MS27183-21, D301087 FIND NO 138, D301087FINDNO138, FFW92, FF-W-92, 5310-00-232-8195, 00-232-8195, 5310002328195, 002328195
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 00-232-8195 | 13393 ( WASHER, FLAT ) |

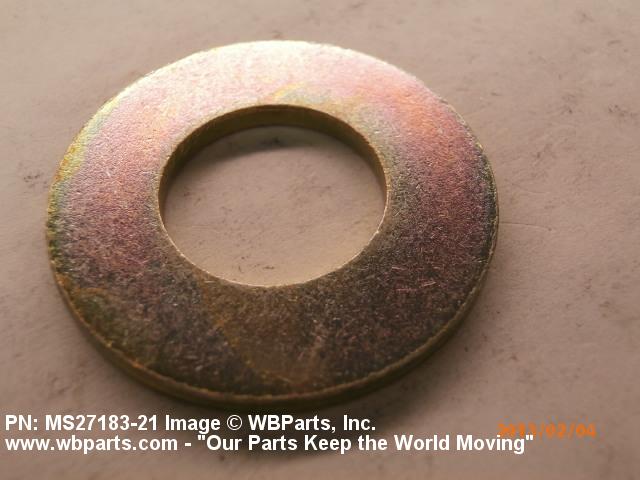

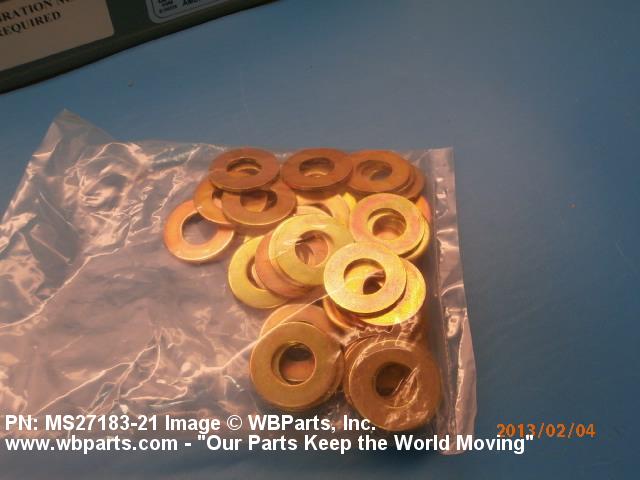

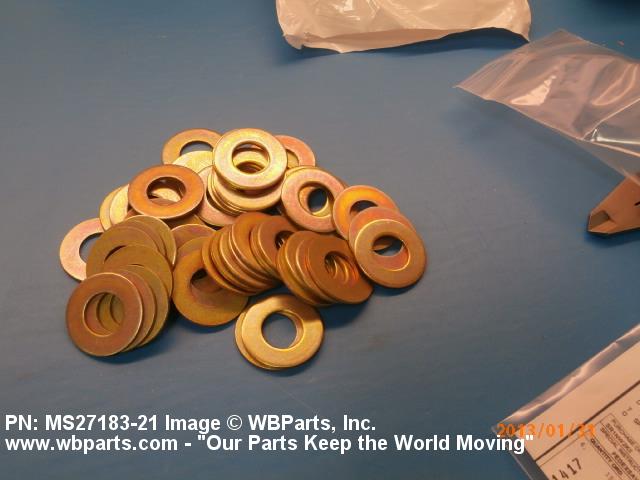

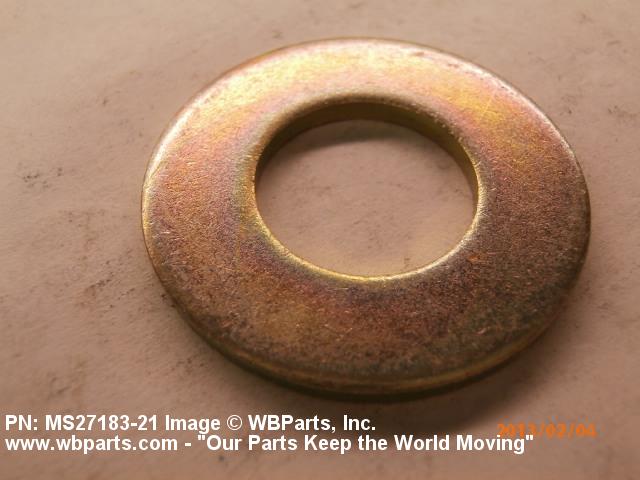

Drawings & Photos | NSN 5310-00-232-8195
Demand History | NSN 5310-00-232-8195
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| FFW92 | 2025-06-161 | 16 | United States |
| MS2718321 | 2024-09-260 | 90 | Japan |
| FF-W-92 | 2023-01-18 | 60 | Saudi Arabia |
| MS2718321 | 2019-06-155 | 100 | United States |
| FFW92 | 2018-07-207 | 2 | United States |
| 5310-00-232-8195 | 2018-01-10 | 24 | United States |
| MS2718321 | 2017-08-236 | 16 | TW |
| FFW92 | 2016-08-217 | 21 | US |
| MS2718321 | 2014-12-336 | 176 | US |
| MS2718321 | 2014-11-321 | 100 | US |
| MS27183-21 | 2014-11-314 | 144 | IL |
| MS2718321 | 2014-07-198 | 136 | US |
| MS2718321 | 2014-02-59 | 92 | US |
| MS2718321 | 2013-02-58 | 4 | US |
| MS2718321 | 2013-01-25 | 48 | United States |
| MS2718321 | 2013-01-07 | 48 | United States |
| MS2718321 | 2012-04-93 | 51 | US |
| FFW92 | 2011-10-304 | 495 | United States |
| MS2718321 | 2011-01-14 | 9600 | United States |
| 5310-00-232-8195 | 2010-05-132 | 1919 | DIBBS |
| MS2718321 | 2010-04-104 | 1021 | US |
| 5310-00-232-8195 | 2009-12-352 | 50 | United States |
| MS2718321 | 2009-07-203 | 20 | US |
| MS2718321 | 2009-04-98 | 90 | US |
| MS2718321 | 2009-03-71 | 4000 | US |
| 5310-00-232-8195 | 2008-09-248 | 2062 | DIBBS |
| 5310-00-232-8195 | 2008-08-217 | 602 | DIBBS |
| 5310-00-232-8195 | 2008-07-183 | 190 | DIBBS |
| 5310-00-232-8195 | 2008-03-84 | 1200 | United States |
| MS2718321 | 2008-02-57 | 1 | US |
| MS2718321 | 2007-12-353 | 100 | United States |
Cross Reference | NSN 5310-00-232-8195
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0706049 | S3002 | GENERAL DYNAMICS EUROPEAN,LAND-SYSTEMS-MOWAG GMBH |
| 104J005-28 | 62793 | BFM ENERGY PRODUCTS CORP |
| 13207E6761FN12 | 97403 | CECOM LR CENTER |
| 15001-10 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 3254FX | 45152 | OSHKOSH CORPORATION |
| 3254FX | 75Q65 | OSHKOSH DEFENSE, LLC |
| 4349 | 23834 | ELLIOTT MACHINE WORKS INC. |
| 5310002328195 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 5310008238803 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 81 309 830 | 82796 | COLTEC INDUSTRIES INC DBA FAIRBANKS MORSE ENGINE |
| 81309832 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 93900025 | 98171 | LEAR SIEGLER TRUCK PRODUCTS CORP NEWAY DIV |
| D12420-6 | 91340 | MET-PRO CORPORATION |
| D301087 FIND NO 138 | 3X894 | CONTROL FLOW, INC. DBA WESTECH HEAVY MACHINERY DIV |
| FF-W-92 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| MS1579-814 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MS15795-120 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS15795-20 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS15795-220 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS27183-21 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS27183-21 | A9271 | GORIZIANE GROUP SPA |
| MS27183-21G | 0198B | GESTION DE MATERIALES Y PROYECTOS S |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-00-232-8195
Technical Data | NSN 5310-00-232-8195
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |

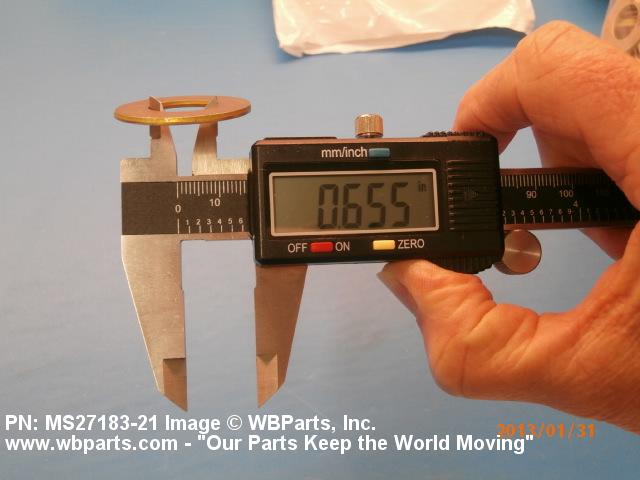

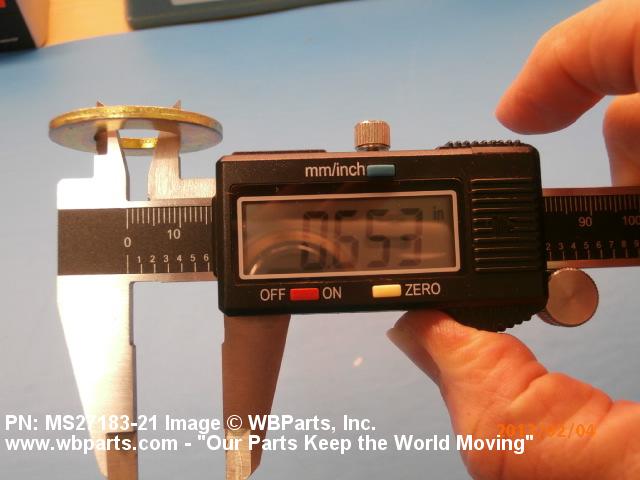

| HOLE DIAMETER | 0.649 INCHES MINIMUM AND 0.686 INCHES MAXIMUM |
| PERIPHERAL SHAPE STYLE | 1 ROUND |

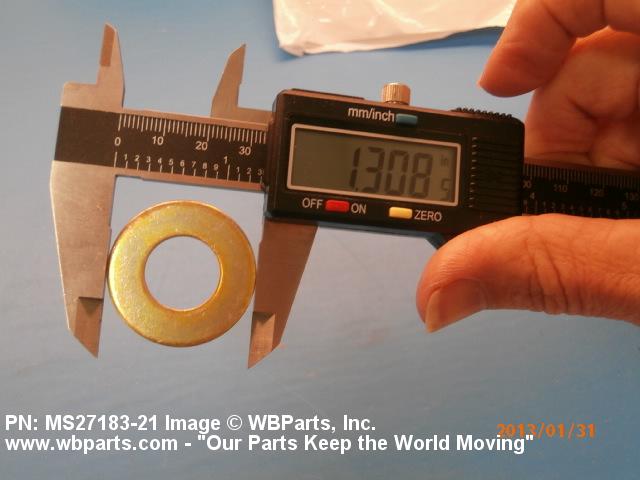

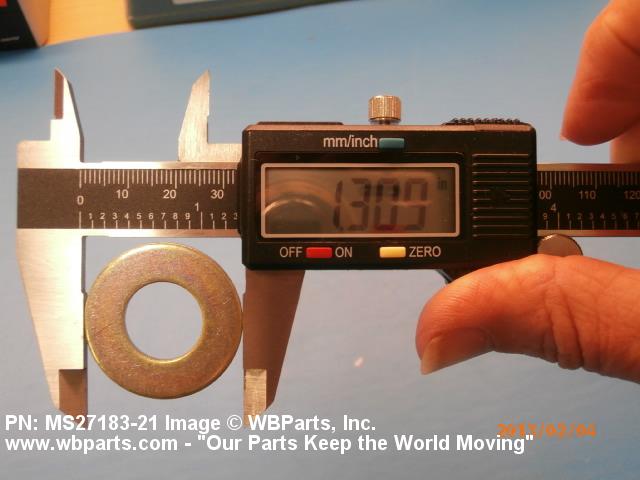

| OVERALL DIAMETER | 1.305 INCHES MINIMUM AND 1.342 INCHES MAXIMUM |
| CENTER HOLE SHAPE STYLE | 1 ROUND |
| CROSS-SECTIONAL SHAPE STYLE | 1 RECTANGULAR |

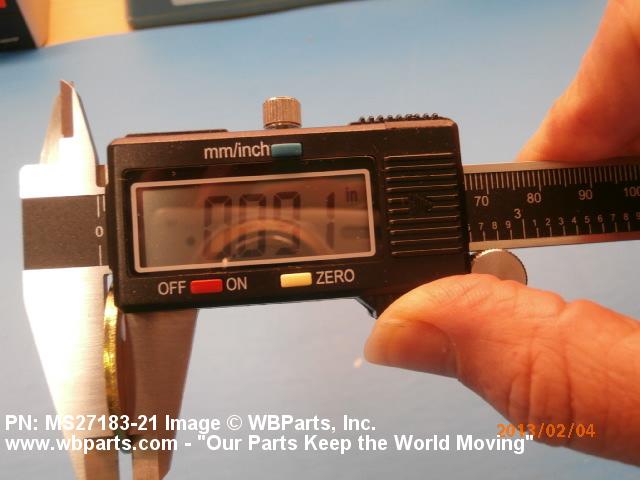

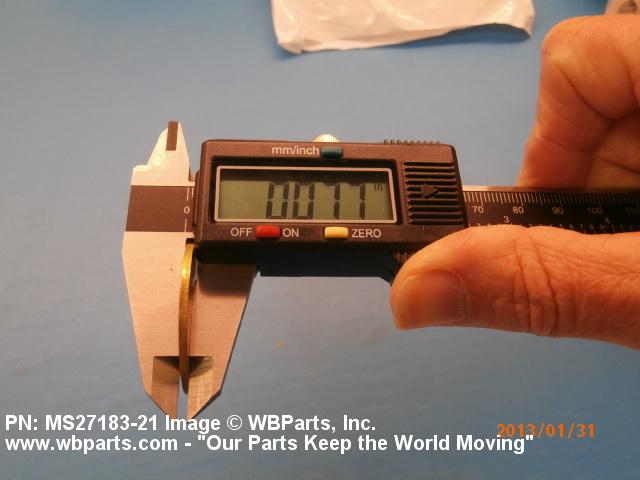

| THICKNESS | 0.074 INCHES MINIMUM AND 0.121 INCHES MAXIMUM |
| SPECIAL FEATURES | DURING THE MANUFACTURING PROCESS,TESTS AND INSPECTIONS THE WASHER SHALL NOT CONTACT MERCURY,MERCURY COMPOUNDS OR ANY MERCURY CONTAINING DEVICES |
| NONDEFINITIVE SPEC/STD DATA | A TYPE AND 1 GRADE AND A CLASS |
| DEPARTURE FROM CITED DESIGNATOR | AS MODIFIED BY FEAT |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | FF-W-92 |
| MANUFACTURERS CODE | 96906 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS27183-21 |
Restrictions/Controls & Freight Information | NSN 5310-00-232-8195
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
