NSN 5310-00-243-4764 MS35338139B, MS35338-139B, SMB63266942
Product Details | LOCK WASHER
5310-00-243-4764 A washer which is usually round with a centrally located hole. Its edges and two bearing surfaces are so designed that applied pressure brings into play the spring tension and/or frictional locking principle which materially resists any tendency toward turning. It may be made of one or two pieces
Part Alternates: MS35338139B, MS35338-139B, SMB63266942, SMB6326694-2, FFW84, 85048481, 8504848-1, 5310-00-243-4764, 00-243-4764, 5310002434764, 002434764
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 13 NOV 1970 | 00-243-4764 | 14218 ( WASHER, LOCK ) |
Drawings & Photos | NSN 5310-00-243-4764
Demand History | NSN 5310-00-243-4764
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| FFW84 | 2025-03-86 | 1 | US |
| FFW84 | 2025-03-85 | 1 | United States |
| 5310-00-243-4764 | 2022-08-243 | 6089 | DIBBS |
| 5310-00-243-4764 | 2022-03-81 | 3404 | DIBBS |
| MS35338139B | 2020-05-128 | 3700 | United States |
| MS35338139B | 2020-02-49 | 400 | IN |
| 5310-00-243-4764 | 2019-05-143 | 4052 | DIBBS |
| 5310-00-243-4764 | 2017-03-88 | 25 | US |
| 5310-00-243-4764 | 2015-09-256 | 16667 | DIBBS |
| MS35338139B | 2012-07-194 | 3200 | United States |
| MS35338139B | 2012-05-142 | 3225 | United States |
| 5310-00-243-4764 | 2010-11-312 | 1 | US |
| 5310-00-243-4764 | 2010-03-67 | 20337 | DIBBS |
| MS35338139B | 2009-03-84 | 1000 | US |
| 5310-00-243-4764 | 2008-07-190 | 5000 | DIBBS |
| MS35338139B | 2008-05-137 | 100 | US |
| MS35338139B | 2008-05-137 | 100 | US |
| 5310-00-243-4764 | 2008-05-136 | 15201 | DIBBS |
| MS35338139B | 2008-02-52 | 200 | Germany |
| MS35338139B | 2007-11-312 | 200 | Germany |
Cross Reference | NSN 5310-00-243-4764
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8504848-1 | 26722 | RCA CORP MEMORY PRODUCTS DIV |
| FFW84 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| MS35338-139B | 05QS6 | LM PRODUCTS, INC |
| MS35338-139B | 0ZBE8 | TRIMAN INDUSTRIES INC |
| MS35338-139B | 7P503 | BLESSING OUR WORLD, INC. DBA FREEDOM PRECISION HARDWARE |
| MS35338-139B | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS35338-139B | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| SMB6326694-2 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-00-243-4764
Technical Data | NSN 5310-00-243-4764
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| SURFACE TREATMENT | OXIDE FILM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-13924 CL 4 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| COLOR | BLACK OVERALL |
| HARDNESS RATING | 35.0 ROCKWELL C MINIMUM AND 43.0 ROCKWELL C MAXIMUM |
| STYLE DESIGNATOR | 108 SPLIT HELICAL-RIGHT HAND |

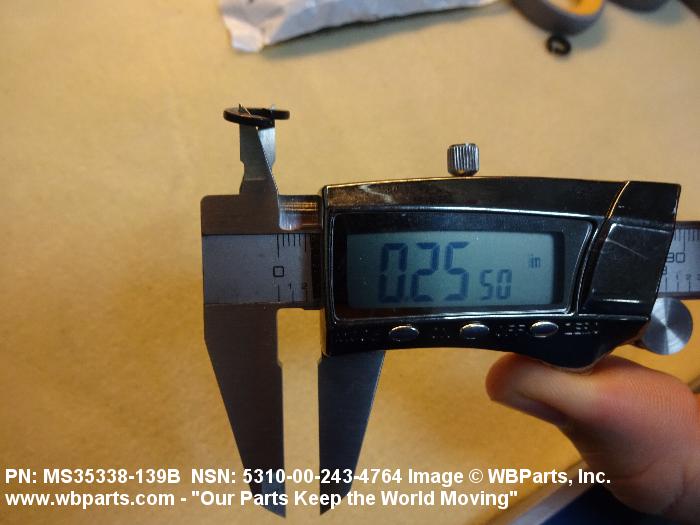

| HOLE DIAMETER | 0.255 INCHES MINIMUM AND 0.263 INCHES MAXIMUM |

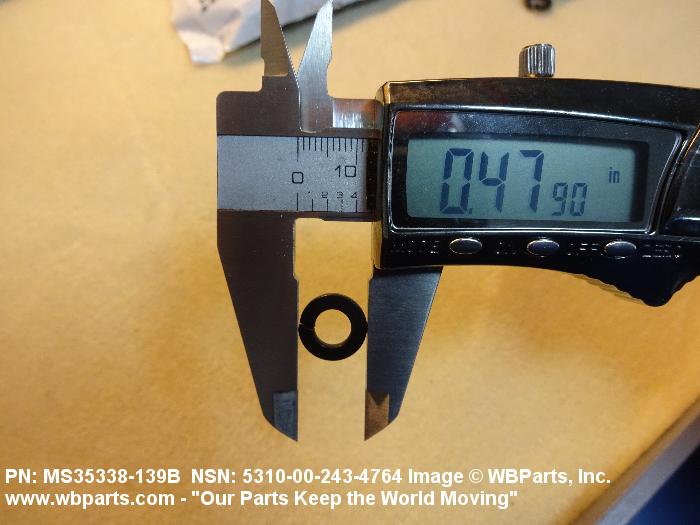

| OUTSIDE DIAMETER | 0.489 INCHES MAXIMUM |

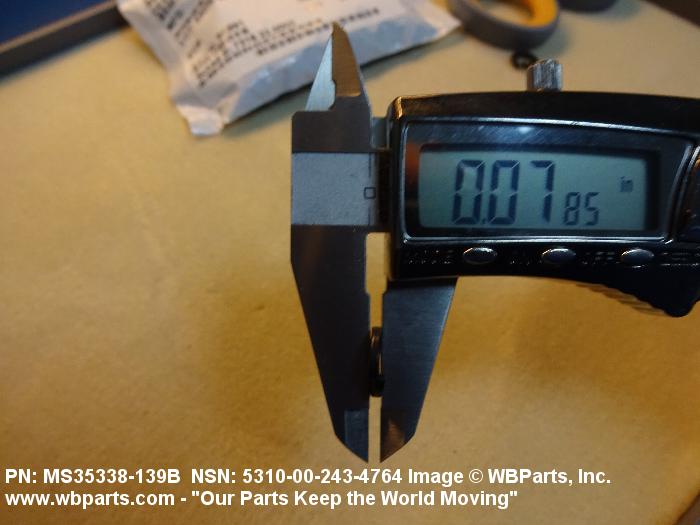

| MATERIAL THICKNESS | 0.062 INCHES MINIMUM AND 0.072 INCHES MAXIMUM |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | FFW84 |
Restrictions/Controls & Freight Information | NSN 5310-00-243-4764
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
