Product Details | RECESSED WASHER

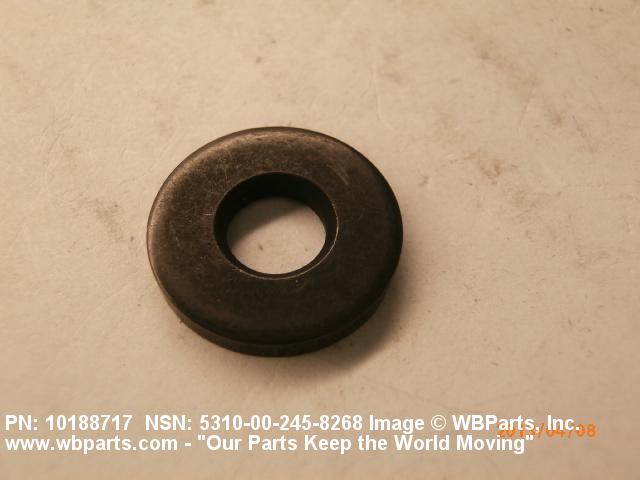

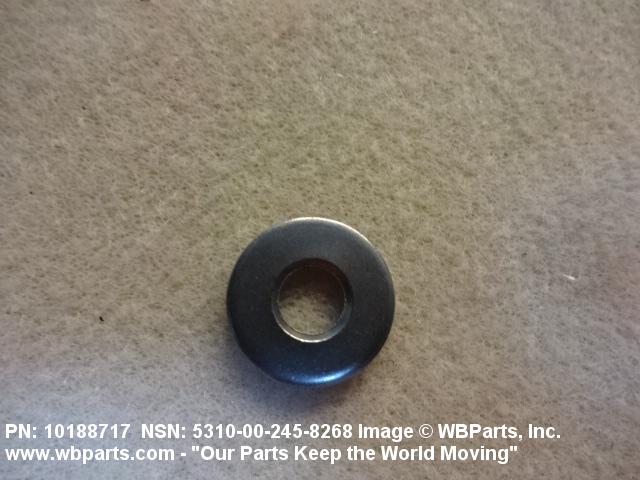

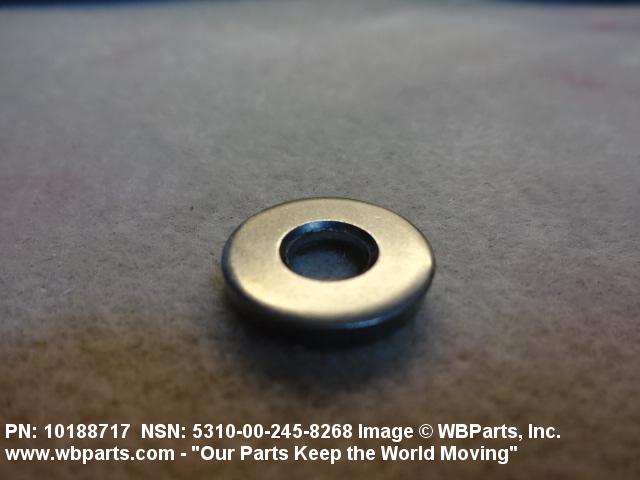

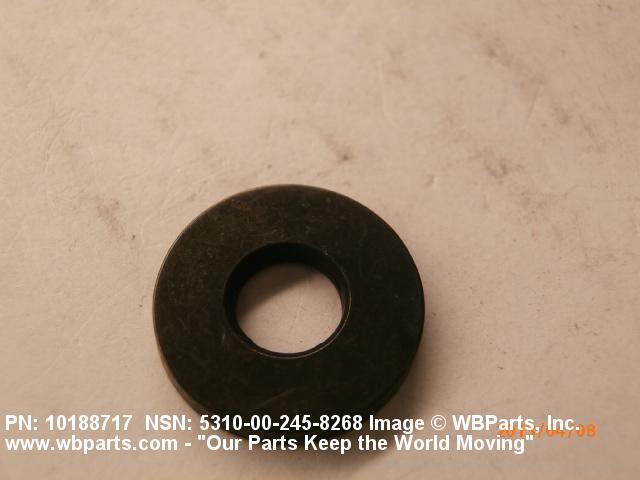

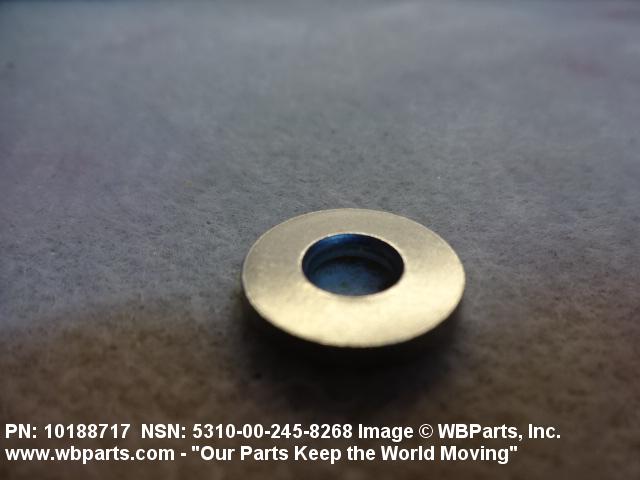

5310-00-245-8268 A washer of any peripheral shape having a centrally located hole. Both bearing surfaces are parallel and flat, but one or both of the bearing surfaces must be broken by a counterbore, countersink, or similarly shaped recess. The thickness must not exceed 25 per cent of the outside diameter or the largest outside dimension. The maximum limit of the tolerance or range applied to the thickness and/or largest outside dimension must be used to determine compliance. Excludes WASHER, CONCAVE, RETAINER, PACKING, and thrust type washers. See also SPACER, SLEEVE; and SPACER, STEPPED.
Part Alternates: 10188717, 4575571, 457-5571 , 5310-00-245-8268, 00-245-8268, 5310002458268 , 002458268
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 18 JUL 1969 | 00-245-8268 | 15933 ( WASHER, RECESSED ) |

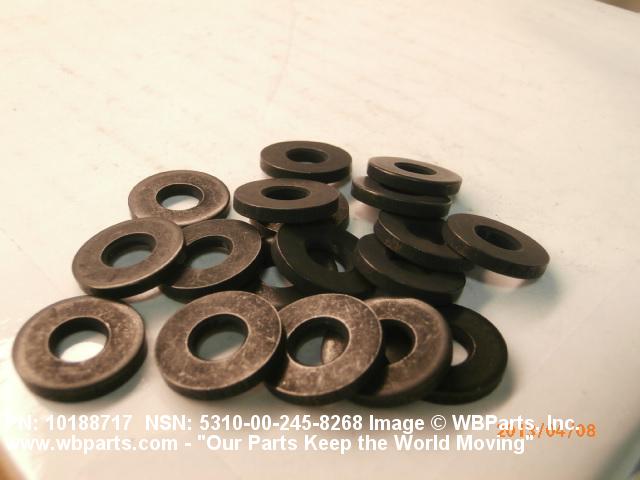

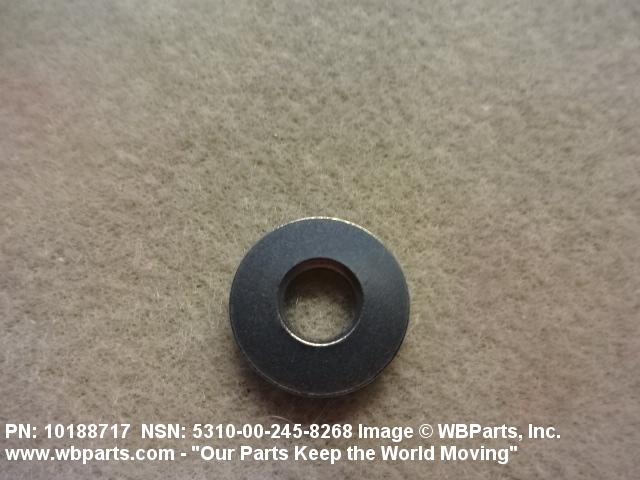

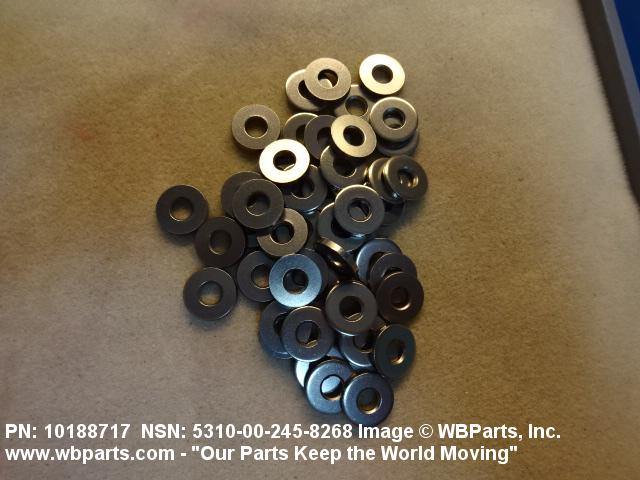

Drawings & Photos | NSN 5310-00-245-8268
Demand History | NSN 5310-00-245-8268
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-245-8268 | 2019-05-15 | 217 | DIBBS |
| 5310-00-245-8268 | 2018-11-09 | 217 | DIBBS |
| 5310-00-245-8268 | 2018-11-01 | 217 | DIBBS |
| 5310-00-245-8268 | 2017-10-13 | 50 | United States |
| 5310-00-245-8268 | 2015-04-30 | 369 | DIBBS |
| 10188717 | 2013-03-26 | 20 | United States |
| 10188717 | 2012-12-14 | 20 | United States |
| 5310-00-245-8268 | 2010-11-26 | 89 | DIBBS |
| 5310-00-245-8268 | 2010-07-30 | 452 | DIBBS |
| 5310-00-245-8268 | 2010-06-08 | 114 | DIBBS |
| 5310-00-245-8268 | 2009-12-02 | 104 | DIBBS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5310-00-245-8268
Related Products | NSN 5310-00-245-8268
5310-00-245-8271, 5310-00-245-8512, 5310-00-245-8515, 5310-00-245-8604, 5310-00-245-8650
Technical Data | NSN 5310-00-245-8268
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 301 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-766,CLASS 301,CONDITION FULL HARD FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CHROMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-P-14538 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | 28 RECESSED BOTH SIDES |

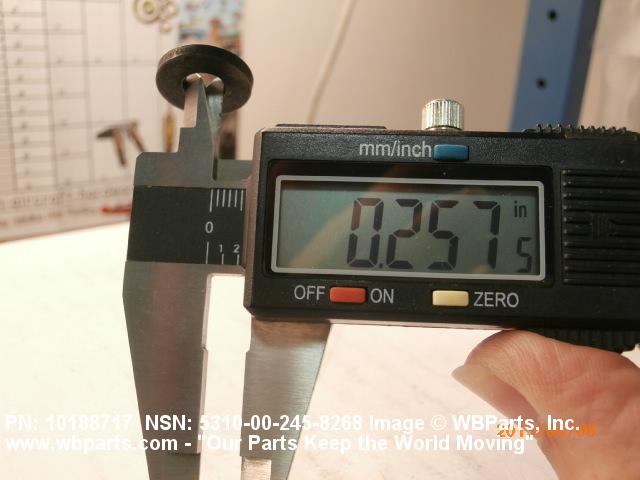

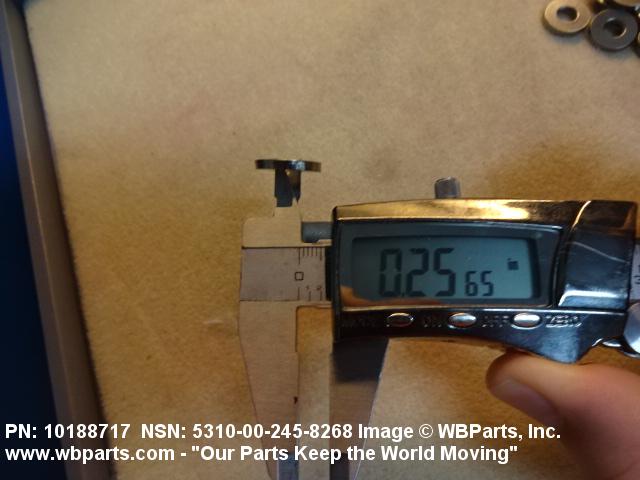

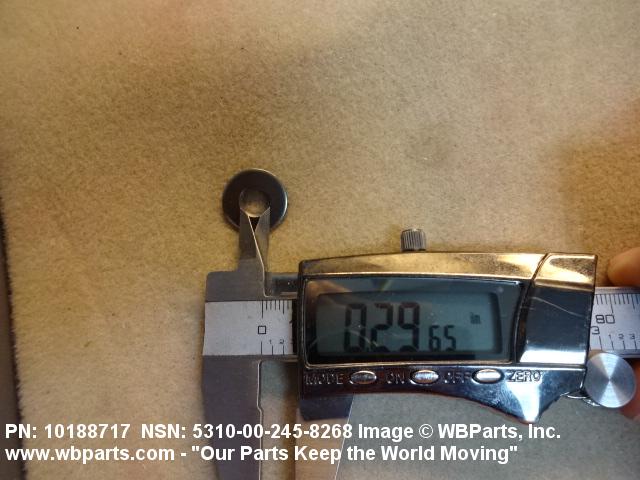

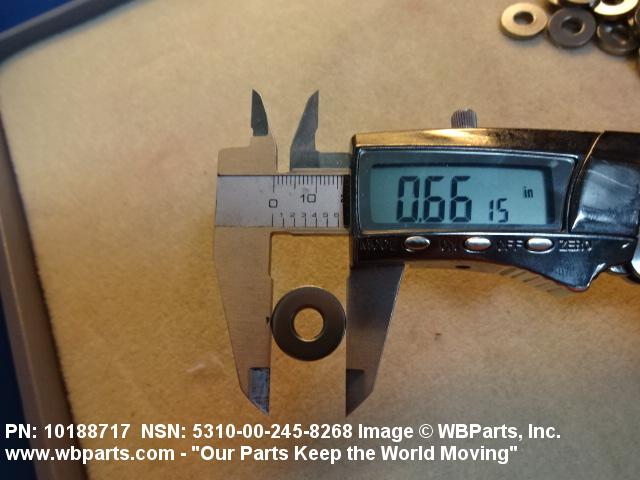

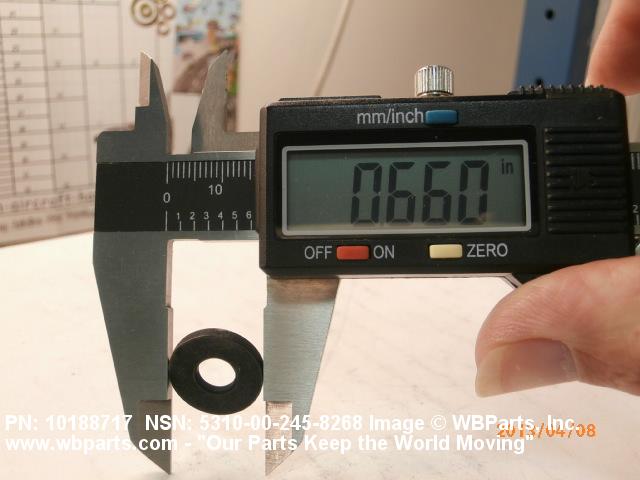

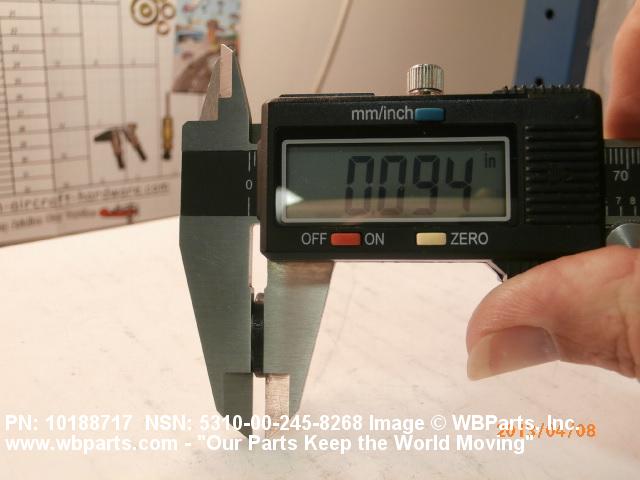

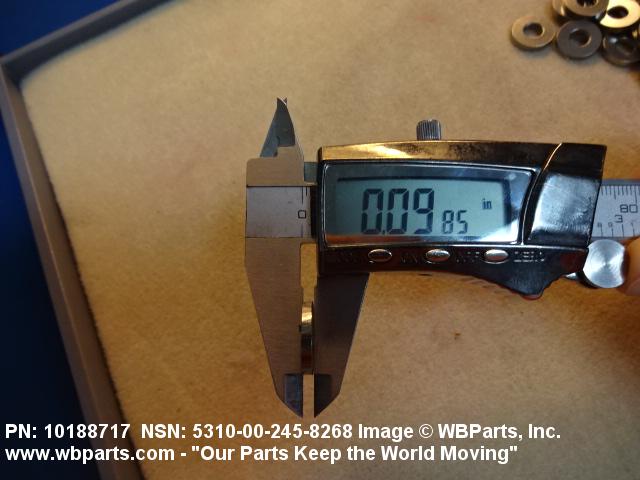

| HOLE DIAMETER | 0.256 INCHES MINIMUM AND 0.263 INCHES MAXIMUM |
| OUTSIDE DIAMETER | 0.650 INCHES MINIMUM AND 0.670 INCHES MAXIMUM |
| RECESS DIAMETER | 0.310 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.090 INCHES NOMINAL |
| TOP RECESS DIAMETER | 0.020 INCHES MINIMUM AND 0.030 INCHES MAXIMUM |
| BOTTOM RECESS DIAMETER | 0.020 INCHES MINIMUM AND 0.030 INCHES MAXIMUM |
| BOTTOM RECESS ANGLE | 43.0 DEGREES MINIMUM AND 47.0 DEGREES MAXIMUM |
| TOP RECESS ANGLE | 43.0 DEGREES MINIMUM AND 47.0 DEGREES MAXIMUM |
| MANUFACTURERS CODE | 18876 |
| DESIGN CONTROL REFERENCE | 10188717 |
