NSN 5310-00-271-7454 MS35338119, MS35338-119, FFW84
Product Details | LOCK WASHER
5310-00-271-7454 A washer which is usually round with a centrally located hole. Its edges and two bearing surfaces are so designed that applied pressure brings into play the spring tension and/or frictional locking principle which materially resists any tendency toward turning. It may be made of one or two pieces
Part Alternates: MS35338119, MS35338-119, FFW84, FF-W-84, 12Z30005, 12Z3000-5, 40131255, 4013125-5, 422273PC8, 54866200033PC3, 5486620-0033PC3, 7601911, 5310-00-271-7454, 00-271-7454, 5310002717454, 002717454
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-271-7454 | 14218 ( WASHER, LOCK ) |

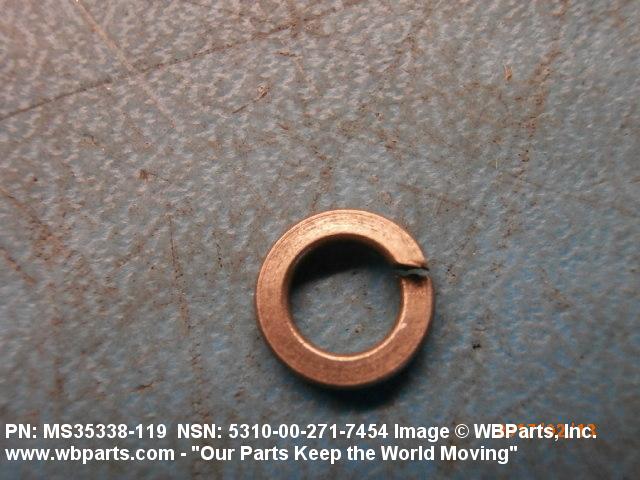

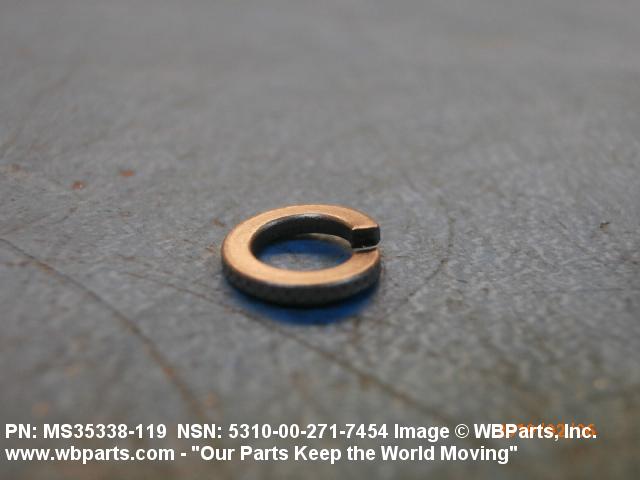

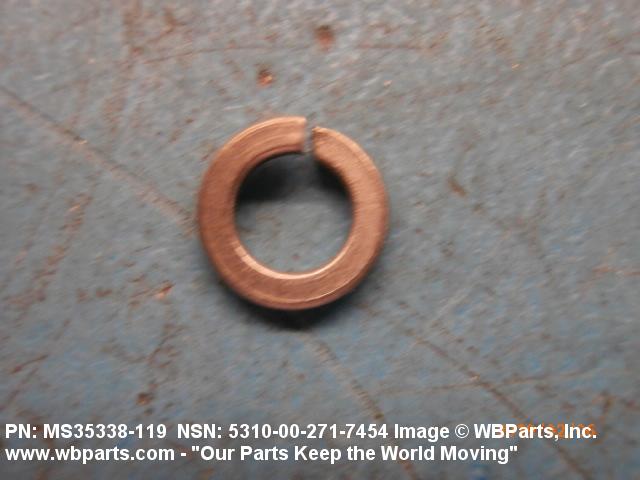

Drawings & Photos | NSN 5310-00-271-7454
Demand History | NSN 5310-00-271-7454
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| FFW84 | 2025-03-86 | 1 | US |
| FFW84 | 2025-03-85 | 1 | United States |
| MS35338119 | 2020-03-69 | 100 | United States |
| 5310-00-271-7454 | 2019-03-74 | 300 | United States |
| MS35338119 | 2019-01-30 | 540 | United States |
| 5310-00-271-7454 | 2019-01-25 | 540 | United States |
| 5310-00-271-7454 | 2018-12-351 | 300 | United States |
| 5310-00-271-7454 | 2018-11-308 | 147 | DIBBS |
| MS35338119 | 2017-02-33 | 300 | United States |
| MS35338119 | 2016-10-294 | 600 | United States |
| MS35338119 | 2013-01-02 | 2000 | United States |
| MS35338119 | 2012-02-55 | 7 | United Kingdom |
| MS35338119 | 2012-01-13 | 960 | United States |
| 5310-00-271-7454 | 2010-10-284 | 1200 | United States |
| 5310-00-271-7454 | 2010-09-252 | 1200 | United States |
Cross Reference | NSN 5310-00-271-7454
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12Z3000-5 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 4013125-5 | 07187 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 422273PC8 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 5310002717454 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 5486620-0033PC3 | 43689 | HUNTINGTON INGALLS INCORPORATED DIV NEWPORT NEWS |
| 7601911 | 19200 | US ARMY ARDEC RDECOM |
| FF-W-84 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| MS35338-119 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-271-7454
Related Products | NSN 5310-00-271-7454
Technical Data | NSN 5310-00-271-7454
| Characteristic | Specifications |
|---|---|
| MATERIAL | NICKEL ALLOY A OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-N-286 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| HARDNESS RATING | 33.0 ROCKWELL C MINIMUM AND 40.0 ROCKWELL C MAXIMUM |
| STYLE DESIGNATOR | 108 SPLIT HELICAL-RIGHT HAND |

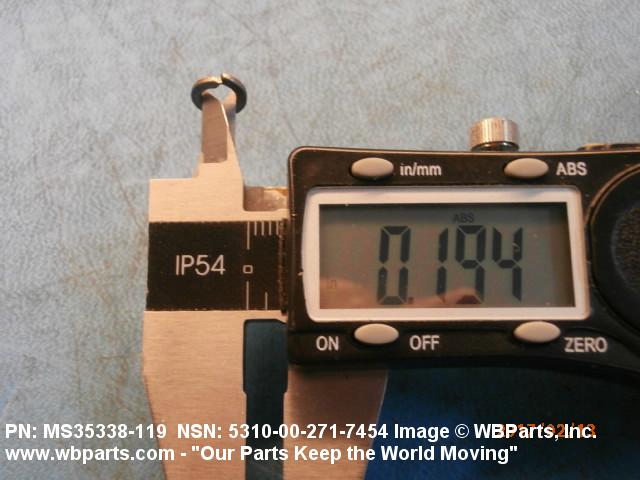

| HOLE DIAMETER | 0.194 INCHES MINIMUM AND 0.202 INCHES MAXIMUM |

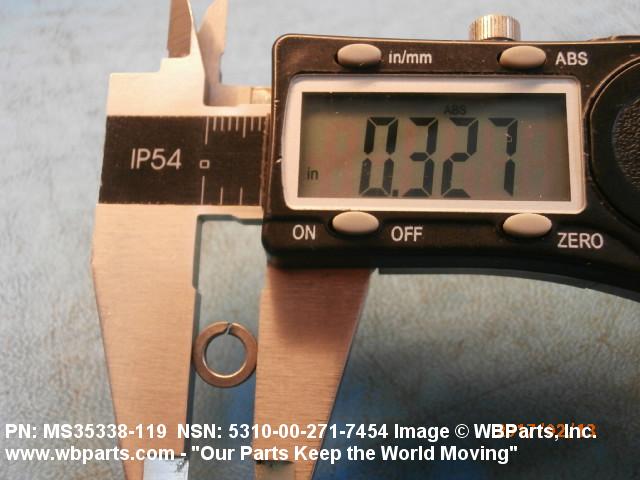

| OUTSIDE DIAMETER | 0.334 INCHES MAXIMUM |

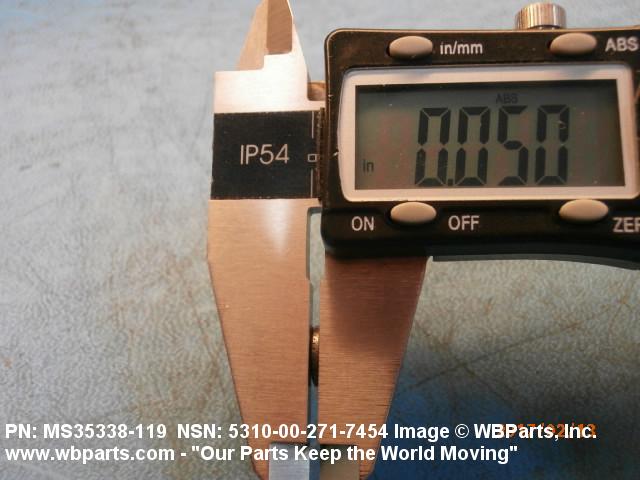

| MATERIAL THICKNESS | 0.047 INCHES MINIMUM AND 0.053 INCHES MAXIMUM |
| III MINIMUM TENSILE STRENGTH | 155000 POUNDS PER SQUARE INCH |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | FF-W-84 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS35338-119 |
Restrictions/Controls & Freight Information | NSN 5310-00-271-7454
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 094380 | COTTER PINS/SPRING COTTERS IRON |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-271-7454
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | X | SEMIACTIVE ITEM-NO REPLACEMENT (NON-STOCKED ITEMS) A potentially inactive NSN which must be retained in the supply system as an item of supply because (1) stocks of the item are on hand or in use below the wholesale level and (2) the NSN is cited in equipment authorization documents TO & E, TA, TM, etc., or in-use assets are being reported. 1. Items are authorized for central procurement but not authorized for stockage at wholesale level. 2. Requisitions for in-use replacement will be authorized in accordance with individual Military Service directives. 3. Requisitions may be submitted as requirements generate. Repetitive demands may dictate an AAC change to permit wholesale stockage. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
