NSN 5310-00-274-9346 MS3542632, MS35426-32, 00-274-9346
Product Details | WING PLAIN NUT
5310-00-274-9346 A nut having wings designed for manual turning without driver or wrench.
Part Alternates: MS3542632, MS35426-32, 5310-00-274-9346, 00-274-9346, 5310002749346, 002749346
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-274-9346 | 01862 ( NUT, PLAIN, WING ) |

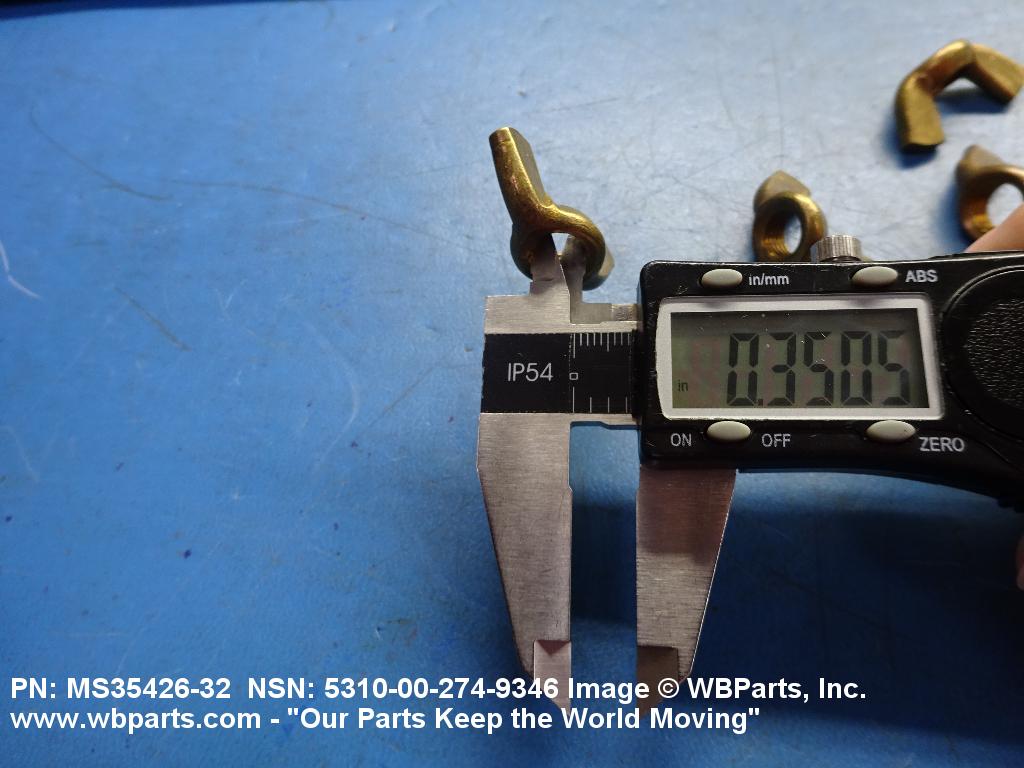

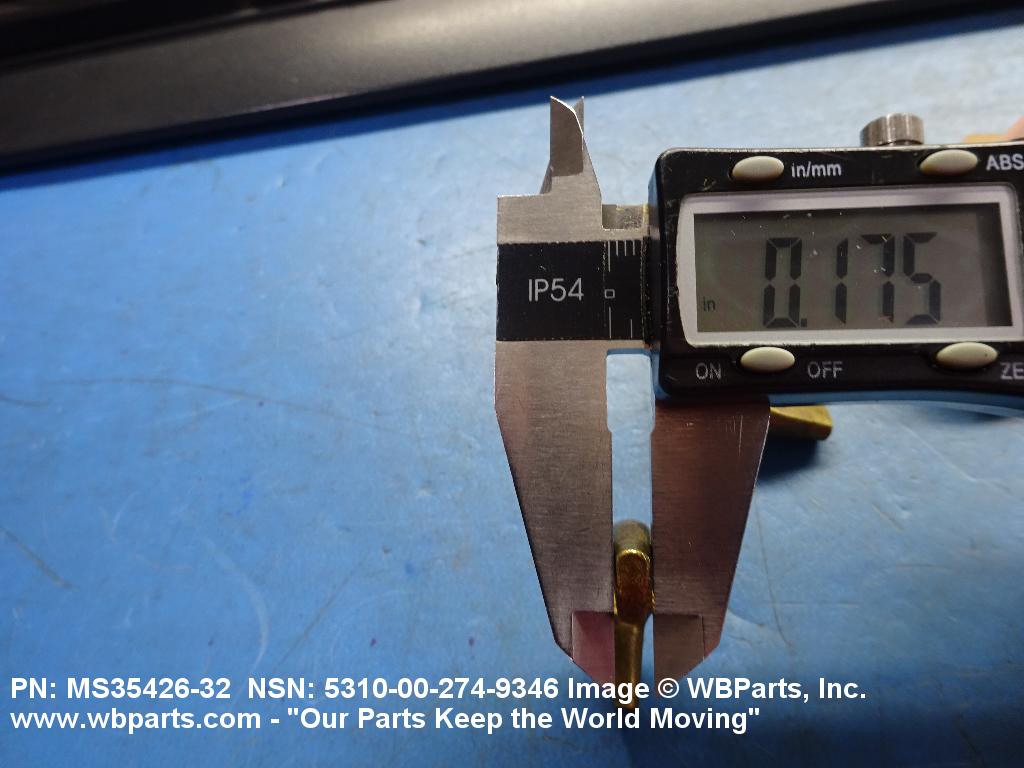

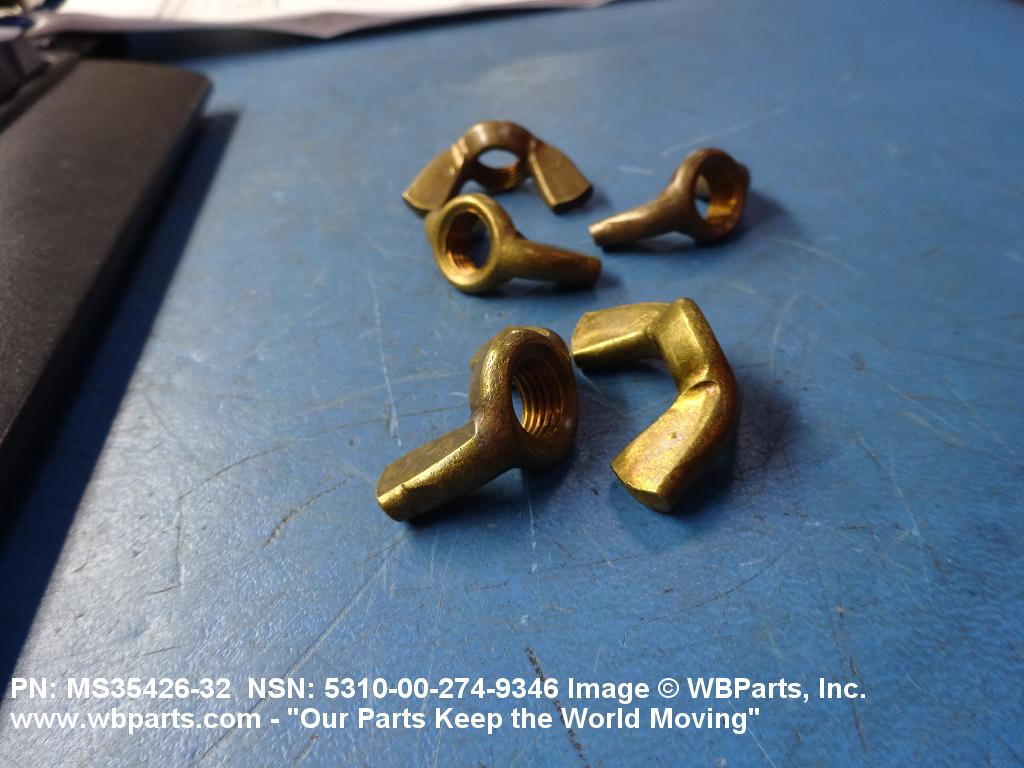

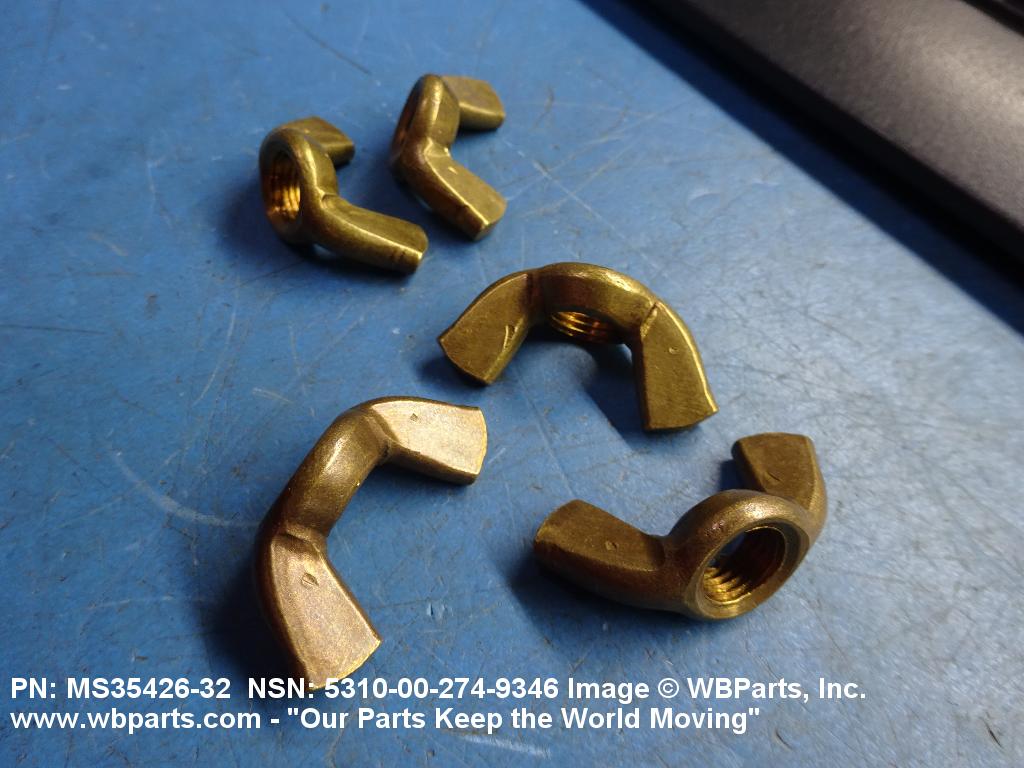

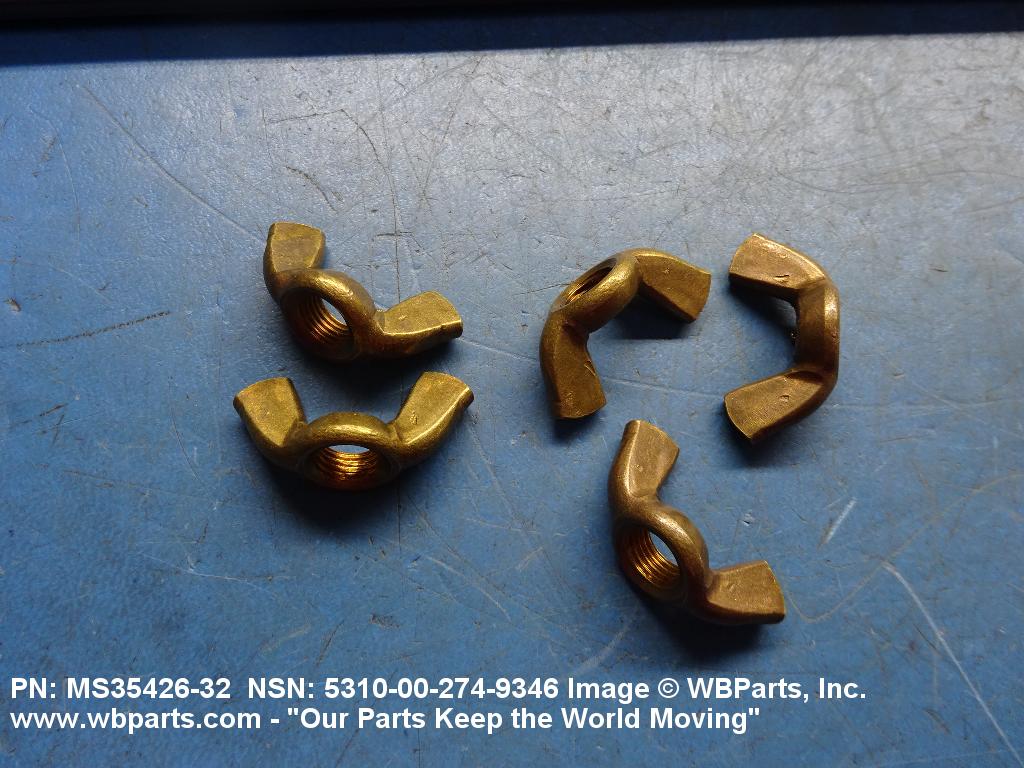

Drawings & Photos | NSN 5310-00-274-9346
Demand History | NSN 5310-00-274-9346
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-274-9346 | 2024-10-282 | 26 | US |
| MS3542632 | 2022-12-361 | 7 | US |
| 5310-00-274-9346 | 2022-07-208 | 5 | United States |
| MS3542632 | 2008-07-193 | 100 | United States |
Cross Reference | NSN 5310-00-274-9346
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS35426-32 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-274-9346
Related Products | NSN 5310-00-274-9346
Technical Data | NSN 5310-00-274-9346
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.375 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | COPPER ALLOY 220 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-B-613 FED SPEC SINGLE MATERIAL RESPONSE OR QQ-B-626 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A260 WING |

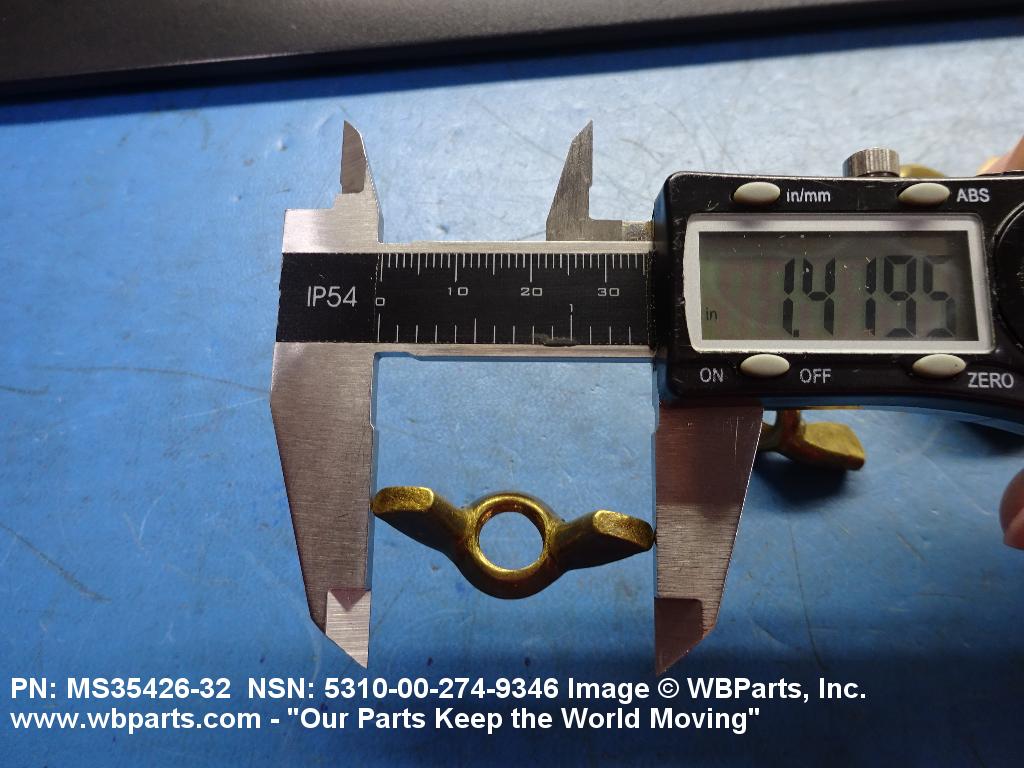

| WING SPREAD WIDTH | 1.312 INCHES MINIMUM AND 1.438 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.656 INCHES MINIMUM AND 0.790 INCHES MAXIMUM |

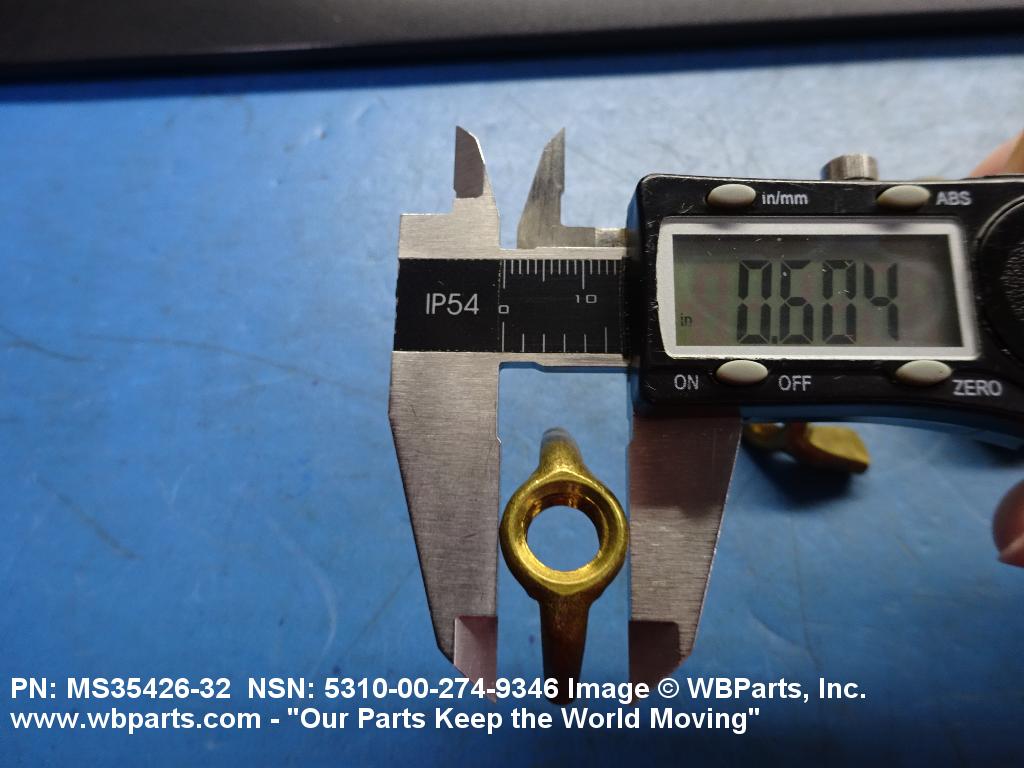

| BODY DIAMETER | 0.641 INCHES MINIMUM AND 0.703 INCHES MAXIMUM |
| FABRICATION METHOD | FORGED |
| TEMP RATING | NOT RATED |
| SPECIFICATION/STANDARD DATA | 96906-MS35426 GOVERNMENT STANDARD AND 88044-AN350/CANCELED/ GOVERNMENT STANDARD |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS35426-32 |
Restrictions/Controls & Freight Information | NSN 5310-00-274-9346
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093460 | BOLTS/NUTS NOI BBC/ZINC |
| Less than car load rating | Q | 70 |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
