NSN 5310-00-303-2535 S161033002, S1610-33002, SH1002
Product Details | SPLIT WASHER
5310-00-303-2535 A washer, round in shape, and having a centrally located hole. Its two flat parallel bearing surfaces are divided or cut along the radius, leaving a cleft, fissure, or cutaway portion across the rim whch extends from the outer circumference to the washer hole but which is never as large as the washer hole diameter. Excludes WASHER (1), LOCK.
Part Alternates: S161033002, S1610-33002, SH1002, 1560H34179, 1560H34-179, 5310-00-303-2535, 00-303-2535, 5310003032535, 003032535
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-303-2535 | 15937 ( WASHER, SPLIT ) |

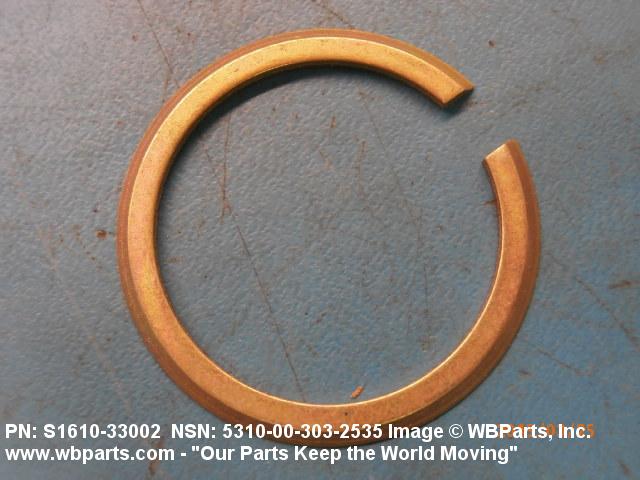

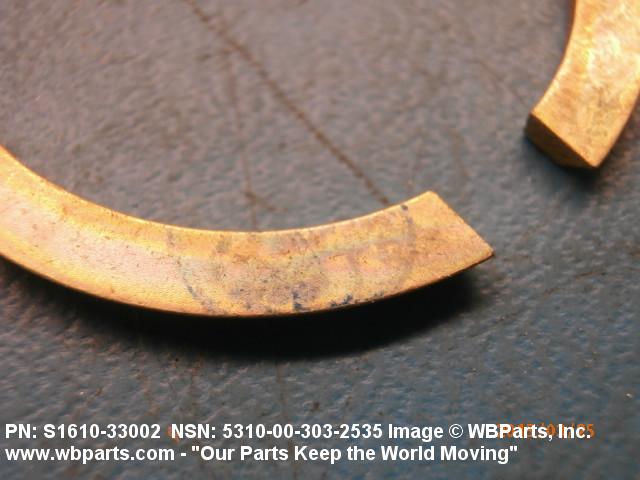

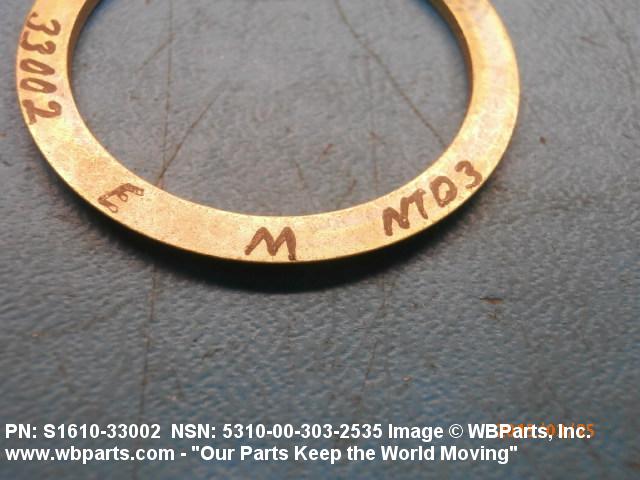

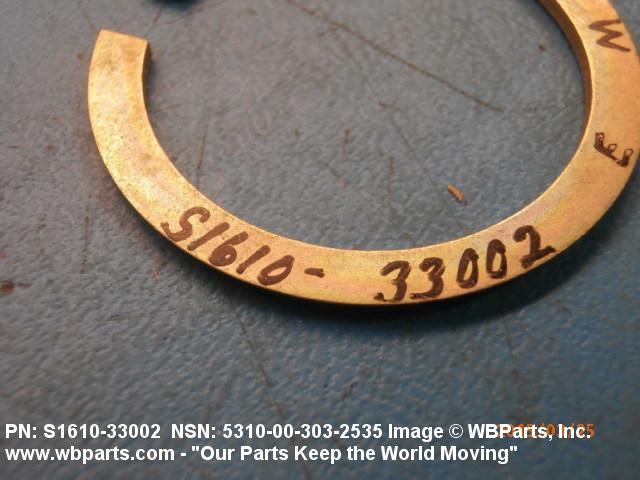

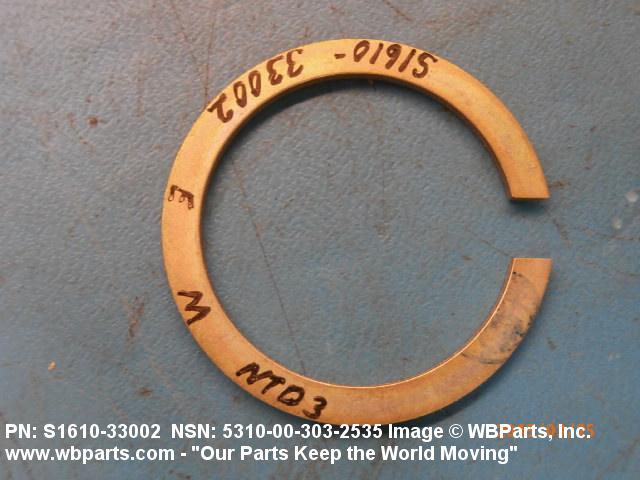

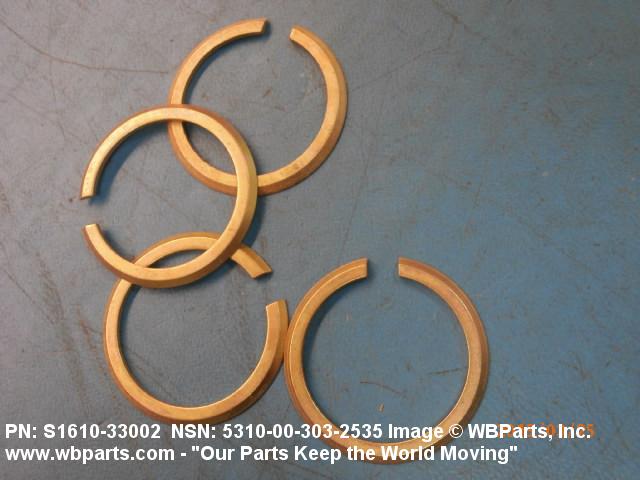

Drawings & Photos | NSN 5310-00-303-2535
Demand History | NSN 5310-00-303-2535
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-303-2535 | 2015-02-54 | 60 | Canada |
| 5310-00-303-2535 | 2008-09-253 | 1 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-00-303-2535
Technical Data | NSN 5310-00-303-2535
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-18729 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | 9 SPLIT |

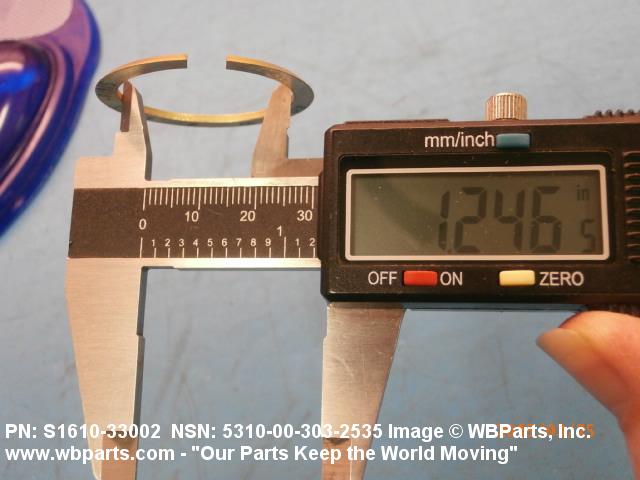

| HOLE DIAMETER | 1.250 INCHES NOMINAL |

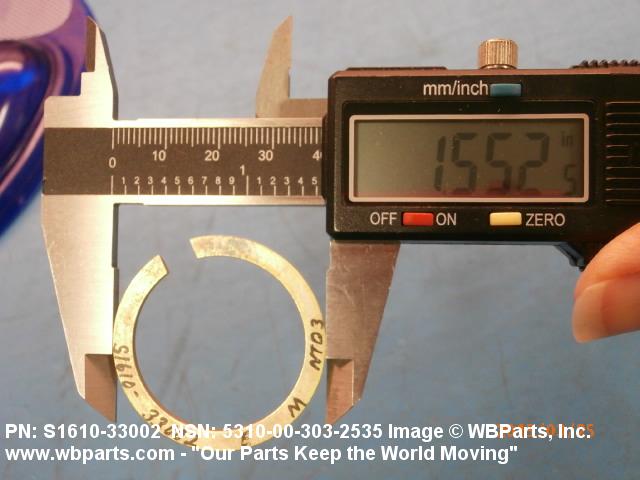

| OUTSIDE DIAMETER | 1.550 INCHES MINIMUM AND 1.560 INCHES MAXIMUM |

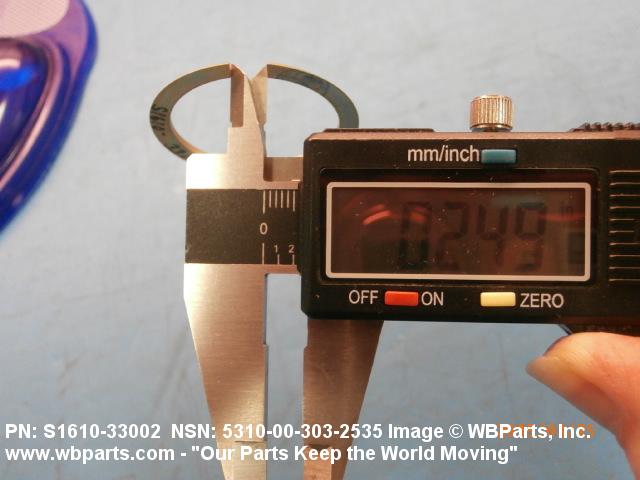

| DISTANCE ACROSS SPLIT OPENING | 0.250 INCHES NOMINAL |

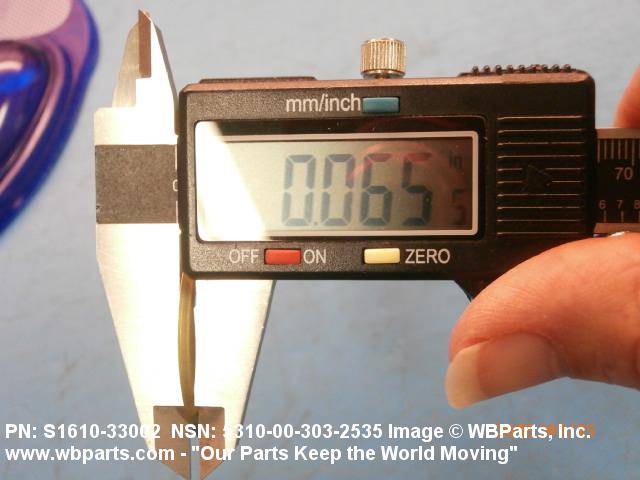

| MATERIAL THICKNESS | 0.060 INCHES MINIMUM AND 0.070 INCHES MAXIMUM |
| III HEAT TREATMENT | ANNEALED |
| MANUFACTURERS CODE | 81996 |
| DESIGN CONTROL REFERENCE | 1560H34-179 |
Restrictions/Controls & Freight Information | NSN 5310-00-303-2535
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194160 | WASHER OR GASKETS, IRON OR STEEL, |
| Less than car load rating | U | 50 |
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
