NSN 5310-00-331-6173 NU151, NU15-1, K3927404
Product Details | SHEET SPRING NUT
5310-00-331-6173 A nut formed from sheet spring material, usually steel, into varying flat, concave, bent or curved designs, having apertures with suitable boss or bosses usually on the upper side capable of securely gripping a mating threaded member. Excludes NUT (1), STAMPED.
Part Alternates: NU151, NU15-1, K3927404, K39274-04, 5310-00-331-6173, 00-331-6173, 5310003316173, 003316173
Hardware and Abrasives | Nuts and Washers
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
53 | 16 DEC 1973 | 00-331-6173 | 01865 ( NUT, SHEET SPRING ) |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-331-6173
Related Products | NSN 5310-00-331-6173
Technical Data | NSN 5310-00-331-6173
Characteristic | Specifications |
---|---|
MATING MEMBER DIAMETER ACCOMMODATED | 0.112 INCHES NOMINAL |
MATERIAL | IRON ALLOY 660 OVERALL |
MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5525 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |

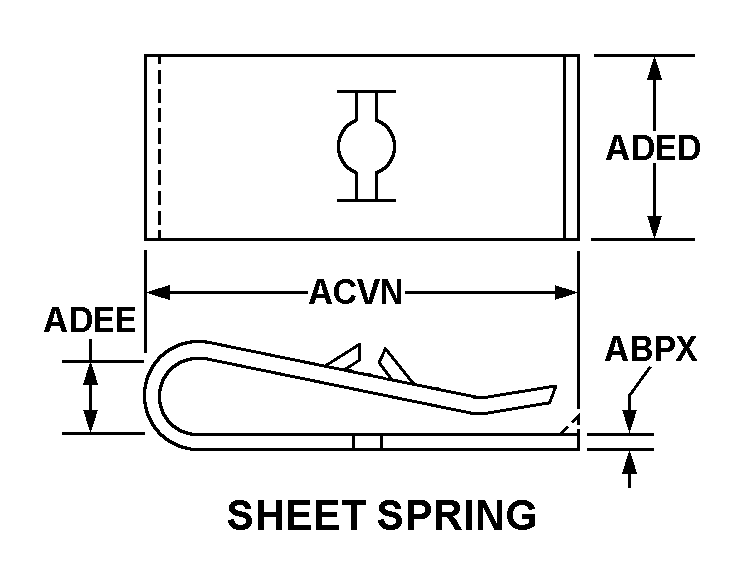

NUT STYLE | A193 SHEET SPRING |
MATERIAL THICKNESS | 0.020 INCHES NOMINAL |
NUT LENGTH | 0.342 INCHES NOMINAL |
NUT WIDTH | 0.225 INCHES NOMINAL |
PANEL THICKNESS | 0.052 INCHES MINIMUM AND 0.072 INCHES MAXIMUM |
NUT MOUNTING PROVISION | GRIPPING PRONGS |
GRIPPING PRONG QUANTITY | 2 |
GRIPPING PRONG LENGTH | 0.322 INCHES MINIMUM AND 0.347 INCHES MAXIMUM |
SPECIAL FEATURES | 0.112-40 UNJC 3B SELFLOCKING DEVICE ON CLIP |
MANUFACTURERS CODE | 08748 |
MFR SOURCE CONTROLLING REFERENCE | NU15-1 |
Restrictions/Controls & Freight Information | NSN 5310-00-331-6173
Category | Code | Description |
---|---|---|
Shelf-Life Code: | 0 | Nondeteriorative |
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Precious Metals Indicator Code: | U | Precious metal type is unknown |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Category | Code | Description |
---|---|---|
NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
Less than car load rating | ||
Less than truck load rating | W | Rating Variable |
Water commodity Code | 573 | unknown |
Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
Air Special Handling | Z | No special handling required. |
Special Handling Code | 9 | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-331-6173
Category | Code | Description |
---|---|---|
Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DN | Department of the Navy |
Service Organization | N | U.S. Navy |
Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
1 EA : Each |
