Product Details | HEXAGON EXTENDED WASHER SELF-LOCKING NUT

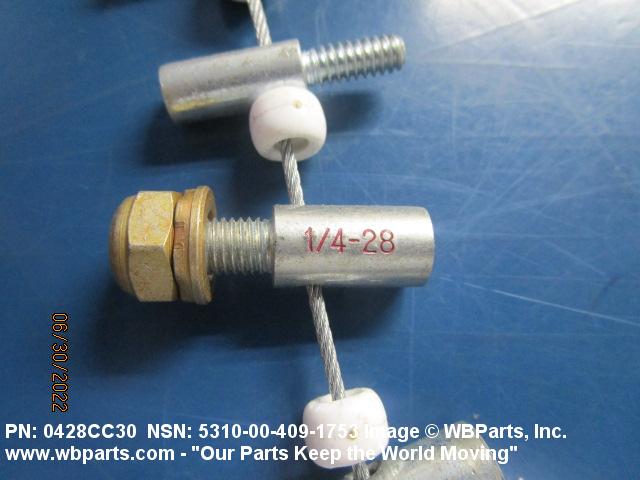

5310-00-409-1753 A nut having 6 flat sides and an integral washer which extends beyond the flats or periphery. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: 0428CC30, 5255409101, 525-540-9101, 5310-00-409-1753, 00-409-1753, 5310004091753, 004091753
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 22 JUL 1970 | 00-409-1753 | 29730 ( NUT, SELF-LOCKING, EXTENDED WASHER, HEXAGON ) |
Drawings & Photos | NSN 5310-00-409-1753
Demand History | NSN 5310-00-409-1753
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 0428CC30 | 2024-12-347 | 416 | DIBBS |
| 0428CC30 | 2022-06-154 | 4 | United States |
| 0428CC30 | 2022-05-123 | 4 | United States |
| 5310-00-409-1753 | 2020-06-157 | 1 | DIBBS-RFPs |
| 0428CC30 | 2020-04-120 | 845 | DIBBS |
| 0428CC30 | 2019-12-336 | 580 | DIBBS |
| 0428CC30 | 2019-08-213 | 1284 | DIBBS |
| 5310-00-409-1753 | 2018-11-330 | 1103 | DIBBS |
| 5310-00-409-1753 | 2018-10-284 | 1050 | DIBBS |
| 5310-00-409-1753 | 2018-10-276 | 1050 | DIBBS |
| 5310-00-409-1753 | 2018-06-177 | 1103 | DIBBS |
| 5310-00-409-1753 | 2018-06-169 | 1103 | DIBBS |
| 5310-00-409-1753 | 2017-11-325 | 1103 | DIBBS |
| 5310-00-409-1753 | 2017-11-309 | 1103 | DIBBS |
| 5310-00-409-1753 | 2016-03-90 | 873 | DIBBS |
| 5310-00-409-1753 | 2016-03-68 | 890 | US |
| 5310-00-409-1753 | 2016-01-19 | 890 | DIBBS |
| 5310-00-409-1753 | 2010-06-181 | 2314 | DIBBS |
| 5310-00-409-1753 | 2010-04-113 | 2222 | DIBBS |
| 5310-00-409-1753 | 2010-04-105 | 3248 | DIBBS |
| 5310-00-409-1753 | 2008-09-248 | 29 | Taiwan |
| 5310-00-409-1753 | 2008-08-242 | 29 | Taiwan |
| 0428CC30 | 2008-08-241 | 29 | Taiwan |
| 5310-00-409-1753 | 2007-11-323 | 8 | Malaysia |
Cross Reference | NSN 5310-00-409-1753
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0428CC30 | 29372 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| 0428CC30 | 83324 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| 0428CC30 | D0680 | ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - CAMLOC |
| 0428CC30 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 525-540-9101 | 99193 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-409-1753
Related Products | NSN 5310-00-409-1753
Technical Data | NSN 5310-00-409-1753
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL COMP 1137 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5024 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | AMS 2400 ASSN STD SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A294 HEXAGON |

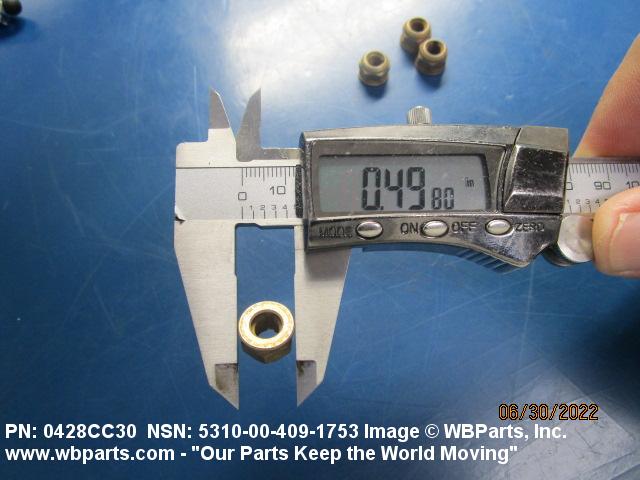

| WASHER OUTSIDE DIAMETER | 0.495 INCHES MINIMUM AND 0.505 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.377 INCHES MAXIMUM |
| WASHER THICKNESS | ANY ACCEPTABLE |

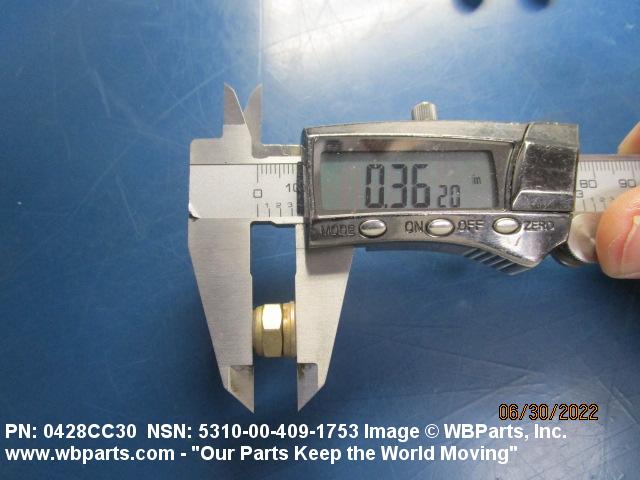

| WIDTH ACROSS FLATS | 0.428 INCHES MINIMUM AND 0.440 INCHES MAXIMUM |
| LOCKING FEATURE | FREE-RUNNING ALL METAL DESIGN |
| NUT COUNTERBORE DEPTH | ANY ACCEPTABLE NUT |
| COUNTERBORE DIAMETER | ANY ACCEPTABLE NUT |
| TEMP RATING | NOT RATED |
| MANUFACTURERS CODE | 83324 |
| DESIGN CONTROL REFERENCE | 0428CC30 |
