NSN 5310-00-427-0664 5267112, 5267-11-2, 00-427-0664
Product Details | WING PLAIN NUT
5310-00-427-0664 A nut having wings designed for manual turning without driver or wrench.
Part Alternates: 5267112, 5267-11-2, 5310-00-427-0664, 00-427-0664, 5310004270664, 004270664
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 00-427-0664 | 01862 ( NUT, PLAIN, WING ) |

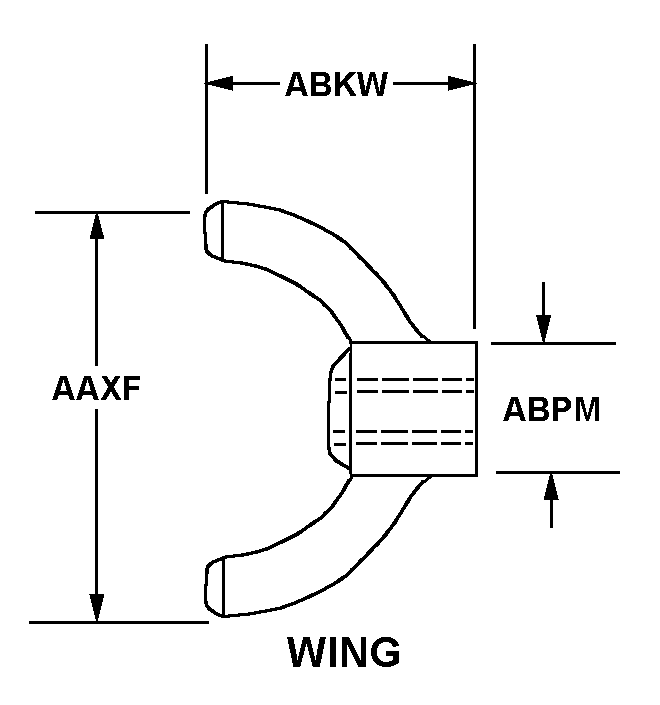

Drawings & Photos | NSN 5310-00-427-0664
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-427-0664
Related Products | NSN 5310-00-427-0664
Technical Data | NSN 5310-00-427-0664
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNC |
| NOMINAL THREAD SIZE | 0.500 INCHES |
| THREAD QUANTITY PER INCH | 13 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A271 WING |
| WING SPREAD WIDTH | 4.000 INCHES NOMINAL |
| OVERALL HEIGHT | 2.500 INCHES NOMINAL |
| BODY DIAMETER | 1.250 INCHES NOMINAL |
| FABRICATION METHOD | CAST |
| TEMP RATING | NOT RATED |
| MANUFACTURERS CODE | 1DF03 |
| DESIGN CONTROL REFERENCE | 5267-11-2 |
Restrictions/Controls & Freight Information | NSN 5310-00-427-0664
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
