Product Details | HEXAGON CASTELLATED PLAIN NUT
5310-00-448-4753 A nut having 6 flat sides, flat on the bottom and having a slotted cylindrical or dome shaped upper portion. It is designed to provide positive locking when used with a solid or split (cotter) pin. Excludes NUT (1), PLAIN, SLOTTED, HEXAGON.
Part Alternates: 5327, 53927, 5310-00-448-4753, 00-448-4753, 5310004484753, 004484753
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-448-4753 | 01854 ( NUT, PLAIN, CASTELLATED, HEXAGON ) |

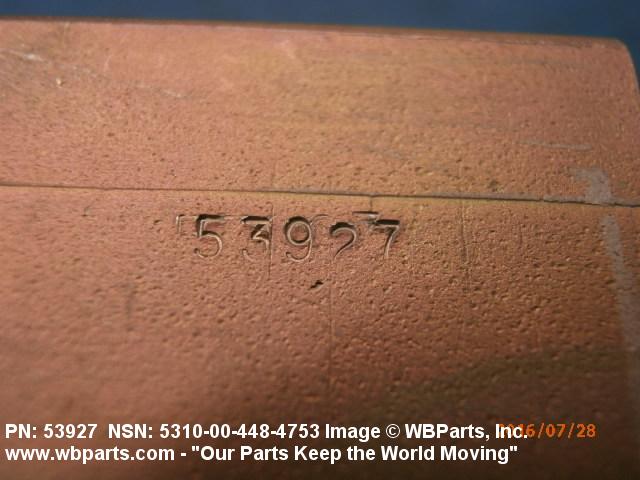

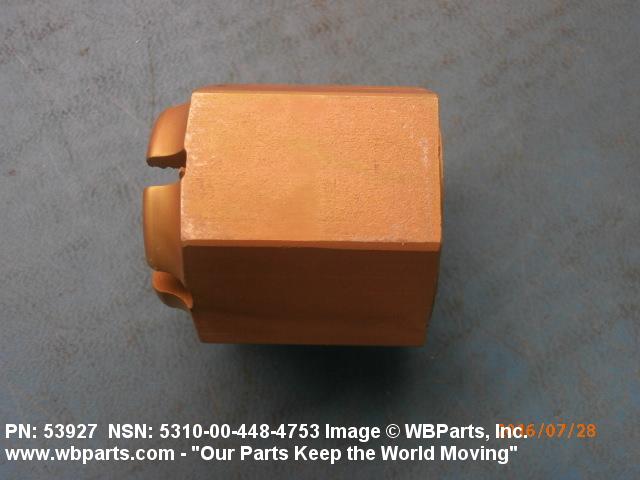

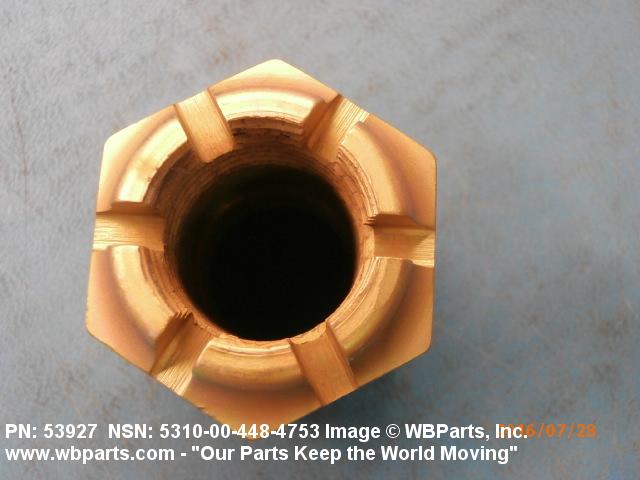

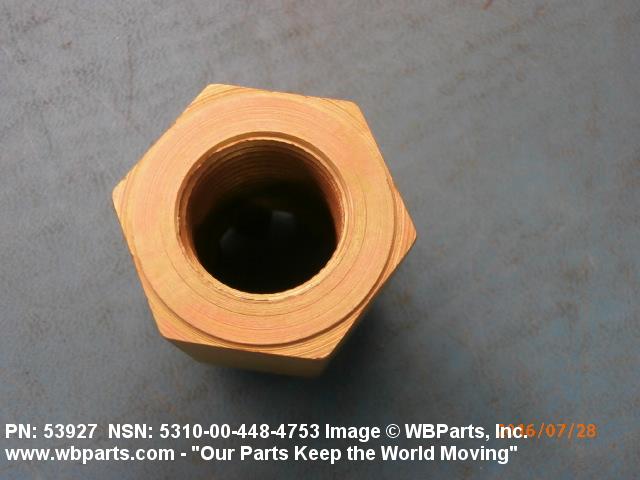

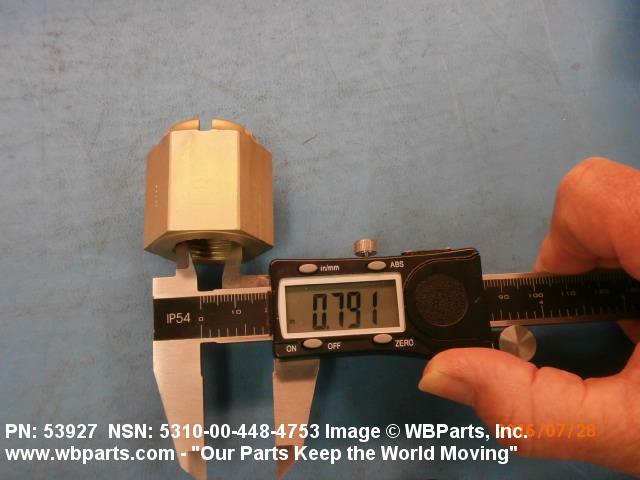

Drawings & Photos | NSN 5310-00-448-4753
Demand History | NSN 5310-00-448-4753
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5310-00-448-4753
Related Products | NSN 5310-00-448-4753
5310-00-448-4760, 5310-00-448-4791, 5310-00-448-4797, 5310-00-448-4811, 5310-00-448-4816
Technical Data | NSN 5310-00-448-4753
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.875 INCHES |
| THREAD QUANTITY PER INCH | 14 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL COMP 4130 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | SAE ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | AN-P-61 MIL STD SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 25.0 ROCKWELL C MINIMUM AND 30.0 ROCKWELL C MAXIMUM |
| NUT STYLE | A1 CASTELLATED, HEXAGON |

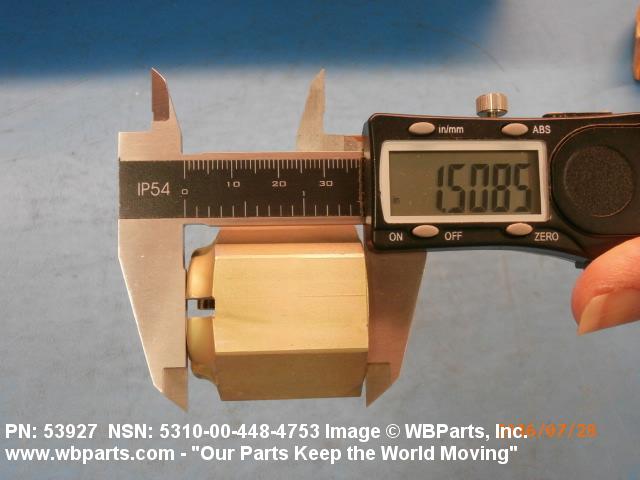

| NUT HEIGHT | 1.490 INCHES MINIMUM AND 1.510 INCHES MAXIMUM |

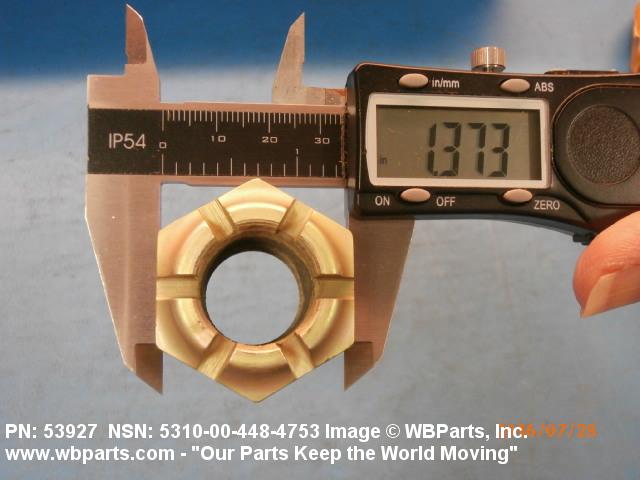

| WIDTH ACROSS FLATS | 1.365 INCHES MINIMUM AND 1.385 INCHES MAXIMUM |
| BEARING SURFACE TYPE | WASHER FACED |
| TEMP RATING | NOT RATED |
| MANUFACTURERS CODE | 28298 |
| DESIGN CONTROL REFERENCE | 5327 |
Restrictions/Controls & Freight Information | NSN 5310-00-448-4753
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
