NSN 5310-00-458-2115 NAS1291C8M, 00-458-2115, 004582115
Product Details | HEXAGON EXTENDED WASHER SELF-LOCKING NUT
5310-00-458-2115 A nut having 6 flat sides and an integral washer which extends beyond the flats or periphery. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: NAS1291C8M, 5310-00-458-2115, 00-458-2115, 5310004582115, 004582115
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 09 MAY 1969 | 00-458-2115 | 29730 ( NUT, SELF-LOCKING, EXTENDED WASHER, HEXAGON ) |

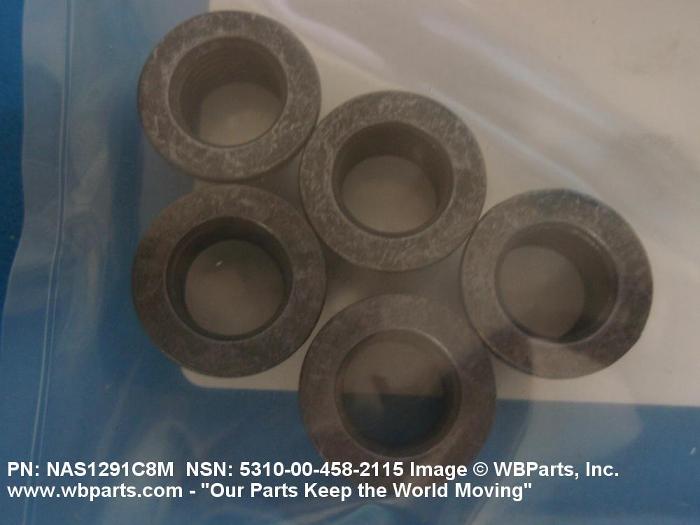

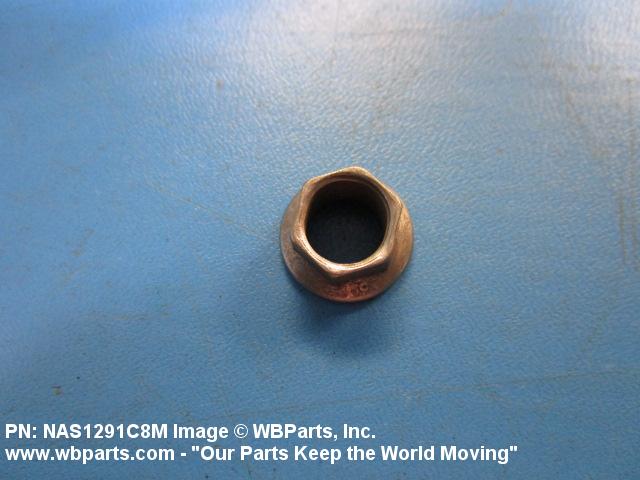

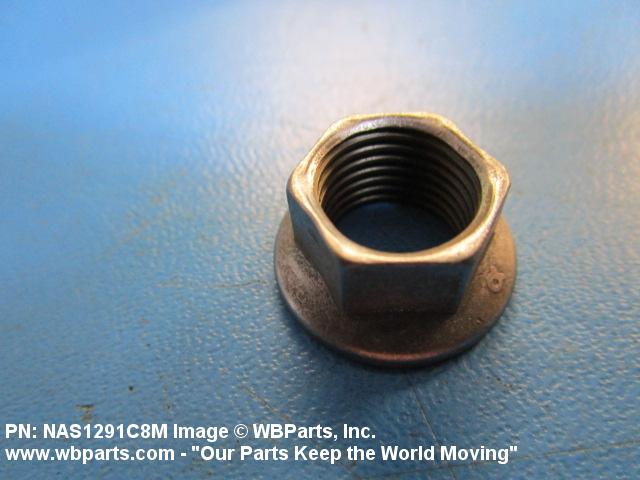

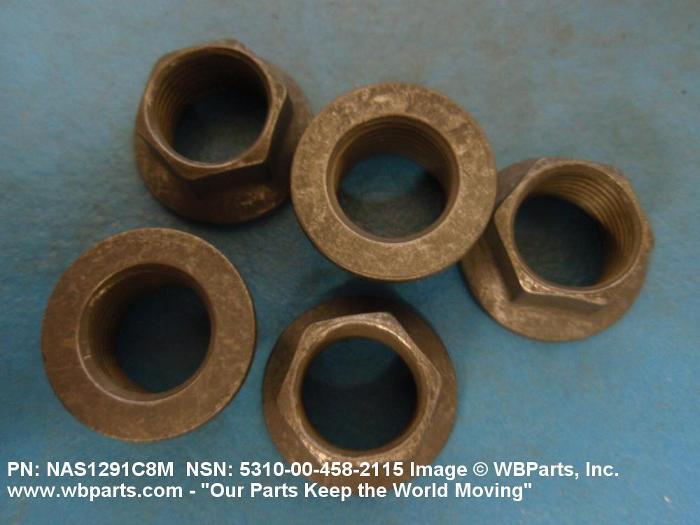

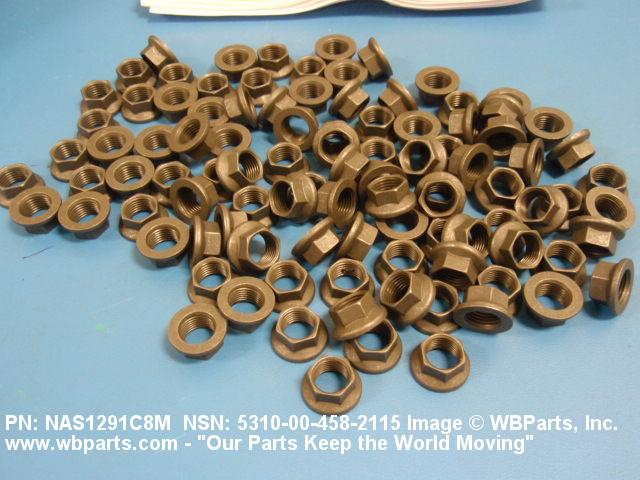

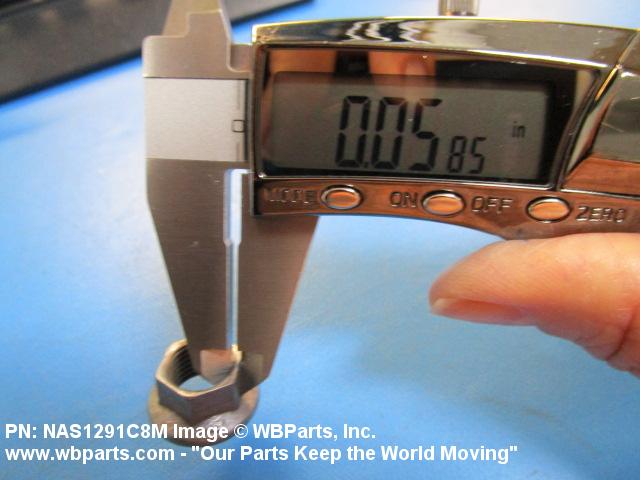

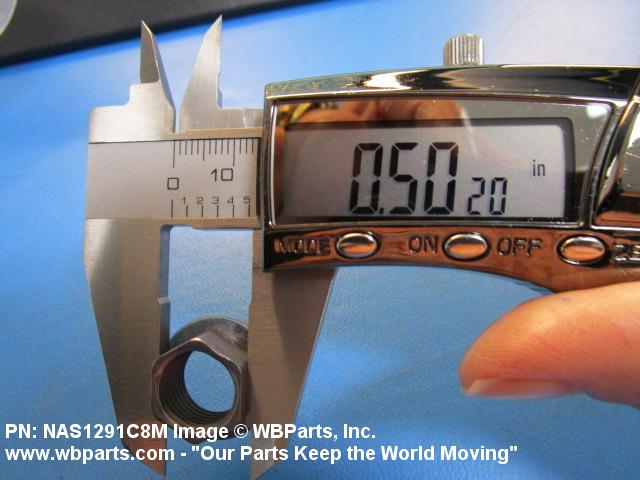

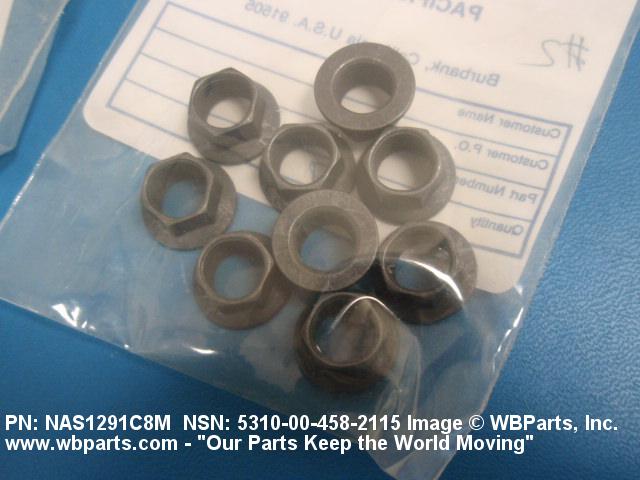

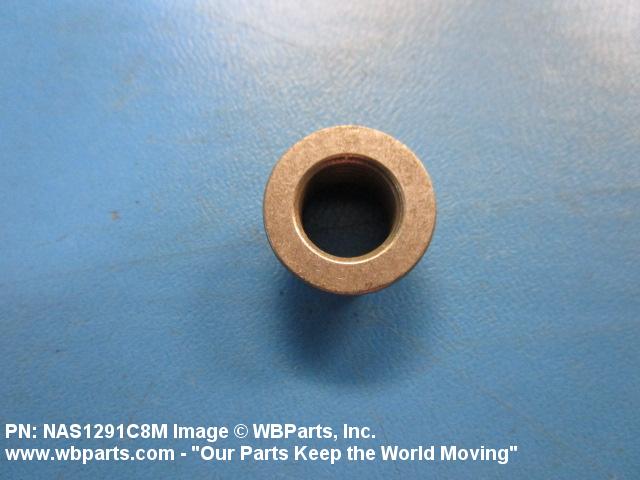

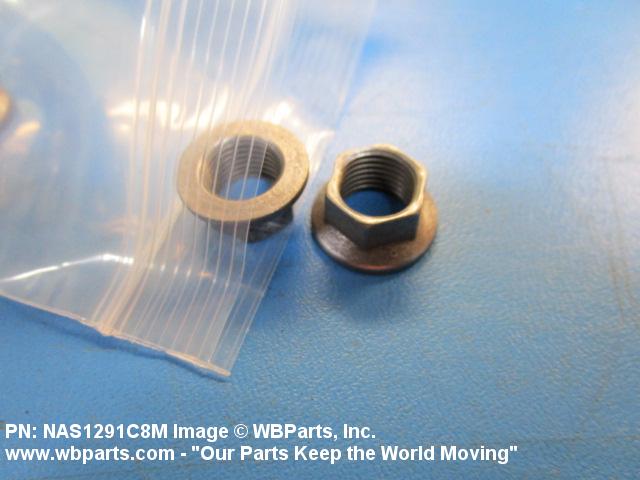

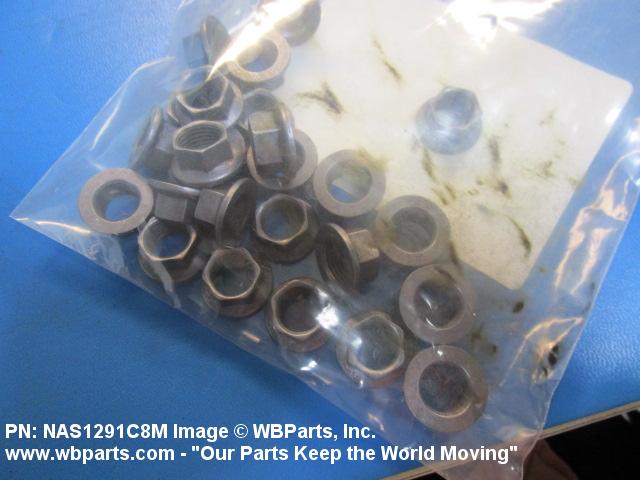

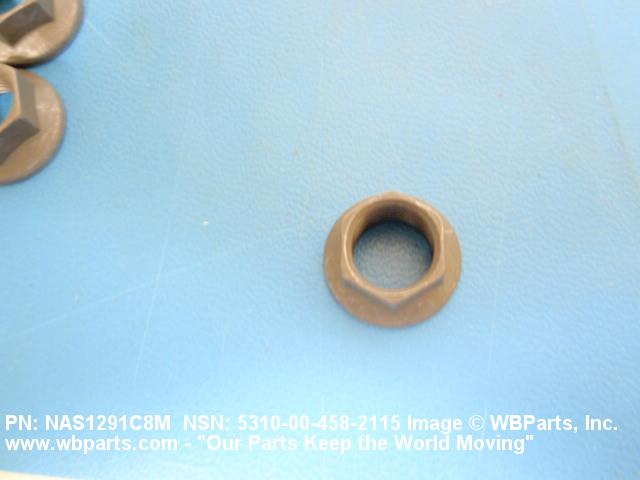

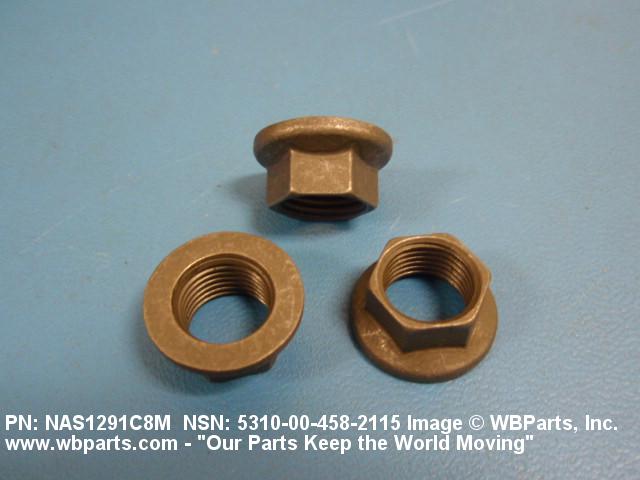

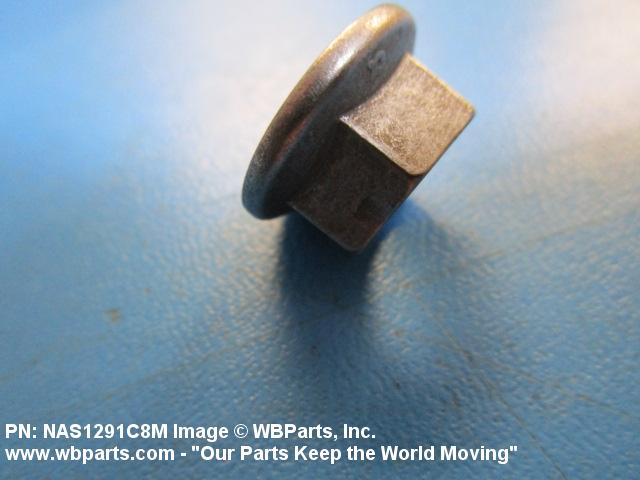

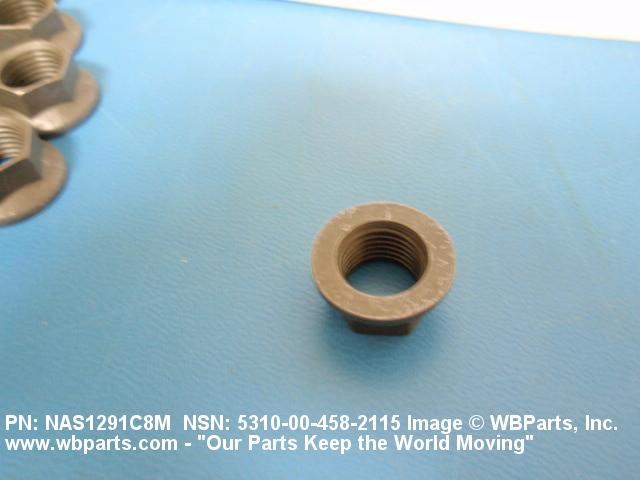

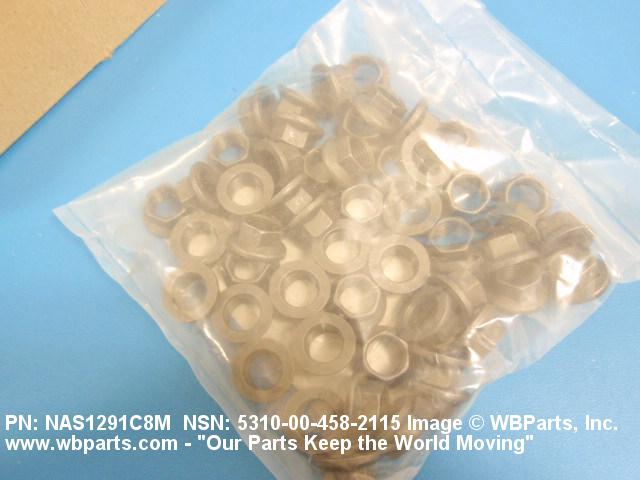

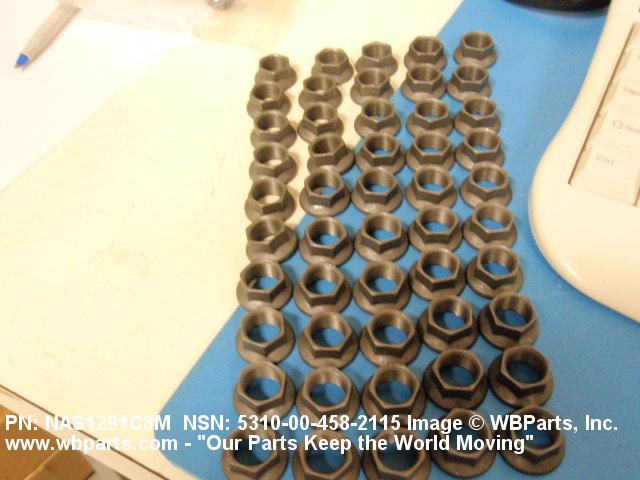

Drawings & Photos | NSN 5310-00-458-2115
Demand History | NSN 5310-00-458-2115
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-458-2115 | 2025-03-83 | 16 | US |
| NAS1291C8M | 2025-03-79 | 40 | United States |
| NAS1291C8M | 2024-09-270 | 1000 | United States |
| 5310-00-458-2115 | 2023-05-142 | 288 | United States |
| NAS1291C8M | 2023-03-72 | 2 | United States |
| 5310-00-458-2115 | 2021-12-336 | 18 | US |
| NAS1291C8M | 2021-11-322 | 720 | United States |
| 5310-00-458-2115 | 2021-08-218 | 25 | United States |
| 5310-00-458-2115 | 2021-08-217 | 50 | United States |
| NAS1291C8M | 2021-03-69 | 250 | United States |
| NAS1291C8M | 2021-03-69 | 500 | United States |
| NAS1291C8M | 2021-03-69 | 750 | United States |
| NAS1291C8M | 2021-01-05 | 250 | United States |
| NAS1291C8M | 2021-01-05 | 500 | United States |
| NAS1291C8M | 2021-01-05 | 750 | United States |
| NAS1291C8M | 2021-01-05 | 1000 | United States |
| NAS1291C8M | 2019-08-224 | 3 | United States |
| NAS1291C8M | 2018-05-135 | 2 | FX |
| 5310-00-458-2115 | 2018-05-130 | 1 | DIBBS-RFPs |
| NAS1291C8M | 2017-12-335 | 625 | United States |
| NAS1291C8M | 2016-12-348 | 80 | US |
| NAS1291C8M | 2016-11-334 | 94 | United States |
| 5310-00-458-2115 | 2016-02-32 | 300 | United States |
| NAS1291C8M | 2015-12-349 | 250 | United States |
| NAS1291C8M | 2015-08-236 | 70 | United States |
| NAS1291C8M | 2014-03-84 | 28 | US |
| NAS1291C8M | 2013-04-112 | 200 | US |
| NAS1291C8M | 2012-08-237 | 40 | United States |
| NAS1291C8M | 2012-08-229 | 40 | US |
| NAS1291C8M | 2012-08-229 | 800 | US |
| NAS1291C8M | 2012-08-229 | 750 | US |
| NAS1291C8M | 2012-02-44 | 4 | United States |
| NAS1291C8M | 2011-03-84 | 5 | United States |
| 5310-00-458-2115 | 2011-01-14 | 6 | IT |
| NAS1291C8M | 2010-10-279 | 72 | United States |
| NAS1291C8M | 2010-09-265 | 80 | us |
| NAS1291C8M | 2010-09-258 | 8 | us |
| 5310-00-458-2115 | 2010-08-231 | 1000 | DE |
| NAS1291C8M | 2010-08-229 | 3 | United States |
| NAS1291C8M | 2010-05-126 | 2 | US |
| NAS1291C8M | 2009-12-349 | 22 | Taiwan |
| NAS1291C8M | 2009-10-289 | 18 | US |
| NAS1291C8M | 2009-10-288 | 18 | United States |
| 5310-00-458-2115 | 2009-07-205 | 10 | US |
| NAS1291C8M | 2009-06-169 | 9 | United States |
| NAS1291C8M | 2009-05-139 | 75 | United States |
| NAS1291C8M | 2009-05-139 | 75 | United States |
| NAS1291C8M | 2009-05-139 | 75 | United States |
| NAS1291C8M | 2009-05-138 | 75 | United States |
| NAS1291C8M | 2009-05-134 | 300 | US |
| NAS1291C8M | 2009-03-62 | 50 | United States |
| NAS1291C8M | 2009-02-55 | 30 | United States |
| NAS1291C8M | 2007-03-85 | 4 | United States |
Cross Reference | NSN 5310-00-458-2115
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1291C8M | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-458-2115
Related Products | NSN 5310-00-458-2115
Technical Data | NSN 5310-00-458-2115
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.500 INCHES |
| THREAD QUANTITY PER INCH | 20 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | IRON ALLOY 660 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5732 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5737 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5525 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A294 HEXAGON |

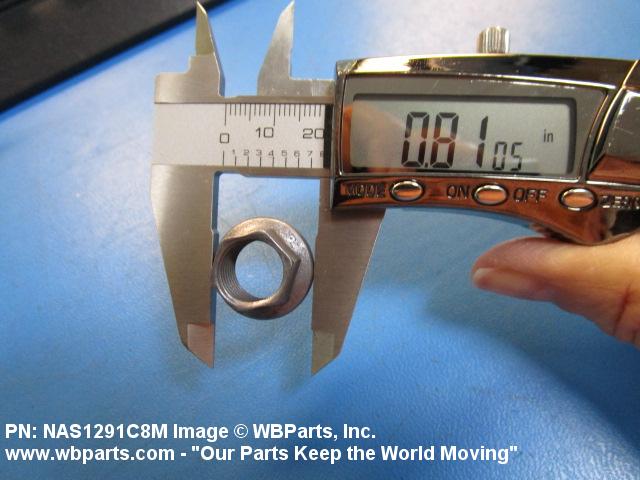

| WASHER OUTSIDE DIAMETER | 0.814 INCHES MAXIMUM |

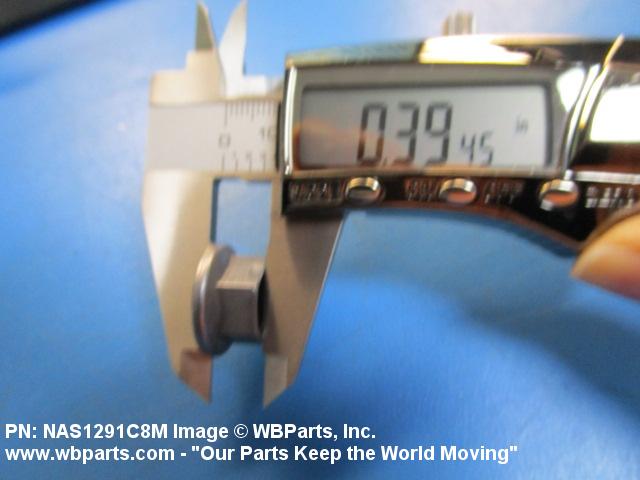

| OVERALL HEIGHT | 0.350 INCHES MINIMUM AND 0.410 INCHES MAXIMUM |
| WASHER THICKNESS | 0.040 INCHES MINIMUM |

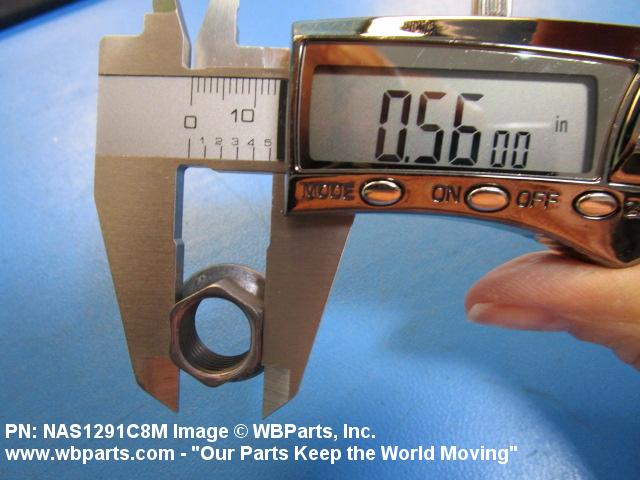

| WIDTH ACROSS FLATS | 0.556 INCHES MINIMUM AND 0.566 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| COUNTERSINK ANGLE | 120.0 DEGREES NOMINAL NUT |
| LUBRICATION | DRY FILM LUBRICANT |
| TEMP RATING | 450.0 DEG FAHRENHEIT NOMINAL |
Restrictions/Controls & Freight Information | NSN 5310-00-458-2115
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
