NSN 5310-00-491-1537 174517, 00-491-1537, 004911537
Product Details | WING PLAIN NUT
5310-00-491-1537 A nut having wings designed for manual turning without driver or wrench.
Part Alternates: 174517, 5310-00-491-1537, 00-491-1537, 5310004911537, 004911537
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 26 SEP 1969 | 00-491-1537 | 01862 ( NUT, PLAIN, WING ) |

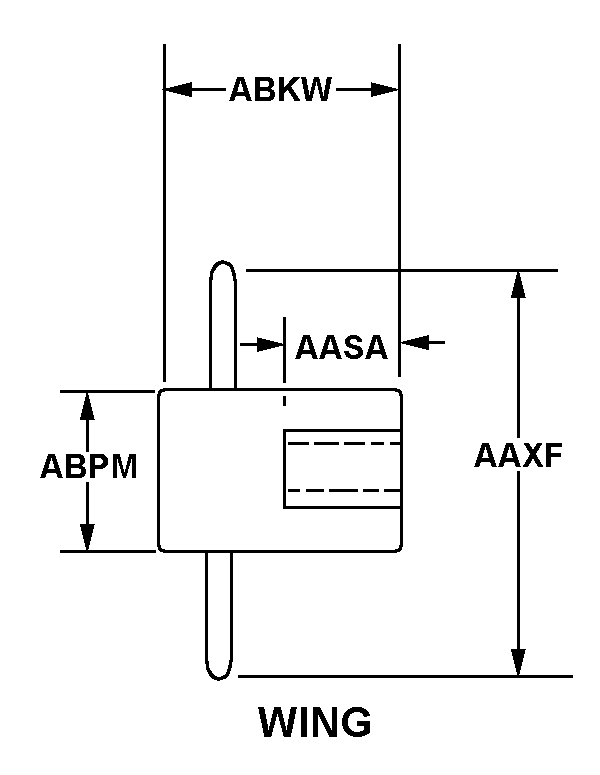

Drawings & Photos | NSN 5310-00-491-1537
Cross Reference | NSN 5310-00-491-1537
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 174517 | 71791 | CURTISS-WRIGHT CONTROLS, INC. DIV FLIGHT SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-491-1537
Related Products | NSN 5310-00-491-1537
Technical Data | NSN 5310-00-491-1537
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL COMP 8740 OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A280 WING |
| THREAD LENGTH | 0.289 INCHES NOMINAL |
| WING SPREAD WIDTH | 0.574 INCHES NOMINAL |
| OVERALL HEIGHT | 0.320 INCHES NOMINAL |
| BODY DIAMETER | 0.320 INCHES NOMINAL |
| FABRICATION METHOD | MACHINED |
| TEMP RATING | NOT RATED |
| MANUFACTURERS CODE | 71791 |
| DESIGN CONTROL REFERENCE | 174517 |
Restrictions/Controls & Freight Information | NSN 5310-00-491-1537
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
