NSN 5310-00-514-6674 MS3533534, MS35335-34, MS353356

Product Details | LOCK WASHER

5310-00-514-6674 A washer which is usually round with a centrally located hole. Its edges and two bearing surfaces are so designed that applied pressure brings into play the spring tension and/or frictional locking principle which materially resists any tendency toward turning. It may be made of one or two pieces

Part Alternates: MS3533534, MS35335-34, MS353356, MS35335-6, M911A, AN936B516, AU27AR201, E-4515 ITEM 12H, E4515ITEM12H, J0612, MILW6986, P9891, PF46A, XX0020675, XX002-0675, PF46, 56097, 561213, 56-12-13, 565613, 69127, 701988 , 8531016, 853-1016, 87525, 8E05, 906B2013, 1118, 114605, 130MAN1, 13218E051841, 13218E0518-41, 138485, 13897D, 14047, 1A502, 34941S, 34941S7, 407 144, 407144, 529W, 5310-00-514-6674, 00-514-6674, 5310001670871 , 5310005146674, 005146674

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-514-6674	14218 ( WASHER, LOCK )

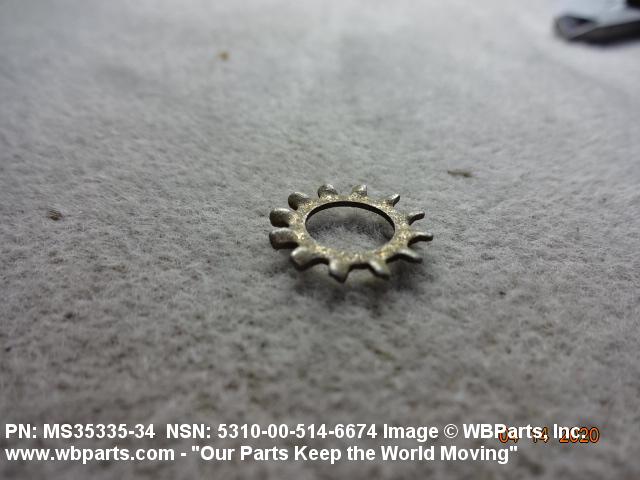

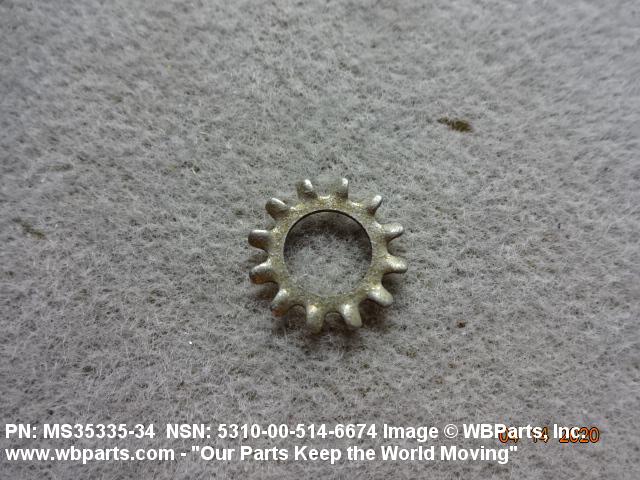

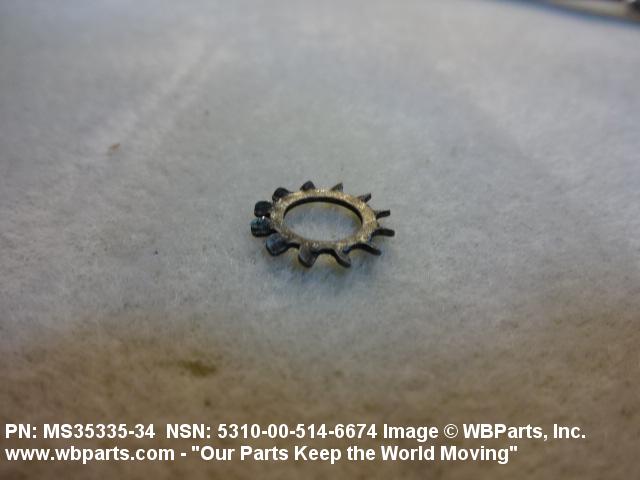

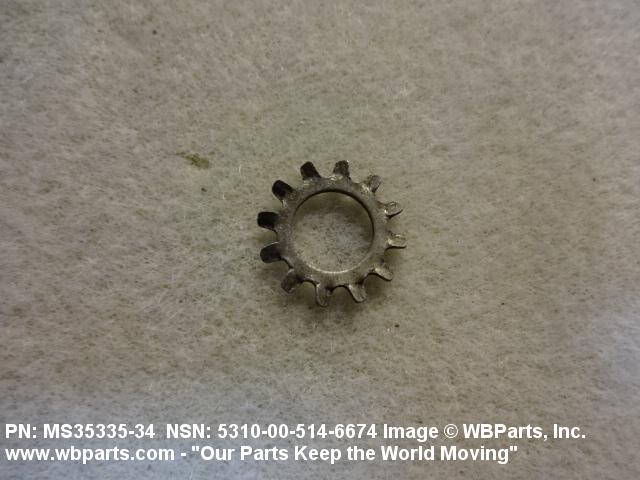

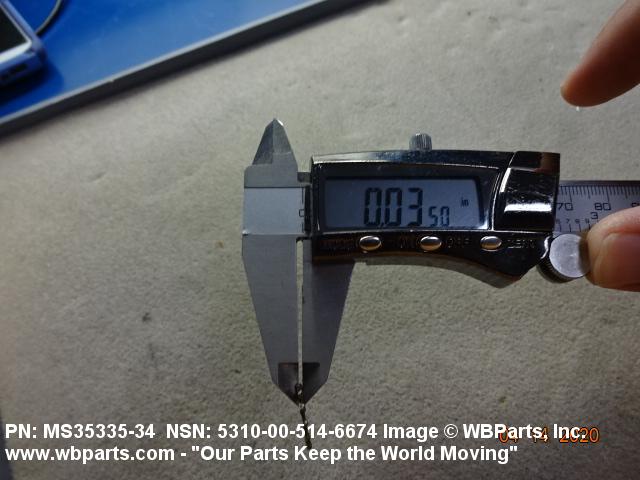

Drawings & Photos | NSN 5310-00-514-6674

Part Number	Request Date	QTY	Origin
5310-00-514-6674	2025-01-30	23730	United States
5310-00-514-6674	2024-07-208	15000	US
5310-00-514-6674	2019-11-310	12	United States
1118	2019-03-85	60	us
MS3533534	2016-07-183	100	United States
MS3533534	2014-03-79	184	United States
MS3533534	2013-06-164	32	United States
MS3533534	2012-09-262	6	US
MS3533534	2012-09-258	6	US
5310-00-514-6674	2012-04-94	100	US
14047	2010-04-98	1	US
5310-00-514-6674	2007-12-359	100	US

Cross Reference | NSN 5310-00-514-6674

Part Number	Cage Code	Manufacturer
1118	30323	ILLINOIS TOOL WORKS INC
1118	78189	ITW SHAKEPROOF AUTOMOTIVE PRODUCTS
114605	12204	DAIMLER CHRYSLER
114605	24617	GENERAL MOTORS CORP
130MAN1	05415	LINDE LIFT TRUCK CORP.
130MAN1	556A6	LINDE MATERIAL HANDLING NORTH AMERICA CORP
13218E0518-41	97403	CECOM LR CENTER
138485	0SAT8	KOMATSU AMERICA CORP.
138485	12204	DAIMLER CHRYSLER
138485	24617	GENERAL MOTORS CORP
138485	29510	KOMATSU AMERICAN INTL CO
138485	31007	NAVISTAR INTL CORP
138485	56442	DIAMOND REO TRUCK CO
138485	80195	E D ETNYRE & CO DBA EDETNYRE
138485	92679	NAVISTAR INTL CORP MELROSE PARK ENGINE PLANT LOCATION
13897D	31007	NAVISTAR INTL CORP
13897D	89346	NAVISTAR INTL CORP TRUCK BR
14047	73740	TRW INC TRW COMMERCIAL STEERING DIV
1A502	12603	CLARK EQUIPMENT CO
34941S	23040	FORD MOTOR CO FORD PARTS AND SERVICE DIV
34941S7	23040	FORD MOTOR CO FORD PARTS AND SERVICE DIV
407 144	77294	PIPER AIRCRAFT INC.
529W	95019	DANA CORP SPICER TRANSMISSION DIV
5310001670871	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
5310005146674	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
56-12-13	31137	WHITE CONSOLIDATED INDUSTRIES INC PERFECTION PRODUCTS DIV
56097	96046	CRANE PUMPS & SYSTEMS, INC.
565613	46522	DCM MANUFACTURING INC.
69127	13841	TIFFIN PARTS, L.L.C. DIV SUBSIDIARY OF PETTIBONE CORP.
853-1016	44940	CUMMINS POWER GENERATION INC.
87525	08683	BROCKWAY MOTOR TRUCKS DIV OF MACK TRUCKS INC
8E05	12603	CLARK EQUIPMENT CO
8E05	77237	DANA OFF HIGHWAY PRODUCTS, LLC
906B2013	79343	SCIENCE APPLICATIONS INTERNATIONAL CORPORATION
906B2013	93568	HARSCO CORP BMY-COMBAT SYSTEMS DIV
AN936B516	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AU27AR201	10855	CARRIER CORPORATION DIV CARRIER TRANSICOLD DIVISION
AU27AR201	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
E-4515 ITEM 12H	07524	DOVER FLUID MANAGEMENT, INC. DBA BLACKMER
J0612	29215	JENNY PRODUCTS, INC.
M911A	11568	GARDNER DENVER INC.
MILW6986	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS35335-34	0158B	PSA PEUGEOT-CITROEN ESPA?A, SA
MS35335-34	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS35335-6	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
P9891	06848	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
P9891	55284	HONEYWELL INTERNATIONAL INC DBA HONEYWELL
PF46	66289	WISCONSIN MOTORS LLC
PF46A	66289	WISCONSIN MOTORS LLC
XX002-0675	H2229	RDM TECHNOLOGY B.V.

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-514-6674

Compare

Related Products | NSN 5310-00-514-6674

5310-00-514-6675, 5310-00-514-6679, 5310-00-514-6687, 5310-00-514-6691, 5310-00-514-6735

Technical Data | NSN 5310-00-514-6674

Characteristic	Specifications
MATERIAL	STEEL COMP 1050 OR STEEL COMP 1551 OR STEEL COMP 1552 OR STEEL COMP 1053 OR STEEL COMP 1055 OR STEEL COMP 1059 OR STEEL COMP 1060 OR STEEL COMP 1561 OR STEEL COMP 1064 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	66 FED STD ALL MATERIAL RESPONSES OVERALL
SURFACE TREATMENT	CADMIUM OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	40.0 ROCKWELL C MINIMUM AND 50.0 ROCKWELL C MAXIMUM
STYLE DESIGNATOR	100 FLAT EXTERNAL TEETH

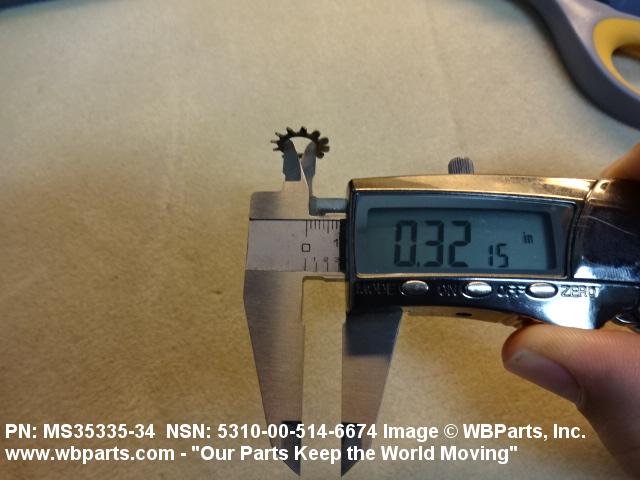

HOLE DIAMETER	0.320 INCHES MINIMUM AND 0.332 INCHES MAXIMUM

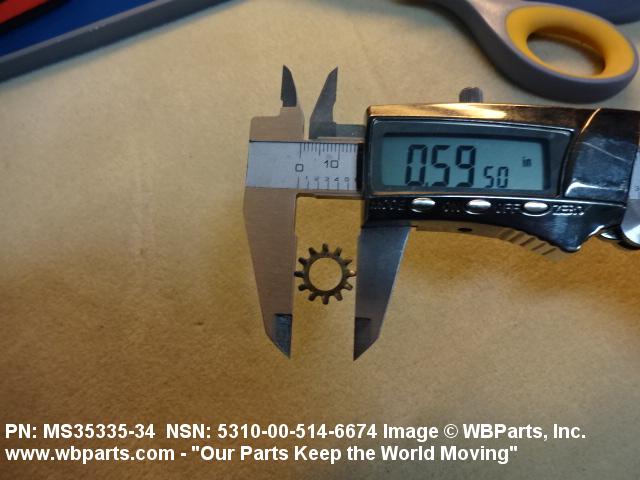

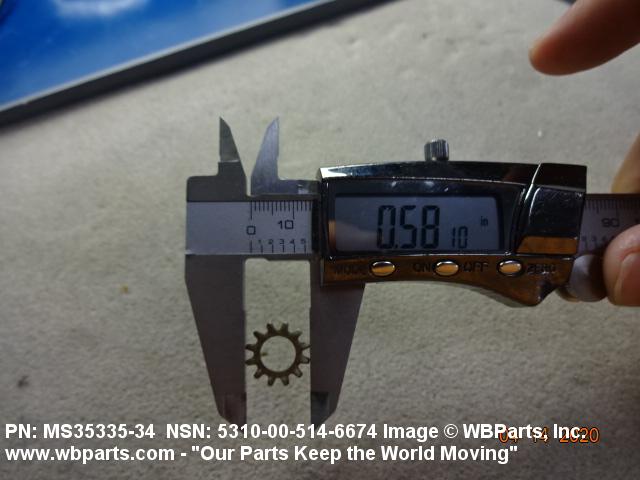

OUTSIDE DIAMETER	0.588 INCHES MINIMUM AND 0.610 INCHES MAXIMUM

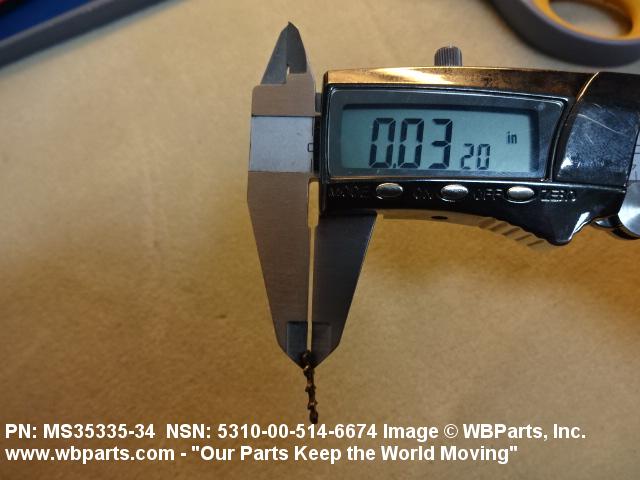

MATERIAL THICKNESS	0.028 INCHES MINIMUM AND 0.034 INCHES MAXIMUM
NONDEFINITIVE SPEC/STD DATA	B TYPE
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MILW6986
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS35335-34

Restrictions/Controls & Freight Information | NSN 5310-00-514-6674

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	194160	WASHER OR GASKETS, IRON OR STEEL,
Less than car load rating
Less than truck load rating	U	50.0
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-00-514-6674

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	2	Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	K	Reserved
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each
