NSN 5310-00-527-3796 BN009243, BN00924-3, SL41763
Product Details | BARREL SELF-LOCKING NUT
5310-00-527-3796 A nut of cylindrical or partly cylindrical cross-section with integral threads perpendicular to the axial centerline. Ends may be flat or flanged. An integral feature is incorporated for locking on the threads of a mating member. Excludes NUT (1), SELF-LOCKING, ROUND.
Part Alternates: BN009243, BN00924-3, SL41763, SL4176-3, SLN1693, SLN169-3, K546283, K54628-3, KS46283, KS4628-3, 10121455 , 245202, 2452-02, 3M1553, 3M155-3, 42FBN1032A, 5310-00-527-3796, 00-527-3796, 5310005273796, 005273796
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-527-3796 | 15891 ( NUT, SELF-LOCKING, BARREL ) |

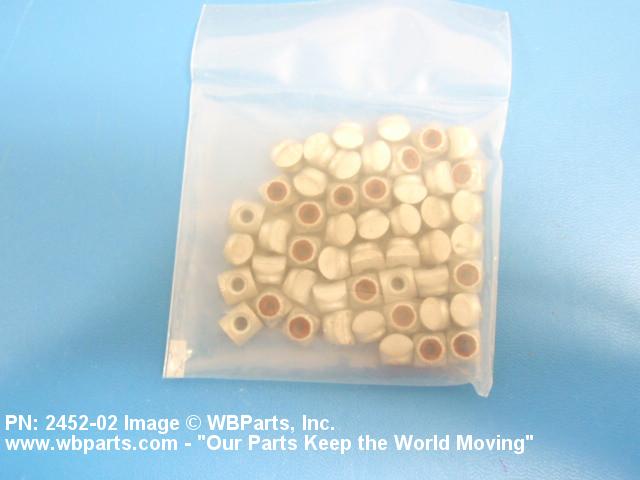

Drawings & Photos | NSN 5310-00-527-3796
Demand History | NSN 5310-00-527-3796
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 245202 | 2022-11-318 | 8 | South Africa |
| 5310-00-527-3796 | 2019-07-182 | 2 | United States |
| 5310-00-527-3796 | 2019-06-156 | 13 | United States |
| 5310-00-527-3796 | 2017-11-311 | 1136 | DIBBS |
| 5310-00-527-3796 | 2017-08-229 | 687 | DIBBS |
| 5310-00-527-3796 | 2017-08-221 | 687 | DIBBS |
| 5310-00-527-3796 | 2017-05-130 | 1707 | DIBBS |
| 2452-02 | 2012-11-310 | 15 | |
| 245202 | 2011-01-26 | 10 | US |
| 245202 | 2011-01-07 | 210 | US |
| 5310-00-527-3796 | 2010-12-355 | 10 | United States |
| 3M1553 | 2009-07-189 | 188 | US |
| 3M1553 | 2009-03-90 | 500 | United States |
| 245202 | 2009-03-70 | 50 | United States |
| 245202 | 2009-02-49 | 60 | US |
| 5310-00-527-3796 | 2009-02-48 | 110 | US |
| 3M1553 | 2008-02-58 | 200 | United States |
| 5310-00-527-3796 | 2007-09-262 | 25 | United States |
Cross Reference | NSN 5310-00-527-3796
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2452-02 | 72962 | HARVARD INDUSTRIES INC |
| 3M155-3 | 76301 | BOEING COMPANY, THE DBA BOEING |
| 42FBN1032A | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| BN00924-3 | 27238 | BRISTOL INDUSTRIES |
| K54628-3 | 15653 | ALCOA GLOBAL FASTENERS, INC. |
| K54628-3 | F7652 | B E AEROSPACE CONSUMABLESMANAGEMENT DEUX SAS |
| K54628-3 | R1120 | SATAIR A/S |
| KS4628-3 | 15653 | ALCOA GLOBAL FASTENERS, INC. |
| SL4176-3 | 97393 | SHUR-LOK CORPORATION DBA SPS FASTENER DIVISION, A PCC |
| SLN169-3 | 16258 | SPACELOK INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-00-527-3796
Technical Data | NSN 5310-00-527-3796
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | PLASTIC POLYAMIDE LOCKING INSERT STEEL OVERALL EXCEPT INSERT |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL EXCEPT INSERT |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2, CL3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL EXCEPT INSERT |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A39 NON-FLOATING SELF-LOCKING BARREL |
| NUT DIAMETER | 0.396 INCHES MINIMUM AND 0.406 INCHES MAXIMUM |
| NUT LENGTH | 0.406 INCHES NOMINAL |
| BARREL HEIGHT | 0.265 INCHES NOMINAL |
| NUT HEIGHT | 0.374 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE WITH NONMETALLIC INSERT |
| TEMP RATING | 250.0 DEG FAHRENHEIT MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5310-00-527-3796
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
