Product Details | CONCAVE WASHER
5310-00-595-7126 A washer which is round with a centrally located hole. One bearing surface is smooth, flat, and unbroken, the other bearing surface is smooth, unbroken, and is recessed to form a curved or spherical contour. See also WASHER (1), CONVEX. Excludes WASHER (1), RECESSED and BEARING, WASHER, THRUST.
Part Alternates: BA90983, 7598190, 5310-00-595-7126, 00-595-7126, 5310005957126, 005957126
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-595-7126 | 15930 ( WASHER, CONCAVE ) |

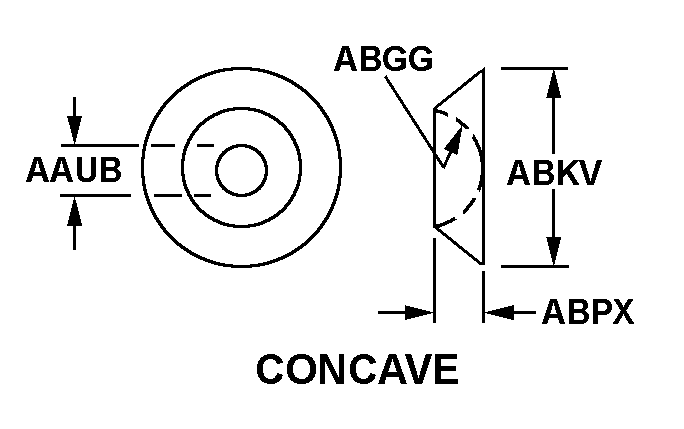

Drawings & Photos | NSN 5310-00-595-7126
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5310-00-595-7126
5310-00-595-7135, 5310-00-595-7141, 5310-00-595-7142, 5310-00-595-7143, 5310-00-595-7144
Technical Data | NSN 5310-00-595-7126
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1117 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-637 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ZINC AND CHROMATE OVERALL |
| STYLE DESIGNATOR | 6 CONCAVE |
| HOLE DIAMETER | 0.209 INCHES NOMINAL |
| RADIUS | 3.688 INCHES NOMINAL |
| OUTSIDE DIAMETER | 1.062 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.062 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5310-00-595-7126
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194160 | WASHER OR GASKETS, IRON OR STEEL, |
| Less than car load rating | U | 50 |
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
