NSN 5310-00-595-7237 MS3533342, MS35333-42, MS3533359
Product Details | LOCK WASHER
5310-00-595-7237 A washer which is usually round with a centrally located hole. Its edges and two bearing surfaces are so designed that applied pressure brings into play the spring tension and/or frictional locking principle which materially resists any tendency toward turning. It may be made of one or two pieces
Part Alternates: MS3533342, MS35333-42, MS3533359, MS35333-59, M2046S, AN936A616, BS8-2334 PIECE1, BS82334PIECE1, MILW6986, PE56A, XX0020667, XX002-0667, XX0020671, XX002-0671, PE80, M256, 55961, 5962, 6232, 6F6, 7003442, 70034-42, 721336H, 7915149011, 791-514-9011, 801708, 802492, 906960, 0706047, 0906960, 09069600, 0906960-0, 10082543 , 1019068042, 1019068-042, 122000, 1220-00, 1229E421, 138544, 200422A, 210013, 210-013, 34907S2, 38, 3-8, 3B4506, 41110042, 411100-42, 4198000014, 4198000-014, 422H044H14, 456702, 5310-00-595-7237, 00-595-7237, 5310005957237 , 005957237
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-595-7237 | 14218 ( WASHER, LOCK ) |
Drawings & Photos | NSN 5310-00-595-7237
Demand History | NSN 5310-00-595-7237
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-595-7237 | 2025-06-168 | 135 | DIBBS |
| 5310-00-595-7237 | 2025-05-147 | 1 | United States |
| 5310-00-595-7237 | 2025-05-147 | 348 | DIBBS |
| 5310-00-595-7237 | 2025-05-139 | 348 | DIBBS |
| MS3533342 | 2024-08-226 | 48 | United States |
| AN936A616 | 2023-10-286 | 5 | us |
| 5310-00-595-7237 | 2023-06-173 | 1944 | DIBBS |
| MS3533342 | 2022-12-347 | 2 | United States |
| 5310-00-595-7237 | 2022-11-311 | 358 | DIBBS |
| 5310-00-595-7237 | 2022-10-299 | 358 | DIBBS |
| 5310-00-595-7237 | 2022-09-258 | 805 | DIBBS |
| 5310-00-595-7237 | 2021-01-11 | 30 | Malaysia |
| 5310-00-595-7237 | 2020-12-349 | 2550 | US |
| MS35333-42 | 2020-05-147 | 1000 | US |
| 5310-00-595-7237 | 2018-05-121 | 1 | United States |
| 5310-00-595-7237 | 2018-05-121 | 1 | United States |
| 5310-00-595-7237 | 2018-03-85 | 1424 | DIBBS |
| 5310-00-595-7237 | 2017-03-61 | 60 | TW |
| MS3533359 | 2016-08-231 | 82 | US |
| MS35333-42 | 2016-05-137 | 8 | |
| 5310-00-595-7237 | 2015-11-307 | 5935 | Pakistan |
| MS3533342 | 2015-08-234 | 1 | Pakistan |
| MS3533342 | 2015-07-196 | 45 | US |
| MS3533342 | 2015-01-28 | 50 | United States |
| MS35333-42 | 2014-03-71 | 4969 | United States |
| MS3533342 | 2013-08-241 | 100 | US |
| MS35333-42 | 2013-07-200 | 170 | |
| 38 | 2012-10-292 | 1 | US |
| 5310-00-595-7237 | 2012-04-94 | 100 | US |
| 5310-00-595-7237 | 2011-10-301 | 200 | US |
| MS3533342 | 2011-06-160 | 2 | US |
| MS3533342 | 2011-03-70 | 11 | Belgium |
| AN936A616 | 2011-03-70 | 434 | |
| 5310-00-595-7237 | 2010-03-75 | 2600 | DIBBS |
| MS3533342 | 2009-03-84 | 100 | US |
| 5310-00-595-7237 | 2009-01-10 | 8 | US |
| 5310-00-595-7237 | 2008-06-155 | 75 | US |
Cross Reference | NSN 5310-00-595-7237
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0706047 | S3002 | GENERAL DYNAMICS EUROPEAN,LAND-SYSTEMS-MOWAG GMBH |
| 0906960 | 92392 | ALLIS-CHALMERS CORP |
| 0906960-0 | 6N299 | AGCO CORP PARTS OPN |
| 1019068-042 | 05037 | ANACOMP, INC. |
| 1019068-042 | 0HBH2 | LEXEL IMAGING SYSTEMS, INC. |
| 1220+00 | 78189 | ITW SHAKEPROOF AUTOMOTIVE PRODUCTS |
| 1220-00 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 1229E421 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 138544 | 12204 | DAIMLER CHRYSLER |
| 138544 | 24617 | GENERAL MOTORS CORP |
| 138544 | 31007 | NAVISTAR INTL CORP |
| 138544 | 7X677 | GENERAL MOTORS LLC DBA GENERAL MOTORS |
| 138544 | 89346 | NAVISTAR INTL CORP TRUCK BR |
| 200422A | 1ML14 | D.W. HERCULES, LLC DBA HERCULES ENGINE COMPONENTS |
| 200422A | 28265 | HERCULES ENGINE CO INC |
| 210-013 | 80009 | TEKTRONIX, INC. DBA TEKTRONIX |
| 3-8 | 05241 | AJAX MAGNETHERMEC CORP LECTRODRYER DIV |
| 34907S2 | 23040 | FORD MOTOR CO FORD PARTS AND SERVICE DIV |
| 3B4506 | 14544 | PETTIBONE WESTRAC |
| 411100-42 | 96214 | RAYTHEON COMPANY DBA RAYTHEON |
| 4198000-014 | 05869 | RAYTHEON COMPANY DBA RAYTHEON |
| 4198000-014 | 82577 | RAYTHEON COMPANY DBA RAYTHEON |
| 422H044H14 | 88725 | WESTINGHOUSE ELECTRIC CORP GENERAL CONTROL DIV |
| 456702 | 24617 | GENERAL MOTORS CORP |
| 5310005957237 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 55961 | 96046 | CRANE PUMPS & SYSTEMS, INC. |
| 5962 | 03476 | TEREX REEDRILL DBA REEDRILL TEXOMA DIV TEREX MINING |
| 6232 | 64829 | ARVINMERITOR INC |
| 6F6 | 12603 | CLARK EQUIPMENT CO |
| 70034-42 | 95097 | LITTLE GIANT CRANE AND SHOVEL INC |
| 721336H | 89346 | NAVISTAR INTL CORP TRUCK BR |
| 791-514-9011 | 99193 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 801708 | 02280 | AMERICAN HOIST AND DERRICK CO |
| 801708 | 49185 | TEREX AMERICAN CRANE CORP |
| 802492 | 19203 | PICATINNY ARSENAL |
| 906960 | 92392 | ALLIS-CHALMERS CORP |
| AN936A616 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| BS8-2334 PIECE1 | 63857 | WARREN PUMPS LLC |
| M2046S | 61208 | TWIN DISC INCORPORATED |
| M256 | 61208 | TWIN DISC INCORPORATED |
| MILW6986 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS35333-42 | 0158B | PSA PEUGEOT-CITROEN ESPA?A, SA |
| MS35333-42 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS35333-42 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS35333-59 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| PE56A | 66289 | WISCONSIN MOTORS LLC |
| PE80 | 66289 | WISCONSIN MOTORS LLC |
| XX002-0667 | H2229 | RDM TECHNOLOGY B.V. |
| XX002-0671 | H2229 | RDM TECHNOLOGY B.V. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-595-7237
Related Products | NSN 5310-00-595-7237
Technical Data | NSN 5310-00-595-7237
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1050 OR STEEL COMP 1551 OR STEEL COMP 1059 OR STEEL COMP 1060 OR STEEL COMP 1561 OR STEEL COMP 1064 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD ALL MATERIAL RESPONSES OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 40.0 ROCKWELL C MINIMUM AND 50.0 ROCKWELL C MAXIMUM |
| STYLE DESIGNATOR | 101 FLAT INTERNAL TEETH |

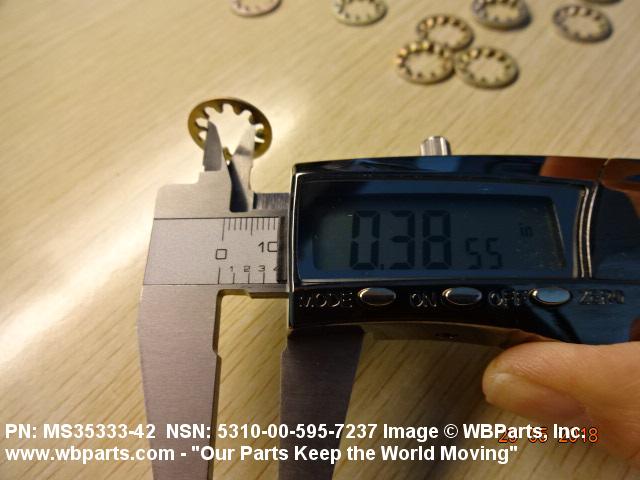

| HOLE DIAMETER | 0.384 INCHES MINIMUM AND 0.398 INCHES MAXIMUM |

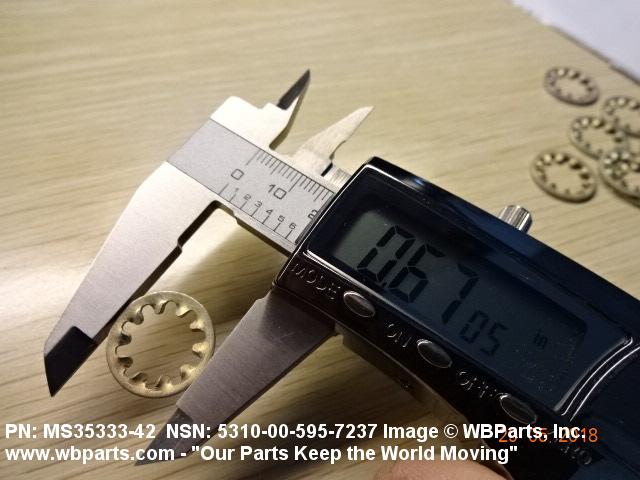

| OUTSIDE DIAMETER | 0.670 INCHES MINIMUM AND 0.692 INCHES MAXIMUM |

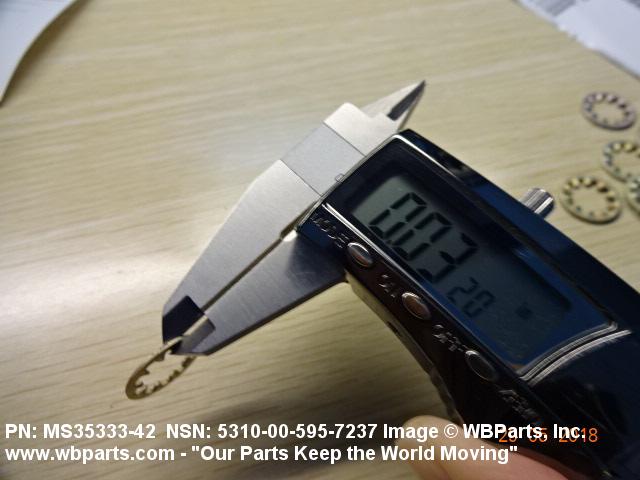

| MATERIAL THICKNESS | 0.032 INCHES MINIMUM AND 0.040 INCHES MAXIMUM |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILW6986 |
Restrictions/Controls & Freight Information | NSN 5310-00-595-7237
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
