NSN 5310-00-596-4274 A69391032125, A6939-1032-125, A6939103224A
Product Details | SHEET SPRING NUT
5310-00-596-4274 A nut formed from sheet spring material, usually steel, into varying flat, concave, bent or curved designs, having apertures with suitable boss or bosses usually on the upper side capable of securely gripping a mating threaded member. Excludes NUT (1), STAMPED.
Part Alternates: A69391032125, A6939-1032-125, A6939103224A, A6939-1032-24A, A6939103224J, A6939-1032-24J, A69391032493, A6939-1032-493, MILN3336, 2002113010, 20021130-10, 6796016, 5310-00-596-4274, 00-596-4274, 5310005964274, 005964274
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-596-4274 | 01865 ( NUT, SHEET SPRING ) |

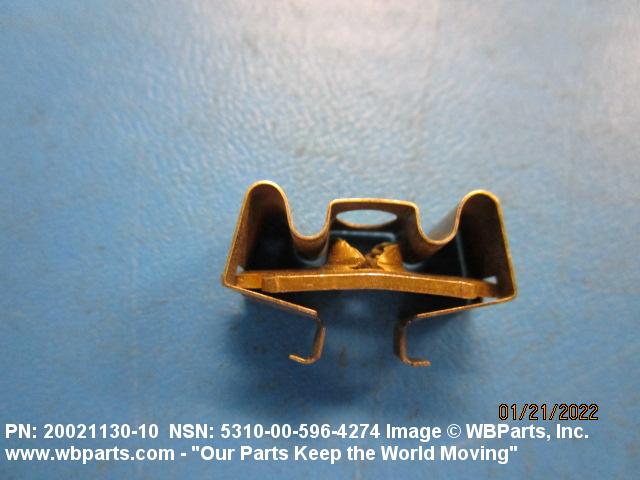

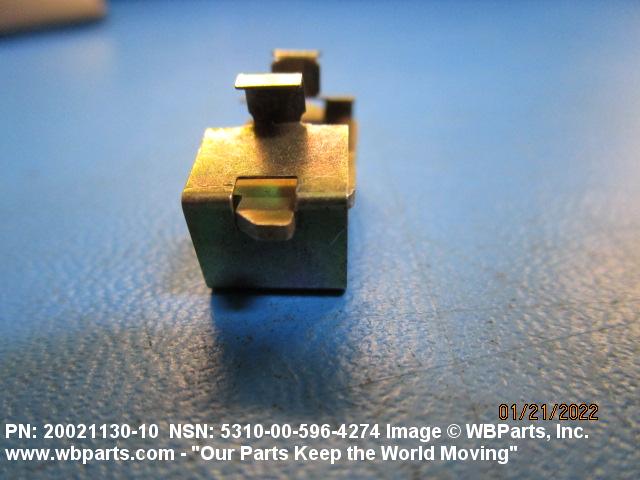

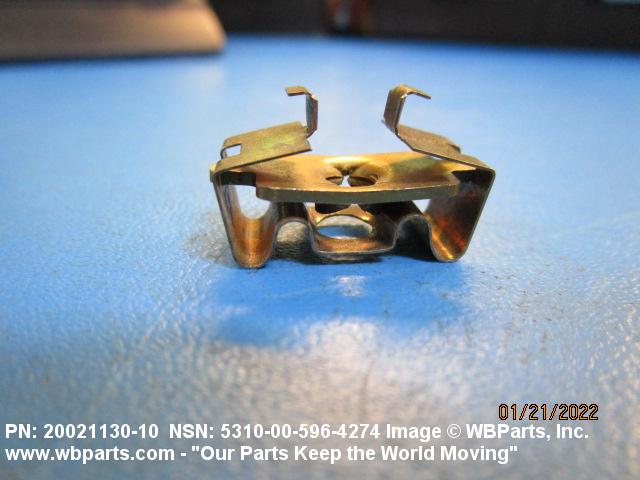

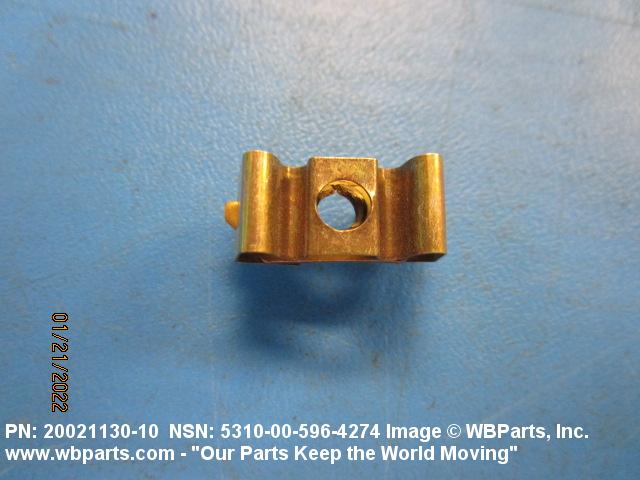

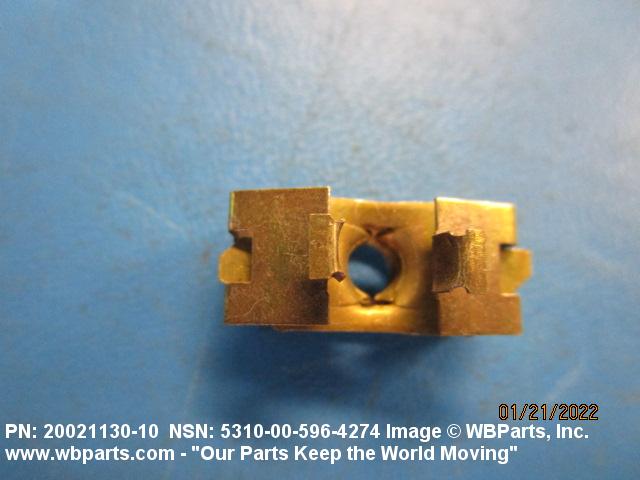

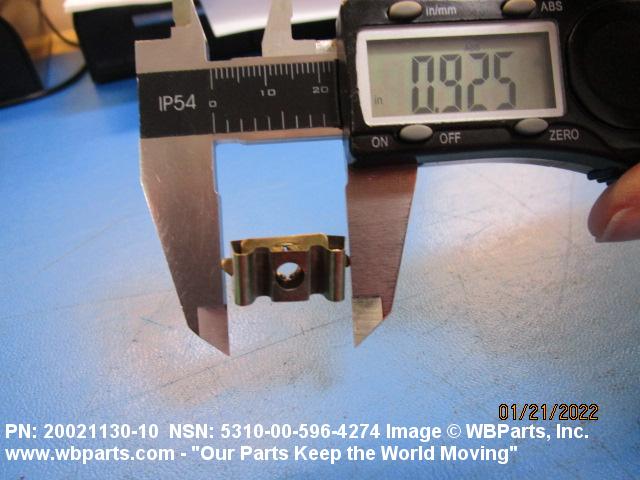

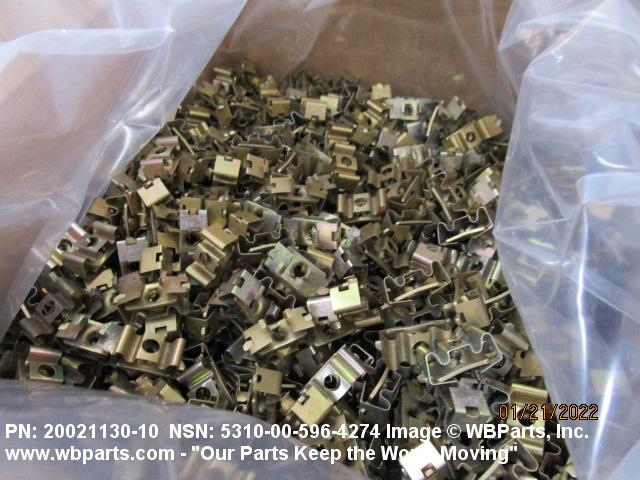

Drawings & Photos | NSN 5310-00-596-4274
Demand History | NSN 5310-00-596-4274
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-596-4274 | 2024-08-235 | 100 | us |
| 5310-00-596-4274 | 2023-11-320 | 129 | United States |
| A6939103224J | 2022-08-237 | 60 | us |
| 5310-00-596-4274 | 2022-05-145 | 4 | United States |
| 2002113010 | 2021-12-364 | 1456 | Malaysia |
| 5310-00-596-4274 | 2021-09-266 | 1456 | Malaysia |
| 5310-00-596-4274 | 2021-09-265 | 4 | United States |
| 5310-00-596-4274 | 2021-09-265 | 1456 | Malaysia |
| A6939103224J | 2021-07-201 | 90 | United States |
| 5310-00-596-4274 | 2013-07-182 | 3471 | DIBBS |
| A69391032493 | 2013-04-113 | 140 | United States |
| 5310-00-596-4274 | 2012-03-81 | 100 | US |
| A6939103224J | 2009-10-300 | 15 | US |
| A69391032493 | 2009-03-79 | 500 | US |
| A69391032493 | 2008-02-43 | 1000 | US |
Cross Reference | NSN 5310-00-596-4274
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 20021130-10 | 98748 | AIR FORCE UNITED STATES DEPARTMENT OF THE |
| A6939-1032-125 | 78553 | TINNERMAN PALNUT ENGINEERED PRODUCTS INC |
| A6939-1032-24A | 78553 | TINNERMAN PALNUT ENGINEERED PRODUCTS INC |
| A6939-1032-24J | 78553 | TINNERMAN PALNUT ENGINEERED PRODUCTS INC |
| A6939-1032-493 | 78553 | TINNERMAN PALNUT ENGINEERED PRODUCTS INC |
| MILN3336 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-596-4274
Related Products | NSN 5310-00-596-4274
Technical Data | NSN 5310-00-596-4274
| Characteristic | Specifications |
|---|---|
| MATING MEMBER DIAMETER ACCOMMODATED | 0.190 INCHES NOMINAL |
| MATERIAL | COPPER ALLOY OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| NUT STYLE | A168 SHEET SPRING |

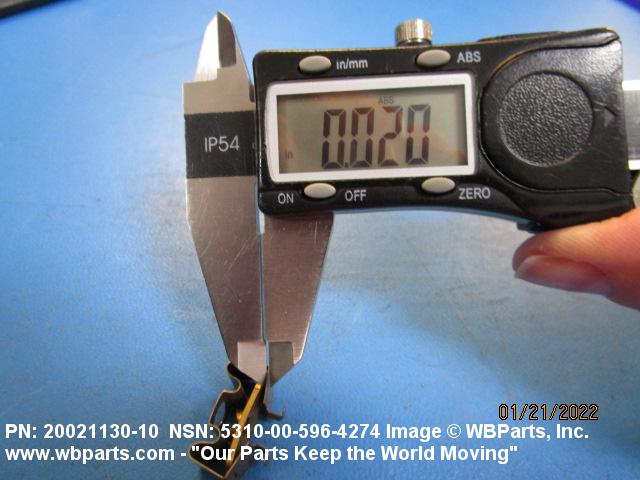

| MATERIAL THICKNESS | 0.002 INCHES MINIMUM AND 0.022 INCHES MAXIMUM |
| NUT LENGTH | 0.915 INCHES MINIMUM AND 0.935 INCHES MAXIMUM |
| NUT HEIGHT | ANY ACCEPTABLE |

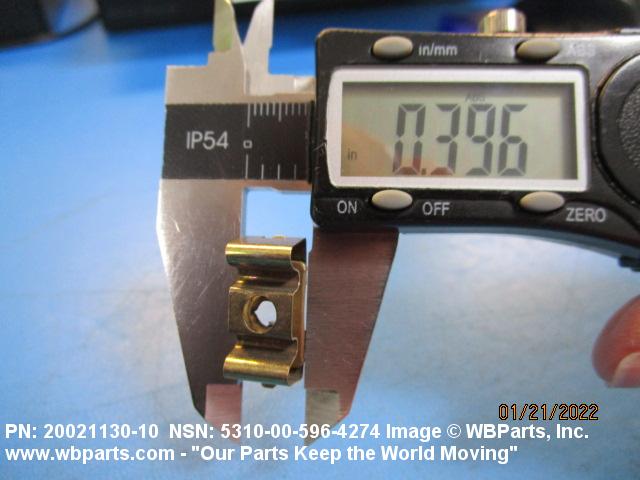

| NUT WIDTH | 0.380 INCHES MINIMUM AND 0.400 INCHES MAXIMUM |

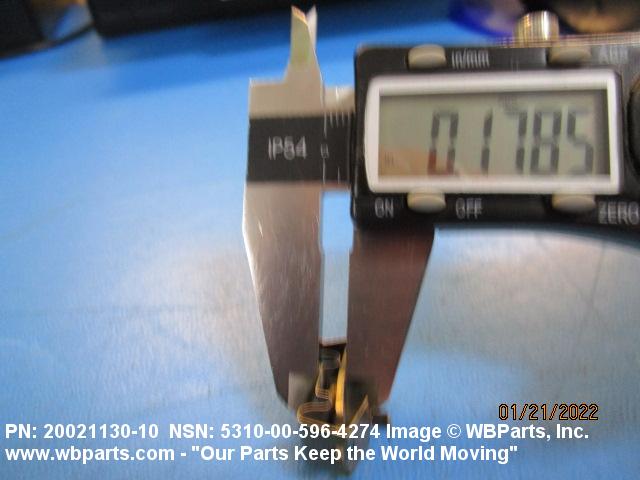

| PANEL THICKNESS | 0.177 INCHES MINIMUM AND 0.197 INCHES MAXIMUM |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILN3336 |
Restrictions/Controls & Freight Information | NSN 5310-00-596-4274
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186620 | TOOLS, NOI HAND OTHER THAN POWER |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 5 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-596-4274
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Q | Navy-owned stocks of items accepted by the General Services Administration for support of Navy requirements Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
