NSN 5310-00-615-1556 MS15795846, MS15795-846, VA977078846
Product Details | FLAT WASHER
5310-00-615-1556 A washer having a centrally located hole with a solid or laminated cross-section and two flat parallel bearing surfaces. The hole must be 75 percent or less than the largest dimension and the bearing surface finish is greater than 32 microinch (0.8 micrometer). The thickness cannot exceed 25 percent of the largest outside dimension. When the largest outside dimension is less than 1/4 inch or 6mm, the thickness must be 0.006 inches (0.15mm) or greater and for items 1/4 inch (6mm) or larger, the thickness must be 0.016 inches (0.4mm) or greater. The maximum tolerance is applied to dimensions and used as a determining factor. Items with separable lamination use SHIM. For items fabricated from ceramic or electrically rated materials by specification or industry standards use INSULATOR (1), WASHER. Excludes DISK, VALVE, graphite impregnated and lubricated items.
Part Alternates: MS15795846, MS15795-846, VA977078846, VA-97-7078-846, 2616950G001, 5310-00-615-1556, 00-615-1556, 5310006151556, 006151556
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 12 FEB 1975 | 00-615-1556 | 13393 ( WASHER, FLAT ) |

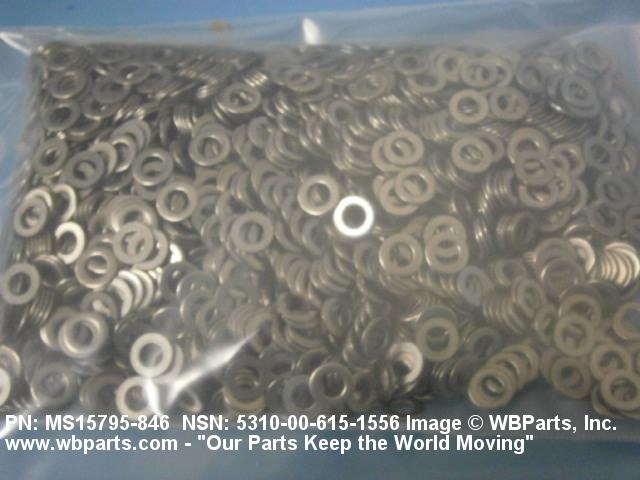

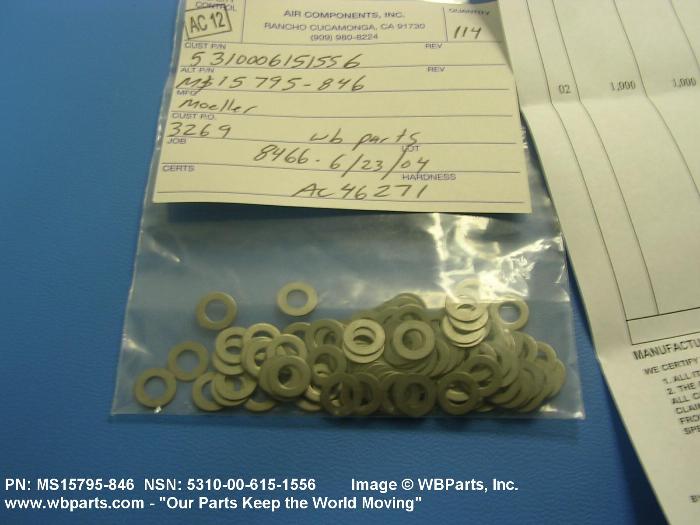

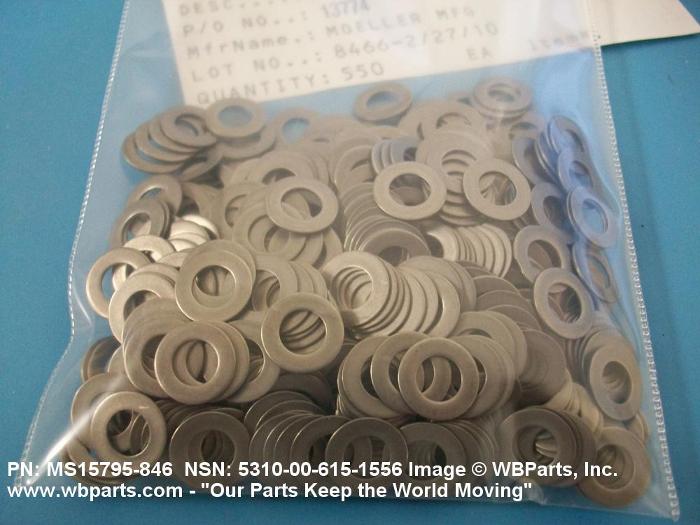

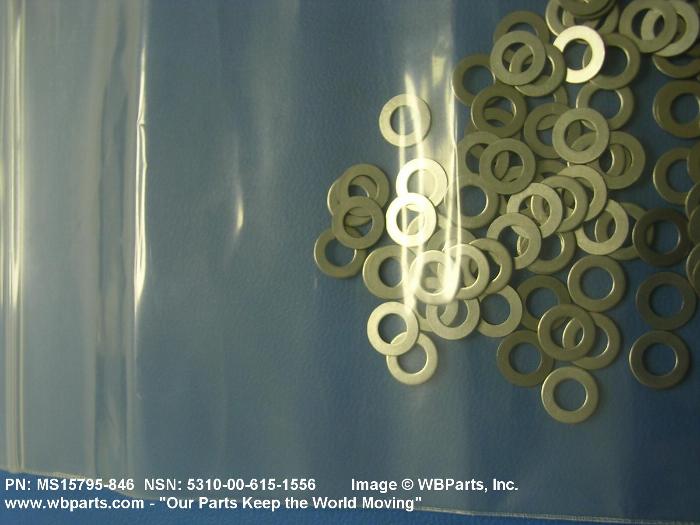

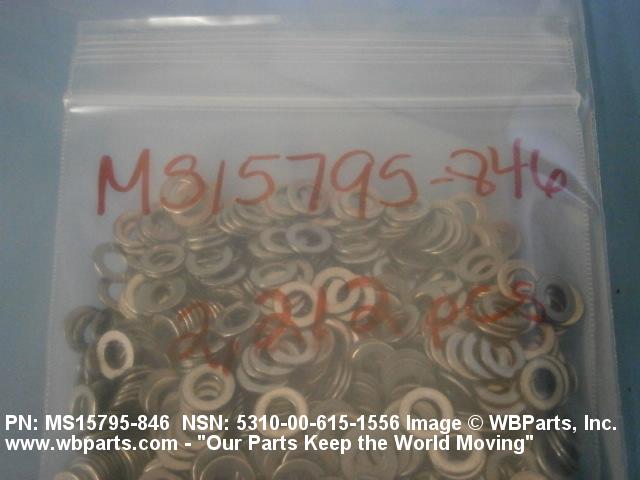

Drawings & Photos | NSN 5310-00-615-1556
Demand History | NSN 5310-00-615-1556
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS15795-846 | 2023-04-101 | 32 | United States |
| MS15795846 | 2023-02-55 | 70 | US |
| MS15795846 | 2020-02-45 | 188 | United States |
| 5310-00-615-1556 | 2019-02-43 | 90795 | DIBBS |
| 5310-00-615-1556 | 2019-02-35 | 90795 | DIBBS |
| 5310-00-615-1556 | 2018-12-354 | 3 | US |
| 5310-00-615-1556 | 2018-11-329 | 59477 | DIBBS |
| 5310-00-615-1556 | 2017-04-102 | 56 | United States |
| MS15795846 | 2016-11-312 | 6 | United States |
| 5310-00-615-1556 | 2016-08-224 | 300 | US |
| MS15795846 | 2016-08-223 | 300 | United States |
| MS15795846 | 2015-06-155 | 100 | US |
| MS15795846 | 2014-01-29 | 200 | United States |
| 5310-00-615-1556 | 2012-11-321 | 180 | US |
| MS15795846 | 2012-08-234 | 1114 | United States |
| 5310-00-615-1556 | 2012-06-177 | 100 | MANUAL |
| MS15795-846 | 2012-06-177 | 100 | US |
| 5310-00-615-1556 | 2012-05-129 | 50 | MANUAL |
| MS15795-846 | 2012-05-129 | 50 | United States |
| MS15795-846 | 2011-12-349 | 6636 | Israel |
| MS15795846 | 2011-12-341 | 2212 | Israel |
| MS15795846 | 2011-10-292 | 100 | US |
| MS15795846 | 2011-07-201 | 150 | United Kingdom |
| 5310-00-615-1556 | 2011-07-194 | 504 | United States |
| 5310-00-615-1556 | 2011-03-63 | 6000 | United States |
| MS15795846 | 2011-02-32 | 1 | United States |
| MS15795846 | 2010-07-202 | 250 | United States |
| 5310-00-615-1556 | 2010-06-160 | 11249 | DIBBS |
| MS15795846 | 2010-01-04 | 50 | US |
| MS15795846 | 2009-10-287 | 36 | US |
| MS15795846 | 2009-10-286 | 36 | US |
| 5310-00-615-1556 | 2009-09-268 | 280 | US |
| 5310-00-615-1556 | 2009-09-245 | 19200 | US |
| MS15795846 | 2009-08-233 | 250 | US |
| MS15795846 | 2009-07-197 | 1600 | US |
| 5310-00-615-1556 | 2009-06-166 | 1000 | US |
| 5310-00-615-1556 | 2009-05-127 | 384 | US |
| 5310-00-615-1556 | 2008-10-305 | 62977 | DIBBS |
| 5310-00-615-1556 | 2008-04-121 | 200 | United States |
| 5310-00-615-1556 | 2008-03-69 | 500 | US |
Cross Reference | NSN 5310-00-615-1556
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2616950G001 | 28527 | EXELIS INC. DBA ELECTRONIC SYSTEMS, INTEGRATED |
| MS15795-846 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS15795-846 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| VA-97-7078-846 | K0668 | SELEX ES LTD DBA SELEX S & A S |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-00-615-1556
Technical Data | NSN 5310-00-615-1556
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 302 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-766,COND A FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-S-5002 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HOLE DIAMETER | 0.195 INCHES MINIMUM AND 0.205 INCHES MAXIMUM |
| PERIPHERAL SHAPE STYLE | 1 ROUND |
| OVERALL DIAMETER | 0.349 INCHES MINIMUM AND 0.369 INCHES MAXIMUM |
| CENTER HOLE SHAPE STYLE | 1 ROUND |
| CROSS-SECTIONAL SHAPE STYLE | 1 RECTANGULAR |
| THICKNESS | 0.020 INCHES NOMINAL |
| MANUFACTURERS CODE | 80205 |
| DESIGN CONTROL REFERENCE | MS15795-846 |
Restrictions/Controls & Freight Information | NSN 5310-00-615-1556
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062960 | REOSTATS/PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
