NSN 5310-00-638-8146 CV11101, CV1110-1, 592560
Product Details | SPLINE SELF-LOCKING NUT

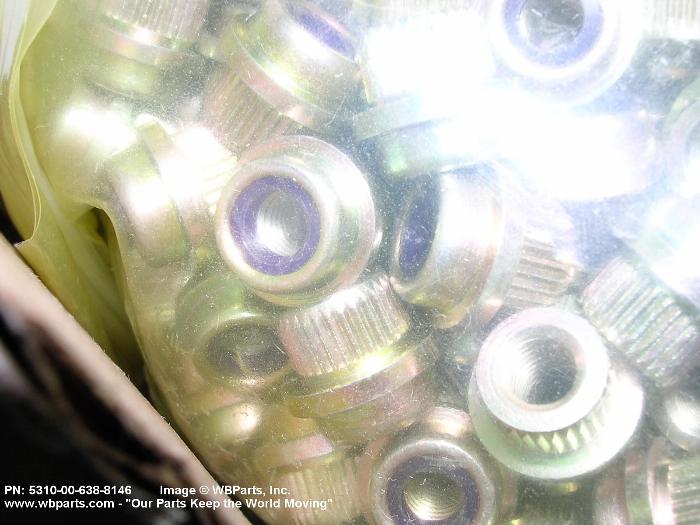

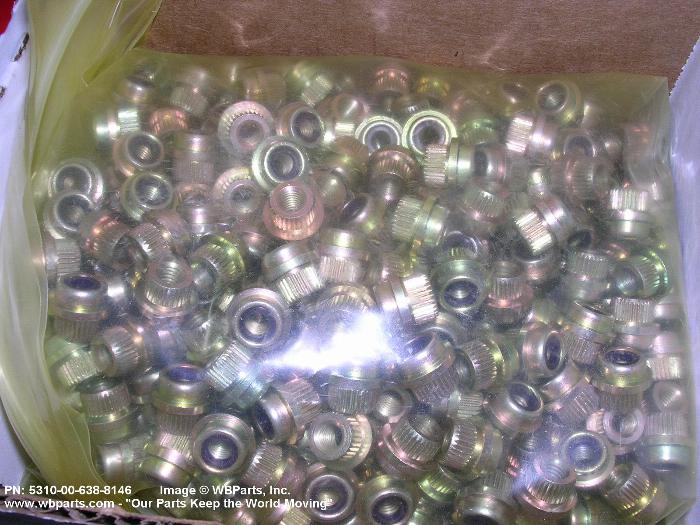

5310-00-638-8146 A nut having an externally splined sleeve, which holds it in position when forced into a hole of slightly smaller diameter. An integral feature is incorporated for locking.
Part Alternates: CV11101, CV1110-1, 592560, 10393773010, 10393773-010, 1251700500, 12-517-00-500, 22D1202, 22D12-02, 22ND1202, 22ND12-02, 22ND12102, 22ND12-102, 22ND121032, 22ND12-1032, 2577, 5310-00-638-8146, 00-638-8146, 5310006388146, 006388146
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-638-8146 | 15893 ( NUT, SELF-LOCKING, SPLINE ) |
Drawings & Photos | NSN 5310-00-638-8146
Demand History | NSN 5310-00-638-8146
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 10393773-010 | 2021-09-263 | 6 | DIBBS |
| 22ND12-02 | 2021-09-263 | 6 | DIBBS |
| 10393773-010 | 2021-09-252 | 6 | DIBBS |
| 22ND12-02 | 2021-09-252 | 6 | DIBBS |
| 10393773-010 | 2021-07-190 | 5 | DIBBS |
| 22ND12-02 | 2021-07-190 | 5 | DIBBS |
| 10393773-010 | 2021-06-181 | 5 | DIBBS |
| 22ND12-02 | 2021-06-181 | 5 | DIBBS |
| 2577 | 2021-04-102 | 2 | Malaysia |
| 5310-00-638-8146 | 2018-02-42 | 66 | DIBBS |
| 5310-00-638-8146 | 2017-08-220 | 66 | DIBBS |
| 5310-00-638-8146 | 2017-07-212 | 66 | DIBBS |
| CV1110-1 | 2013-08-229 | 200 | Canada |
| 10393773010 | 2007-11-332 | 700 | Taiwan |
Cross Reference | NSN 5310-00-638-8146
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10393773-010 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 12-517-00-500 | 78022 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| 22D12-02 | 019L2 | MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA |
| 22D12-02 | 72962 | HARVARD INDUSTRIES INC |
| 22ND12-02 | 019L2 | MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA |
| 22ND12-02 | 72962 | HARVARD INDUSTRIES INC |
| 22ND12-102 | 08928 | ABBOTT-INTERFAST CORP |
| 22ND12-1032 | 22230 | LITTON SYSTEMS INC SUB OF LITTON INDUSTRIES INC |
| 2577 | 31435 | LUCAS AEROSPACE POWER EQUIPMENT CORPORATION |
| 2577 | 3CPE0 | SAFRAN POWER USA, LLC |
| 5310006388146 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 592560 | 21450 | ARMY WEAPONS COMMAND ATTN AMSWE-REE-S |
| CV1110-1 | 80378 | TRIUMPH AEROSTRUCTURES, LLC DBA TRIUMPH AEROSTRUCTURES - VOUGHT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-638-8146
Related Products | NSN 5310-00-638-8146
Technical Data | NSN 5310-00-638-8146
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | PLASTIC POLYAMIDE LOCKING INSERT STEEL COMP 1212 NUT |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD SINGLE MATERIAL RESPONSE NUT |
| SURFACE TREATMENT | CADMIUM OVERALL EXCEPT INSERT |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 1,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL EXCEPT INSERT |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A52 SPLINE |
| PILOT DIAMETER | 0.321 INCHES MINIMUM AND 0.325 INCHES MAXIMUM |
| PILOT LENGTH | 0.173 INCHES MINIMUM AND 0.203 INCHES MAXIMUM |
| NUT DIAMETER | 0.423 INCHES MINIMUM AND 0.458 INCHES MAXIMUM |
| NUT HEIGHT | 0.330 INCHES MINIMUM AND 0.390 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE WITH NONMETALLIC INSERT |
| TEMP RATING | 250.0 DEG FAHRENHEIT MAXIMUM |
