NSN 5310-00-655-6423 00-655-6423, 006556423
Product Details | EYE NUT
5310-00-655-6423 A combination eye and nut, formed in one piece, and when fitted to an externally threaded object, the eye is used as an attaching medium.
Part Alternates: 5310-00-655-6423, 00-655-6423, 5310006556423, 006556423
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-655-6423 | 15897 ( NUT, EYE ) |

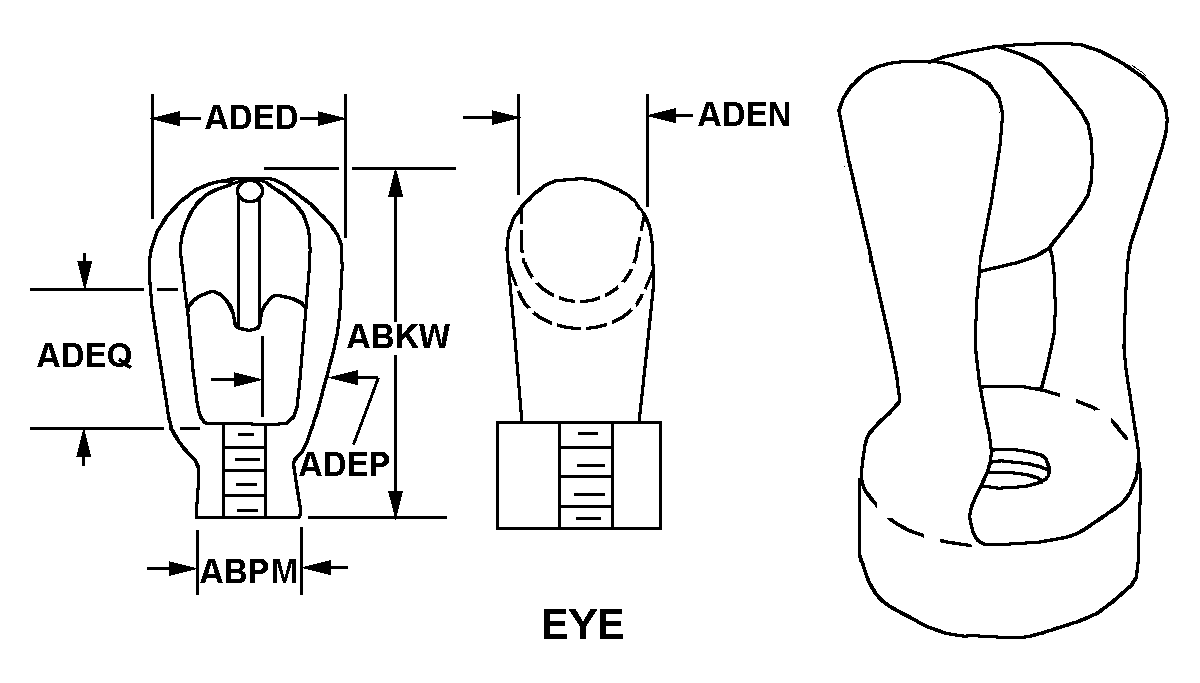

Drawings & Photos | NSN 5310-00-655-6423
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-655-6423
Related Products | NSN 5310-00-655-6423
Technical Data | NSN 5310-00-655-6423
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNC |
| NOMINAL THREAD SIZE | 0.750 INCHES |
| THREAD QUANTITY PER INCH | 10 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | ZINC OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A327 EYE |
| OVERALL HEIGHT | ANY ACCEPTABLE |
| BODY DIAMETER | ANY ACCEPTABLE |
| NUT WIDTH | ANY ACCEPTABLE |
| EYE BODY THICKNESS | ANY ACCEPTABLE |
| HOLE WIDTH | 0.625 INCHES NOMINAL |
| HOLE HEIGHT | 1.312 INCHES NOMINAL |
| FABRICATION METHOD | FORGED |
| TEMP RATING | NOT RATED |
Restrictions/Controls & Freight Information | NSN 5310-00-655-6423
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
