Product Details | SADDLE WASHER

5310-00-655-9401 A washer with one surface shaped to fit a similarly curved surface, the other surface of the washer being either parallel with the shaped surface or in the form of raised boss having either a flat bearing surface or a recess designed for holding a nut. Excludes WASHER (1), CONCAVE and WASHER (1), CONVEX.

Part Alternates: SC532500371, SC5325-0037-1, WA120, WA-120, WA9350, D4140, D4-140, D4SE140GY, D4SE-140GY, G42384, G4238-4, 5325-0037-1, 13031610-2, 16601284020, 16601284-020, 16750433020, 16750433-020, 17347280, 1734-7280, 1901356, 190135-6, 20512270702, 2051227-0702, 2124301402, 2124301-402, 3060101006, 306-010-1006, 1070266, 107-026-6, 107026-6, 401030, 47280, 4-7280, 710918-002, 74018206002, 74018-206-002, 74315079006, 751638, 7516-38, 8604756, 860475-6, 8642823, 9073287, 9190334, 9501413, 950141-3, 5310-00-655-9401, 00-655-9401, 5310006559401, 130316102, 315079006, 006559401, 532500371, 710918002

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-655-9401	15898 ( WASHER, SADDLE )

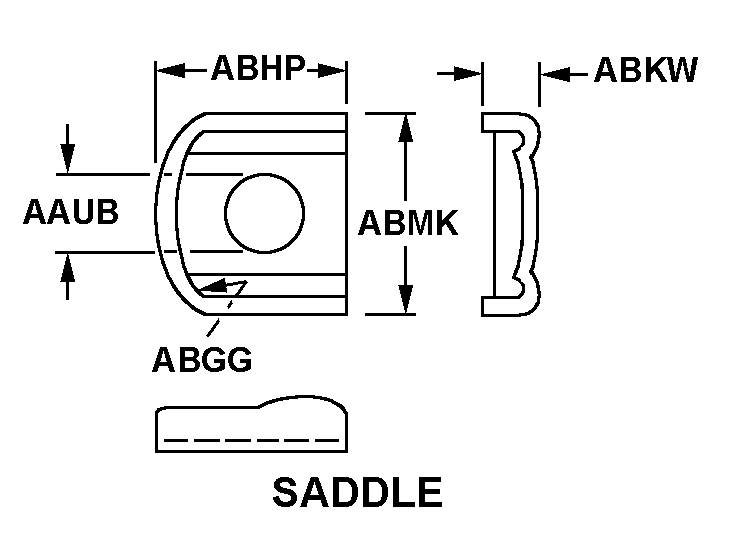

Drawings & Photos | NSN 5310-00-655-9401

Part Number	Request Date	QTY	Origin
5310-00-655-9401	2015-07-210	217	DIBBS
5310-00-655-9401	2013-10-279	266	DIBBS
5310-00-655-9401	2013-08-242	266	DIBBS
5310-00-655-9401	2013-03-71	344	DIBBS
5310-00-655-9401	2008-01-30	754	DIBBS

Cross Reference | NSN 5310-00-655-9401

Part Number	Cage Code	Manufacturer
107-026-6	37695	RAYTHEON COMPANY DBA RAYTHEON
107026-6	37695	RAYTHEON COMPANY DBA RAYTHEON
13031610-2	18876	U S ARMY AVIATION AND MISSILE COMMAND
16601284-020	28009	SYPRIS ELECTRONICS, LLC DIV SYPRIS ELECTRONICS, LLC -
16750433-020	28009	SYPRIS ELECTRONICS, LLC DIV SYPRIS ELECTRONICS, LLC -
1734-7280	63002	VICTOR TECHNOLOGIES INC
190135-6	37695	RAYTHEON COMPANY DBA RAYTHEON
2051227-0702	06845	RAYTHEON COMPANY DBA RAYTHEON
2124301-402	10001	NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT
306-010-1006	95542	NORTHROP GRUMMAN SYSTEMS CORPORATION
306-010-1006	C1834	KONTRON AG
315079006	94474	RUDOLPH RESEARCH
4-7280	63002	VICTOR TECHNOLOGIES INC
401030	02145	RICHARDS IMAGERY INTERPRETATION SYSTEMS L.L.C.
5325-0037-1	12115	DRS ICAS, LLC
710918-002	93322	GE AVIATION SYSTEMS LLC DBA GE AVIATION
74018-206-002	14668	CALCOMP INC
74315079006	89944	KOLLSMAN, INC.
7516-38	36470	LIONEL CORP
860475-6	06481	NORTHROP GRUMMAN SYSTEMS CORPORATION
860475-6	13973	LITTON SYSTEMS INC. DIV NAVIGATION SYSTEMS DIVISION
8642823	19200	US ARMY ARDEC RDECOM
9073287	18876	U S ARMY AVIATION AND MISSILE COMMAND
9190334	18876	U S ARMY AVIATION AND MISSILE COMMAND
950141-3	06481	NORTHROP GRUMMAN SYSTEMS CORPORATION
950141-3	13973	LITTON SYSTEMS INC. DIV NAVIGATION SYSTEMS DIVISION
D4-140	85480	BRADY UNITED STATES
D4SE-140GY	85480	BRADY UNITED STATES
G4238-4	06481	NORTHROP GRUMMAN SYSTEMS CORPORATION
SC5325-0037-1	12115	DRS ICAS, LLC
WA-120	72914	GRIMES AEROSPACE COMPANY DBA HONEYWELL
WA9350	92755	NORTHROP GRUMMAN SYSTEMS CORPORATION DBA LAND & SELF PROTECTION SYSTEM
