NSN 5310-00-655-9798 AN9601216, AN960-1216, NAS1149F1290P

Product Details | FLAT WASHER

5310-00-655-9798 A washer having a centrally located hole with a solid or laminated cross-section and two flat parallel bearing surfaces. The hole must be 75 percent or less than the largest dimension and the bearing surface finish is greater than 32 microinch (0.8 micrometer). The thickness cannot exceed 25 percent of the largest outside dimension. When the largest outside dimension is less than 1/4 inch or 6mm, the thickness must be 0.006 inches (0.15mm) or greater and for items 1/4 inch (6mm) or larger, the thickness must be 0.016 inches (0.4mm) or greater. The maximum tolerance is applied to dimensions and used as a determining factor. Items with separable lamination use SHIM. For items fabricated from ceramic or electrically rated materials by specification or industry standards use INSULATOR (1), WASHER. Excludes DISK, VALVE, graphite impregnated and lubricated items.

Part Alternates: AN9601216, AN960-1216, NAS1149F1290P , 5310-00-655-9798, 00-655-9798, 5310006559798, 006559798

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-655-9798	13393 ( WASHER, FLAT )

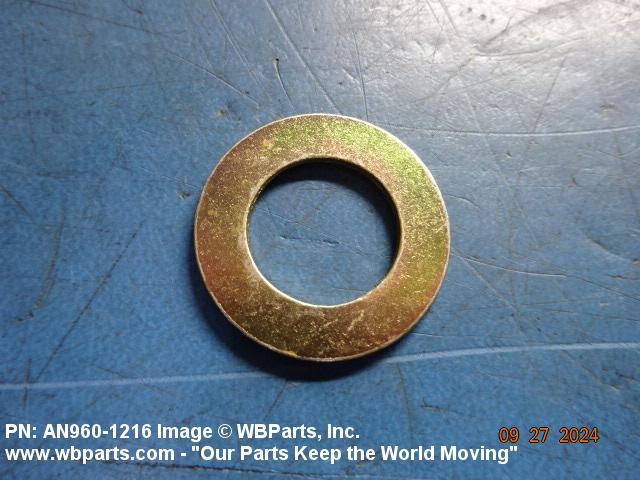

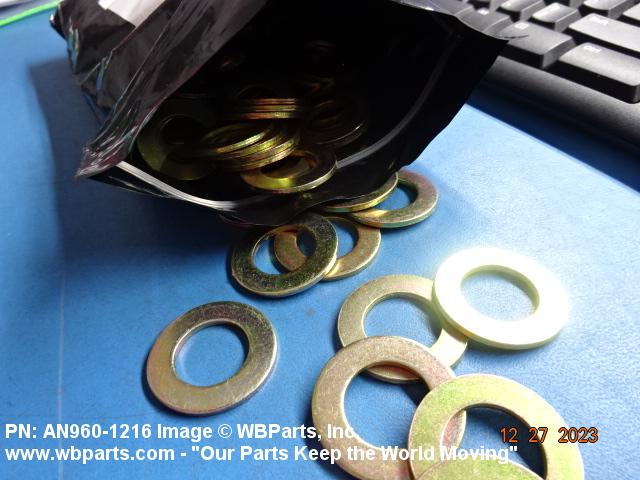

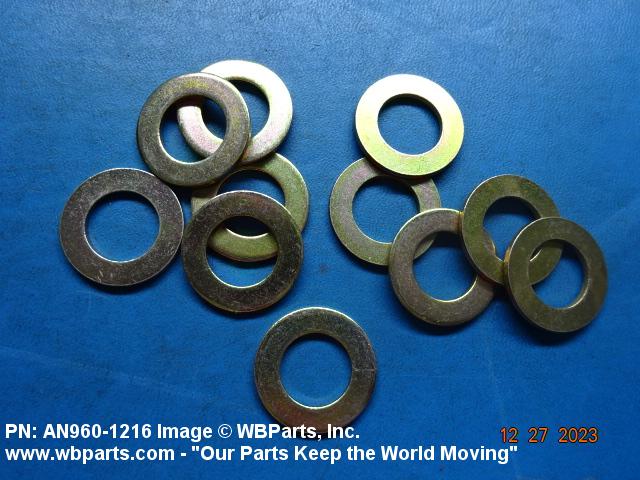

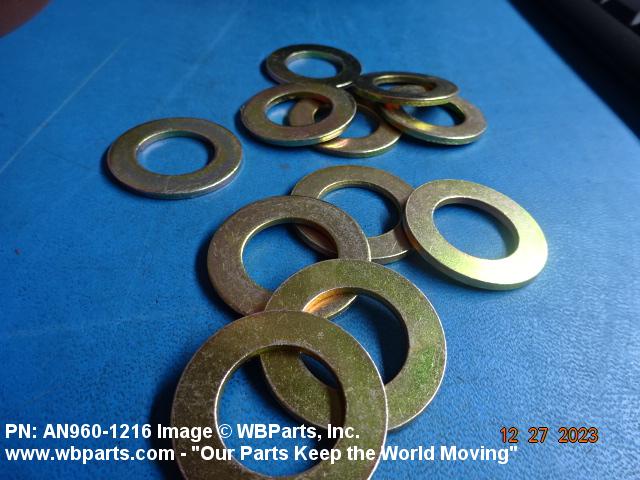

Drawings & Photos | NSN 5310-00-655-9798

Part Number	Request Date	QTY	Origin
NAS1149F1290P	2025-08-216	300	United States
NAS1149F1290P	2025-07-201	150	United States
AN9601216	2025-04-120	150	United States
AN9601216	2025-04-100	100	United States
5310-00-655-9798	2025-02-42	16700	DIBBS
AN9601216	2024-10-299	28	United States
AN9601216	2024-09-263	200	United States
AN9601216	2024-09-263	200	United States
NAS1149F1290P	2024-04-121	1750	us
AN9601216	2023-12-354	200	United States
AN9601216	2023-12-352	100	United States
5310-00-655-9798	2023-07-188	6	US
NAS1149F1290P	2022-04-95	15	United States
NAS1149F1290P	2022-04-95	25	United States
AN9601216	2021-10-292	4	United States
AN9601216	2020-02-52	100	Canada
AN9601216	2020-01-23	33	United States
AN9601216	2019-08-232	32	United States
AN960-1216	2018-11-324	8
AN9601216	2018-03-73	2	United States
AN9601216	2017-01-04	66	United States
NAS1149F1290P	2016-10-302	20	United States
NAS1149F1290P	2016-03-76	1	Philippines
AN9601216	2016-02-41	12	US
NAS1149F1290P	2015-11-306	2	us
AN960-1216	2015-05-138	2	United States
AN960-1216	2015-05-138	2	United States
5310-00-655-9798	2014-12-346	8	United States
AN9601216	2014-12-336	2	SA
NAS1149F1290P	2014-08-232	28	Australia
NAS1149F1290P	2014-08-232	28	United States
NAS1149F1290P	2014-08-232	28	United States
NAS1149F1290P	2014-08-227	28	Australia
AN9601216	2014-03-78	4	United States
AN9601216	2013-08-241	4	United States
AN9601216	2013-08-241	100	Ukraine
NAS1149F1290P	2013-06-164	300	US
AN9601216	2013-05-134	50	US
5310-00-655-9798	2013-04-113	34424	DIBBS
AN960-1216	2013-02-38	440	United States
5310-00-655-9798	2013-01-30	44000	MANUAL
AN960-1216	2013-01-30	44000	United States
AN9601216	2013-01-07	1	US
5310-00-655-9798	2012-12-352	148231	DIBBS
NAS1149F1290P	2012-11-319	2	US
5310-00-655-9798	2012-06-182	11469	DIBBS
AN9601216	2012-05-151	75	US
5310-00-655-9798	2011-11-325	220	United States
5310-00-655-9798	2011-09-269	9796	DIBBS
5310-00-655-9798	2010-07-210	8618	DIBBS
NAS1149F1290P	2010-06-168	4	US
5310-00-655-9798	2009-12-364	4900	DIBBS
AN9601216	2009-12-337	8	United States
AN9601216	2009-12-337	8	United States
5310-00-655-9798	2009-11-316	26	US
AN9601216	2009-10-288	4100	US
AN9601216	2009-08-233	8	US
AN9601216	2009-08-233	8	US
AN9601216	2009-08-233	8	US
AN9601216	2009-08-222	18	US
AN9601216	2009-07-210	12	US
5310-00-655-9798	2009-06-174	313	DIBBS
5310-00-655-9798	2009-03-80	3	DIBBS
5310-00-655-9798	2009-02-53	4	DIBBS
NAS1149F1290P	2008-08-220	60	us
AN9601216	2008-05-141	144	United States
AN9601216	2007-07-186	160	Korea

Cross Reference | NSN 5310-00-655-9798

Part Number	Cage Code	Manufacturer
AN960-1216	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
NAS1149F1290P	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-655-9798

Compare

Related Products | NSN 5310-00-655-9798

5310-00-655-9800, 5310-00-655-9806, 5310-00-655-9859, 5310-00-655-9860, 5310-00-655-9861

Technical Data | NSN 5310-00-655-9798

Characteristic	Specifications
MATERIAL	STEEL OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	MIL-S-7952 MIL SPEC SINGLE MATERIAL RESPONSE OR QQ-S-698 FED SPEC SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	CADMIUM OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL

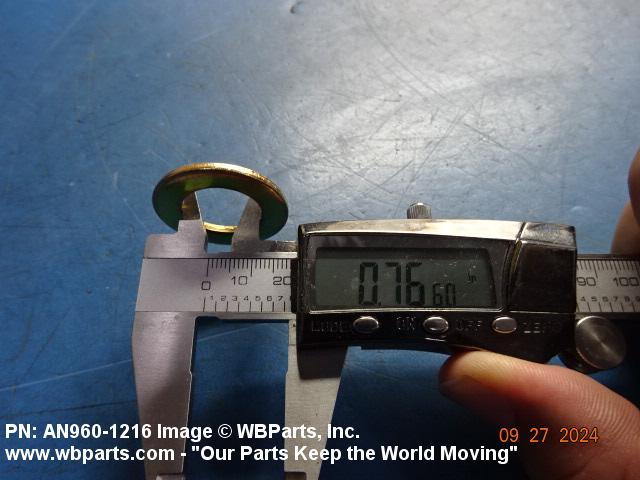

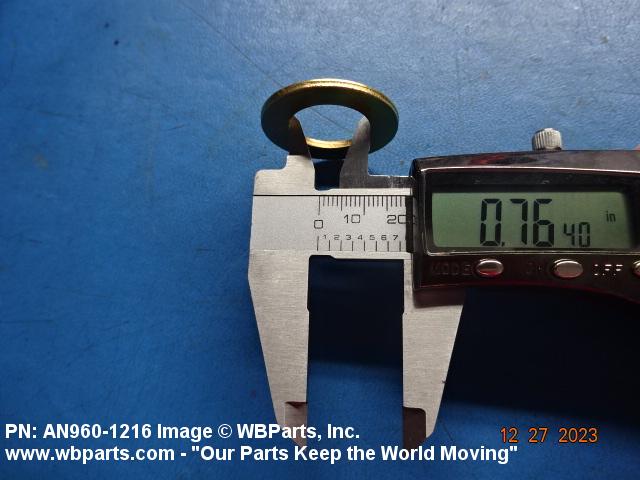

HOLE DIAMETER	0.755 INCHES MINIMUM AND 0.775 INCHES MAXIMUM
PERIPHERAL SHAPE STYLE	1 ROUND

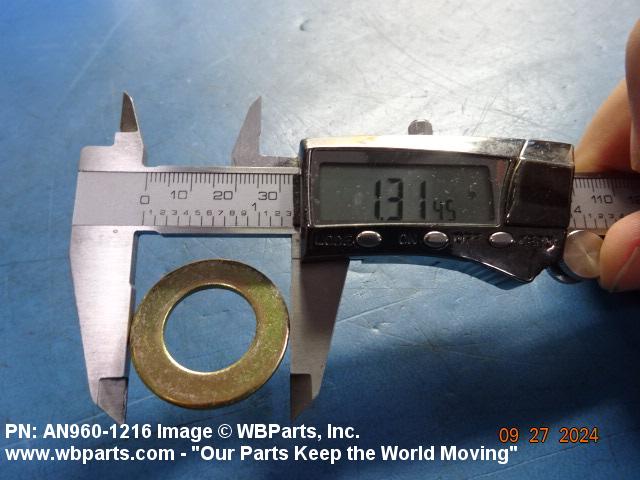

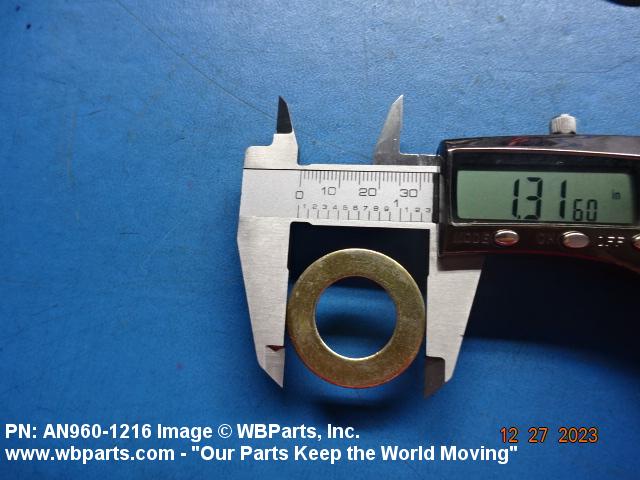

OVERALL DIAMETER	1.307 INCHES MINIMUM AND 1.332 INCHES MAXIMUM
CENTER HOLE SHAPE STYLE	1 ROUND
CROSS-SECTIONAL SHAPE STYLE	1 RECTANGULAR

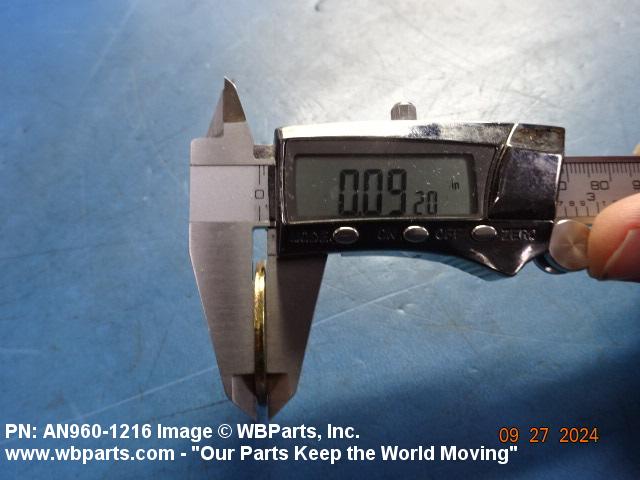

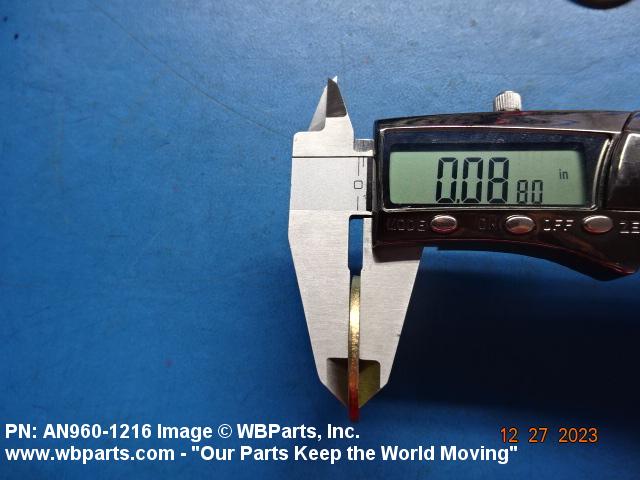

THICKNESS	0.080 INCHES MINIMUM AND 0.100 INCHES MAXIMUM
DEPARTURE FROM CITED DESIGNATOR	AS MODIFIED BY THE FINISH
MANUFACTURERS CODE	88044
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	AN960-1216

Restrictions/Controls & Freight Information | NSN 5310-00-655-9798

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	194120	WASHERS/GASKETS/PCKG DVCS NOI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	671	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-00-655-9798

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	A	Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	H EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	H EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	2	Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Physical Category Code	1	Bin
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	H EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	H EA : Each
