NSN 5310-00-656-0111 MS15795703, MS15795-703, FFW92
Product Details | FLAT WASHER
5310-00-656-0111 A washer having a centrally located hole with a solid or laminated cross-section and two flat parallel bearing surfaces. The hole must be 75 percent or less than the largest dimension and the bearing surface finish is greater than 32 microinch (0.8 micrometer). The thickness cannot exceed 25 percent of the largest outside dimension. When the largest outside dimension is less than 1/4 inch or 6mm, the thickness must be 0.006 inches (0.15mm) or greater and for items 1/4 inch (6mm) or larger, the thickness must be 0.016 inches (0.4mm) or greater. The maximum tolerance is applied to dimensions and used as a determining factor. Items with separable lamination use SHIM. For items fabricated from ceramic or electrically rated materials by specification or industry standards use INSULATOR (1), WASHER. Excludes DISK, VALVE, graphite impregnated and lubricated items.
Part Alternates: MS15795703, MS15795-703, FFW92, FF-W-92, 89761771, 8976177-1, 5310-00-656-0111, 00-656-0111, 5310006560111, 006560111
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-656-0111 | 13393 ( WASHER, FLAT ) |

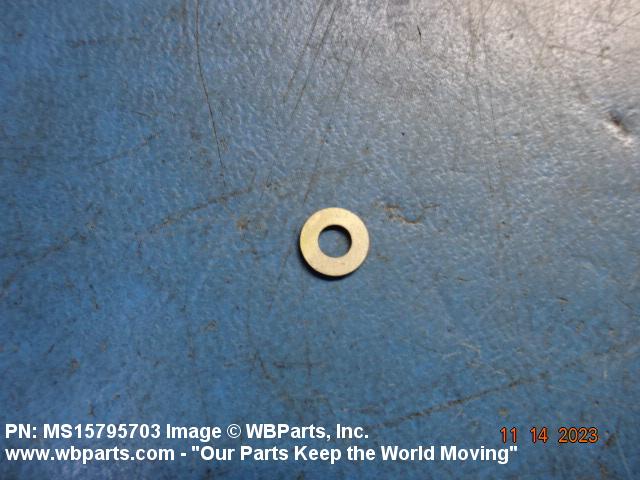

Drawings & Photos | NSN 5310-00-656-0111
Demand History | NSN 5310-00-656-0111
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| FFW92 | 2025-06-161 | 16 | United States |
| MS15795703 | 2025-05-139 | 1000 | Korea |
| MS15795703 | 2023-09-270 | 1000 | Korea |
| 5310-00-656-0111 | 2023-09-262 | 935 | DIBBS |
| FF-W-92 | 2023-01-18 | 60 | Saudi Arabia |
| 5310-00-656-0111 | 2020-01-05 | 459 | DIBBS |
| FFW92 | 2018-07-207 | 2 | United States |
| FFW92 | 2016-08-217 | 21 | US |
| 5310-00-656-0111 | 2014-12-363 | 715 | DIBBS |
| MS15795703 | 2012-08-230 | 200 | US |
| FFW92 | 2011-10-304 | 495 | United States |
| 5310-00-656-0111 | 2010-07-210 | 80 | US |
Cross Reference | NSN 5310-00-656-0111
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5310006560111 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 53106560111 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 8976177-1 | 21921 | RCA CORP DISTRIBUTOR AND SPECIAL PRODUCTS DIV |
| 8976177-1 | 49671 | LOCKHEED MARTIN CORP LOCKHEED MARTIN INFORMATION SYSTEMS |
| FF-W-92 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| MS15795-703 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS15795-703 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-00-656-0111
Technical Data | NSN 5310-00-656-0111
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2024 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-250/5,ALCLAD FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |

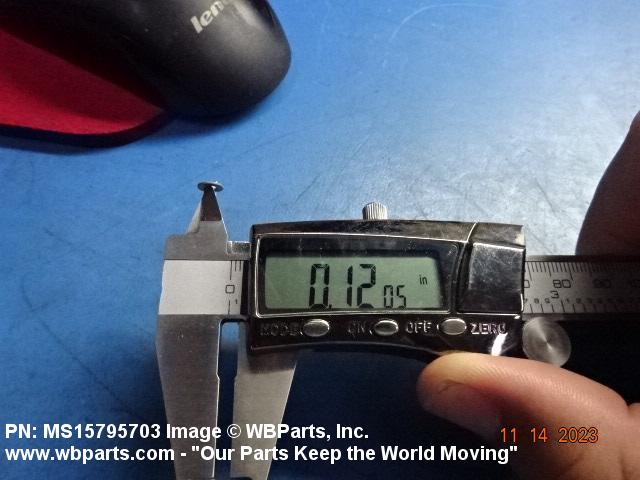

| HOLE DIAMETER | 0.120 INCHES MINIMUM AND 0.125 INCHES MAXIMUM |
| PERIPHERAL SHAPE STYLE | 1 ROUND |

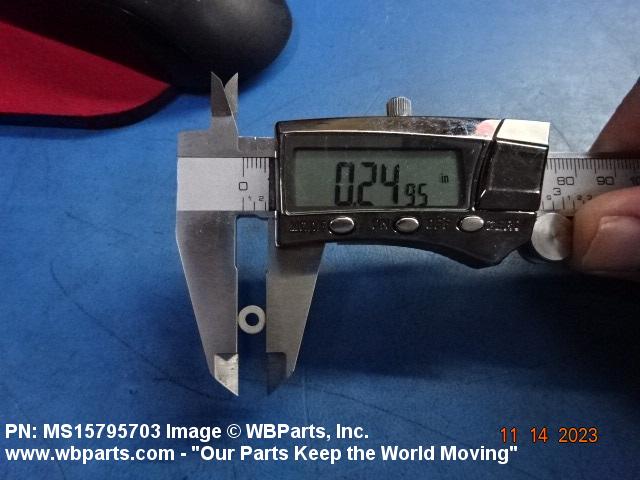

| OVERALL DIAMETER | 0.245 INCHES MINIMUM AND 0.250 INCHES MAXIMUM |
| CENTER HOLE SHAPE STYLE | 1 ROUND |
| CROSS-SECTIONAL SHAPE STYLE | 1 RECTANGULAR |

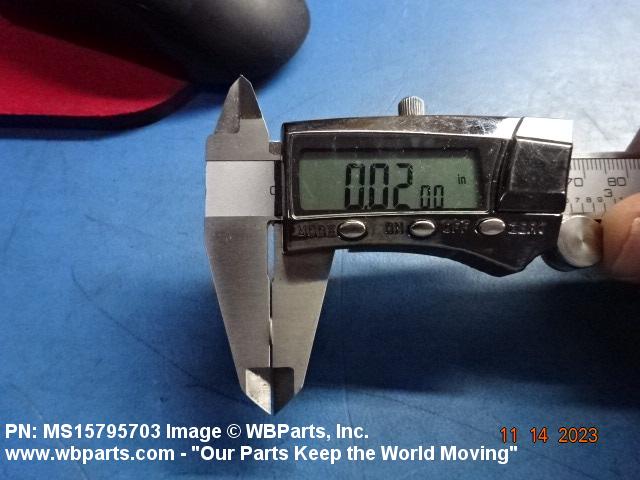

| THICKNESS | 0.017 INCHES MINIMUM AND 0.028 INCHES MAXIMUM |
| NONDEFINITIVE SPEC/STD DATA | A TYPE AND 1 GRADE AND D CLASS |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | FF-W-92 |
Restrictions/Controls & Freight Information | NSN 5310-00-656-0111
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
