NSN 5310-00-677-0659 NAS12918, NAS1291-8, 00-677-0659
Product Details | HEXAGON EXTENDED WASHER SELF-LOCKING NUT
5310-00-677-0659 A nut having 6 flat sides and an integral washer which extends beyond the flats or periphery. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: NAS12918, NAS1291-8, 5310-00-677-0659, 00-677-0659, 5310006770659, 006770659
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 02 FEB 1968 | 00-677-0659 | 29730 ( NUT, SELF-LOCKING, EXTENDED WASHER, HEXAGON ) |

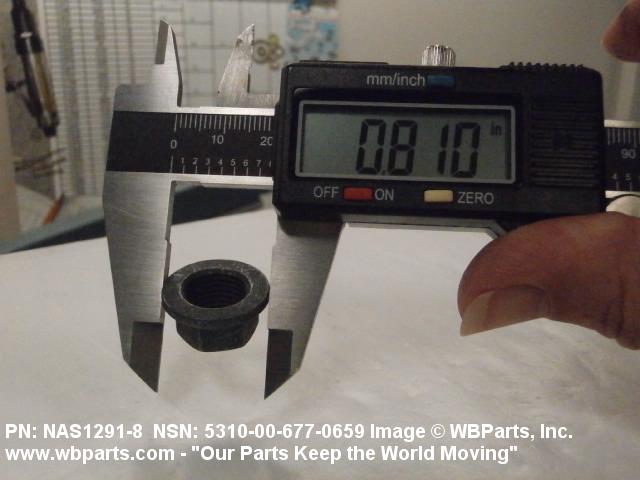

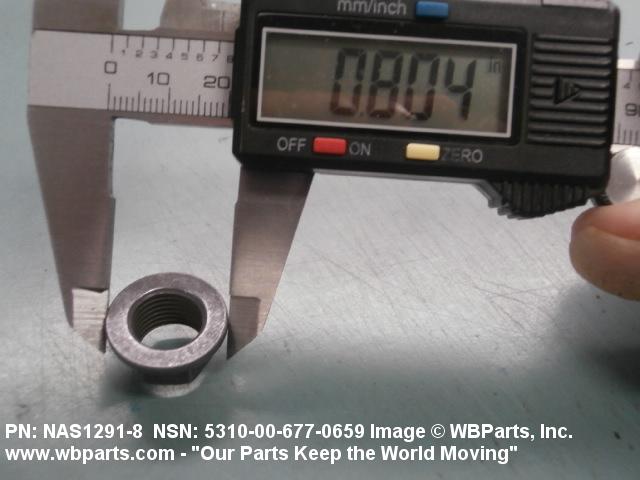

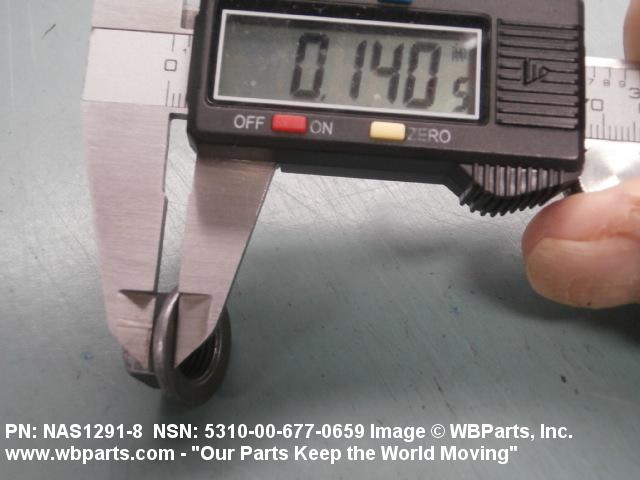

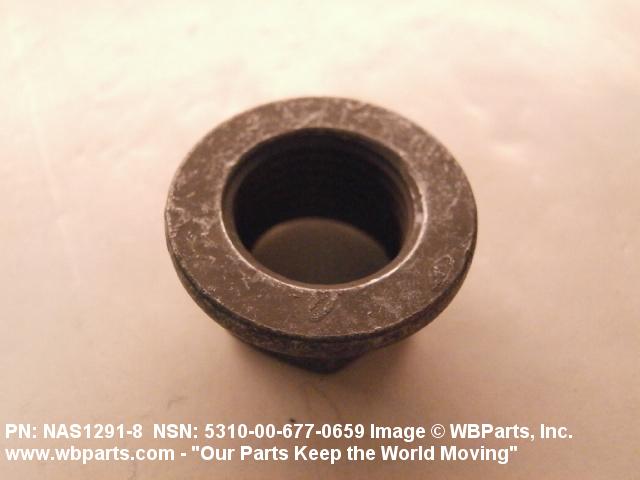

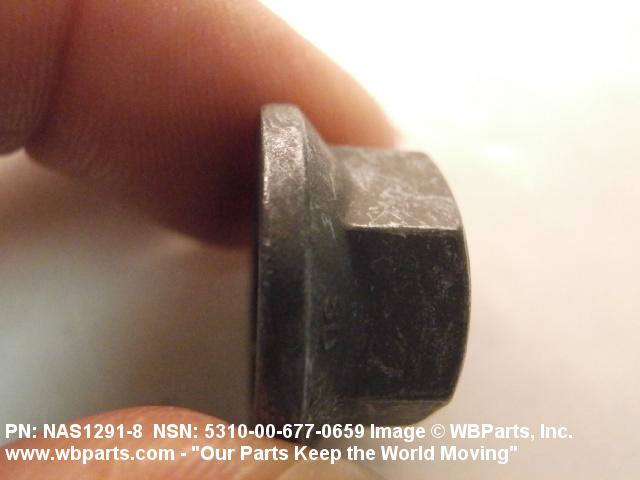

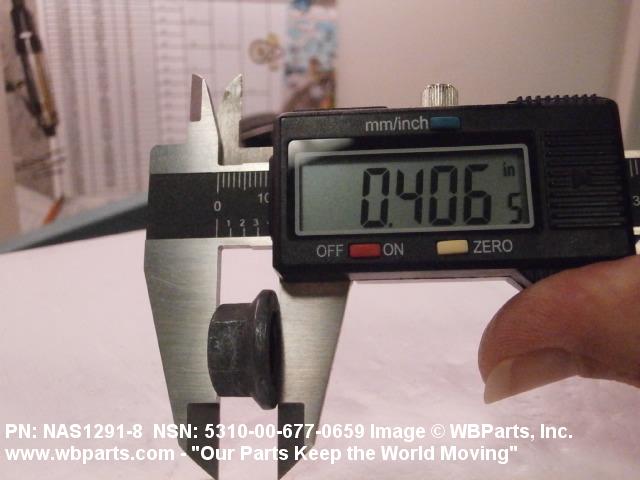

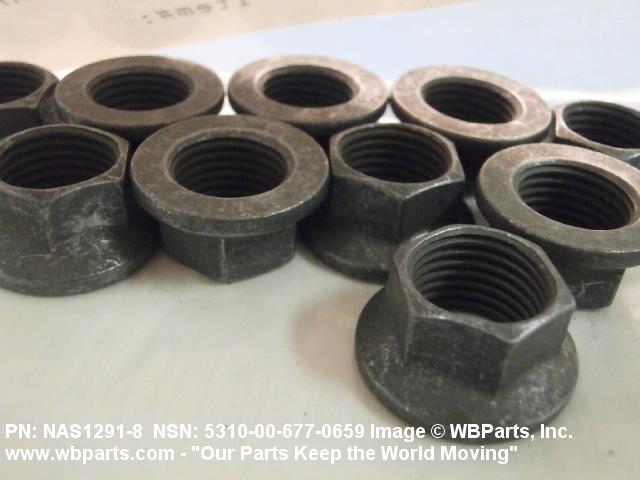

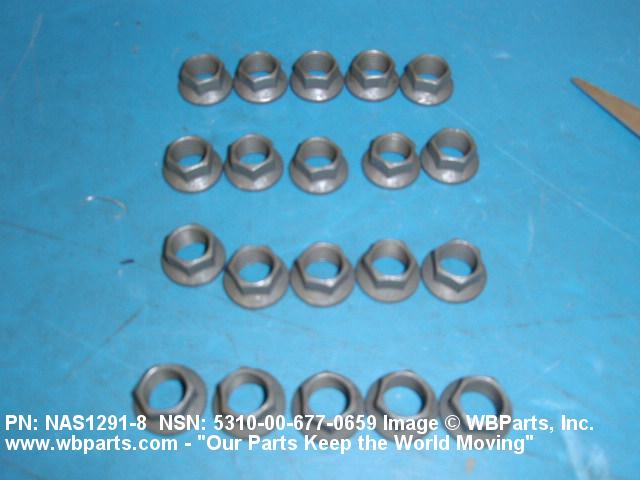

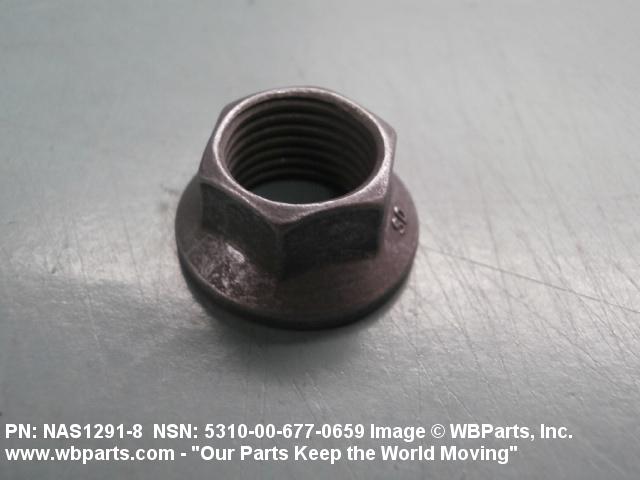

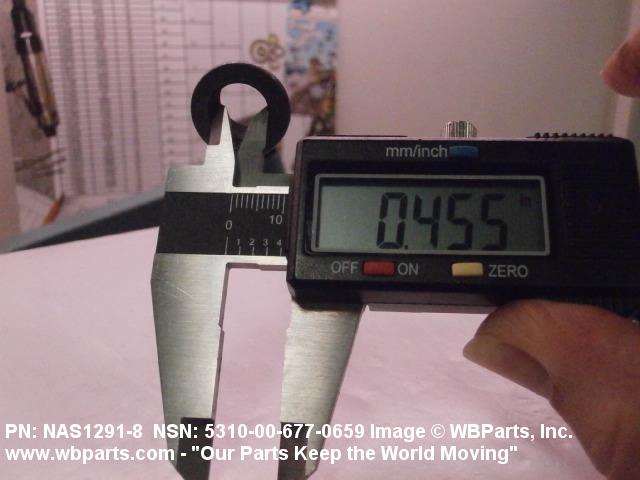

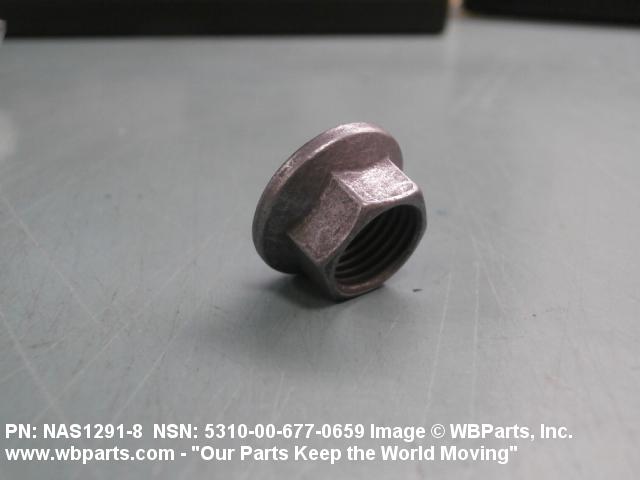

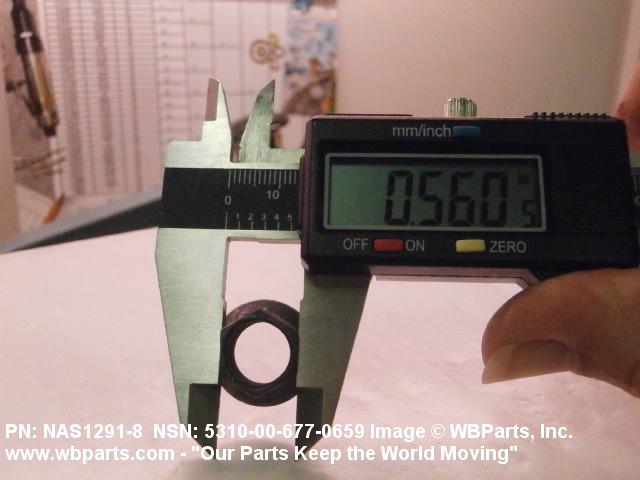

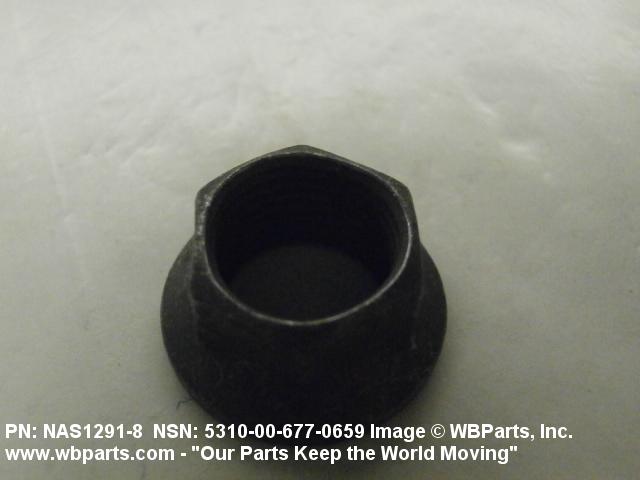

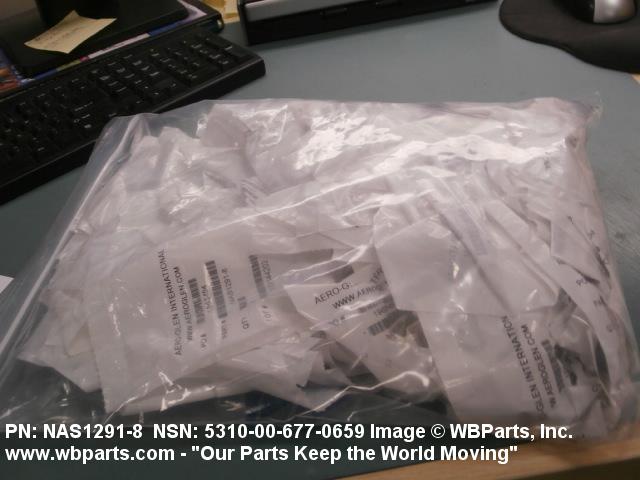

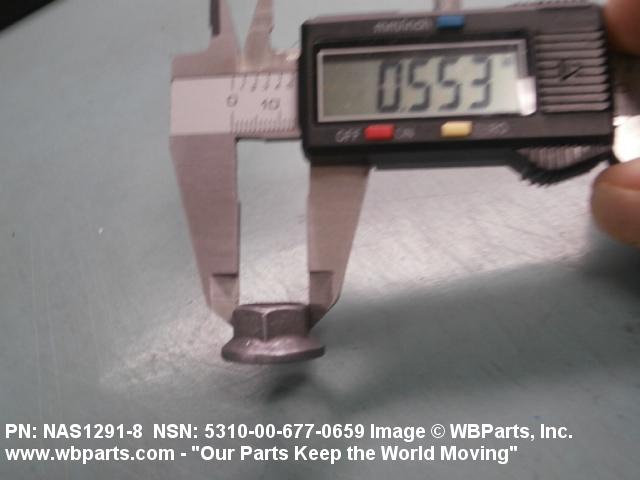

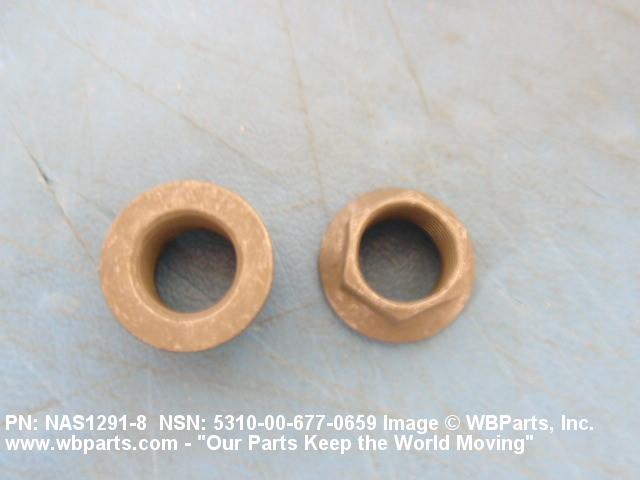

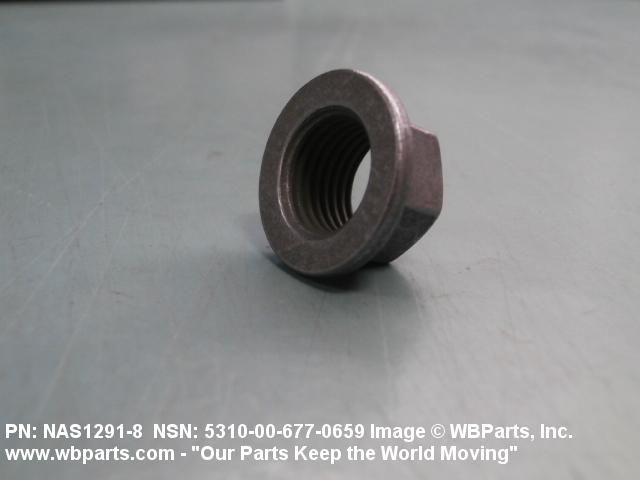

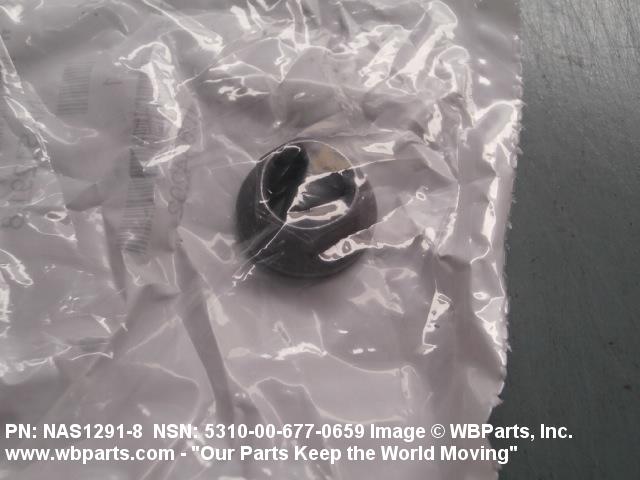

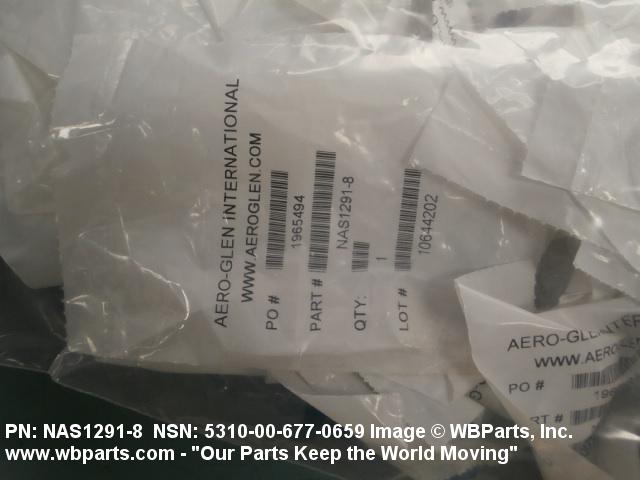

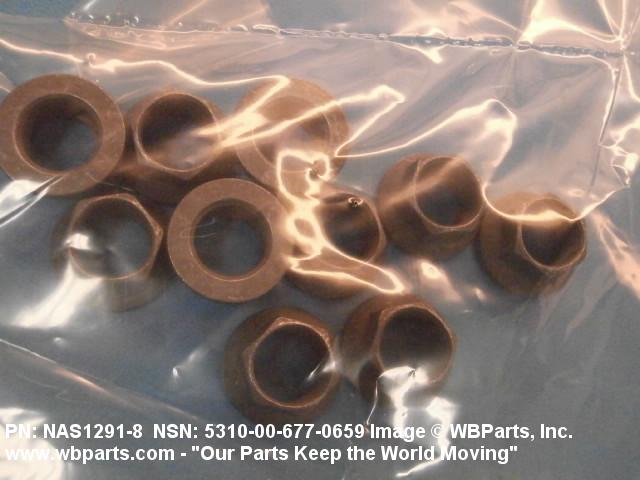

Drawings & Photos | NSN 5310-00-677-0659
Demand History | NSN 5310-00-677-0659
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS1291-8 | 2024-12-344 | 2113 | DIBBS |
| NAS1291-8 | 2024-08-235 | 1349 | DIBBS |
| NAS1291-8 | 2024-04-115 | 1116 | DIBBS |
| NAS1291-8 | 2023-10-304 | 1081 | DIBBS |
| 5310-00-677-0659 | 2022-03-74 | 1627 | DIBBS |
| NAS12918 | 2021-06-166 | 34 | US |
| 5310-00-677-0659 | 2020-03-86 | 7253 | DIBBS |
| 5310-00-677-0659 | 2018-05-142 | 25224 | DIBBS |
| 5310-00-677-0659 | 2018-04-101 | 5292 | DIBBS |
| 5310-00-677-0659 | 2018-02-53 | 13243 | DIBBS |
| 5310-00-677-0659 | 2018-02-44 | 8782 | DIBBS |
| 5310-00-677-0659 | 2017-11-312 | 4000 | DIBBS |
| 5310-00-677-0659 | 2017-10-290 | 2284 | DIBBS |
| NAS12918 | 2017-08-233 | 1 | US |
| 5310-00-677-0659 | 2017-07-190 | 7337 | DIBBS |
| 5310-00-677-0659 | 2017-05-149 | 6420 | DIBBS |
| 5310-00-677-0659 | 2017-05-135 | 1532 | DIBBS |
| NAS12918 | 2017-02-53 | 1000 | US |
| 5310-00-677-0659 | 2017-01-22 | 3273 | DIBBS |
| 5310-00-677-0659 | 2016-10-284 | 2904 | DIBBS |
| 5310-00-677-0659 | 2015-07-194 | 4298 | DIBBS |
| 5310-00-677-0659 | 2015-04-91 | 2883 | DIBBS |
| 5310-00-677-0659 | 2014-09-253 | 5389 | US |
| NAS1291-8 | 2014-08-232 | 114 | Australia |
| NAS1291-8 | 2014-08-232 | 114 | United States |
| NAS1291-8 | 2014-08-232 | 114 | United States |
| NAS1291-8 | 2014-08-227 | 114 | Australia |
| NAS12918 | 2014-05-134 | 125 | Australia |
| NAS12918 | 2014-05-133 | 125 | Australia |
| 5310-00-677-0659 | 2013-10-281 | 634 | DIBBS |
| 5310-00-677-0659 | 2013-10-281 | 2913 | DIBBS |
| NAS12918 | 2013-09-254 | 10 | Netherlands |
| 5310-00-677-0659 | 2013-06-175 | 5164 | DIBBS |
| 5310-00-677-0659 | 2013-05-132 | 1400 | DIBBS |
| 5310-00-677-0659 | 2013-05-123 | 100 | DIBBS |
| 5310-00-677-0659 | 2013-03-83 | 100 | DIBBS |
| 5310-00-677-0659 | 2013-02-43 | 500 | US |
| 5310-00-677-0659 | 2013-02-34 | 500 | US |
| 5310-00-677-0659 | 2012-11-307 | 4718 | DIBBS |
| 5310-00-677-0659 | 2012-10-290 | 4718 | DIBBS |
| 5310-00-677-0659 | 2012-10-289 | 4718 | DIBBS |
| 5310-00-677-0659 | 2012-09-255 | 11400 | US |
| 5310-00-677-0659 | 2012-08-233 | 11404 | DIBBS |
| NAS12918 | 2012-07-193 | 2 | US |
| 5310-00-677-0659 | 2012-04-100 | 6683 | DIBBS |
| 5310-00-677-0659 | 2012-02-46 | 8360 | DIBBS |
| NAS12918 | 2012-02-38 | 16 | US |
| 5310-00-677-0659 | 2011-12-339 | 8360 | DIBBS |
| 5310-00-677-0659 | 2011-08-231 | 4914 | DIBBS |
| NAS12918 | 2011-05-124 | 96 | US |
| 5310-00-677-0659 | 2010-11-316 | 300 | United States |
| NAS12918 | 2010-10-292 | 20 | Netherlands |
| NAS12918 | 2010-10-277 | 20 | Netherlands |
| 5310-00-677-0659 | 2010-10-277 | 3708 | DIBBS |
| 5310-00-677-0659 | 2010-07-182 | 282 | DIBBS |
| 5310-00-677-0659 | 2010-04-115 | 100 | US |
| NAS12918 | 2010-03-64 | 300 | US |
| 5310-00-677-0659 | 2009-12-336 | 659 | DIBBS |
| 5310-00-677-0659 | 2008-05-142 | 4025 | DIBBS |
| NAS12918 | 2008-04-98 | 68 | US |
| NAS12918 | 2007-08-226 | 400 | Malaysia |
| NAS12918 | 2006-08-228 | 12 | Saudi Arabia |
| NAS12918 | 2006-08-228 | 12 | Saudi Arabia |
| NAS12918 | 2006-08-228 | 12 | Saudi Arabia |
Cross Reference | NSN 5310-00-677-0659
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1291-8 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-677-0659
Related Products | NSN 5310-00-677-0659
Technical Data | NSN 5310-00-677-0659
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.500 INCHES |
| THREAD QUANTITY PER INCH | 20 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A294 HEXAGON |
| WASHER OUTSIDE DIAMETER | 0.814 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.350 INCHES MINIMUM AND 0.410 INCHES MAXIMUM |
| WASHER THICKNESS | 0.040 INCHES MINIMUM |
| WIDTH ACROSS FLATS | 0.556 INCHES MINIMUM AND 0.566 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| COUNTERSINK ANGLE | ANY ACCEPTABLE NUT |
| LUBRICATION | DRY FILM LUBRICANT |
| TEMP RATING | 450.0 DEG FAHRENHEIT NOMINAL |
| SPECIFICATION/STANDARD DATA | 80205-NAS1291 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 5310-00-677-0659
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-677-0659
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
