Product Details | SLEEVE NUT
5310-00-680-7667 An internally threaded item with a cylindrical and/or square, hexagonal, octagonal, or dodecagonal outer periphery (parallel to the threaded axis) a portion(s) of which may or may not be enlarged, forming a flange(s) and/or shoulder(s). Items not having an enlarged outer portion may be threaded, a part of the full length, or tapped from both ends. Items having an enlarged outer portion (flange(s) or shoulder(s)) may be threaded the full length, threaded a part of the full length, or tapped from both ends. Items tapped from both ends shall have either right-hand threads on both ends or left-hand threads on both ends. For items conforming to any of the above and having a length overall exceeding two times the largest outside diameter or width across flats, use POST, ELECTRICAL-MECHANICAL EQUIPMENT. For items with an outside contour that is the same the full length, having a continuous thread through its entire length, and the length does not exceed two times the diameter or width across the flats use NUT (1), PLAIN (as modified). Excludes NUT (1), PLAIN, CAP. See also TURNBUCKLE BODY.
Part Alternates: SMB283499, 108, 5310-00-680-7667, 00-680-7667, 5310006807667, 006807667
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-680-7667 | 29735 ( NUT, SLEEVE ) |

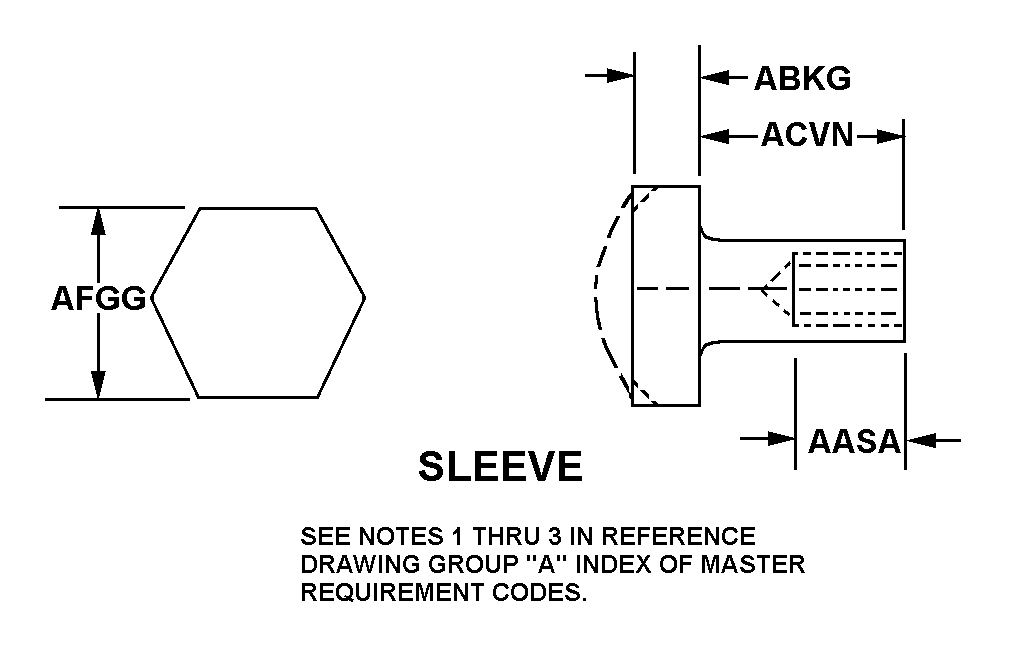

Drawings & Photos | NSN 5310-00-680-7667
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5310-00-680-7667
5310-00-680-7669, 5310-00-680-7675, 5310-00-680-7676, 5310-00-680-7678, 5310-00-680-7732
Technical Data | NSN 5310-00-680-7667
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNC |
| NOMINAL THREAD SIZE | 0.138 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | COPPER ALLOY 360 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-B-626 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | NICKEL OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A30A SLEEVE |
| THREAD LENGTH | 0.156 INCHES NOMINAL |
| FLANGE THICKNESS | 0.062 INCHES NOMINAL |
| NUT DIAMETER | 0.219 INCHES NOMINAL |
| NUT LENGTH | 0.188 INCHES NOMINAL |
| FLANGE WIDTH ACROSS FLATS | 0.375 INCHES NOMINAL |
| COUNTERSINK ANGLE | 82.0 DEGREES NOMINAL NUT |
| CROSS-SECTIONAL SHAPE | ROUND NUT HEXAGONAL FLANGE |
| TEMP RATING | NOT RATED |
