Product Details | SLOTTED WASHER
5310-00-701-5849 A washer, round in shape, and having a centrally located hole. Its two flat parallel bearing surfaces are divided or cut along the radius, leaving a cleft, fissure, or cutaway portion across the rim which extends from the outer circumference to the washer hole and is always as large as, or larger than the diameter of the hole.
Part Alternates: T43571, T4-3-57-1, 7015849, 3571, 3-57-1, 5310-00-701-5849, 00-701-5849, 5310007015849, 007015849
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 00-701-5849 | 15936 ( WASHER, SLOTTED ) |

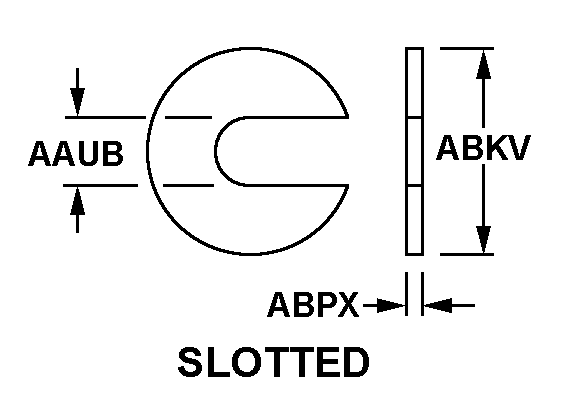

Drawings & Photos | NSN 5310-00-701-5849
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5310-00-701-5849
5310-00-701-6055, 5310-00-701-6066, 5310-00-701-6068, 5310-00-701-6253, 5310-00-701-6258
Technical Data | NSN 5310-00-701-5849
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-698 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | 10 SLOTTED |
| HOLE DIAMETER | 0.875 INCHES MINIMUM AND 0.937 INCHES MAXIMUM |
| OUTSIDE DIAMETER | 1.719 INCHES MINIMUM AND 1.781 INCHES MAXIMUM |
| MATERIAL THICKNESS | 0.157 INCHES MINIMUM AND 0.219 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5310-00-701-5849
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
