NSN 5310-00-717-2309 RW10, 00-717-2309, 007172309
Product Details | SHOULDERED AND RECESSED WASHER
5310-00-717-2309 A washer, round in shape, having a centrally located hole. One bearing surface is flat, the other surface is in the form of a raised shoulder (boss) having a flat bearing surface. Either or both of the bearing surfaces must be broken by a counterbore, countersink, or similar shaped recess. The thickness of the shoulder (boss) must not exceed 25 percent of the shoulder (boss) diameter. For items having a shoulder (boss) of greater thickness, use BEARING, SLEEVE; BUSHING, SLEEVE; or SPACER, SLEEVE. Excludes INSULATOR, WASHER and thrust type washers.
Part Alternates: RW10, 5310-00-717-2309, 00-717-2309, 5310007172309, 007172309
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-717-2309 | 15935 ( WASHER, SHOULDERED AND RECESSED ) |
Drawings & Photos | NSN 5310-00-717-2309
Demand History | NSN 5310-00-717-2309
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| RW10 | 2017-04-109 | 4 | United States |
| RW10 | 2017-01-19 | 4 | United States |
Cross Reference | NSN 5310-00-717-2309
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| RW10 | 79934 | THE TIRE & RIM ASSOCIATION INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-717-2309
Related Products | NSN 5310-00-717-2309
Technical Data | NSN 5310-00-717-2309
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |

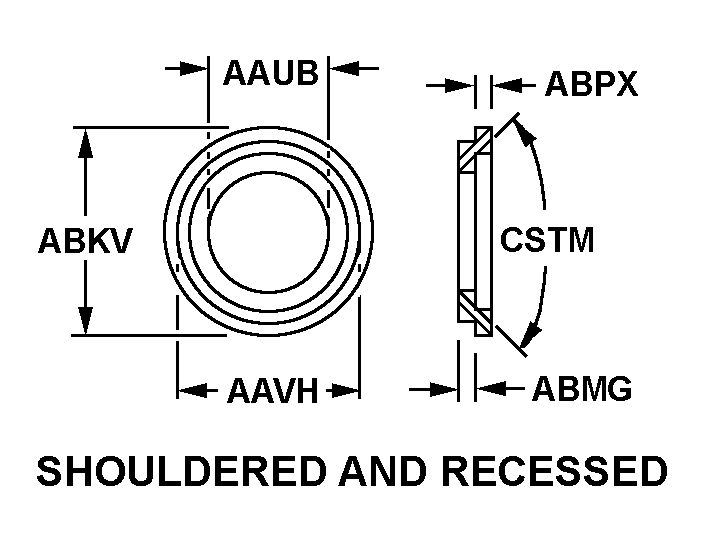

| STYLE DESIGNATOR | 18 SHOULDERED AND RECESSED |
| HOLE DIAMETER | 0.418 INCHES NOMINAL |
| SHOULDER DIAMETER | 0.656 INCHES NOMINAL |
| OUTSIDE DIAMETER | 0.908 INCHES NOMINAL |
| SHOULDER HEIGHT | 0.033 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.062 INCHES NOMINAL |
| RECESS ANGLE | 90.0 DEGREES NOMINAL |
| MANUFACTURERS CODE | 79934 |
| DESIGN CONTROL REFERENCE | RW10 |
Restrictions/Controls & Freight Information | NSN 5310-00-717-2309
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194160 | WASHER OR GASKETS, IRON OR STEEL, |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
