NSN 5310-00-734-5550 AN3166R, AN316-6R, FD9001260
Product Details | HEXAGON PLAIN NUT
5310-00-734-5550 A nut, flat on top and bottom having 6 flat sides. For items which have internal tapered or straight (parallel) pipe threads, specific electrical conduit size designation, and which when installed, provide a method of tightening to lock the connection, see LOCKNUT, ELECTRICAL CONDUIT. See also LOCKNUT, TUBE FITTING. For items having a thickness (or height) exceeding two times the width across the flats, use POST, ELECTRICAL-MECHANICAL EQUIPMENT. (When height or thickness and/or width across the flats is designated as a tolerance dimension, the maximum dimension will be used to determine compliance.
Part Alternates: AN3166R, AN316-6R, FD9001260, FD9001-260 , 404 227, 404 330, 404227, 404330, 44595, 80332700, 803327-00, 5310-00-734-5550, 00-734-5550, 5310007345550, 007345550
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-734-5550 | 01857 ( NUT, PLAIN, HEXAGON ) |

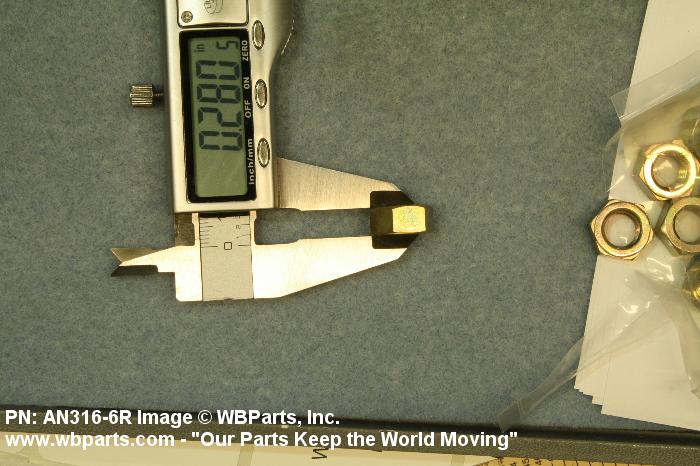

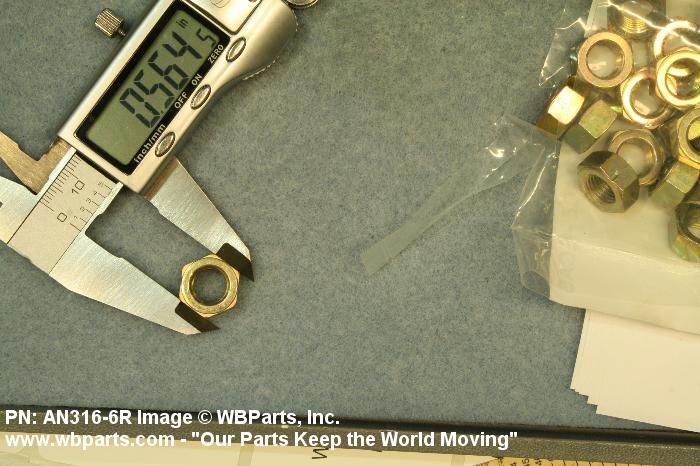

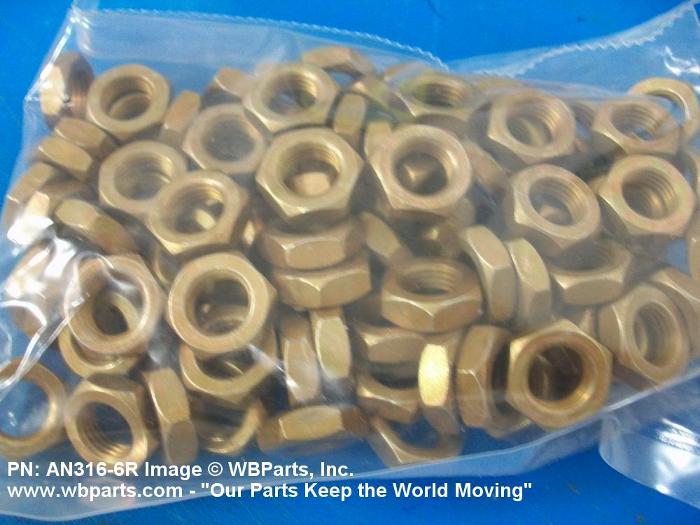

Drawings & Photos | NSN 5310-00-734-5550
Demand History | NSN 5310-00-734-5550
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN3166R | 2025-06-161 | 16 | United States |
| AN3166R | 2025-03-63 | 20 | Japan |
| AN3166R | 2025-01-31 | 110 | Japan |
| AN3166R | 2024-10-304 | 4 | US |
| AN3166R | 2023-09-254 | 30 | US |
| AN3166R | 2023-07-203 | 12 | US |
| AN3166R | 2023-02-39 | 20 | Taiwan |
| AN3166R | 2020-01-06 | 1 | AR |
| AN3166R | 2018-05-151 | 1 | Singapore |
| 5310-00-734-5550 | 2018-05-130 | 1 | DIBBS-RFPs |
| AN3166R | 2017-12-335 | 10 | Thailand |
| AN3166R | 2017-03-90 | 20 | United States |
| AN3166R | 2016-11-307 | 50 | Thailand |
| 5310-00-734-5550 | 2016-09-273 | 2458 | DIBBS |
| 5310-00-734-5550 | 2016-09-272 | 2458 | DIBBS |
| 5310-00-734-5550 | 2016-08-229 | 1790 | DIBBS |
| AN3166R | 2016-06-157 | 1 | Australia |
| AN3166R | 2015-07-188 | 2 | Australia |
| AN3166R | 2015-06-168 | 6 | US |
| AN3166R | 2015-06-168 | 108 | US |
| AN3166R | 2014-05-150 | 20 | us |
| AN3166R | 2014-03-76 | 12 | US |
| AN3166R | 2014-01-22 | 5 | United States |
| AN3166R | 2013-04-92 | 28 | United States |
| AN316-6R | 2012-11-310 | 88 | |
| AN3166R | 2012-07-212 | 40 | US |
| AN316-6R | 2012-07-209 | 40 | US |
| 5310-00-734-5550 | 2012-07-184 | 50 | United States |
| AN3166R | 2012-02-44 | 2 | United States |
| AN3166R | 2011-03-84 | 50 | United States |
| 5310-00-734-5550 | 2011-03-67 | 16 | United States |
| 5310-00-734-5550 | 2010-10-284 | 100 | US |
| 5310-00-734-5550 | 2009-12-342 | 6000 | US |
| AN3166R | 2009-11-328 | 300 | Italy |
| 5310-00-734-5550 | 2009-11-317 | 12 | United States |
| 5310-00-734-5550 | 2009-10-304 | 10 | US |
Cross Reference | NSN 5310-00-734-5550
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 404 227 | 77294 | PIPER AIRCRAFT INC. |
| 404 330 | 77294 | PIPER AIRCRAFT INC. |
| 44595 | 1PQF4 | L-3 COMMUNICATIONS CORPORATION DBA LINK SIMULATION & TRAINING |
| 44595 | 36378 | RAYTHEON TECHNICAL SERVICES COMPANY |
| 803327-00 | 32345 | DEFENSE REDUCTION AGENCY |
| AN316-6R | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| AN316-6R | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| FD9001-260 | 98313 | DAVIS AIRCRAFT PRODUCTS CO., INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-734-5550
Related Products | NSN 5310-00-734-5550
Technical Data | NSN 5310-00-734-5550
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.375 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OR ZINC AND CHROMATE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A12 HEXAGON |
| NUT HEIGHT | 0.188 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.562 INCHES NOMINAL |
| BEARING SURFACE TYPE | CHAMFERED |
| TEMP RATING | NOT RATED |
Restrictions/Controls & Freight Information | NSN 5310-00-734-5550
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-734-5550
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
