NSN 5310-00-758-2371 RPN1024SCL, RPN10-24SCL , 7341626
Product Details | SPLINE SELF-LOCKING NUT
5310-00-758-2371 A nut having an externally splined sleeve, which holds it in position when forced into a hole of slightly smaller diameter. An integral feature is incorporated for locking.
Part Alternates: RPN1024SCL, RPN10-24SCL , 7341626, 5310-00-758-2371, 00-758-2371, 5310007582371 , 007582371
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1960 | 00-758-2371 | 15893 ( NUT, SELF-LOCKING, SPLINE ) |

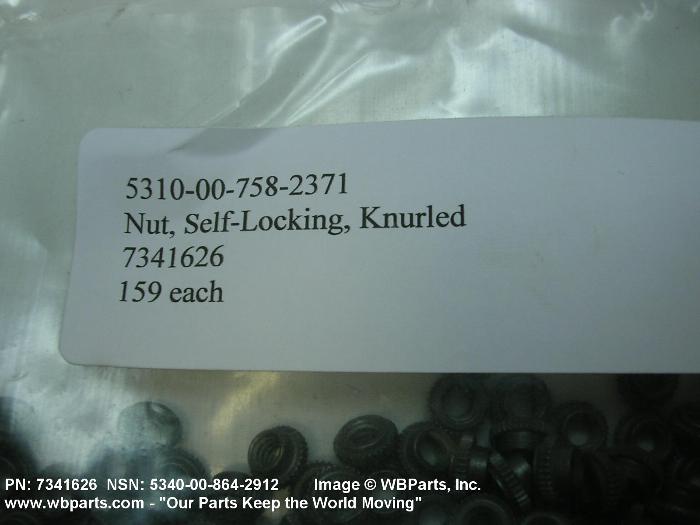

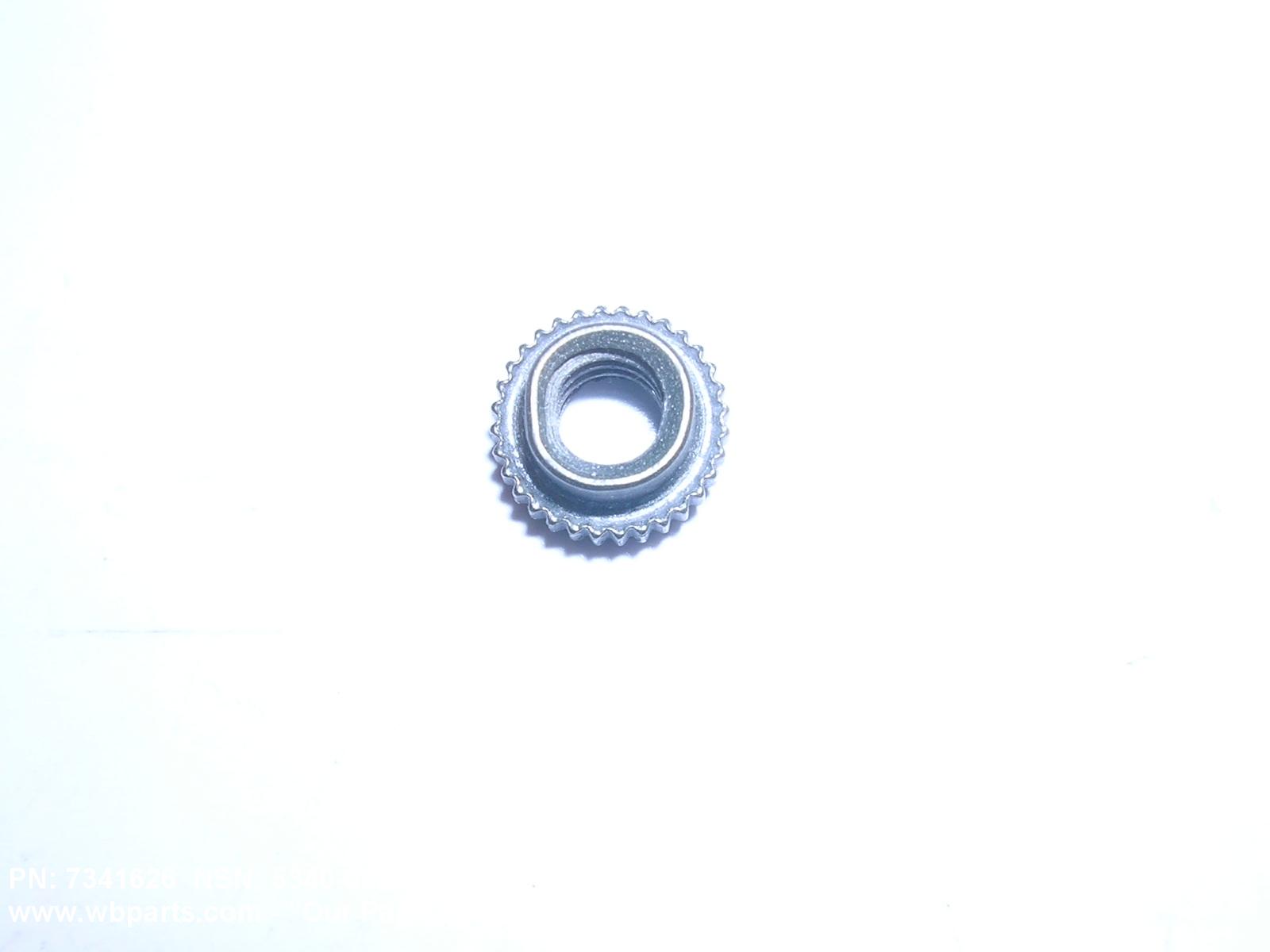

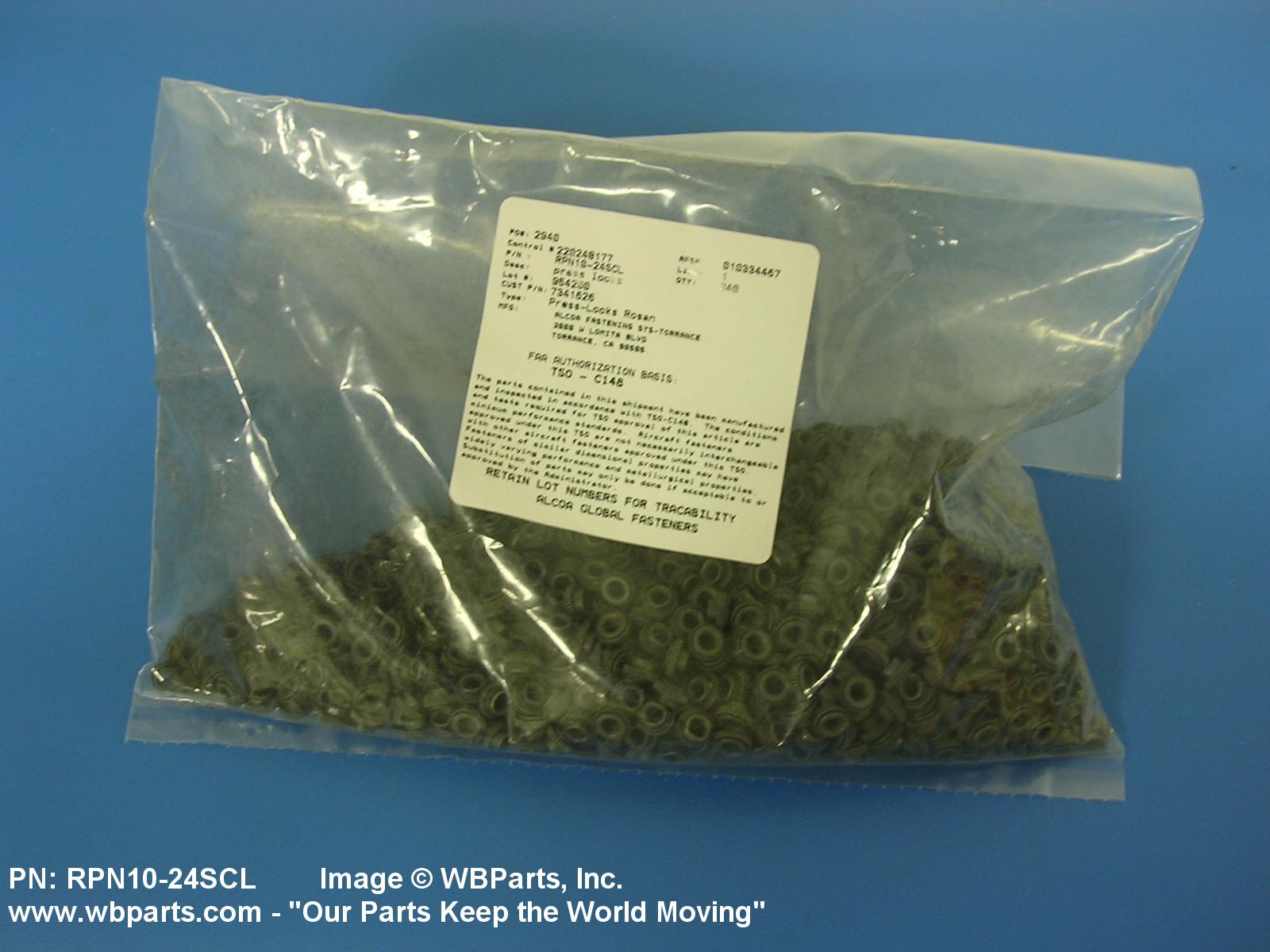

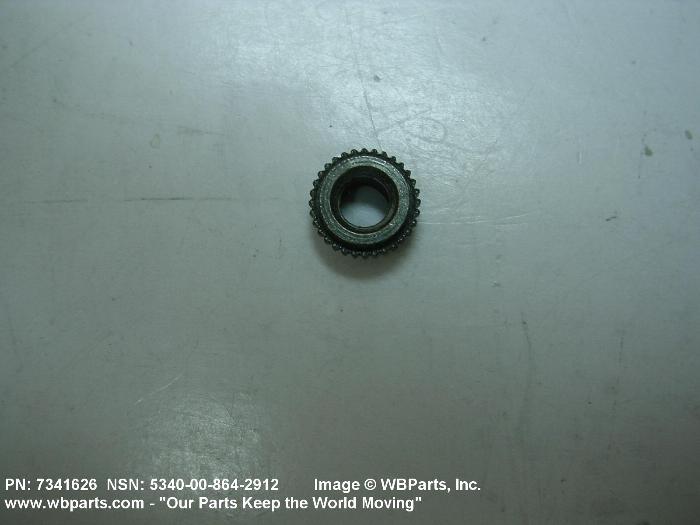

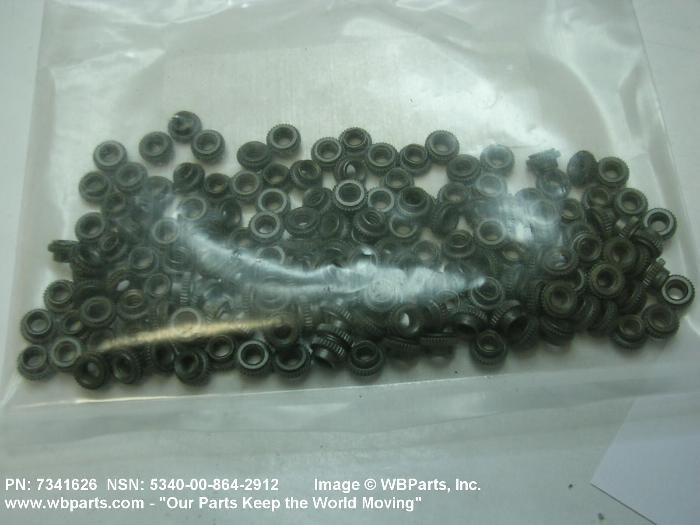

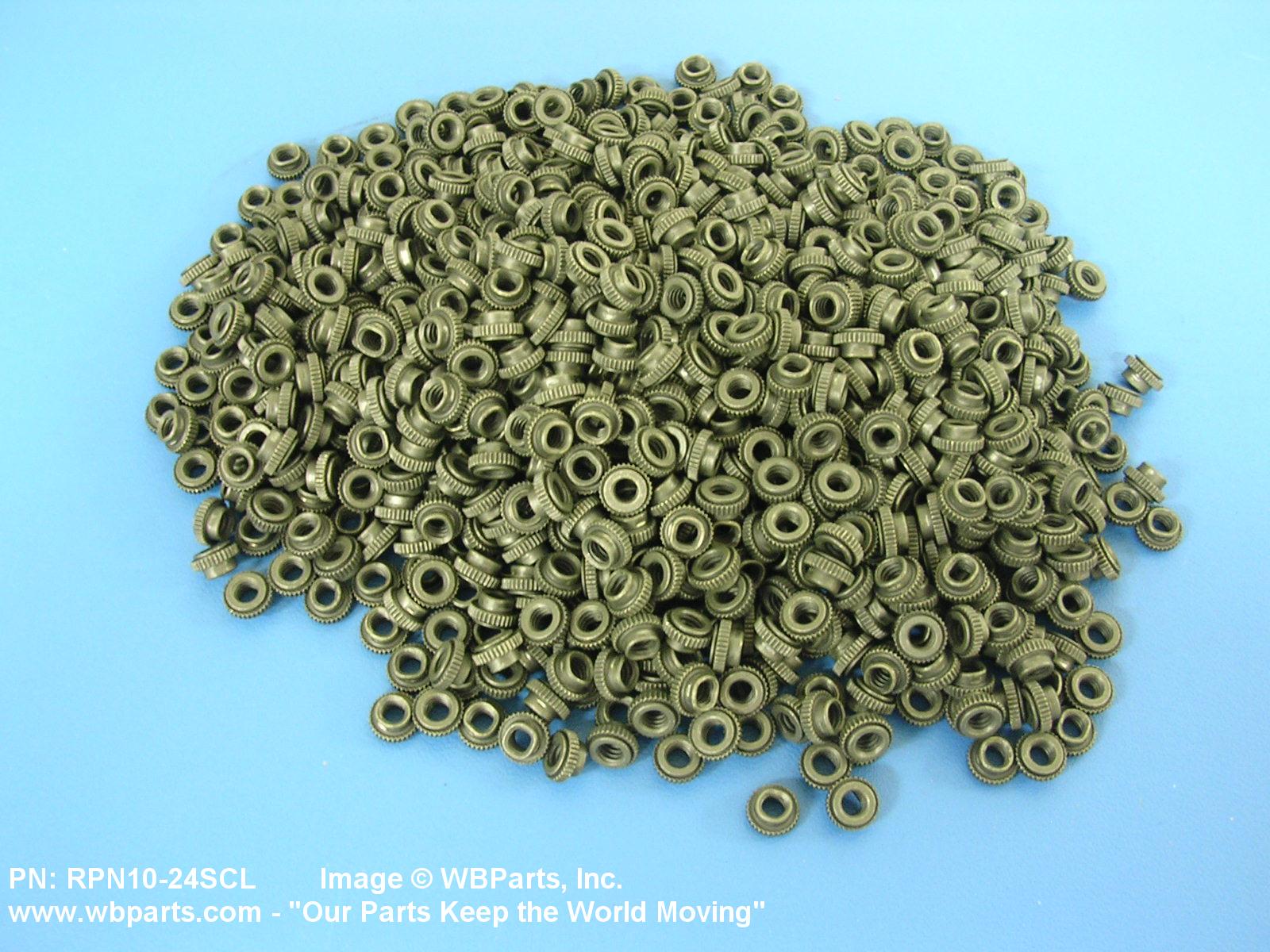

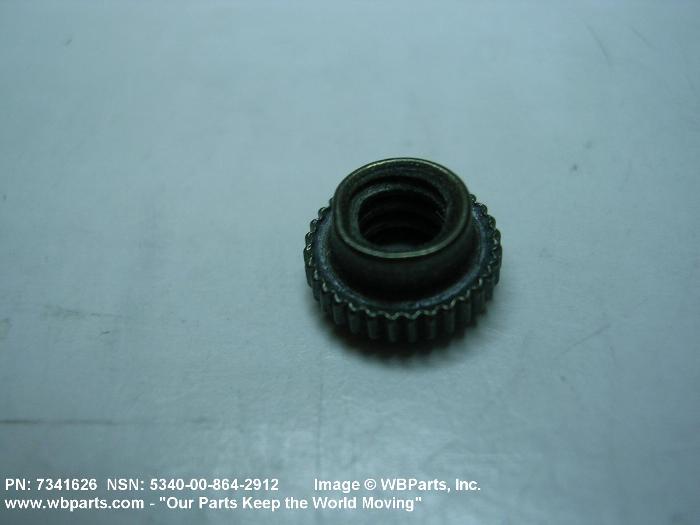

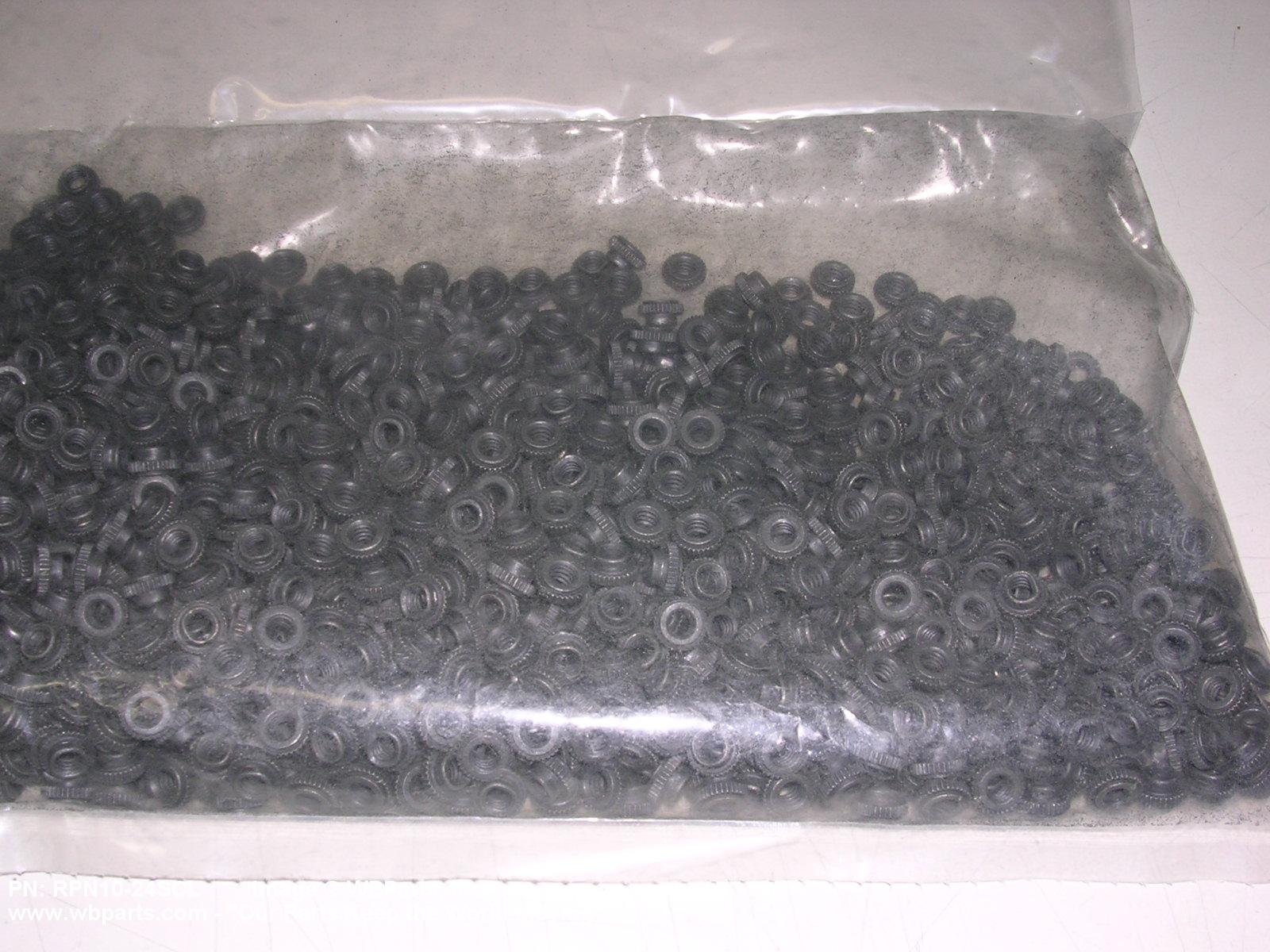

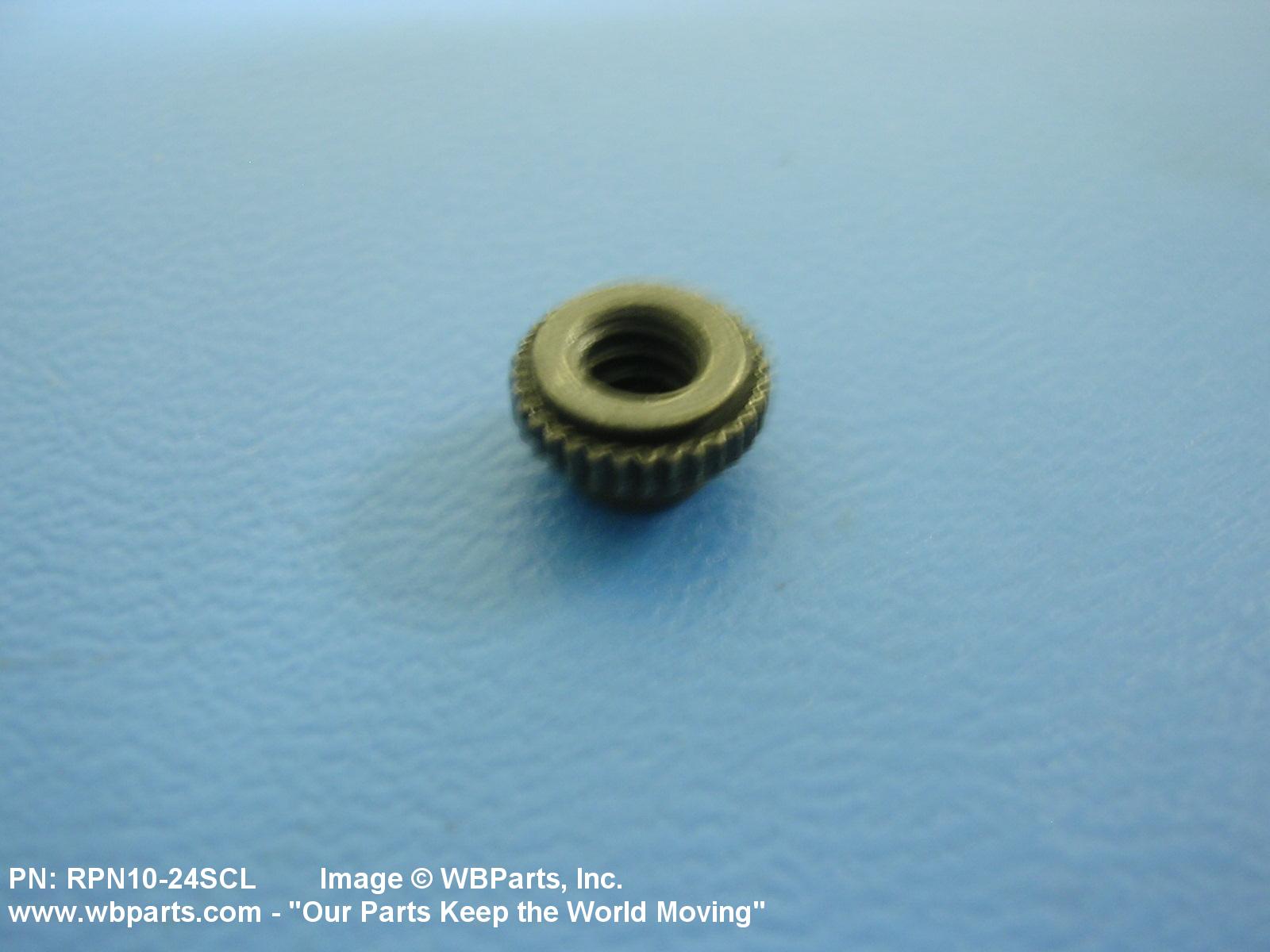

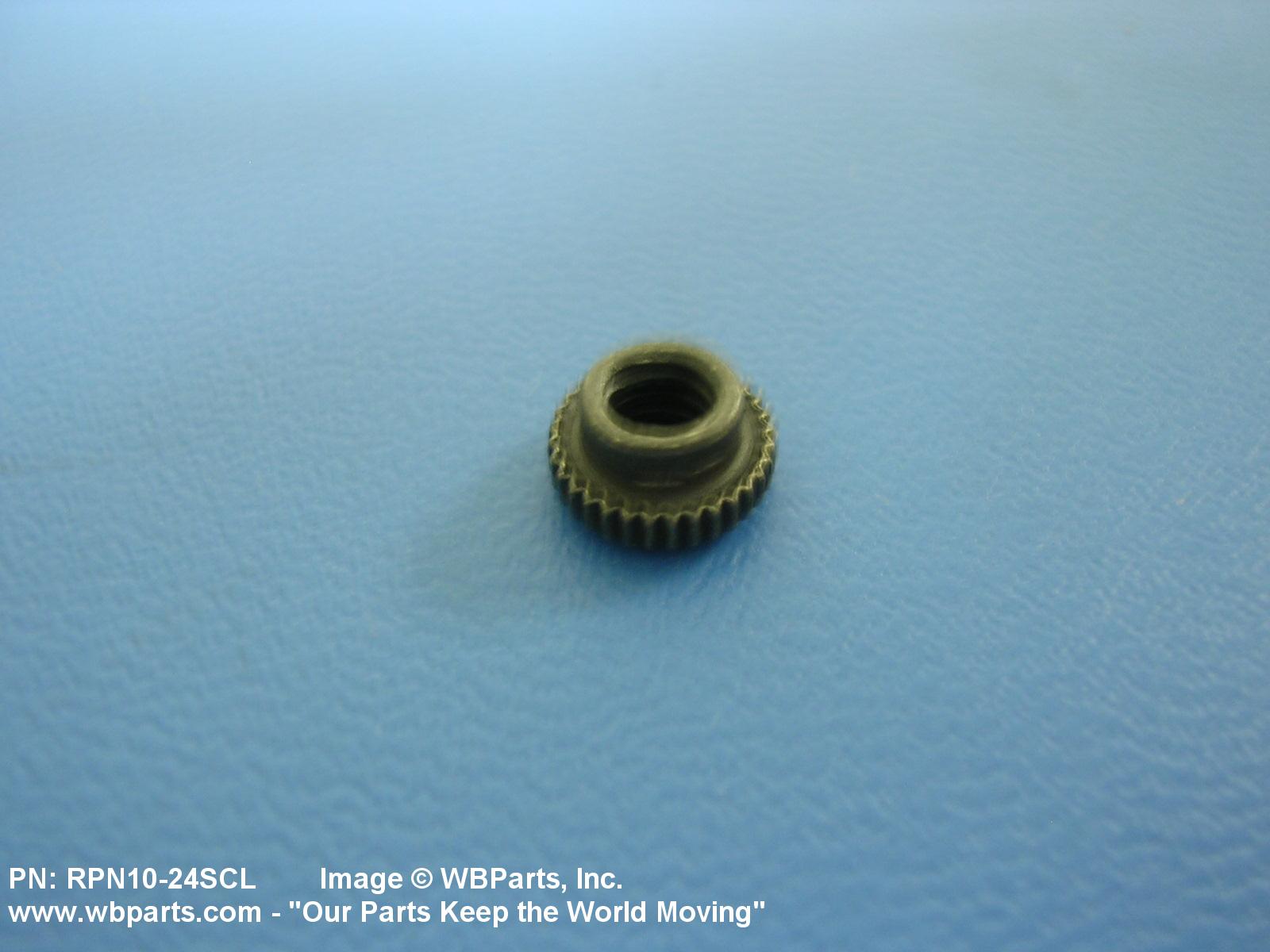

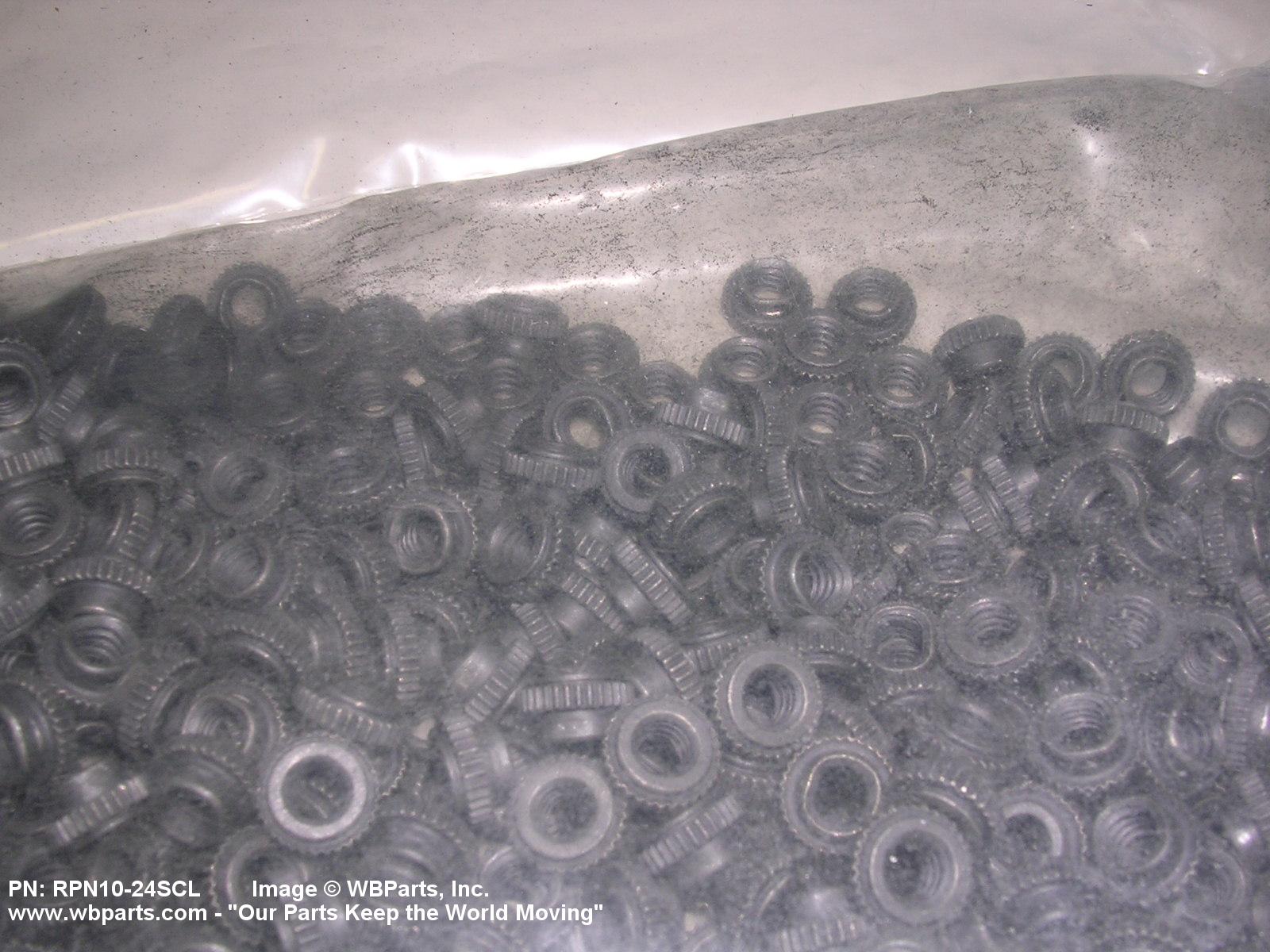

Drawings & Photos | NSN 5310-00-758-2371
Demand History | NSN 5310-00-758-2371
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 7341626 | 2024-05-143 | 2 | United States |
| RPN1024SCL | 2024-04-108 | 31 | United States |
| 7341626 | 2022-04-114 | 333 | DIBBS |
| RPN10-24SCL | 2022-04-114 | 333 | DIBBS |
| 5310-00-758-2371 | 2021-02-40 | 1020 | US |
| 5310-00-758-2371 | 2020-04-108 | 544 | United States |
| 7341626 | 2019-12-337 | 349 | DIBBS |
| RPN10-24SCL | 2019-12-337 | 349 | DIBBS |
| 7341626 | 2019-11-321 | 349 | DIBBS |
| RPN10-24SCL | 2019-11-321 | 349 | DIBBS |
| 7341626 | 2019-09-268 | 400 | us |
| 7341626 | 2019-07-206 | 176 | DIBBS |
| RPN10-24SCL | 2019-07-206 | 176 | DIBBS |
| 7341626 | 2019-07-198 | 176 | DIBBS |
| RPN10-24SCL | 2019-07-198 | 176 | DIBBS |
| 5310-00-758-2371 | 2019-03-77 | 110 | United States |
| 5310-00-758-2371 | 2019-02-59 | 33 | Korea |
| 5310-00-758-2371 | 2017-12-342 | 125 | US |
| 5310-00-758-2371 | 2017-11-318 | 125 | United States |
| 5310-00-758-2371 | 2013-10-289 | 200 | DIBBS |
| 5310-00-758-2371 | 2012-03-76 | 416 | DIBBS |
| RPN1024SCL | 2010-09-251 | 165 | United States |
| 7341626 | 2010-05-133 | 12 | United Arab Emirates |
| RPN1024SCL | 2009-07-188 | 3300 | us |
| 5310-00-758-2371 | 2009-07-182 | 3280 | US |
| 7341626 | 2009-06-174 | 3256 | US |
| 5310-00-758-2371 | 2009-06-153 | 3200 | US |
| 7341626 | 2009-05-149 | 3200 | US |
| 5310-00-758-2371 | 2008-08-220 | 200 | United States |
| 7341626 | 2008-05-122 | 394 | United States |
| 5310-00-758-2371 | 2008-04-112 | 1000 | US |
| 5310-00-758-2371 | 2008-04-107 | 250 | US |
| 7341626 | 2008-04-105 | 160 | United States |
| 7341626 | 2008-04-105 | 940 | United States |
| 7341626 | 2008-01-25 | 25 | US |
| 7341626 | 2008-01-24 | 1100 | United States |
| 5310-00-758-2371 | 2008-01-01 | 69 | South Korea |
Cross Reference | NSN 5310-00-758-2371
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5310007582371 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 7341626 | 06725 | SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES |
| 7341626 | 06950 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| 7341626 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| 7341626 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 7341626 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| 7341626 | 60516 | WEST COAST AEROSPACE INC |
| 7341626 | 73197 | HI-SHEAR CORPORATION |
| 7341626 | L4528 | LISI AEROSPACE CANADA CORP |
| RPN10-24SCL | 83324 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-758-2371
Related Products | NSN 5310-00-758-2371
Technical Data | NSN 5310-00-758-2371
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNC |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 20 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A52 SPLINE |
| PILOT DIAMETER | 0.345 INCHES MINIMUM AND 0.351 INCHES MAXIMUM |
| PILOT LENGTH | 0.085 INCHES MINIMUM AND 0.091 INCHES MAXIMUM |
| NUT DIAMETER | 0.345 INCHES MINIMUM AND 0.355 INCHES MAXIMUM |
| NUT HEIGHT | 0.175 INCHES MINIMUM AND 0.205 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| TEMP RATING | NOT RATED |
Restrictions/Controls & Freight Information | NSN 5310-00-758-2371
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-758-2371
Navy
Marines| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 2 | Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Echelon Identification Code | K | Reserved |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
