NSN 5310-00-792-0963 BACN10NW1, HL71041, HL7104-1
Product Details | SHEET SPRING NUT
5310-00-792-0963 A nut formed from sheet spring material, usually steel, into varying flat, concave, bent or curved designs, having apertures with suitable boss or bosses usually on the upper side capable of securely gripping a mating threaded member. Excludes NUT (1), STAMPED.
Part Alternates: BACN10NW1, HL71041, HL7104-1, K1979804, K19798-04, RM52LHC61002, RM52LHC610-02, RMA481216040, RMA4812-160-40, 2302878, 246-17050-3 , 3HL71041, 3HL7104-1, 5310-00-792-0963, 00-792-0963, 5310007920963, 007920963, 246170503
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1960 | 00-792-0963 | 01865 ( NUT, SHEET SPRING ) |

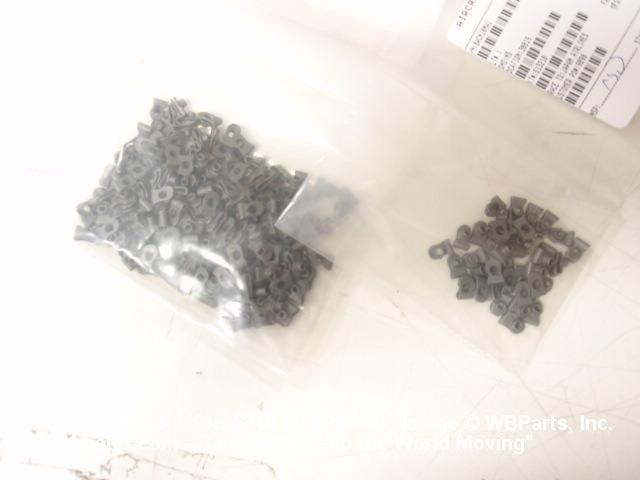

Drawings & Photos | NSN 5310-00-792-0963
Demand History | NSN 5310-00-792-0963
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3HL7104-1 | 2024-06-177 | 157 | DIBBS |
| BACN10NW1 | 2024-06-177 | 157 | DIBBS |
| K19798-04 | 2024-06-177 | 157 | DIBBS |
| BACN10NW1 | 2023-11-319 | 8 | US |
| 5310-00-792-0963 | 2023-11-306 | 8 | US |
| 5310-00-792-0963 | 2022-10-286 | 500 | us |
| 5310-00-792-0963 | 2022-09-264 | 200 | us |
| 5310-00-792-0963 | 2017-11-325 | 170 | DIBBS |
| BACN10NW1 | 2012-06-164 | 25 | United States |
| BACN10NW1 | 2011-04-103 | 20 | United States |
| BACN10NW1 | 2010-11-320 | 250 | United States |
| BACN10NW1 | 2008-07-184 | 100 | US |
| BACN10NW1 | 2008-06-154 | 100 | US |
Cross Reference | NSN 5310-00-792-0963
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2302878 | 001JK | EMBRAER S/A |
| 2302878 | S4956 | EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA |
| 3HL7104-1 | 82823 | MANSFIELD BRASS & ALUMINUM CORPORATION |
| BACN10NW1 | 81205 | THE BOEING COMPANY DBA BOEING |
| HL7104-1 | 78062 | DOVER ENGINEERED SYSTEMS, INC. DBA SARGENT CONTROLS & AEROSPACE |
| K19798-04 | 15653 | ALCOA GLOBAL FASTENERS, INC. |
| K19798-04 | F7652 | B E AEROSPACE CONSUMABLESMANAGEMENT DEUX SAS |
| K19798-04 | R1120 | SATAIR A/S |
| RM52LHC610-02 | 019L2 | MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA |
| RM52LHC610-02 | 72962 | HARVARD INDUSTRIES INC |
| RMA4812-160-40 | 019L2 | MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA |
| RMA4812-160-40 | 72962 | HARVARD INDUSTRIES INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-00-792-0963
Technical Data | NSN 5310-00-792-0963
| Characteristic | Specifications |
|---|---|
| MATING MEMBER DIAMETER ACCOMMODATED | 0.112 INCHES NOMINAL |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| MATERIAL THICKNESS | 0.020 INCHES NOMINAL |
| NUT LENGTH | 0.267 INCHES NOMINAL |
| NUT WIDTH | 0.225 INCHES NOMINAL |
| MANUFACTURERS CODE | 15653 |
| DESIGN CONTROL REFERENCE | K19798-04 |
Restrictions/Controls & Freight Information | NSN 5310-00-792-0963
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013120 | ALUMINUM ARTICLE NOI SUB 6 |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-792-0963
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
