Product Details | PLATE SELF-LOCKING NUT
5310-00-803-2552 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: NAS1033A3, T8S1032S, 10164240, 136R02, 136RC2, 5310-00-803-2552, 00-803-2552, 5310008032552, 008032552
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-803-2552 | 05280 ( NUT, SELF-LOCKING, PLATE ) |

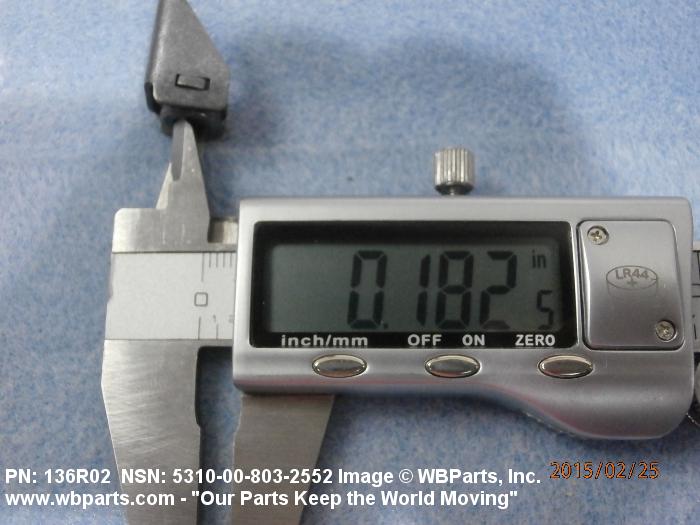

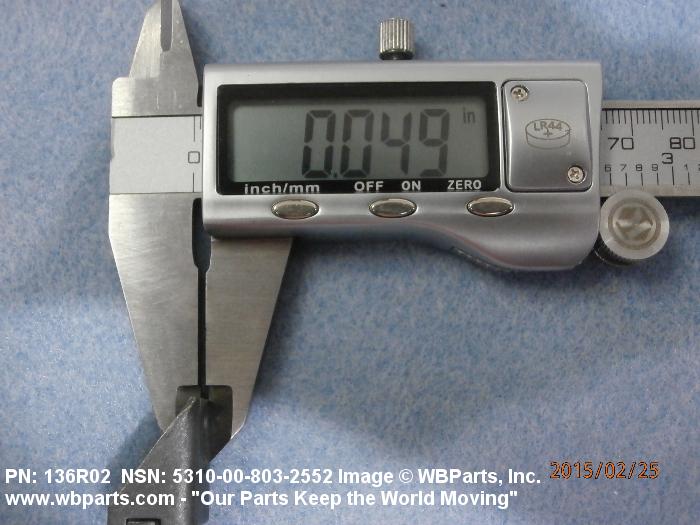

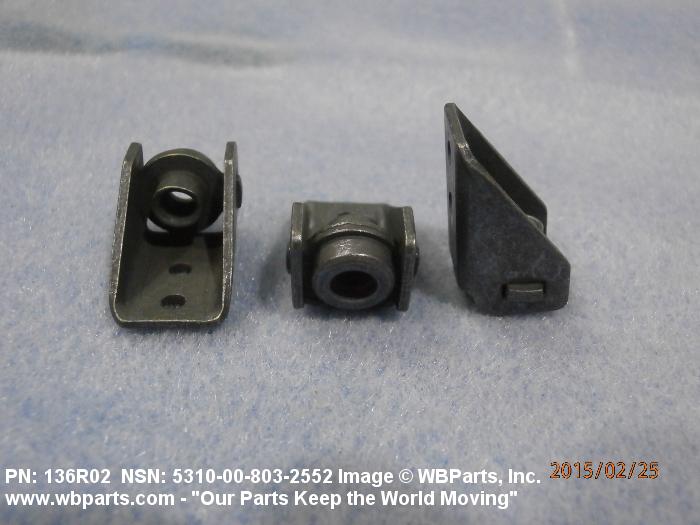

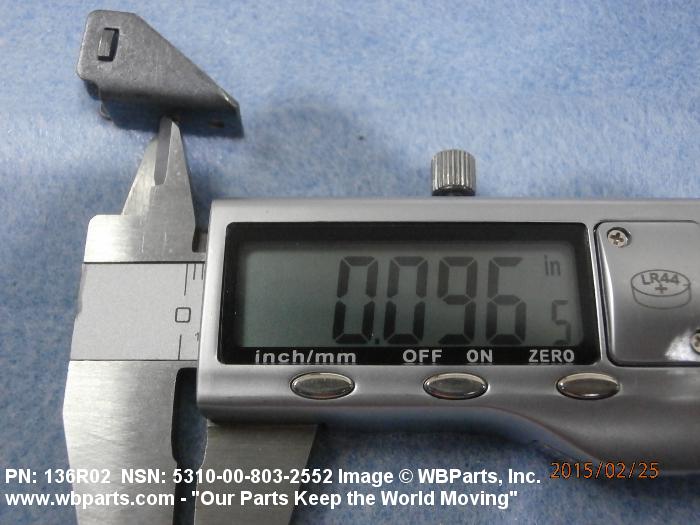

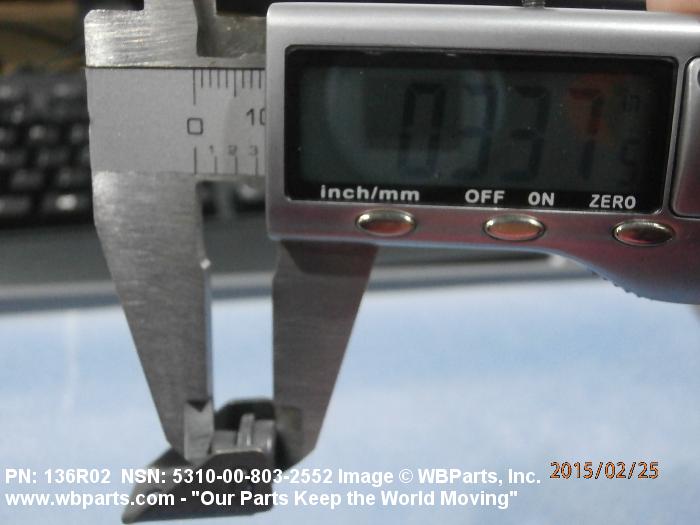

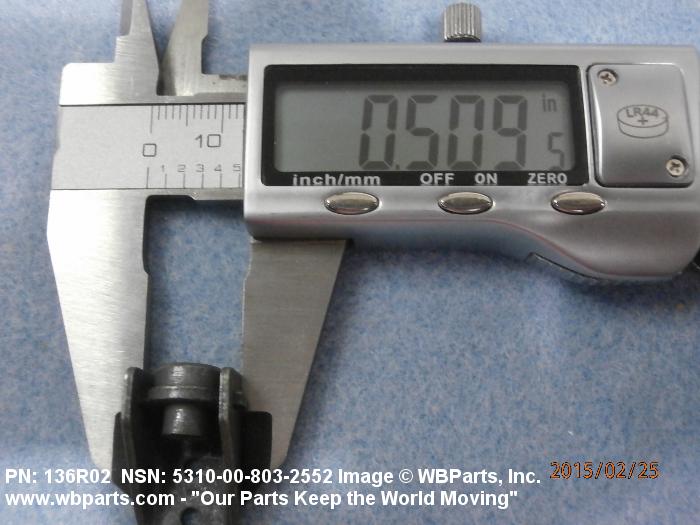

Drawings & Photos | NSN 5310-00-803-2552
Demand History | NSN 5310-00-803-2552
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-803-2552 | 2022-09-20 | 2500 | TR |
| NAS1033A3 | 2022-09-06 | 1 | United States |
| NAS1033A3 | 2022-08-31 | 1 | United States |
| NAS1033A3 | 2022-07-11 | 240 | South Africa |
| 5310-00-803-2552 | 2020-11-11 | 100 | US |
| NAS1033A3 | 2015-11-10 | 50 | US |
| 5310-00-803-2552 | 2013-07-09 | 200 | MANUAL |
| NAS1033A3 | 2012-12-12 | 6 | US |
| 136R02 | 2011-06-10 | 10 | United States |
| 136R02 | 2011-05-26 | 10 | United States |
Cross Reference | NSN 5310-00-803-2552
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10164240 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 136R02 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| 136RC2 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| NAS1033A3 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| T8S1032S | 11815 | SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5310-00-803-2552
Related Products | NSN 5310-00-803-2552
5310-00-803-2596, 5310-00-803-2598, 5310-00-803-2599, 5310-00-803-2691, 5310-00-803-2715
Technical Data | NSN 5310-00-803-2552
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE 2,CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |

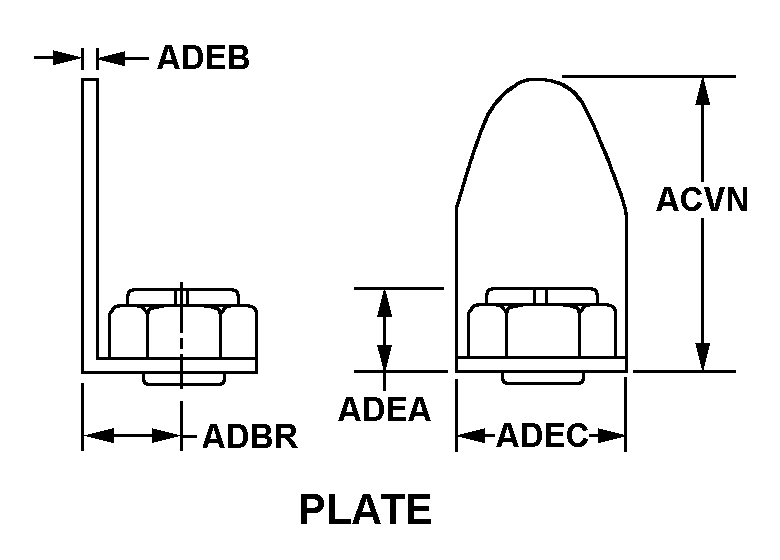

| NUT STYLE | A122 PLATE |
| NUT LENGTH | 0.906 INCHES MAXIMUM |
| DISTANCE FROM BASE TO CENTER OF APERTURE | 0.266 INCHES MINIMUM AND 0.296 INCHES MAXIMUM |
| NUT HEIGHT | 0.343 INCHES MAXIMUM |
| PLATE THICKNESS | 0.075 INCHES MAXIMUM |
| PLATE WIDTH | 0.619 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| NUT COUNTERBORE DEPTH | 0.055 INCHES MINIMUM AND 0.085 INCHES MAXIMUM NUT |
| COUNTERBORE DIAMETER | 0.193 INCHES MINIMUM AND 0.208 INCHES MAXIMUM NUT |
| LUBRICATION | DRY FILM LUBRICANT |
| NUT MOUNTING PROVISION | STRAIGHT HOLES |

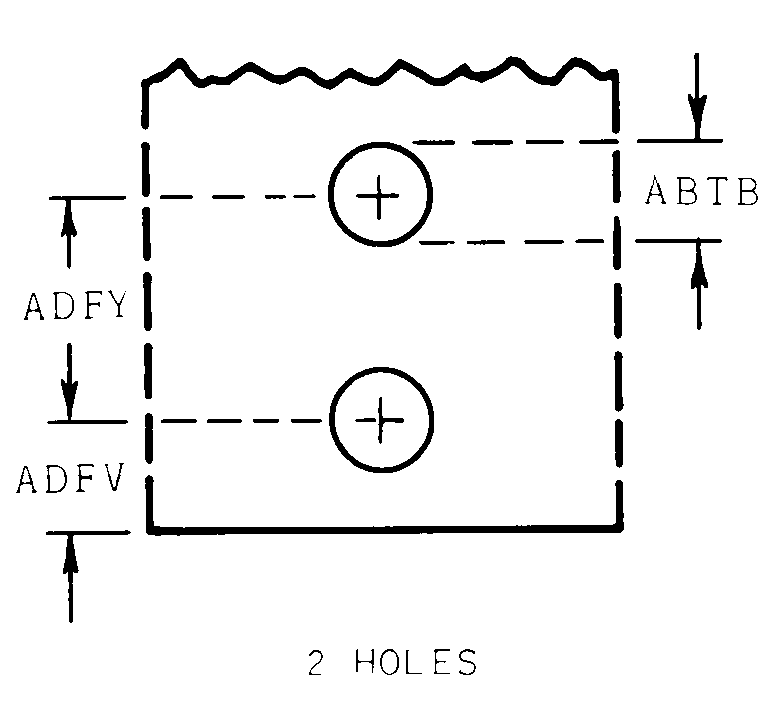

| MOUNTING HOLE ARRANGEMENT STYLE | F3 2 HOLES |
| MOUNTING HOLE DIAMETER | 0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM |
| DISTANCE FROM MOUNTING HOLE CENTER TO BASE | 0.469 INCHES MINIMUM AND 0.499 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 0.248 INCHES MINIMUM AND 0.252 INCHES MAXIMUM |
| TEMP RATING | 450.0 DEG FAHRENHEIT NOMINAL |
| FEATURES PROVIDED | FLOATING NUT |
| SPECIFICATION/STANDARD DATA | 80205-NAS1033 GOVERNMENT STANDARD |
