NSN 5310-00-833-2239 NAS12916, NAS1291-6, 00-833-2239
Product Details | HEXAGON EXTENDED WASHER SELF-LOCKING NUT
5310-00-833-2239 A nut having 6 flat sides and an integral washer which extends beyond the flats or periphery. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: NAS12916, NAS1291-6, 5310-00-833-2239, 00-833-2239, 5310008332239, 008332239
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-833-2239 | 29730 ( NUT, SELF-LOCKING, EXTENDED WASHER, HEXAGON ) |

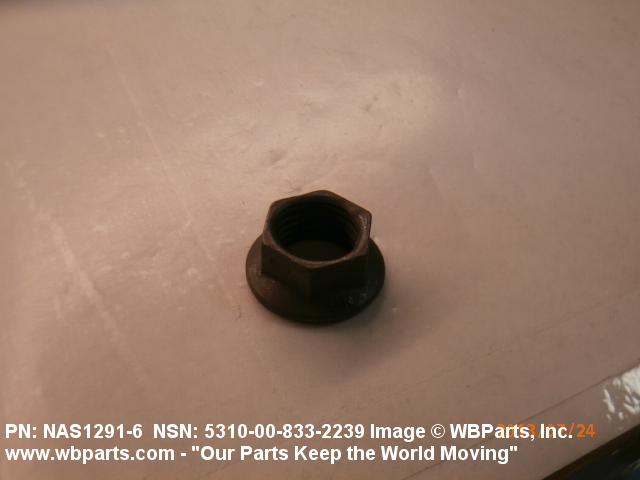

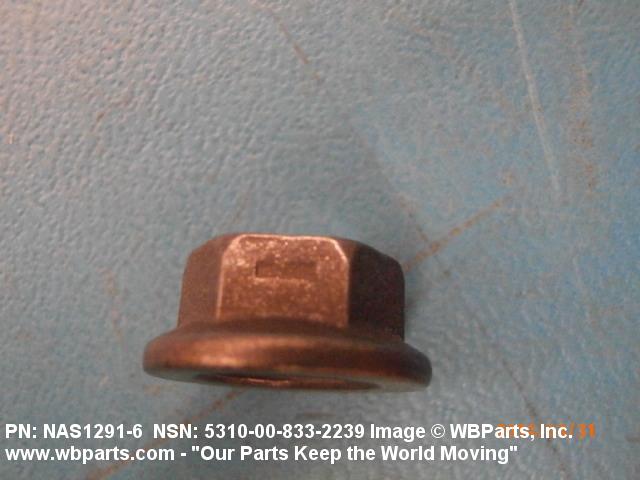

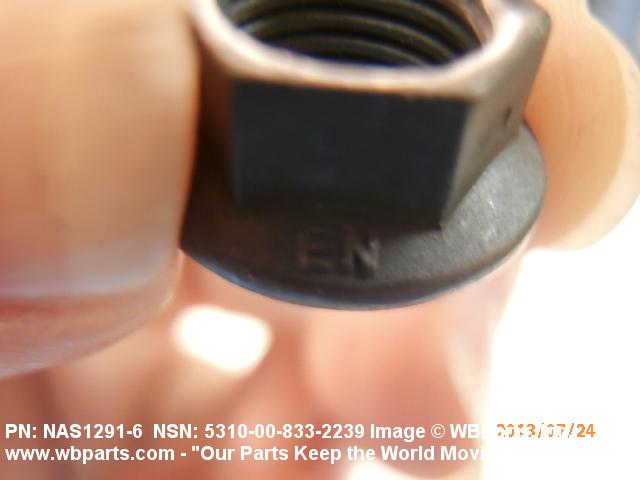

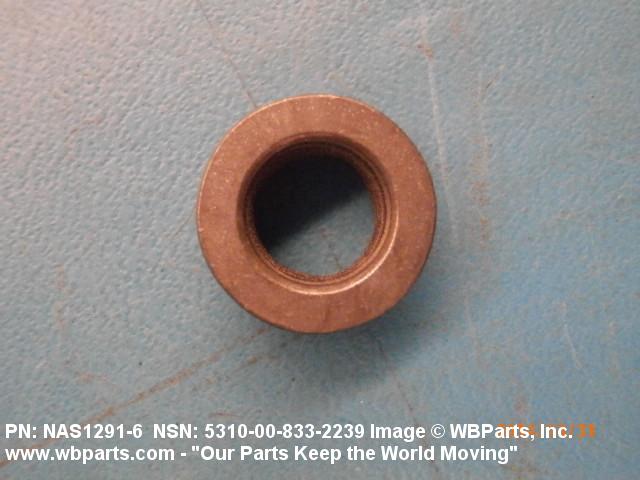

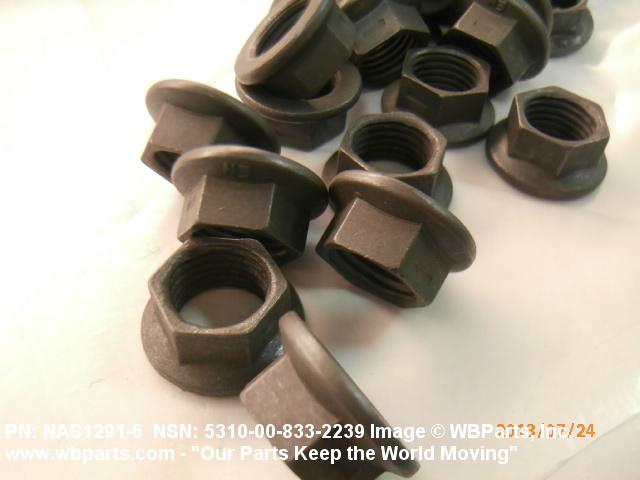

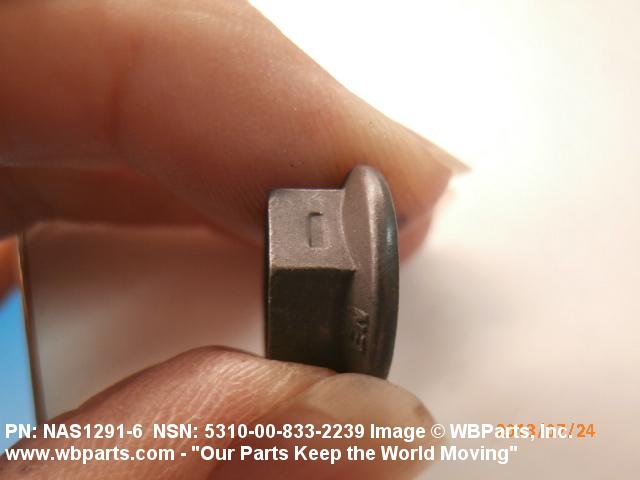

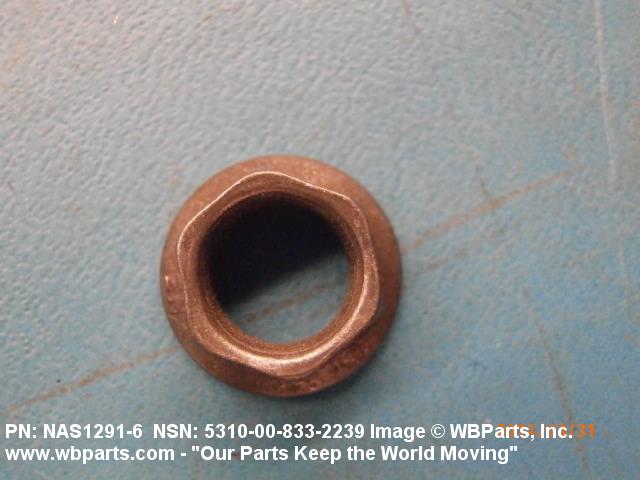

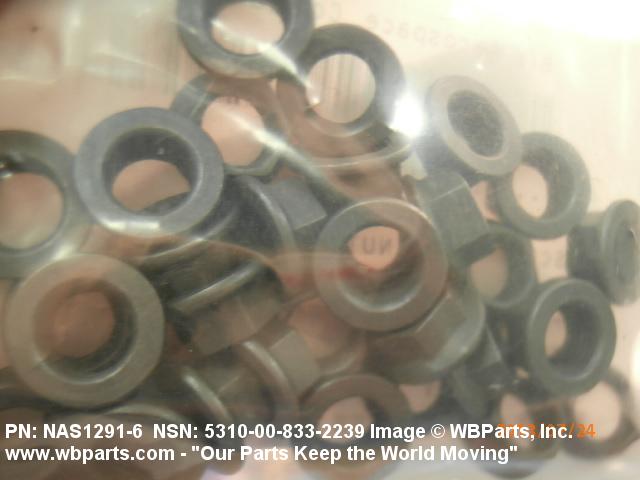

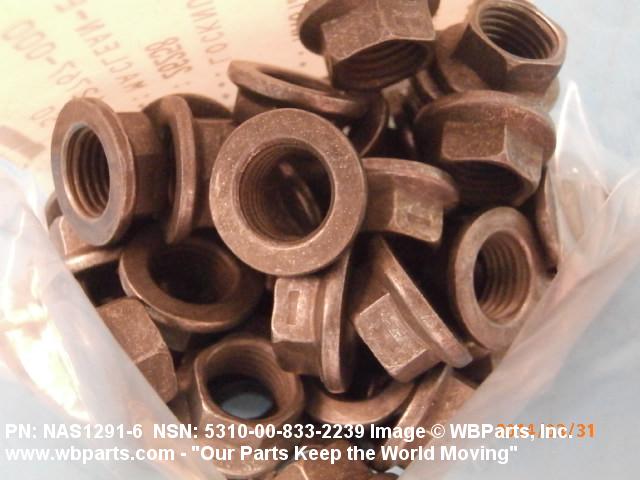

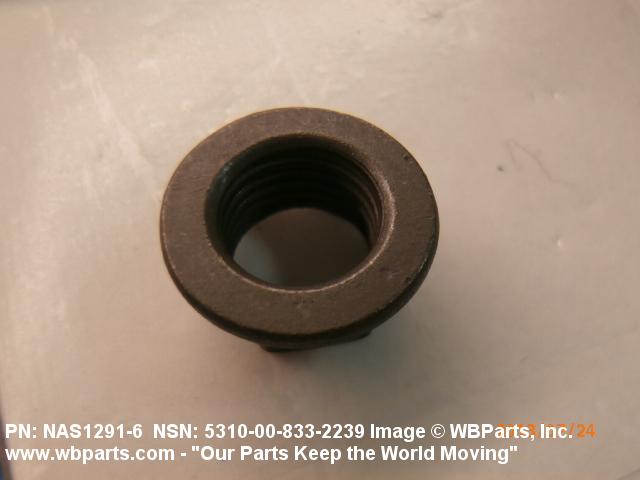

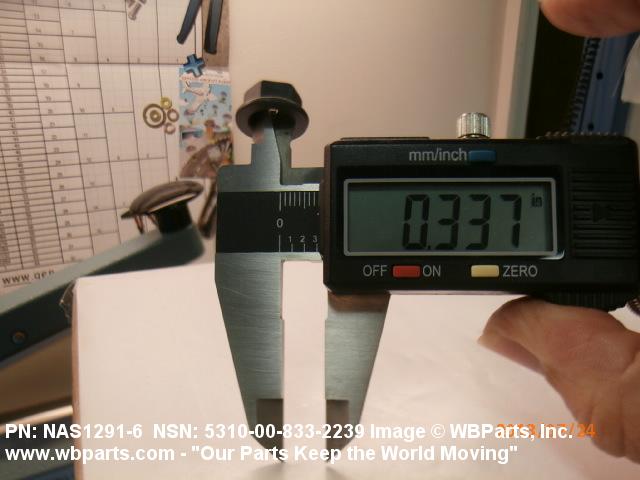

Drawings & Photos | NSN 5310-00-833-2239
Demand History | NSN 5310-00-833-2239
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-833-2239 | 2018-11-322 | 2 | us |
| NAS12916 | 2017-06-179 | 25 | United States |
| NAS12916 | 2017-06-173 | 25 | United States |
| 5310-00-833-2239 | 2014-02-55 | 50 | United States |
| 5310-00-833-2239 | 2013-07-198 | 31 | United States |
| 5310-00-833-2239 | 2013-07-189 | 31 | US |
| NAS12916 | 2011-12-348 | 400 | US |
| NAS12916 | 2011-04-117 | 2 | KH |
| NAS12916 | 2009-07-182 | 100 | US |
| NAS12916 | 2006-12-341 | 210 | US |
Cross Reference | NSN 5310-00-833-2239
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1291-6 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-00-833-2239
Technical Data | NSN 5310-00-833-2239
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |

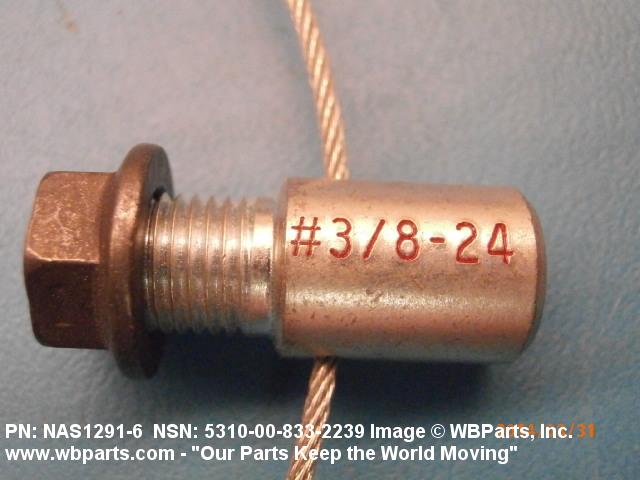

| NOMINAL THREAD SIZE | 0.375 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A294 HEXAGON |

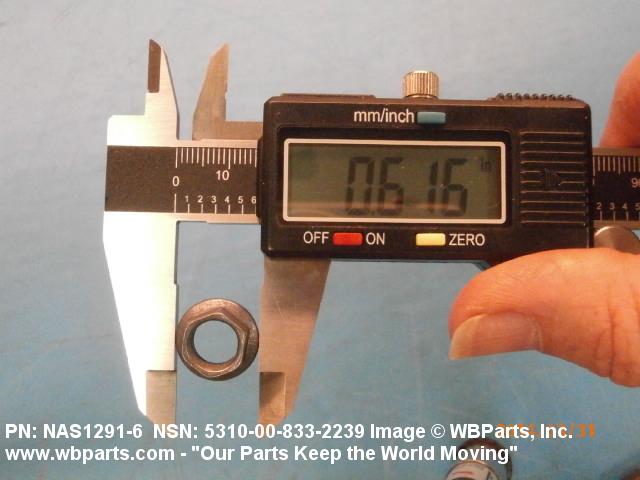

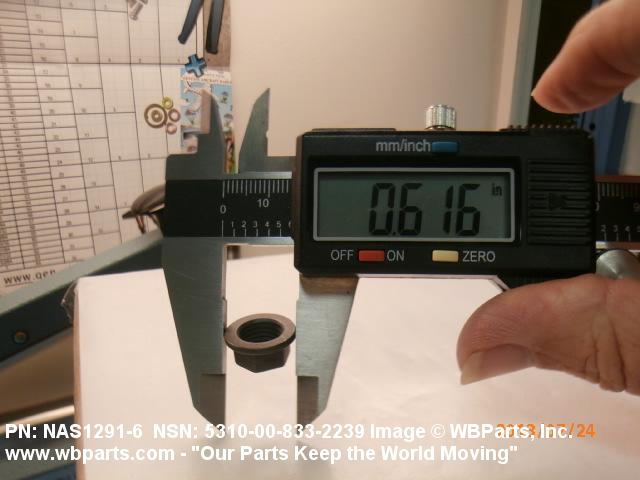

| WASHER OUTSIDE DIAMETER | 0.620 INCHES NOMINAL |

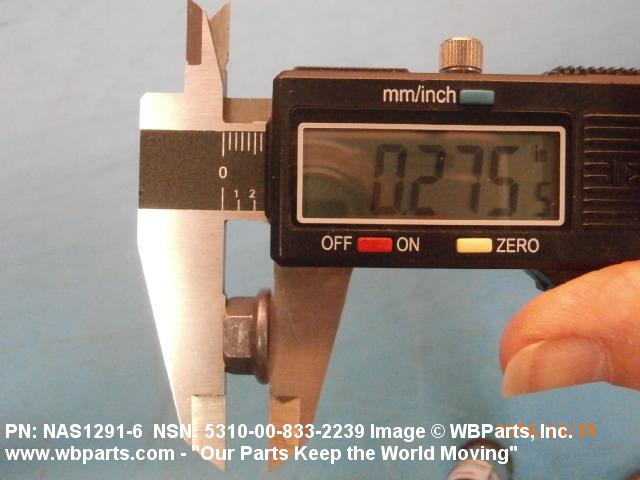

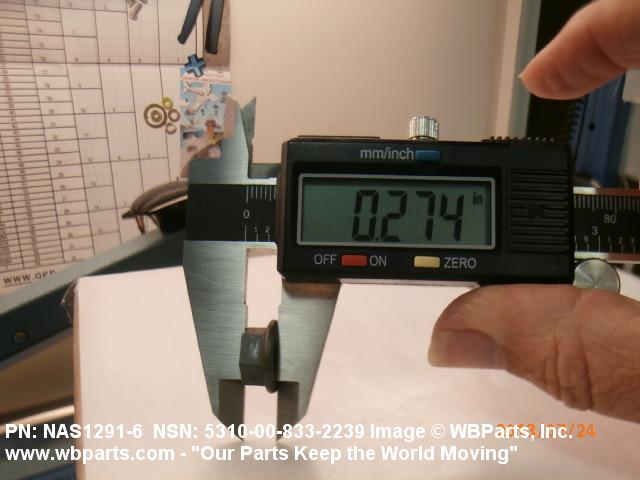

| OVERALL HEIGHT | 0.269 INCHES MINIMUM AND 0.282 INCHES MAXIMUM |
| WASHER THICKNESS | 0.030 INCHES NOMINAL |

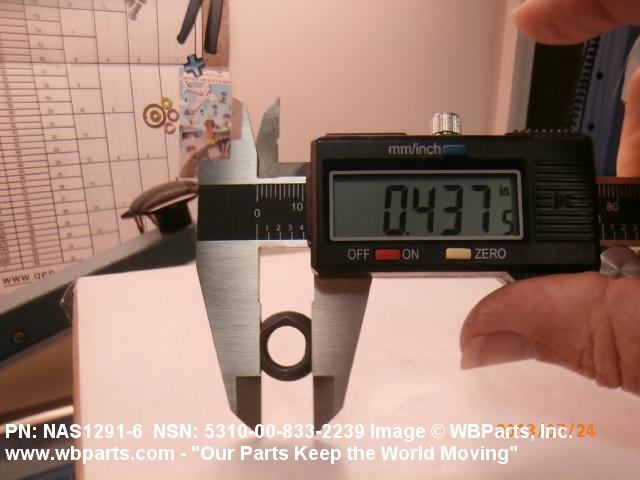

| WIDTH ACROSS FLATS | 0.430 INCHES MINIMUM AND 0.440 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| TEMP RATING | 550.0 DEG FAHRENHEIT NOMINAL |
Restrictions/Controls & Freight Information | NSN 5310-00-833-2239
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
