NSN 5310-00-834-8734 MS3569137, MS35691-37, MS35691821
Product Details | HEXAGON PLAIN NUT
5310-00-834-8734 A nut, flat on top and bottom having 6 flat sides. For items which have internal tapered or straight (parallel) pipe threads, specific electrical conduit size designation, and which when installed, provide a method of tightening to lock the connection, see LOCKNUT, ELECTRICAL CONDUIT. See also LOCKNUT, TUBE FITTING. For items having a thickness (or height) exceeding two times the width across the flats, use POST, ELECTRICAL-MECHANICAL EQUIPMENT. (When height or thickness and/or width across the flats is designated as a tolerance dimension, the maximum dimension will be used to determine compliance.
Part Alternates: MS3569137, MS35691-37, MS35691821, MS35691-821, MS35691822, MS35691-822, MS35691823, MS35691-823, MS35691824, MS35691-824, SK600724, SK-6007-24, J-C-30 , J-C-30RHW06CE2/I2SRFC , JC30RHW06CE2I2SRFC, D11229, D301087 FIND NO 96, D301087FINDNO96, EE45293, FFN836, FF-N-836, RHW06CE2/I2SRFC , RHW06CE2I2SRFC, 13207E3301FN40, 1320HX, 251297, 2X304, 93603235, 93603245, JC30, 5310-00-834-8734, 00-834-8734, 5310008348734, 008348734
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 30 NOV 1966 | 00-834-8734 | 01857 ( NUT, PLAIN, HEXAGON ) |

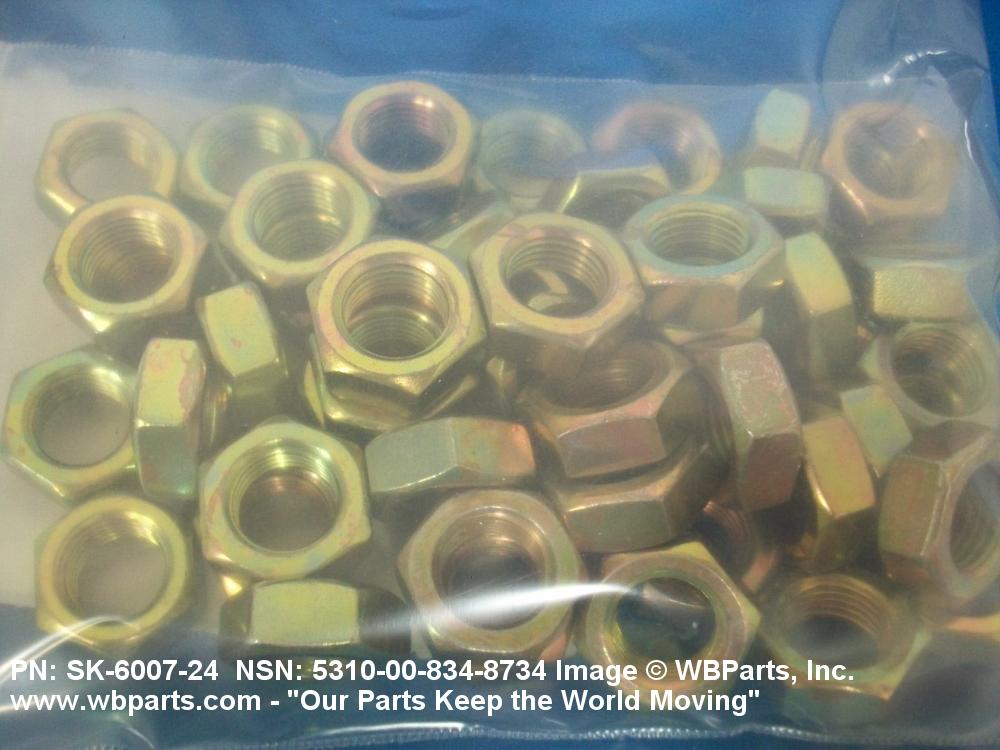

Drawings & Photos | NSN 5310-00-834-8734
Demand History | NSN 5310-00-834-8734
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| FFN836 | 2025-03-84 | 32 | Japan |
| FFN836 | 2024-10-291 | 190 | US |
| MS3569137 | 2024-08-226 | 5 | United States |
| FFN836 | 2023-09-258 | 100 | TR |
| FFN836 | 2021-11-307 | 200 | United States |
| FFN836 | 2021-08-228 | 100 | United States |
| MS3569137 | 2019-11-315 | 1 | United States |
| 5310-00-834-8734 | 2019-06-175 | 54 | US |
| FFN836 | 2019-02-44 | 288 | US |
| FFN836 | 2018-02-32 | 2 | US |
| FFN836 | 2017-05-123 | 25 | United States |
| FF-N-836 | 2016-05-145 | 48 | Spain |
| MS35691-37 | 2014-03-71 | 46 | United States |
| FFN836 | 2012-12-341 | 1 | US |
| MS3569137 | 2012-02-59 | 20 | United States |
| MS35691822 | 2011-08-231 | 20 | United States |
| MS35691822 | 2011-07-203 | 20 | United States |
| 5310-00-834-8734 | 2010-12-349 | 961 | DIBBS |
| FFN836 | 2010-11-322 | 100 | United Kingdom |
| FFN836 | 2010-08-218 | 1 | US |
| FFN836 | 2010-08-218 | 1 | US |
| FFN836 | 2010-08-218 | 1 | US |
| FFN836 | 2010-08-218 | 1 | US |
| FFN836 | 2010-03-90 | 4 | us |
| FFN836 | 2010-03-81 | 50 | United States |
| FFN836 | 2010-02-46 | 50 | United States |
| FFN836 | 2009-07-183 | 1000 | US |
| FFN836 | 2009-05-141 | 580 | US |
| MS3569137 | 2009-03-83 | 2 | South Korea |
| FFN836 | 2008-07-195 | 20 | US |
| FFN836 | 2008-06-171 | 200 | US |
| MS3569137 | 2008-05-141 | 4 | US |
| FFN836 | 2008-02-39 | 1 | US |
| FFN836 | 2007-10-298 | 100 | US |
Cross Reference | NSN 5310-00-834-8734
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 13207E3301FN40 | 97403 | CECOM LR CENTER |
| 1320HX | 45152 | OSHKOSH CORPORATION |
| 1320HX | 75Q65 | OSHKOSH DEFENSE, LLC |
| 251297 | H0001 | DAF TRUCKS N.V. |
| 2X304 | 06721 | HALDEX BRAKE PRODUCTS CORPORATION DIV BREAK PRODUCTS DIVISION |
| 5310008348734 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 93603235 | 11939 | KIDDE FIRE FIGHTING, INC. DIV NATIONAL FOAM |
| 93603245 | 11939 | KIDDE FIRE FIGHTING, INC. DIV NATIONAL FOAM |
| D11229 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| D301087 FIND NO 96 | 3X894 | CONTROL FLOW, INC. DBA WESTECH HEAVY MACHINERY DIV |
| EE45293 | 45152 | OSHKOSH CORPORATION |
| EE45293 | 75Q65 | OSHKOSH DEFENSE, LLC |
| FF-N-836 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| MS35691-37 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS35691-821 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS35691-822 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MS35691-823 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS35691-824 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| SK-6007-24 | 0EAK3 | GSE MANAGEMENT CO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-834-8734
Related Products | NSN 5310-00-834-8734
Technical Data | NSN 5310-00-834-8734
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.500 INCHES |
| THREAD QUANTITY PER INCH | 20 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 95.0 ROCKWELL B MINIMUM AND 32.0 ROCKWELL C MAXIMUM |
| NUT STYLE | A12 HEXAGON |
| NUT HEIGHT | 0.302 INCHES MINIMUM AND 0.323 INCHES MAXIMUM |
| WIDTH ACROSS FLATS | 0.736 INCHES MINIMUM AND 0.750 INCHES MAXIMUM |
| BEARING SURFACE TYPE | CHAMFERED OR WASHER FACED |
| TEMP RATING | NOT RATED |
| NONDEFINITIVE SPEC/STD DATA | 2 TYPE AND 5 STYLE AND B GRADE |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | FF-N-836 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS35691-37 |
Restrictions/Controls & Freight Information | NSN 5310-00-834-8734
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 030310 | CABLE OR WIRE |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 743 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-834-8734
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
V FT : Foot |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
V FT : Foot |
