NSN 5310-00-838-4898 00-838-4898, 008384898
Product Details | LOCK WASHER
5310-00-838-4898 A washer which is usually round with a centrally located hole. Its edges and two bearing surfaces are so designed that applied pressure brings into play the spring tension and/or frictional locking principle which materially resists any tendency toward turning. It may be made of one or two pieces
Part Alternates: 5310-00-838-4898, 00-838-4898, 5310008384898, 008384898
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 00-838-4898 | 14218 ( WASHER, LOCK ) |

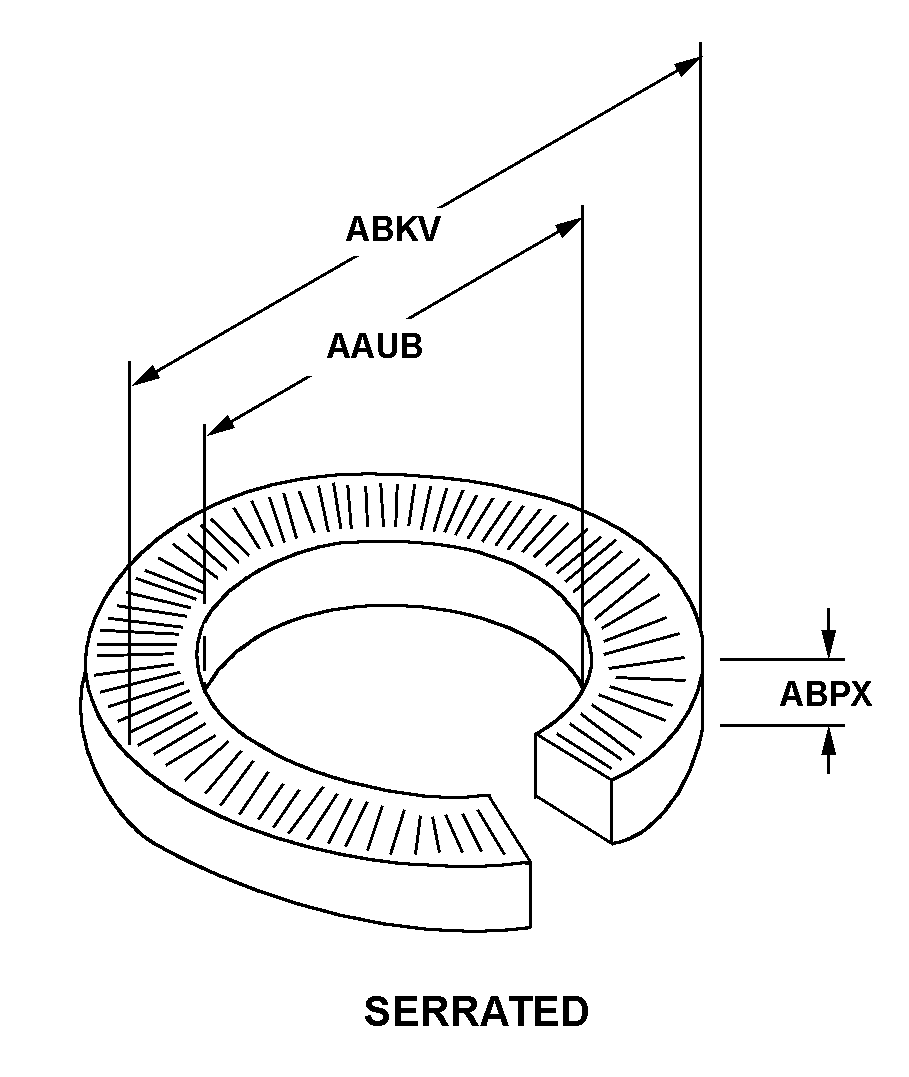

Drawings & Photos | NSN 5310-00-838-4898
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-00-838-4898
Technical Data | NSN 5310-00-838-4898
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| STYLE DESIGNATOR | 113 SERRATED |
| HOLE DIAMETER | 0.129 INCHES MINIMUM AND 0.136 INCHES MAXIMUM |
| OUTSIDE DIAMETER | 0.245 INCHES MINIMUM AND 0.280 INCHES MAXIMUM |
| MATERIAL THICKNESS | 0.025 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5310-00-838-4898
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
