NSN 5310-00-845-2359 M2184660, NAS1291C04M, B68293
Product Details | HEXAGON EXTENDED WASHER SELF-LOCKING NUT
5310-00-845-2359 A nut having 6 flat sides and an integral washer which extends beyond the flats or periphery. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: M2184660, NAS1291C04M, B68293, C318039522, H42L04, FN1014M440, P32952, RMLH385840, RMLH3858-40, T99C440NFM, 947532-304, 1790044-10, 4158075004, 4158075-004, 41580754, 4158075-4, 41803418, 418034-18, 1140231002, 114-0231-002, 1140436002, 114-0436-002, 74443146002, 5310-00-845-2359, 00-845-2359, 5310008452359, 008452359, 947532304, 179004410
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-845-2359 | 29730 ( NUT, SELF-LOCKING, EXTENDED WASHER, HEXAGON ) |

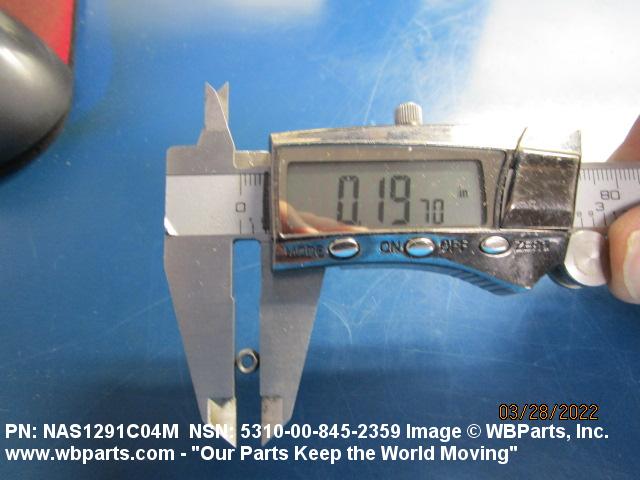

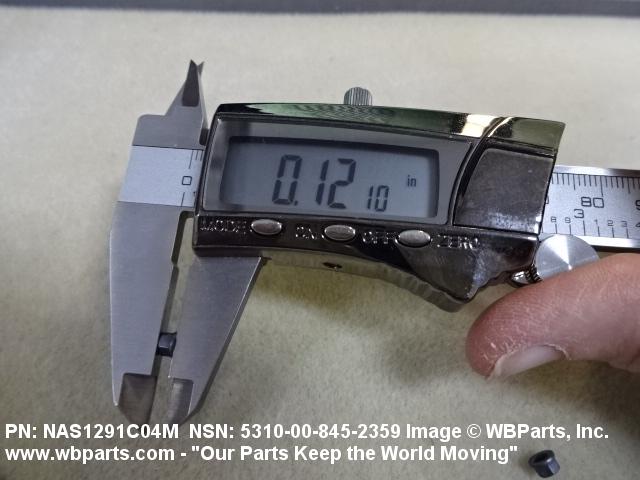

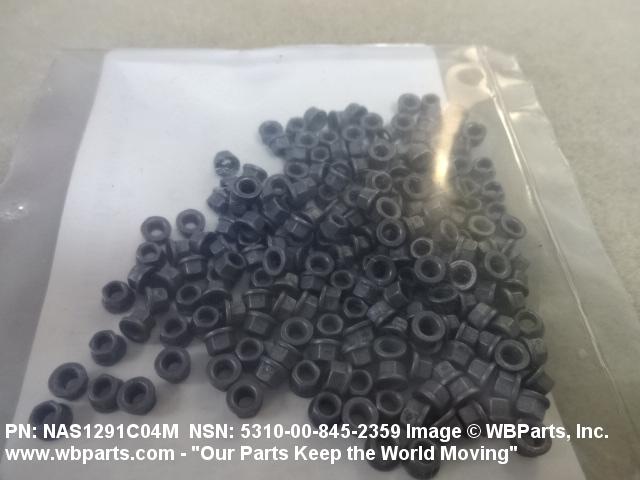

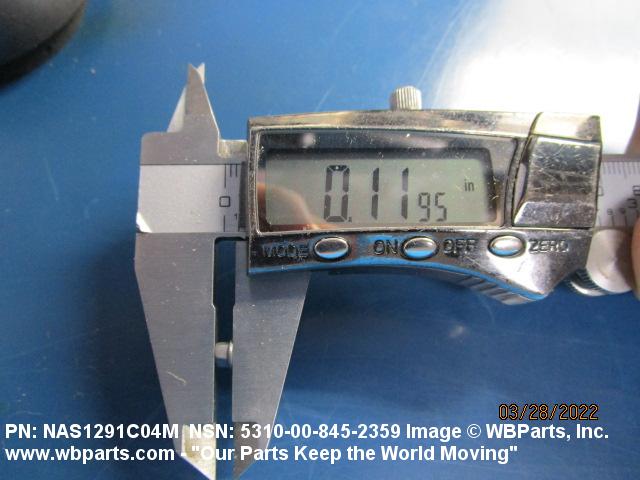

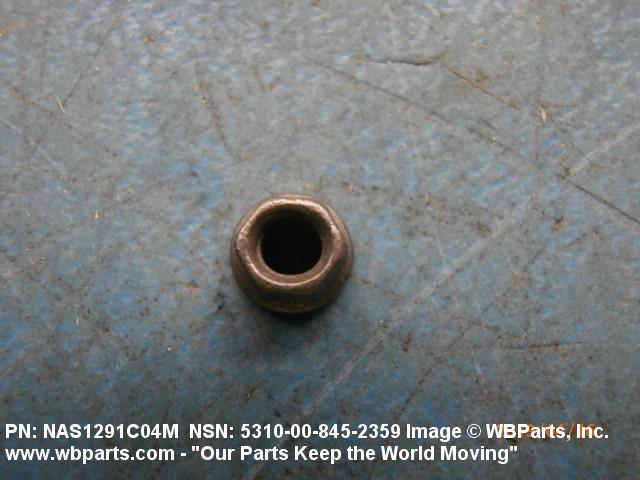

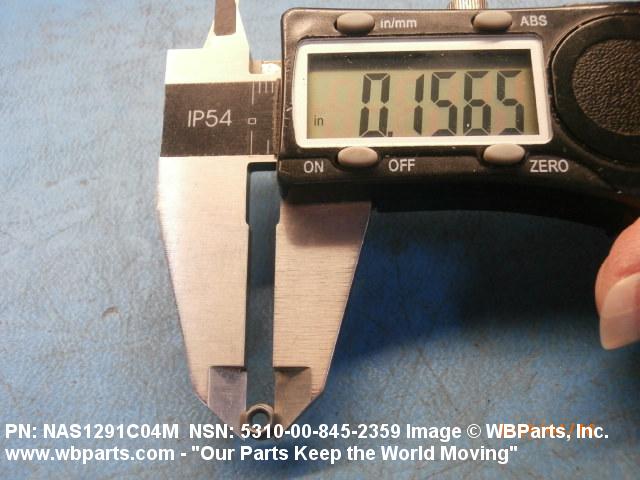

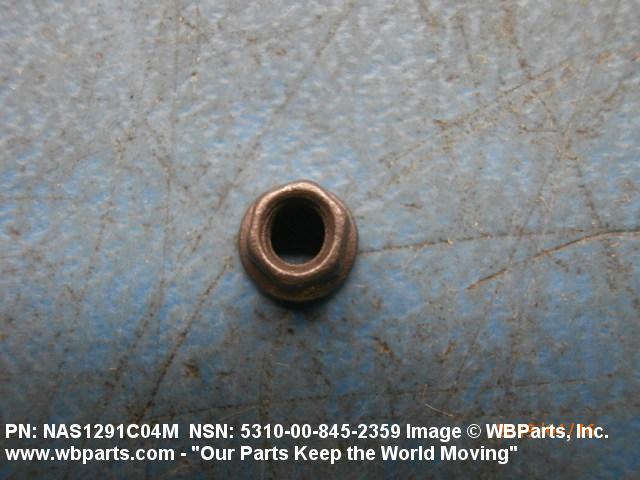

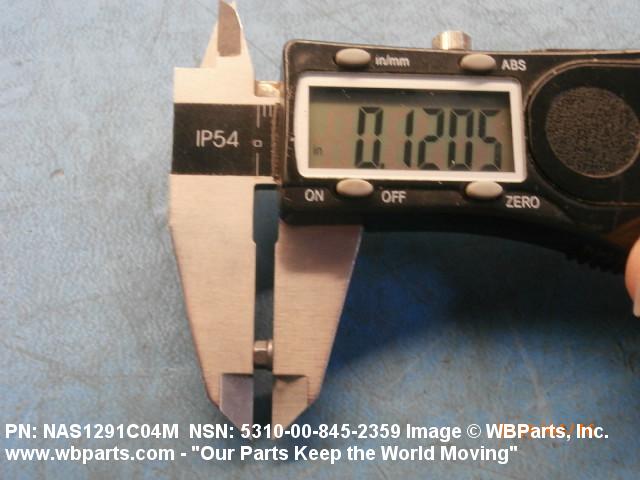

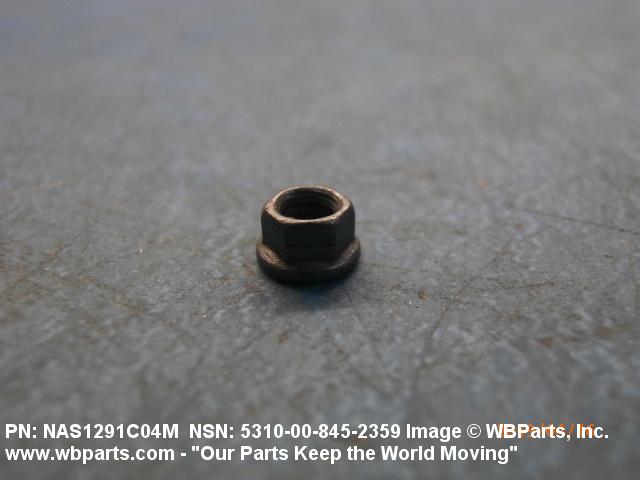

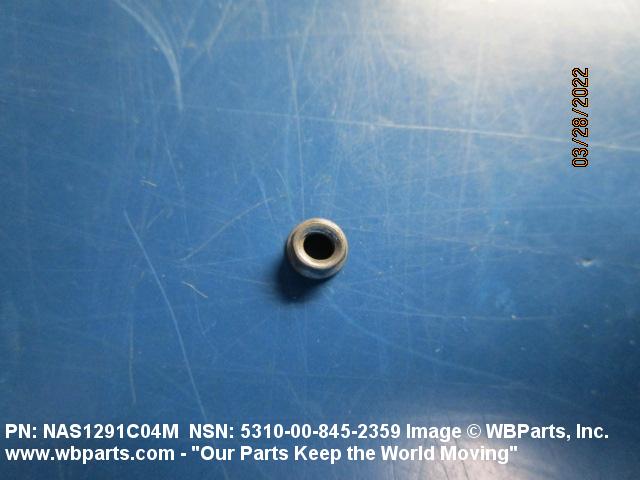

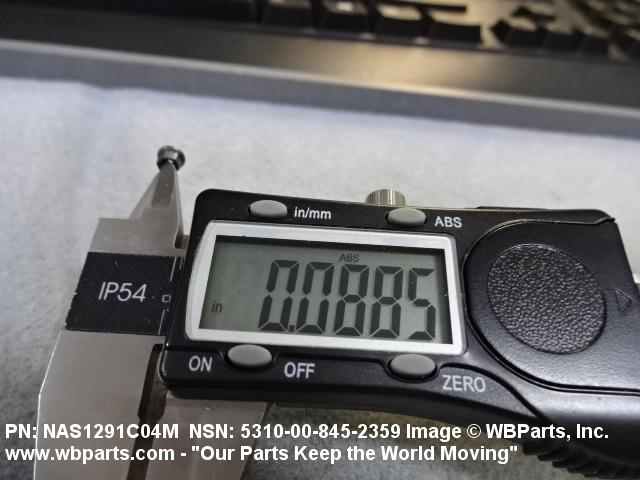

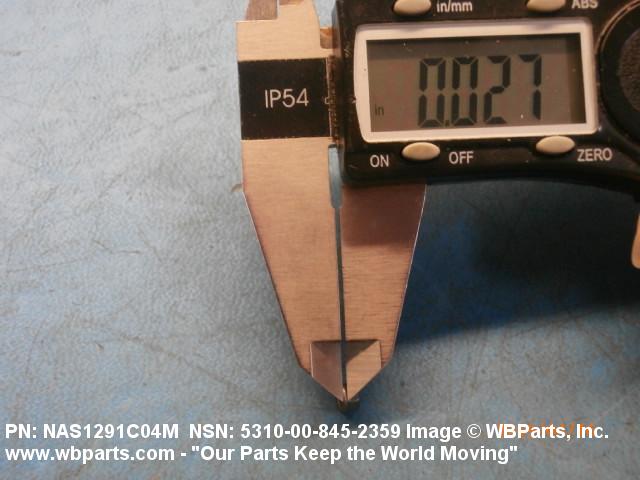

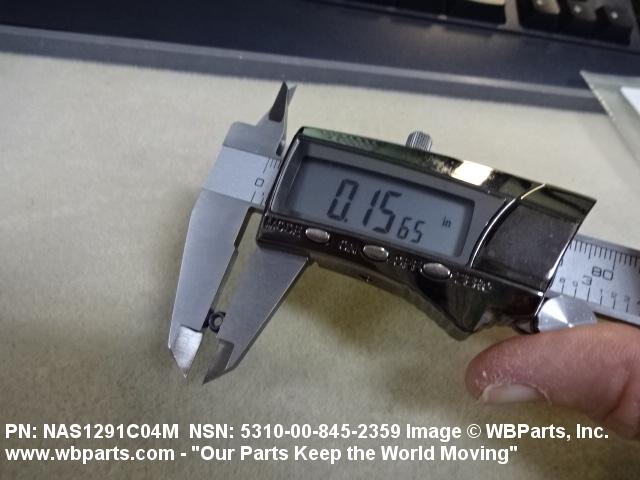

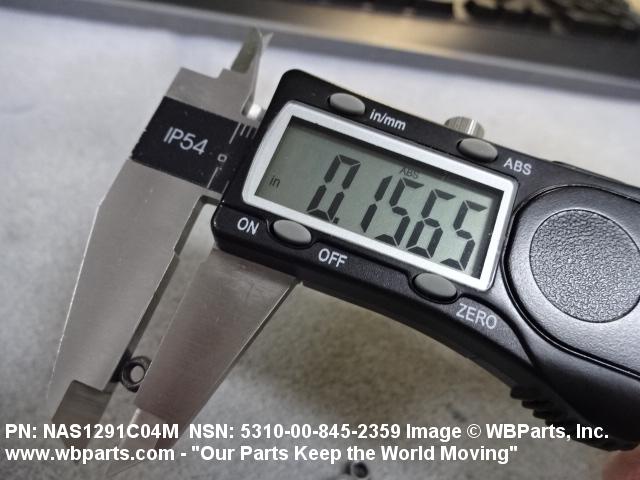

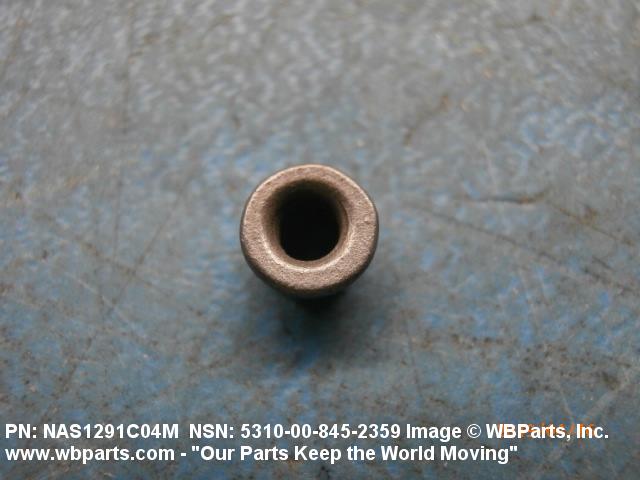

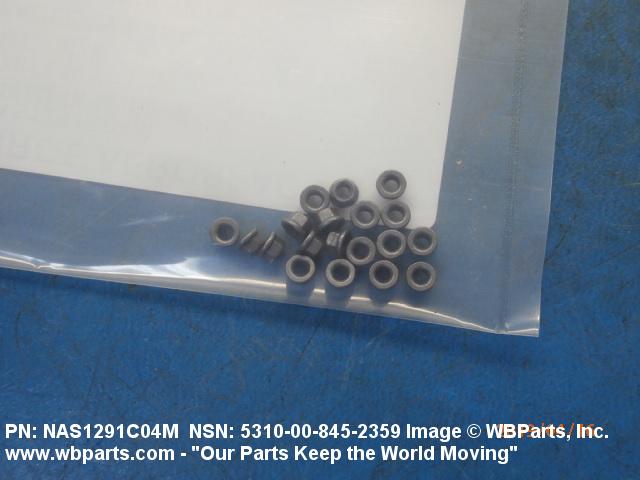

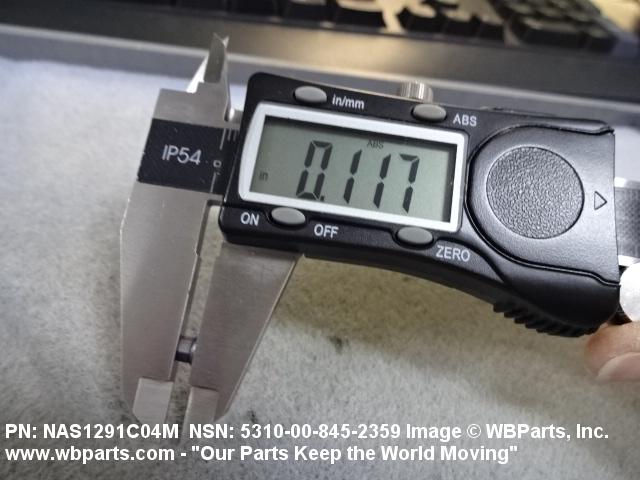

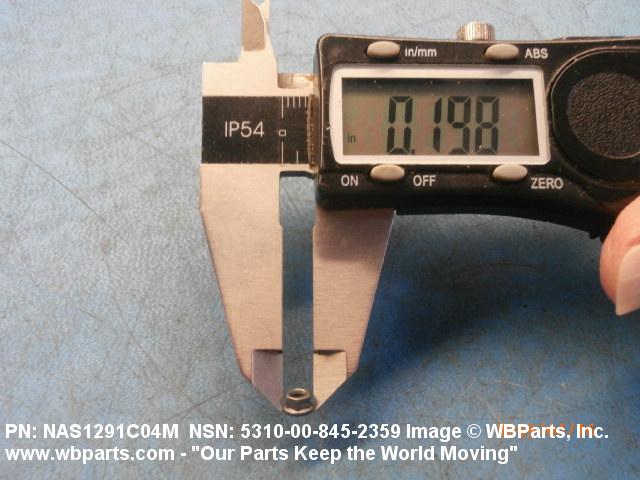

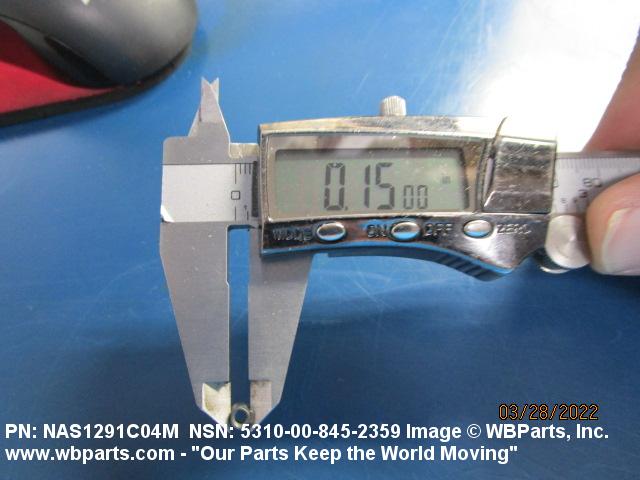

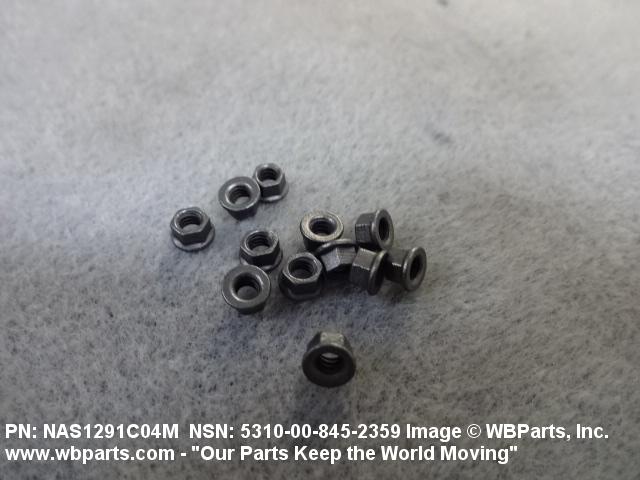

Drawings & Photos | NSN 5310-00-845-2359
Demand History | NSN 5310-00-845-2359
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS1291C04M | 2025-10-294 | 32 | US |
| NAS1291C04M | 2025-09-247 | 11450 | US |
| NAS1291C04M | 2025-07-199 | 1200 | us |
| 5310-00-845-2359 | 2025-06-177 | 576 | United States |
| 5310-00-845-2359 | 2025-02-37 | 21422 | US |
| NAS1291C04M | 2024-12-348 | 32 | Japan |
| NAS1291C04M | 2024-12-337 | 248 | Japan |
| NAS1291C04M | 2024-10-297 | 32 | Japan |
| NAS1291C04M | 2024-09-254 | 80 | Japan |
| NAS1291C04M | 2024-03-61 | 500 | United States |
| 5310-00-845-2359 | 2024-02-32 | 3955 | DIBBS |
| 5310-00-845-2359 | 2024-01-09 | 8594 | DIBBS |
| 5310-00-845-2359 | 2023-12-347 | 6121 | DIBBS |
| 5310-00-845-2359 | 2023-05-135 | 6121 | DIBBS |
| 5310-00-845-2359 | 2023-01-26 | 25 | United States |
| 5310-00-845-2359 | 2022-03-69 | 100 | United States |
| 5310-00-845-2359 | 2022-02-34 | 12 | US |
| NAS1291C04M | 2021-11-319 | 819 | IN |
| NAS1291C04M | 2021-05-137 | 100 | US |
| NAS1291C04M | 2021-05-124 | 8 | IN |
| NAS1291C04M | 2018-07-193 | 100 | United States |
| 5310-00-845-2359 | 2018-06-178 | 39165 | DIBBS |
| NAS1291C04M | 2017-08-226 | 20 | AE |
| 5310-00-845-2359 | 2017-04-108 | 100 | US |
| NAS1291C04M | 2017-03-83 | 12 | United States |
| NAS1291C04M | 2017-03-79 | 12 | United States |
| NAS1291C04M | 2017-02-51 | 8 | United States |
| NAS1291C04M | 2016-07-190 | 12 | US |
| NAS1291C04M | 2015-12-345 | 1100 | US |
| 5310-00-845-2359 | 2015-07-194 | 6436 | DIBBS |
| NAS1291C04M | 2014-08-225 | 10 | United States |
| NAS1291C04M | 2014-08-225 | 10 | United States |
| NAS1291C04M | 2014-08-225 | 10 | US |
| NAS1291C04M | 2014-08-225 | 10 | United States |
| NAS1291C04M | 2014-08-225 | 10 | United States |
| NAS1291C04M | 2014-03-65 | 70 | US |
| NAS1291C04M | 2014-02-55 | 70 | US |
| NAS1291C04M | 2013-11-308 | 100 | US |
| NAS1291C04M | 2013-05-128 | 15 | US |
| NAS1291C04M | 2013-01-28 | 200 | US |
| NAS1291C04M | 2012-07-208 | 100 | US |
| 5310-00-845-2359 | 2012-03-90 | 16 | United States |
| 5310-00-845-2359 | 2012-03-79 | 16 | United States |
| NAS1291C04M | 2012-03-73 | 20 | United States |
| 5310-00-845-2359 | 2011-08-215 | 16 | US |
| NAS1291C04M | 2011-03-63 | 1100 | US |
| 5310-00-845-2359 | 2010-10-288 | 6 | United States |
| NAS1291C04M | 2010-10-278 | 48 | Saudi Arabia |
| NAS1291C04M | 2010-10-278 | 48 | Saudi Arabia |
| NAS1291C04M | 2010-10-278 | 16 | Saudi Arabia |
| NAS1291C04M | 2010-10-278 | 16 | Saudi Arabia |
| 5310-00-845-2359 | 2010-07-200 | 1200 | US |
| T99C440NFM | 2010-07-200 | 1200 | US |
| 5310-00-845-2359 | 2010-05-127 | 20 | US |
| NAS1291C04M | 2009-07-210 | 30 | CH |
| NAS1291C04M | 2009-05-125 | 6 | US |
| 5310-00-845-2359 | 2008-09-256 | 32 | US |
| 5310-00-845-2359 | 2008-09-248 | 500 | DK |
| 5310-00-845-2359 | 2008-02-43 | 20 | US |
| NAS1291C04M | 2006-10-277 | 2800 | Turkey |
Cross Reference | NSN 5310-00-845-2359
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 114-0231-002 | 94756 | BOEING COMPANY, THE DBA BOEING |
| 114-0436-002 | 94756 | BOEING COMPANY, THE DBA BOEING |
| 1790044-10 | 55972 | HONEYWELL INTL INC DEFENSE AVIONICS SYSTEMS |
| 1790044-10 | 96774 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 2578602-2 | 76301 | BOEING COMPANY, THE DBA BOEING |
| 4158075-004 | 05869 | RAYTHEON COMPANY DBA RAYTHEON |
| 4158075-4 | 05869 | RAYTHEON COMPANY DBA RAYTHEON |
| 418034-18 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 5310008452359 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 74443146002 | 89944 | KOLLSMAN, INC. |
| 947532-304 | 06481 | NORTHROP GRUMMAN SYSTEMS CORPORATION |
| B68293 | K0967 | MBDA UK LTD |
| C318039522 | 88818 | KEARFOTT CORPORATION DBA KEARFOTT |
| FN1014M440 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| H42L04 | 15653 | ALCOA GLOBAL FASTENERS, INC. |
| H42L04 | F7652 | B E AEROSPACE CONSUMABLESMANAGEMENT DEUX SAS |
| H42L04 | R1120 | SATAIR A/S |
| M2184660 | 1045G | AERO VODOCHODY A.S. |
| NAS1291C04M | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| P32952 | F0754 | SOC EXPLOITATION MATERIELS MARTINBAKER |
| RMLH3858-40 | 019L2 | MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA |
| RMLH3858-40 | 72962 | HARVARD INDUSTRIES INC |
| T99C440NFM | 11815 | SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-845-2359
Related Products | NSN 5310-00-845-2359
Technical Data | NSN 5310-00-845-2359
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNC |
| NOMINAL THREAD SIZE | 0.112 INCHES |
| THREAD QUANTITY PER INCH | 40 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A294 HEXAGON |
| WASHER OUTSIDE DIAMETER | 0.206 INCHES NOMINAL |
| OVERALL HEIGHT | 0.103 INCHES MINIMUM AND 0.125 INCHES MAXIMUM |
| WASHER THICKNESS | 0.010 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.150 INCHES MINIMUM AND 0.158 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| LUBRICATION | DRY FILM LUBRICANT |
| TEMP RATING | 550.0 DEG FAHRENHEIT NOMINAL |
Restrictions/Controls & Freight Information | NSN 5310-00-845-2359
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
