NSN 5310-00-845-5030 AFG0705993 , NAS1291A08M, NAS1291C08M

Product Details | HEXAGON EXTENDED WASHER SELF-LOCKING NUT

5310-00-845-5030 A nut having 6 flat sides and an integral washer which extends beyond the flats or periphery. An integral feature is incorporated for locking on the threads of a mating member.

Part Alternates: AFG0705993 , NAS1291A08M, NAS1291C08M, NAS1291-C08M, H42L08, P32332, RMLH385882, RMLH3858-82, 947532-308, 1140231004, 114-0231-004, 25786024, 2578602-4 , 4575587, 457-5587 , 74443146004, 5310-00-845-5030, 00-845-5030, 5310008455030 , 008455030, 947532308

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1962	00-845-5030	29730 ( NUT, SELF-LOCKING, EXTENDED WASHER, HEXAGON )

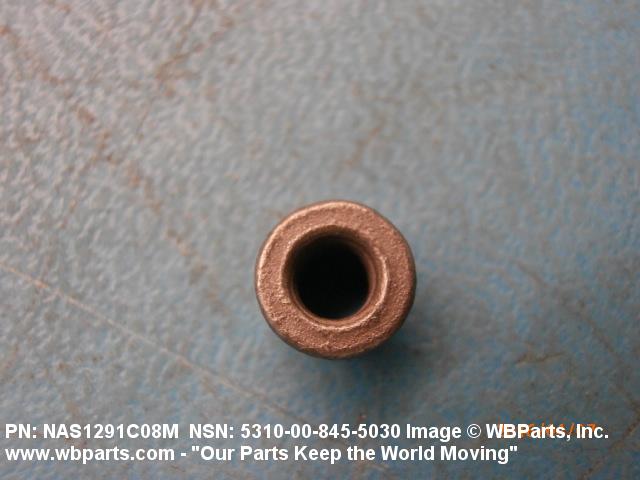

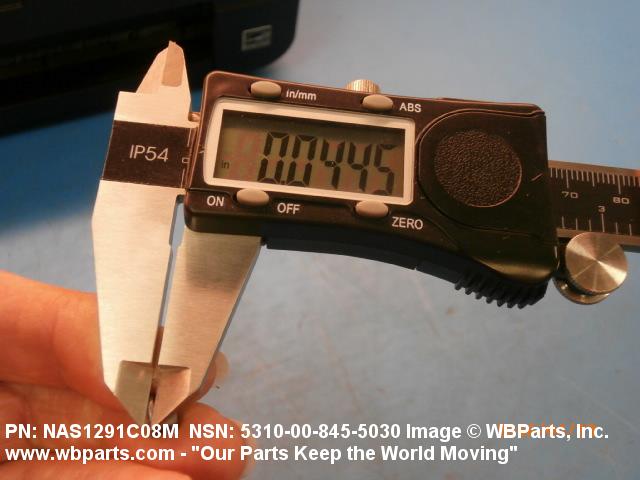

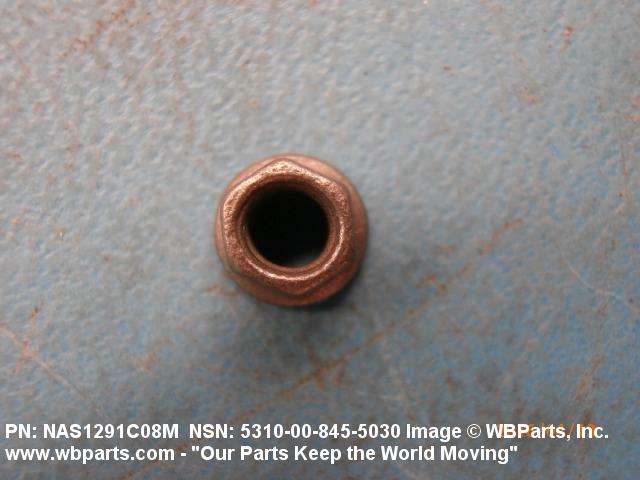

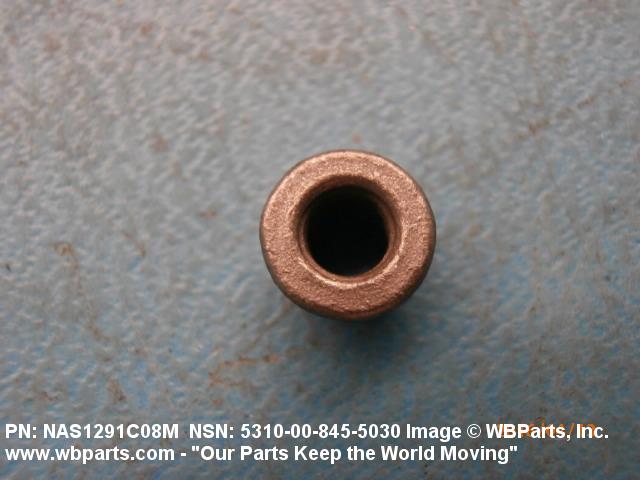

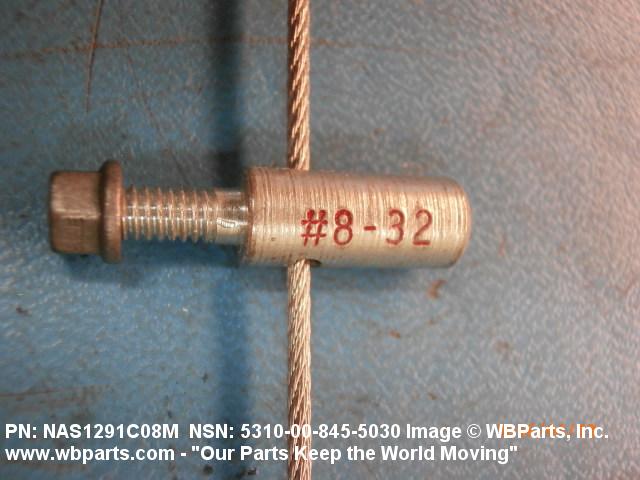

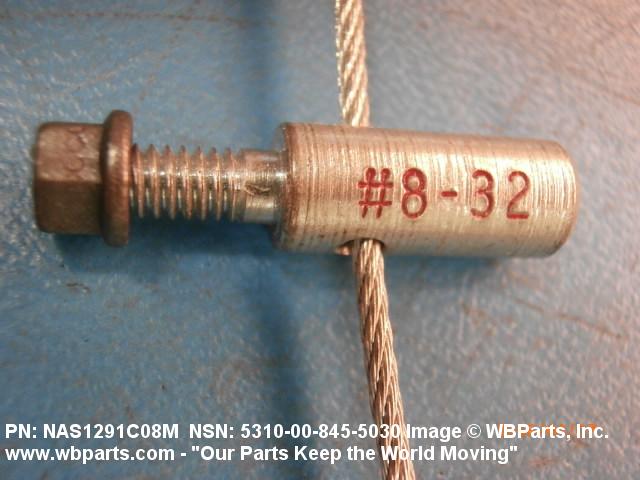

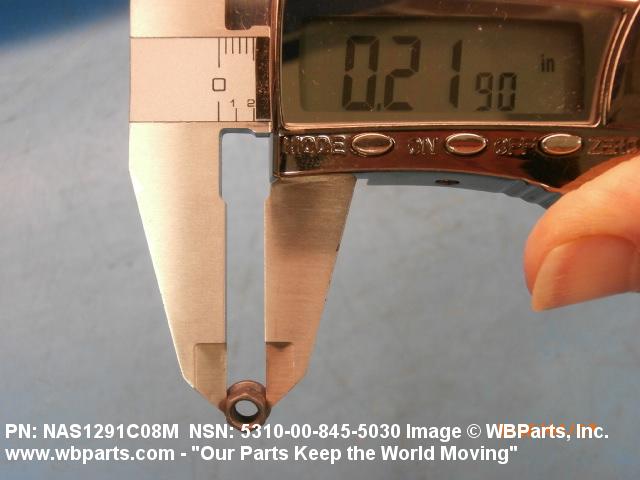

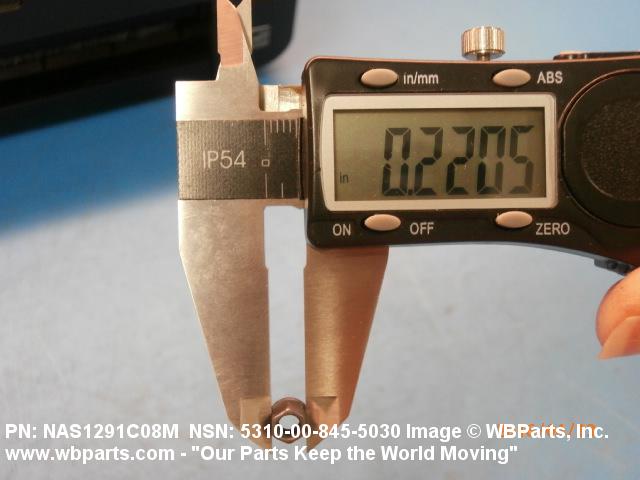

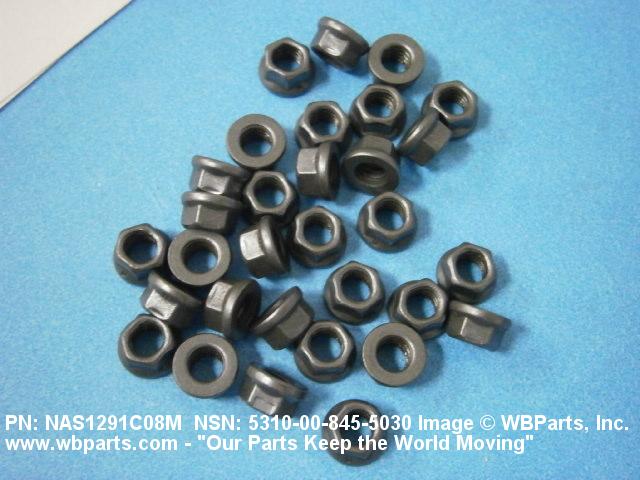

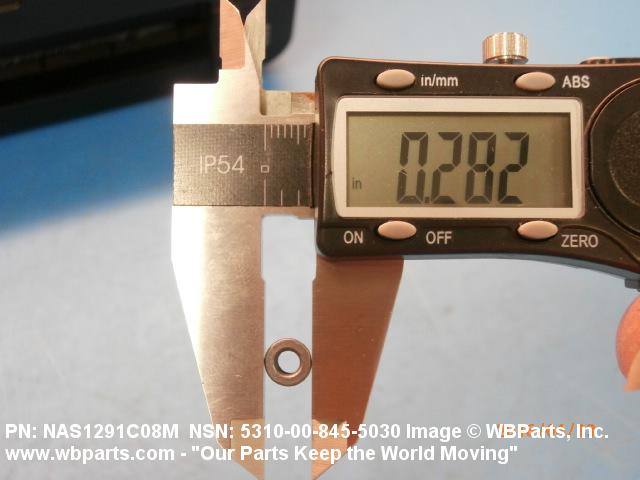

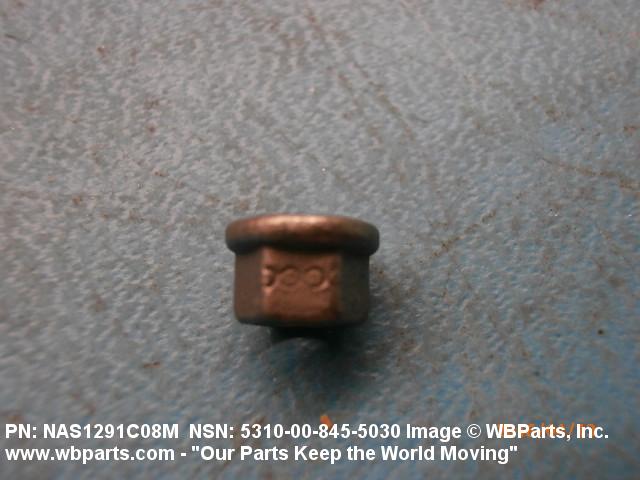

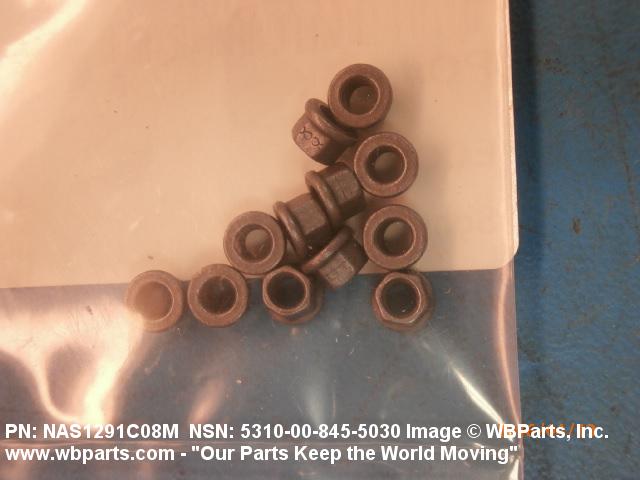

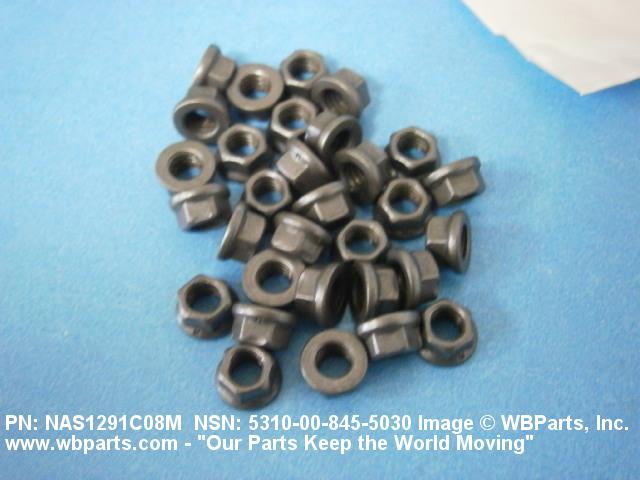

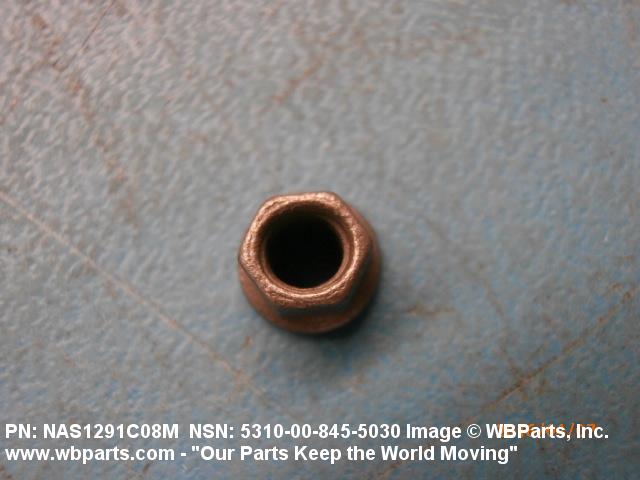

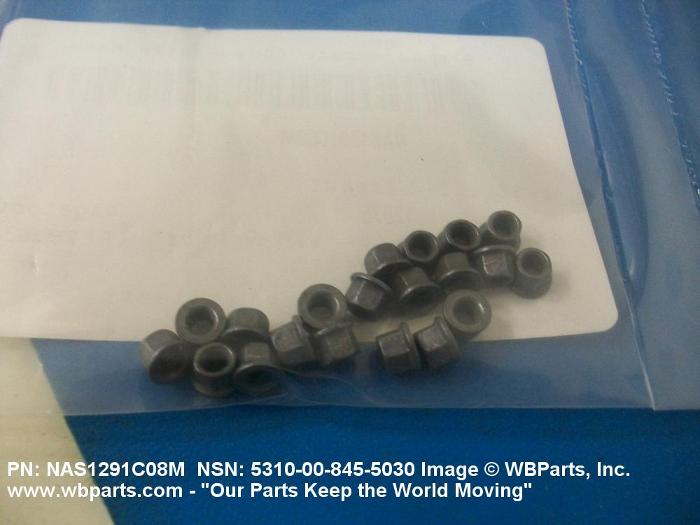

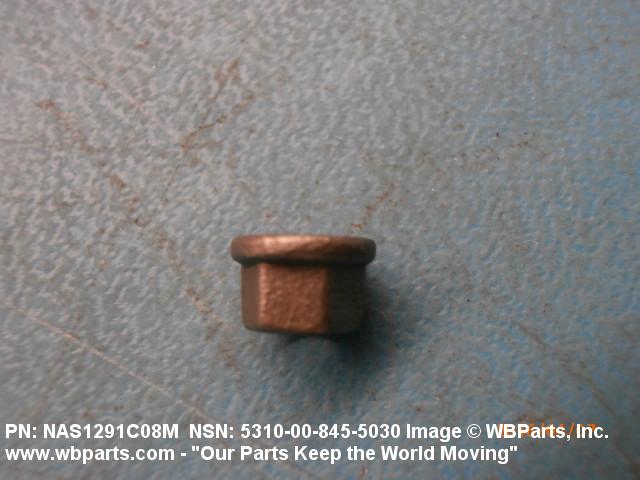

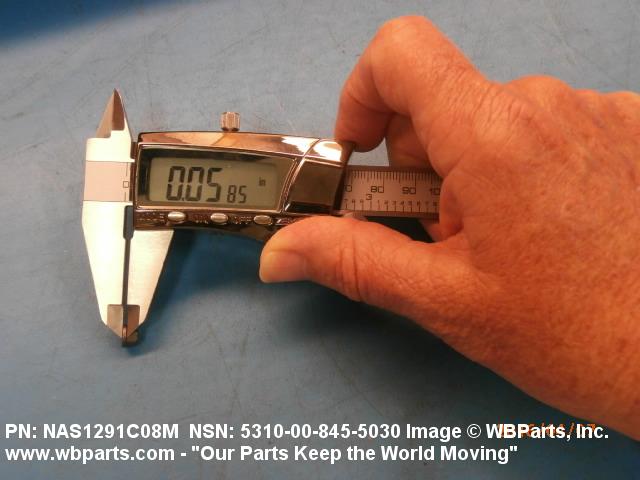

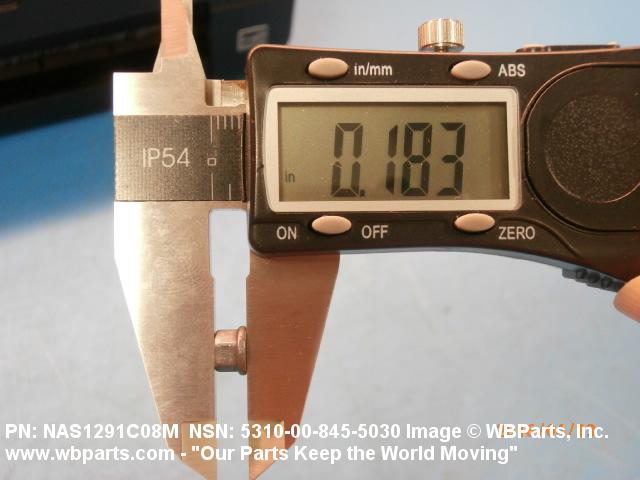

Drawings & Photos | NSN 5310-00-845-5030

Part Number	Request Date	QTY	Origin
NAS1291C08M	2025-10-286	4	us
NAS1291C08M	2025-09-260	2904	Israel
NAS1291C08M	2025-07-184	298	United States
NAS1291C08M	2024-07-192	122	Japan
NAS1291C08M	2024-07-192	125	Japan
NAS1291C08M	2024-06-176	100	United States
NAS1291C08M	2024-05-136	96	United States
5310-00-845-5030	2023-11-333	3	United States
5310-00-845-5030	2023-01-31	50	United States
NAS1291C08M	2022-11-321	75	US
NAS1291C08M	2022-09-244	1	Poland
5310-00-845-5030	2022-08-222	25	United States
NAS1291C08M	2022-07-182	920	United States
NAS1291C08M	2021-05-124	12	IN
5310-00-845-5030	2020-10-280	100	MANUAL
NAS1291C08M	2020-10-280	100	SA
NAS1291C08M	2019-10-287	10	United States
5310-00-845-5030	2018-11-311	24054	DIBBS
5310-00-845-5030	2018-09-268	24833	DIBBS
5310-00-845-5030	2018-07-200	12273	DIBBS
NAS1291C08M	2018-07-193	100	United States
NAS1291C08M	2017-11-325	200	US
5310-00-845-5030	2017-04-108	55876	DIBBS
NAS1291C08M	2017-03-83	10	United States
NAS1291C08M	2017-03-79	3	United States
NAS1291C08M	2017-03-60	154	United States
5310-00-845-5030	2017-02-43	25841	DIBBS
5310-00-845-5030	2016-12-348	13801	DIBBS
NAS1291C08M	2016-04-102	12	United States
NAS1291C08M	2016-04-96	20	United States
NAS1291C08M	2015-03-69	36	United States
5310-00-845-5030	2014-06-180	30284	DIBBS
5310-00-845-5030	2014-03-89	19938	DIBBS
NAS1291C08M	2014-03-65	135	US
NAS1291C08M	2014-02-55	135	US
NAS1291C08M	2013-11-308	100	US
NAS1291C08M	2013-10-276	200	PK
NAS1291C08M	2013-09-259	100	United States
5310-00-845-5030	2013-06-172	42977	DIBBS
NAS1291C08M	2013-05-134	50	CZ
NAS1291C08M	2012-12-355	43000	us
5310-00-845-5030	2012-12-345	42448	DIBBS
NAS1291C08M	2012-07-199	40	US
NAS1291C08M	2012-07-193	18	US
5310-00-845-5030	2012-03-90	32	United States
5310-00-845-5030	2012-03-79	32	United States
NAS1291C08M	2011-08-215	32	US
NAS1291C08M	2011-03-66	5000	US
NAS1291C08M	2011-03-66	10000	US
NAS1291C08M	2010-10-278	8	Saudi Arabia
NAS1291C08M	2010-10-278	8	Saudi Arabia
NAS1291C08M	2010-08-217	10	US
5310-00-845-5030	2010-03-90	13396	DIBBS
5310-00-845-5030	2010-02-56	8103	DIBBS
5310-00-845-5030	2009-11-313	2917	DIBBS
5310-00-845-5030	2009-09-265	10865	DIBBS
5310-00-845-5030	2009-06-181	1000	us
5310-00-845-5030	2009-06-175	9671	DIBBS
NAS1291C08M	2009-04-93	100	Italy
5310-00-845-5030	2009-03-90	8880	DIBBS
5310-00-845-5030	2009-02-49	64	US
5310-00-845-5030	2009-01-08	130	Spain
5310-00-845-5030	2008-09-256	48	US
NAS1291C08M	2008-07-196	144	US
NAS1291C08M	2008-04-120	1135	India
5310-00-845-5030	2007-12-346	450	India

Cross Reference | NSN 5310-00-845-5030

Part Number	Cage Code	Manufacturer
114-0231-004	94756	BOEING COMPANY, THE DBA BOEING
2578602-4	76301	BOEING COMPANY, THE DBA BOEING
5310008455030	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
74443146004	89944	KOLLSMAN, INC.
947532-308	06481	NORTHROP GRUMMAN SYSTEMS CORPORATION
AFG0705993	D1131	AUTOFLUG GMBH DBA AUTOFLUG SICHERHEITSGERATE
H42L08	03350	GENERAL ELECTRIC COMPANY DBA GE STRUCTURED SERVICES DIV
H42L08	15653	ALCOA GLOBAL FASTENERS, INC.
H42L08	75237	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
H42L08	F7652	B E AEROSPACE CONSUMABLESMANAGEMENT DEUX SAS
H42L08	R1120	SATAIR A/S
NAS1291-C08M	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
NAS1291A08M	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
NAS1291C08M	75237	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
NAS1291C08M	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
NAS1291C08M	8K112	FREUNDLICH SUPPLY COMPANY, INC.
P32332	D1131	AUTOFLUG GMBH DBA AUTOFLUG SICHERHEITSGERATE
P32332	F0754	SOC EXPLOITATION MATERIELS MARTINBAKER
P32332	U1604	MARTIN-BAKER AIRCRAFT CO LTD DBA MARTIN-BAKER
RMLH3858-82	019L2	MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA
RMLH3858-82	72962	HARVARD INDUSTRIES INC

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-845-5030

Compare

Related Products | NSN 5310-00-845-5030

5310-00-845-5472, 5310-00-845-5517, 5310-00-845-5727, 5310-00-845-5868, 5310-00-845-5878

Technical Data | NSN 5310-00-845-5030

Characteristic	Specifications
THREAD SERIES	UNC
NOMINAL THREAD SIZE	0.164 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	STEEL CORROSION RESISTING OVERALL
SURFACE TREATMENT	PASSIVATE OVERALL
HARDNESS RATING	NOT RATED
NUT STYLE	A294 HEXAGON

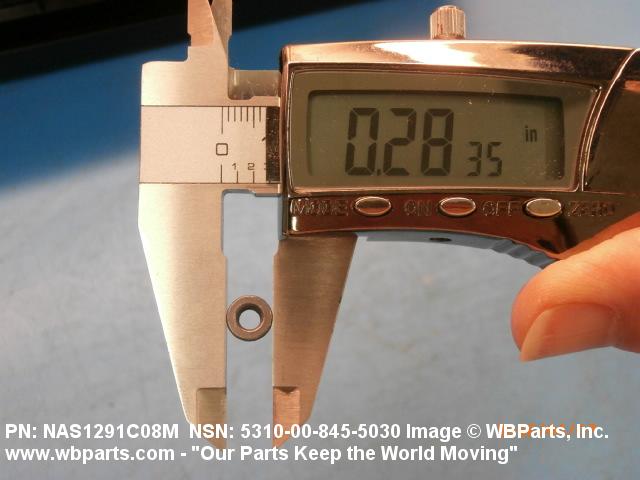

WASHER OUTSIDE DIAMETER	0.290 INCHES MAXIMUM

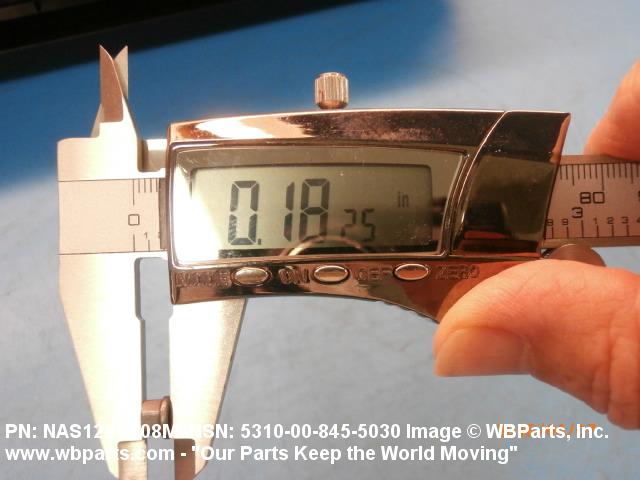

OVERALL HEIGHT	0.125 INCHES MINIMUM AND 0.188 INCHES MAXIMUM
WASHER THICKNESS	0.015 INCHES MINIMUM
WIDTH ACROSS FLATS	0.213 INCHES MINIMUM AND 0.221 INCHES MAXIMUM
LOCKING FEATURE	PREVAILING TORQUE ALL METAL DESIGN
TEMP RATING	550.0 DEG FAHRENHEIT NOMINAL

Restrictions/Controls & Freight Information | NSN 5310-00-845-5030

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	F	The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP).

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-00-845-5030

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	K	Reserved
Operational Test Code	0	Items of supply which when properly packaged and placed in storage, do not require the performance of special procedures while in storage, nor prior to issue, and for which it has been determined that existing Care in Stores quality control procedures are adequate.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
