NSN 5310-00-855-1102 MS356492255, MS35649-2255, ML228
Product Details | HEXAGON PLAIN NUT
5310-00-855-1102 A nut, flat on top and bottom having 6 flat sides. For items which have internal tapered or straight (parallel) pipe threads, specific electrical conduit size designation, and which when installed, provide a method of tightening to lock the connection, see LOCKNUT, ELECTRICAL CONDUIT. See also LOCKNUT, TUBE FITTING. For items having a thickness (or height) exceeding two times the width across the flats, use POST, ELECTRICAL-MECHANICAL EQUIPMENT. (When height or thickness and/or width across the flats is designated as a tolerance dimension, the maximum dimension will be used to determine compliance.
Part Alternates: MS356492255, MS35649-2255, ML228, H300001006, H30-0001-006, H300002003, H30-0002-003, FFN836, FF-N-836, 8045, 8045ADX, 002003990023, 002-003990-023, 5310-00-855-1102, 00-855-1102, 5310008551102, 008551102
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 04 OCT 1967 | 00-855-1102 | 01857 ( NUT, PLAIN, HEXAGON ) |

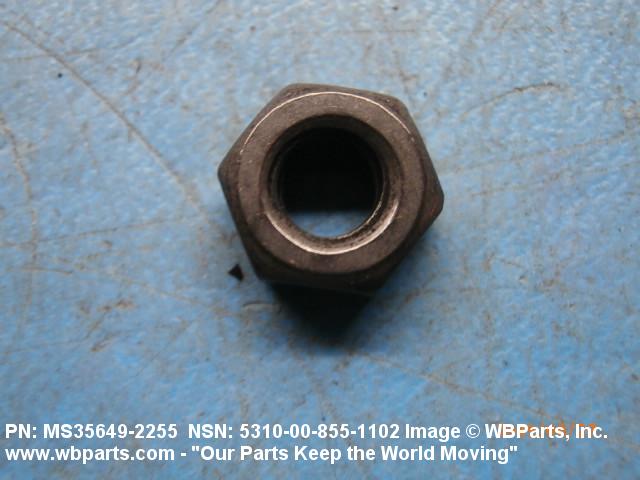

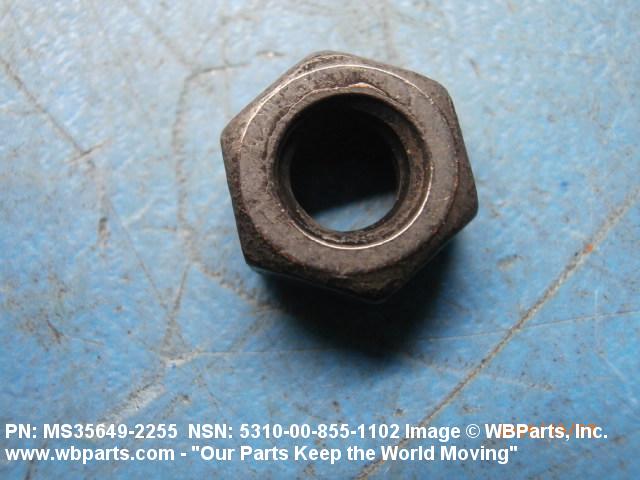

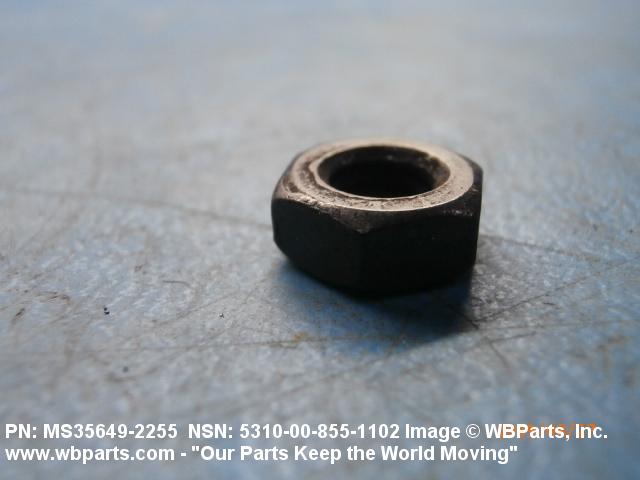

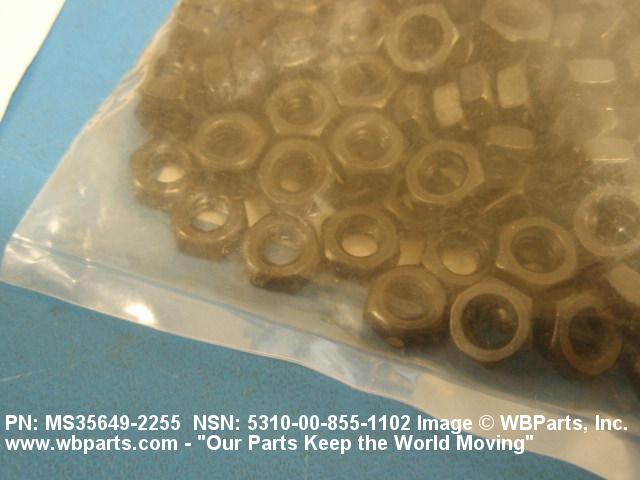

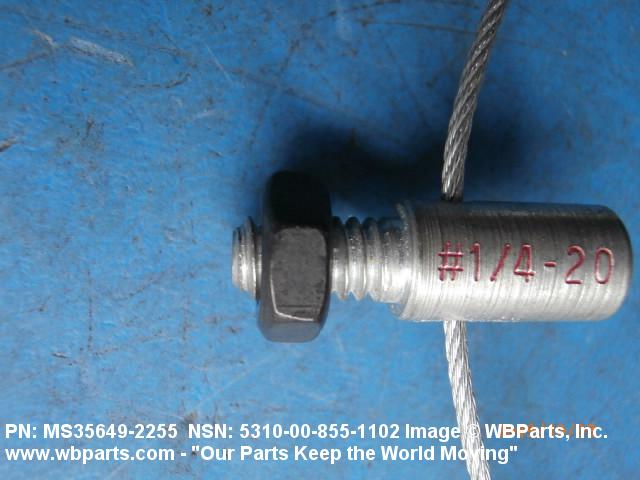

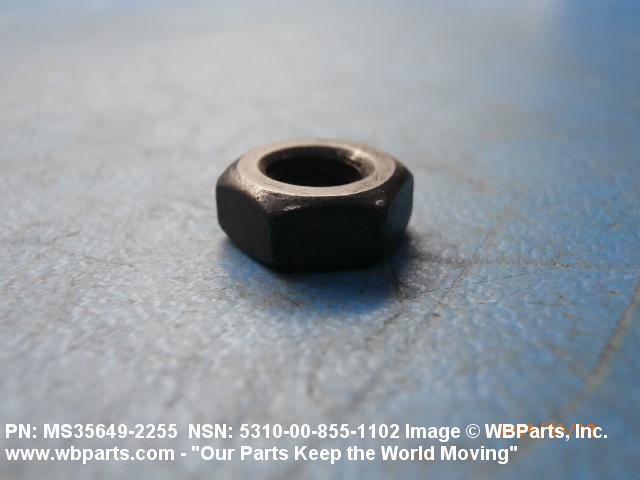

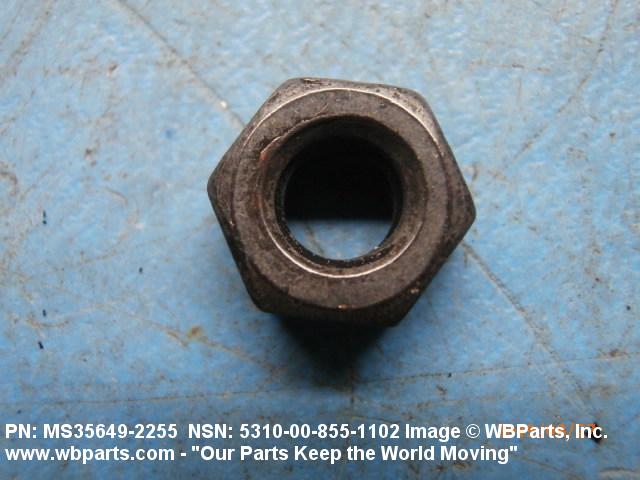

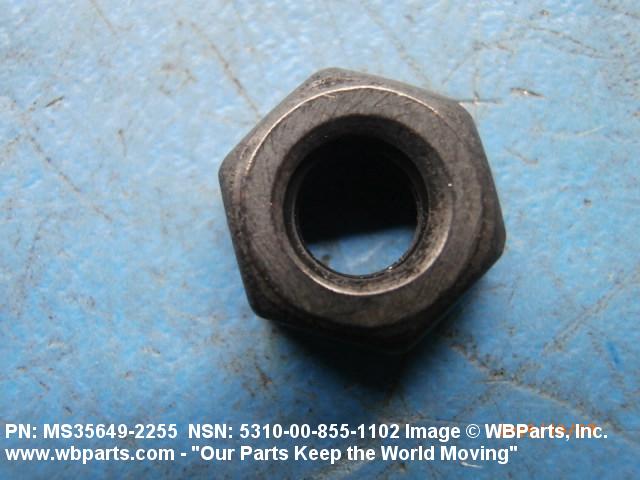

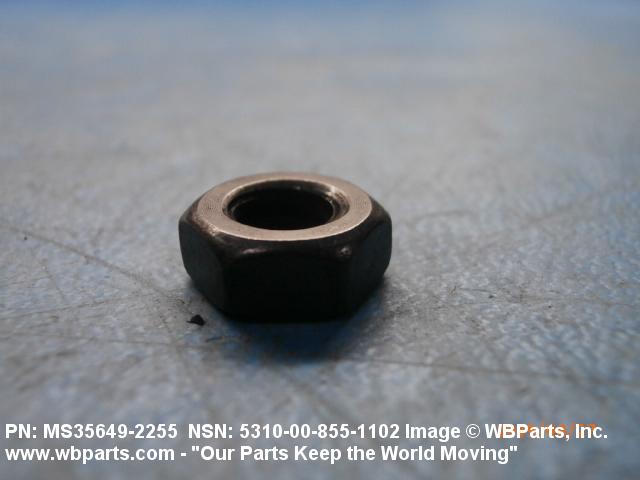

Drawings & Photos | NSN 5310-00-855-1102
Demand History | NSN 5310-00-855-1102
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| FFN836 | 2025-03-84 | 32 | Japan |
| FFN836 | 2024-10-291 | 190 | US |
| FFN836 | 2023-09-258 | 100 | TR |
| FFN836 | 2021-11-307 | 200 | United States |
| FFN836 | 2021-08-228 | 100 | United States |
| MS356492255 | 2020-09-268 | 50 | us |
| MS356492255 | 2019-12-364 | 100 | us |
| MS356492255 | 2019-12-337 | 17 | us |
| MS356492255 | 2019-10-289 | 10 | us |
| MS356492255 | 2019-09-259 | 3 | us |
| MS356492255 | 2019-07-200 | 25 | us |
| FFN836 | 2019-02-44 | 288 | US |
| MS356492255 | 2018-04-101 | 100 | us |
| FFN836 | 2018-02-32 | 2 | US |
| FFN836 | 2017-05-123 | 25 | United States |
| FF-N-836 | 2016-05-145 | 48 | Spain |
| MS356492255 | 2012-12-347 | 20 | US |
| FFN836 | 2012-12-341 | 1 | US |
| FFN836 | 2010-11-322 | 100 | United Kingdom |
| 5310-00-855-1102 | 2010-10-287 | 884 | DIBBS |
| FFN836 | 2010-08-218 | 1 | US |
| FFN836 | 2010-08-218 | 1 | US |
| FFN836 | 2010-08-218 | 1 | US |
| FFN836 | 2010-08-218 | 1 | US |
| 5310-00-855-1102 | 2010-07-202 | 1 | US |
| FFN836 | 2010-03-90 | 4 | us |
| FFN836 | 2010-03-81 | 50 | United States |
| FFN836 | 2010-02-46 | 50 | United States |
| MS356492255 | 2009-11-327 | 200 | United States |
| FFN836 | 2009-07-183 | 1000 | US |
| FFN836 | 2009-05-141 | 580 | US |
| 5310-00-855-1102 | 2008-11-316 | 40 | US |
| FFN836 | 2008-07-195 | 20 | US |
| FFN836 | 2008-06-171 | 200 | US |
| 5310-00-855-1102 | 2008-03-79 | 65 | United States |
| FFN836 | 2008-02-39 | 1 | US |
| FFN836 | 2007-10-298 | 100 | US |
Cross Reference | NSN 5310-00-855-1102
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 002-003990-023 | 26916 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV MULTIPLE |
| 8045 | 73734 | FEDERAL SCREW PRODUCTS INC. |
| 8045ADX | 1VN02 | AIRDALE EXPRESS LLC |
| FF-N-836 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| H30-0001-006 | 14304 | HARRIS CORPORATION DBA HARRIS RF COMMUNICATION |
| H30-0002-003 | 14304 | HARRIS CORPORATION DBA HARRIS RF COMMUNICATION |
| ML228 | 15235 | CROUSE-HINDS CO |
| MS35649-2255 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS35649-2255B | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-00-855-1102
Technical Data | NSN 5310-00-855-1102
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNC |

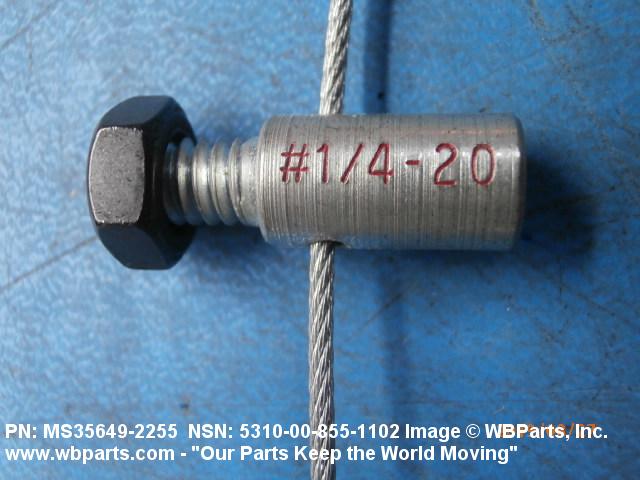

| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 20 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | COPPER ALLOY 462 OR COPPER ALLOY 464 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-B-637,ALLOY 462 FED SPEC 1ST MATERIAL RESPONSE OR QQ-B-637,ALLOY 464 FED SPEC 2ND MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | OXIDE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-F-495 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A12 HEXAGON |

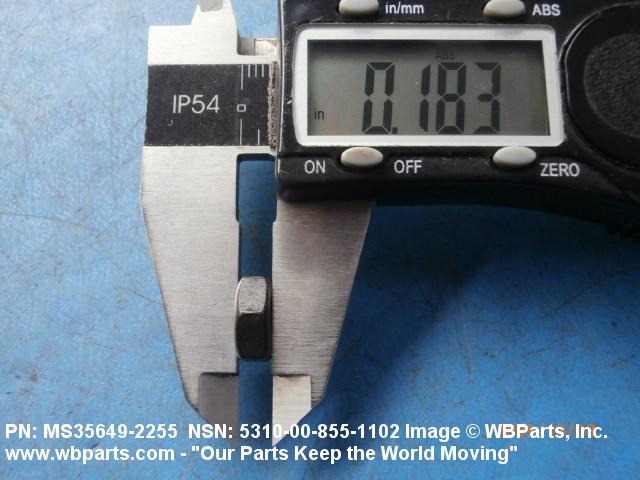

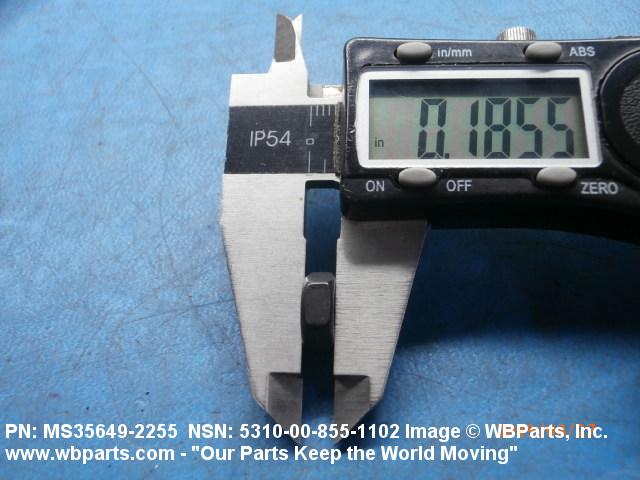

| NUT HEIGHT | 0.178 INCHES MINIMUM AND 0.193 INCHES MAXIMUM |

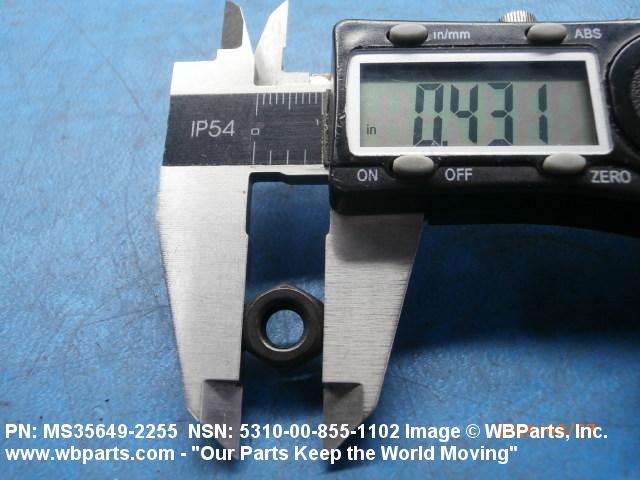

| WIDTH ACROSS FLATS | 0.423 INCHES MINIMUM AND 0.437 INCHES MAXIMUM |
| BEARING SURFACE TYPE | CHAMFERED |
| TEMP RATING | NOT RATED |
| NONDEFINITIVE SPEC/STD DATA | 2 TYPE AND 13 STYLE |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | FF-N-836 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS35649-2255 |
Restrictions/Controls & Freight Information | NSN 5310-00-855-1102
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 177940 | SPRINGS:SPRINGS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 579 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
