NSN 5310-00-862-8314 A4972602, A4972-6-02, BACN10FX16
Product Details | CLIP-ON NUT
5310-00-862-8314 An internally threaded fastener, plain or self-locking, of various shapes attached to a preformed item of semi-rigid material designed to retain, position or support other items by its own inherent spring action. The internally threaded fastener and the preformed item may be of one piece construction or fastened together by other means.
Part Alternates: A4972602, A4972-6-02, BACN10FX16, 130069, 5310-00-862-8314, 00-862-8314, 5310008628314, 008628314
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 11 OCT 1967 | 00-862-8314 | 35871 ( NUT, CLIP-ON ) |

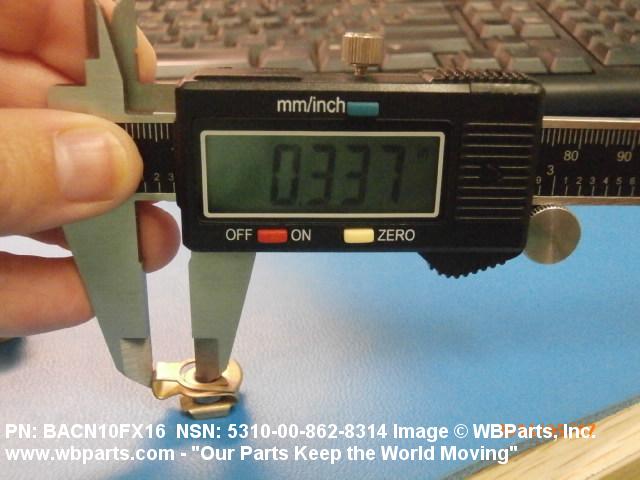

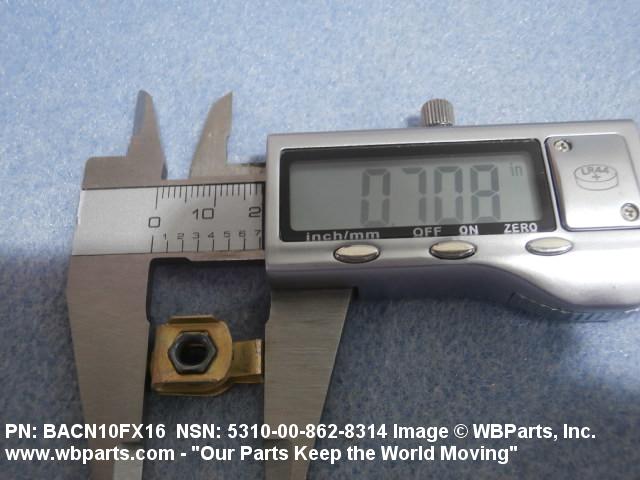

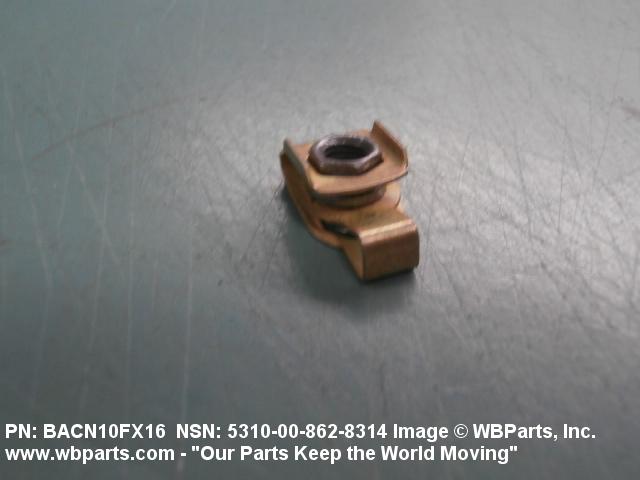

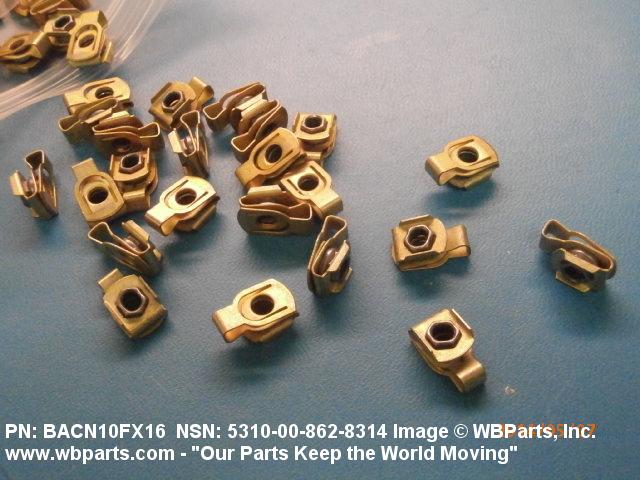

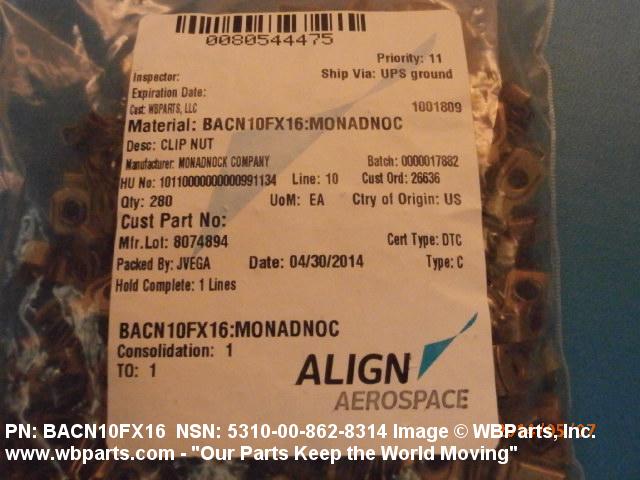

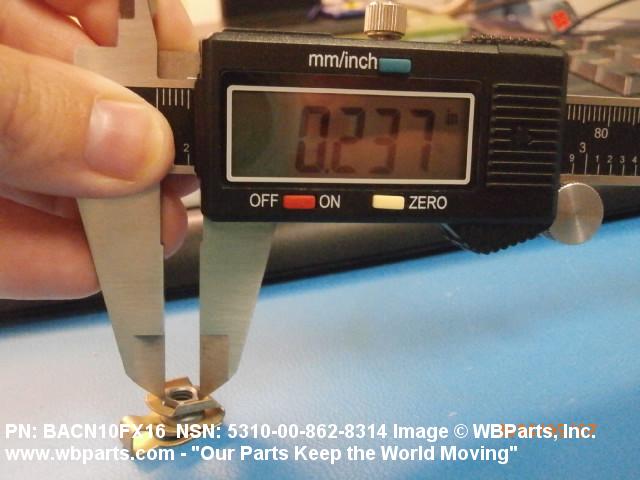

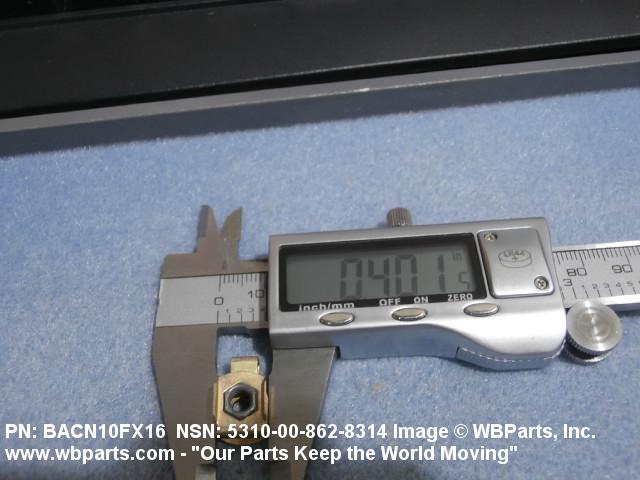

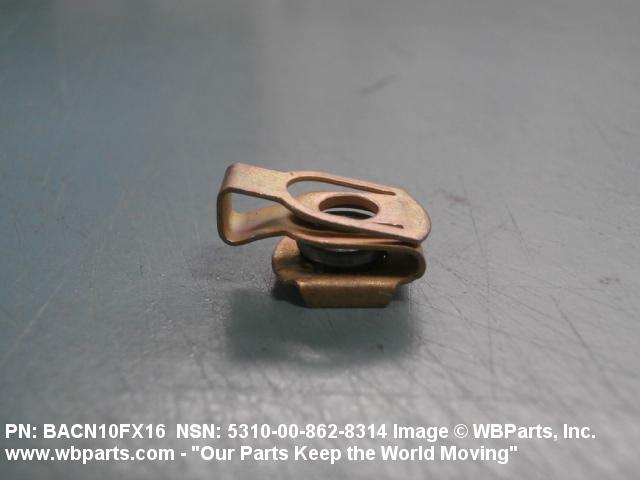

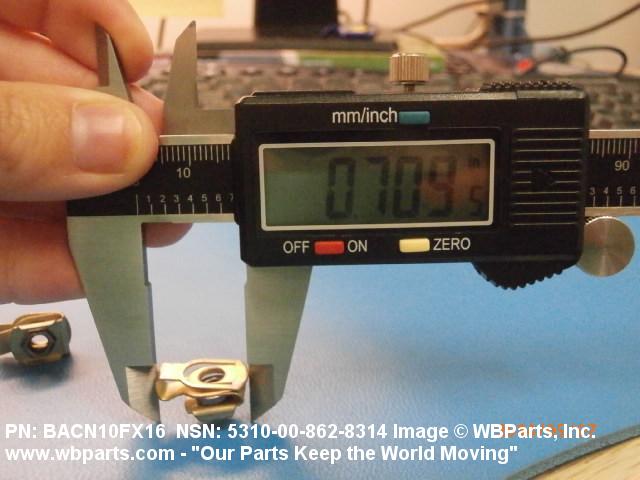

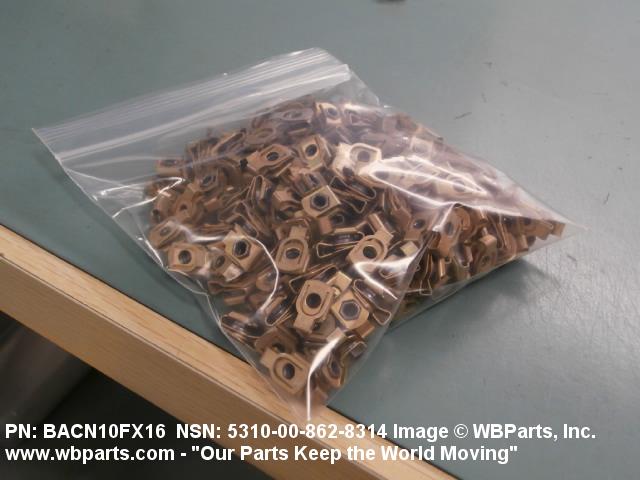

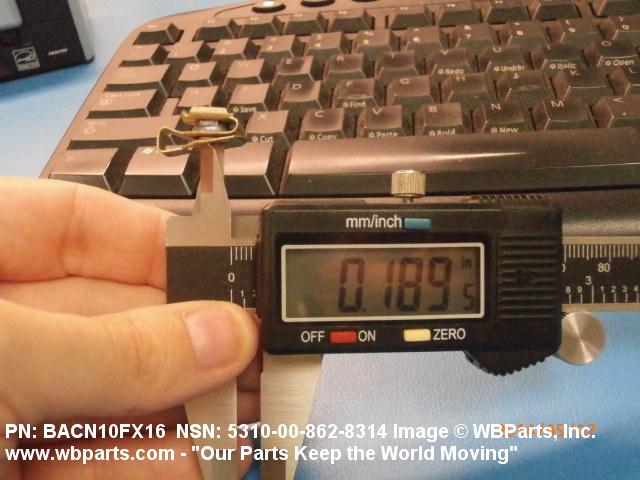

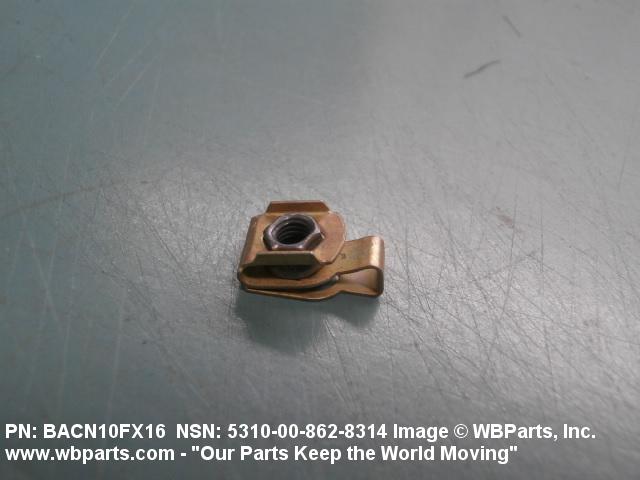

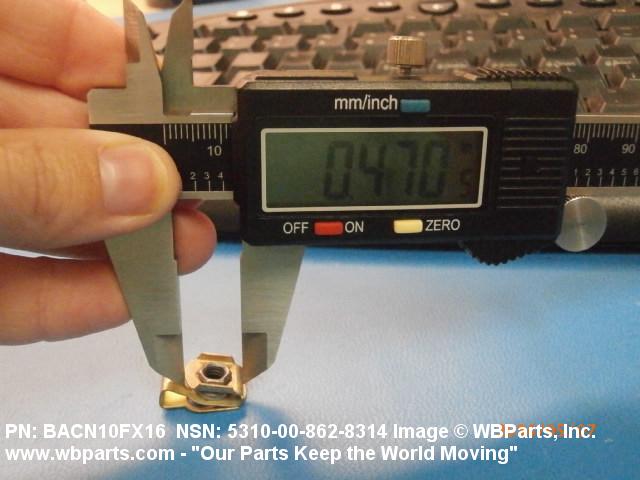

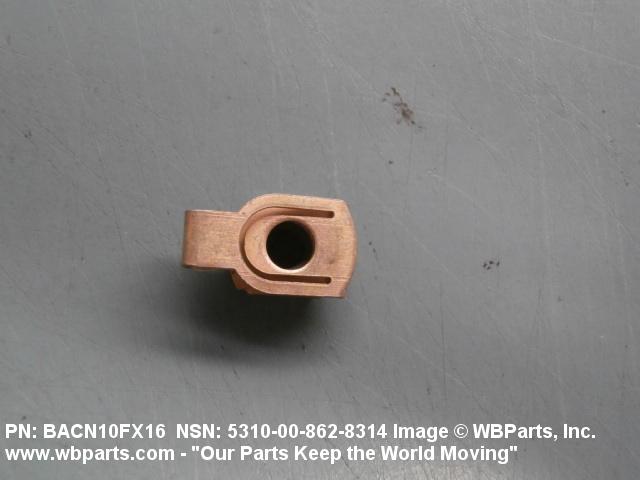

Drawings & Photos | NSN 5310-00-862-8314
Demand History | NSN 5310-00-862-8314
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-862-8314 | 2025-02-57 | 575 | DIBBS |
| BACN10FX16 | 2024-08-243 | 6 | US |
| BACN10FX16 | 2024-04-117 | 6 | US |
| BACN10FX16 | 2024-04-114 | 2 | United States |
| BACN10FX16 | 2024-04-113 | 30 | United States |
| 5310-00-862-8314 | 2024-01-17 | 1487 | DIBBS |
| 5310-00-862-8314 | 2024-01-09 | 1487 | DIBBS |
| 5310-00-862-8314 | 2023-11-334 | 1487 | DIBBS |
| 5310-00-862-8314 | 2023-08-223 | 15 | TW |
| BACN10FX16 | 2022-06-157 | 5 | US |
| BACN10FX16 | 2021-08-228 | 14 | United States |
| 5310-00-862-8314 | 2021-01-11 | 30 | US |
| A4972602 | 2020-11-335 | 1 | Canada |
| BACN10FX16 | 2020-03-69 | 420 | United States |
| BACN10FX16 | 2019-12-361 | 80 | United States |
| BACN10FX16 | 2019-08-242 | 80 | United States |
| BACN10FX16 | 2017-04-103 | 100 | United States |
| BACN10FX16 | 2015-10-301 | 100 | United States |
| BACN10FX16 | 2014-04-112 | 30 | United States |
| BACN10FX16 | 2014-04-112 | 130 | United States |
| BACN10FX16 | 2013-11-325 | 250 | United States |
| BACN10FX16 | 2013-11-325 | 500 | United States |
| BACN10FX16 | 2013-11-325 | 1000 | United States |
| 5310-00-862-8314 | 2011-11-306 | 100 | Argentina |
| 5310-00-862-8314 | 2010-11-322 | 5313 | DIBBS |
| 5310-00-862-8314 | 2009-09-258 | 5922 | DIBBS |
| 5310-00-862-8314 | 2009-03-82 | 4781 | DIBBS |
| 5310-00-862-8314 | 2008-11-325 | 3705 | DIBBS |
| 5310-00-862-8314 | 2008-07-198 | 2933 | DIBBS |
| 5310-00-862-8314 | 2007-10-297 | 18 | US |
| A4972602 | 2007-07-212 | 200 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-862-8314
Related Products | NSN 5310-00-862-8314
Technical Data | NSN 5310-00-862-8314
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL NUT STEEL COMP 1050 CLIP |
| MATERIAL DOCUMENT AND CLASSIFICATION | SAE ASSN STD SINGLE MATERIAL RESPONSE CLIP |
| SURFACE TREATMENT | CADMIUM AND CHROMATE CLIP |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 1 FED SPEC SINGLE TREATMENT RESPONSE CLIP |
| HARDNESS RATING | 27.0 ROCKWELL C MINIMUM AND 35.0 ROCKWELL C MAXIMUM |

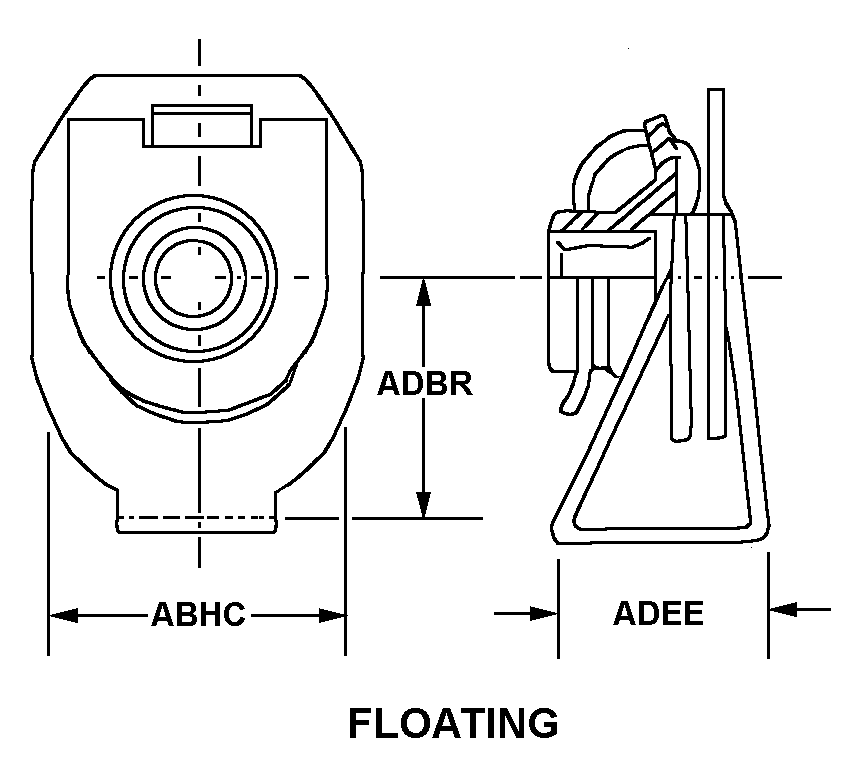

| NUT STYLE | A395 FLOATING |
| OVERALL WIDTH | 0.406 INCHES MAXIMUM |
| DISTANCE FROM BASE TO CENTER OF APERTURE | 0.380 INCHES MINIMUM AND 0.410 INCHES MAXIMUM |
| PANEL THICKNESS | 0.100 INCHES MINIMUM |
| TEMP RATING | NOT RATED |
Restrictions/Controls & Freight Information | NSN 5310-00-862-8314
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013630 | ALUM RIVETS |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-862-8314
Navy
Marines| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
