NSN 5310-00-877-5972 10082632 , 10910174-3 , 5310PL0945180
Product Details | FLAT WASHER
5310-00-877-5972 A washer having a centrally located hole with a solid or laminated cross-section and two flat parallel bearing surfaces. The hole must be 75 percent or less than the largest dimension and the bearing surface finish is greater than 32 microinch (0.8 micrometer). The thickness cannot exceed 25 percent of the largest outside dimension. When the largest outside dimension is less than 1/4 inch or 6mm, the thickness must be 0.006 inches (0.15mm) or greater and for items 1/4 inch (6mm) or larger, the thickness must be 0.016 inches (0.4mm) or greater. The maximum tolerance is applied to dimensions and used as a determining factor. Items with separable lamination use SHIM. For items fabricated from ceramic or electrically rated materials by specification or industry standards use INSULATOR (1), WASHER. Excludes DISK, VALVE, graphite impregnated and lubricated items.
Part Alternates: 10082632 , 10910174-3 , 5310PL0945180, 5310-00-877-5972, 00-877-5972, 5310008775972 , 008775972, 109101743
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1961 | 00-877-5972 | 13393 ( WASHER, FLAT ) |

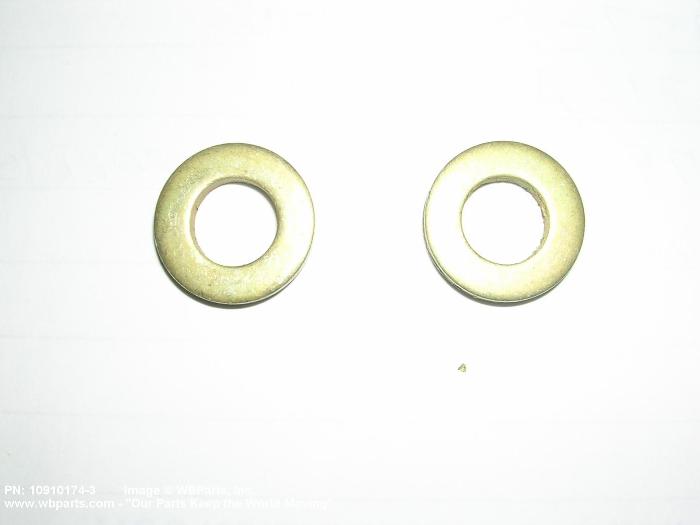

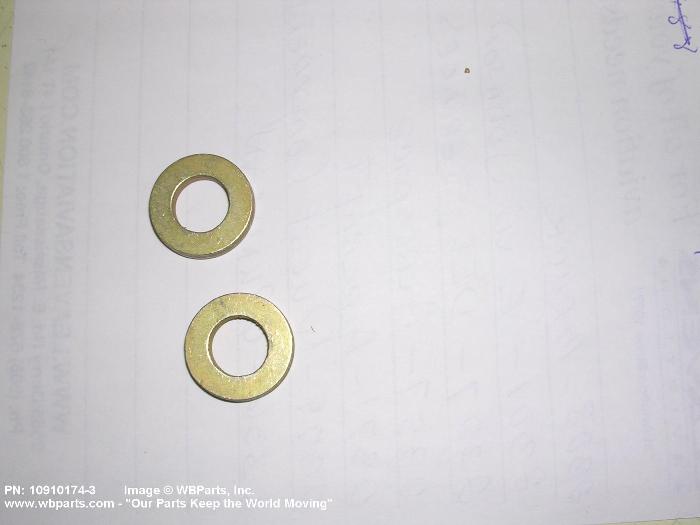

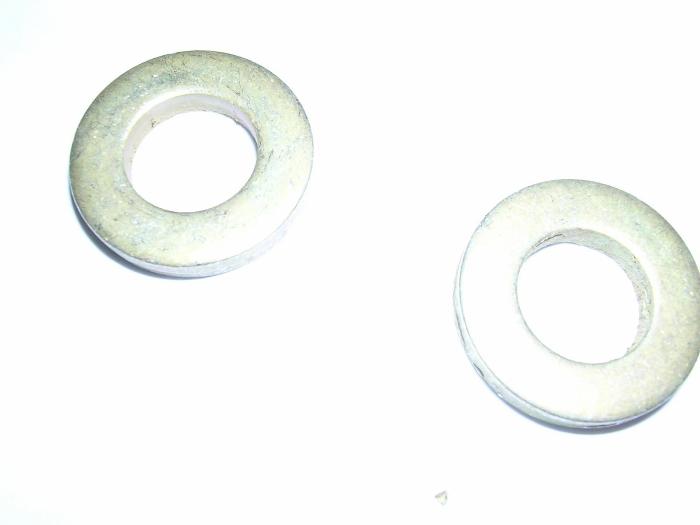

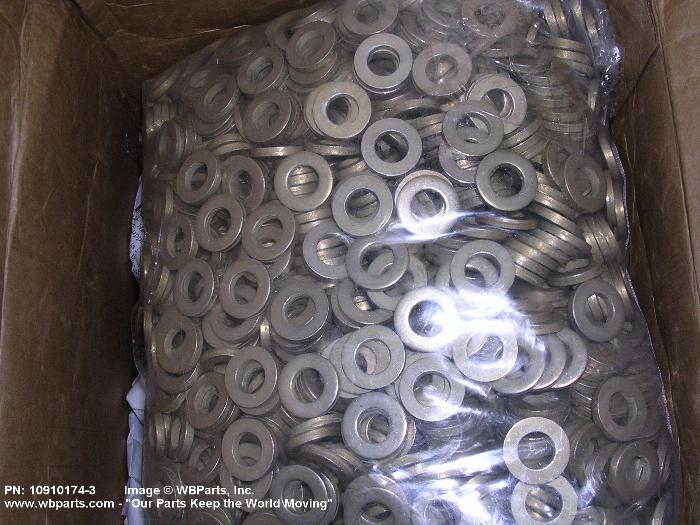

Drawings & Photos | NSN 5310-00-877-5972
Demand History | NSN 5310-00-877-5972
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 109101743 | 2025-11-307 | 42 | us |
| 5310-00-877-5972 | 2025-10-275 | 284 | DIBBS |
| 008775972 | 2025-09-273 | 100 | United States |
| 5310-00-877-5972 | 2025-09-261 | 1447 | DIBBS |
| 5310-00-877-5972 | 2025-09-252 | 485 | DIBBS |
| 5310-00-877-5972 | 2025-07-194 | 294 | DIBBS |
| 5310-00-877-5972 | 2025-05-149 | 9 | US |
| 5310-00-877-5972 | 2024-03-68 | 150 | EE |
| 5310-00-877-5972 | 2024-02-57 | 1448 | DIBBS |
| 5310-00-877-5972 | 2024-02-46 | 1448 | DIBBS |
| 5310-00-877-5972 | 2023-12-345 | 906 | DIBBS |
| 5310-00-877-5972 | 2023-12-337 | 906 | DIBBS |
| 5310-00-877-5972 | 2023-11-313 | 581 | DIBBS |
| 5310-00-877-5972 | 2023-11-305 | 581 | DIBBS |
| 5310-00-877-5972 | 2023-10-298 | 13500 | US |
| 5310-00-877-5972 | 2023-06-176 | 667 | US |
| 5310-00-877-5972 | 2023-06-174 | 667 | DIBBS |
| 5310-00-877-5972 | 2023-06-166 | 667 | DIBBS |
| 5310-00-877-5972 | 2023-03-88 | 724 | DIBBS |
| 5310-00-877-5972 | 2023-03-80 | 724 | DIBBS |
| 5310-00-877-5972 | 2023-02-40 | 714 | DIBBS |
| 5310-00-877-5972 | 2022-10-299 | 667 | DIBBS |
| 5310-00-877-5972 | 2022-08-221 | 313 | DIBBS |
| 5310-00-877-5972 | 2022-04-117 | 307 | DIBBS |
| 5310-00-877-5972 | 2021-09-256 | 349 | DIBBS |
| 5310-00-877-5972 | 2021-09-245 | 349 | DIBBS |
| 109101743 | 2021-04-104 | 8 | United States |
| 5310-00-877-5972 | 2021-03-76 | 628 | DIBBS |
| 5310-00-877-5972 | 2020-07-211 | 10 | Canada |
| 109101743 | 2020-01-16 | 200 | US |
| 5310-00-877-5972 | 2019-05-150 | 1103 | DIBBS |
| 5310-00-877-5972 | 2019-03-85 | 812 | DIBBS |
| 5310-00-877-5972 | 2018-10-281 | 235 | DIBBS |
| 109101743 | 2018-09-249 | 5000 | United States |
| 5310-00-877-5972 | 2018-08-235 | 280 | DIBBS |
| 109101743 | 2017-12-362 | 500 | US |
| 5310-00-877-5972 | 2017-12-339 | 1533 | DIBBS |
| 5310-00-877-5972 | 2017-11-319 | 1220 | DIBBS |
| 5310-00-877-5972 | 2017-10-277 | 1 | DIBBS-RFPs |
| 5310-00-877-5972 | 2017-08-235 | 1660 | DIBBS |
| 5310-00-877-5972 | 2017-06-181 | 698 | DIBBS |
| 5310-00-877-5972 | 2017-04-101 | 426 | DIBBS |
| 5310-00-877-5972 | 2016-10-301 | 450 | DIBBS |
| 5310-00-877-5972 | 2016-06-168 | 264 | DIBBS |
| 5310-00-877-5972 | 2015-05-134 | 1281 | DIBBS |
| 5310-00-877-5972 | 2014-12-336 | 855 | DIBBS |
| 5310-00-877-5972 | 2014-10-295 | 890 | DIBBS |
| 5310-00-877-5972 | 2014-03-73 | 1495 | Chile |
| 109101743 | 2012-12-347 | 16107 | US |
| 109101743 | 2012-12-347 | 16107 | US |
| 5310-00-877-5972 | 2012-05-128 | 750 | United States |
| 109101743 | 2012-04-96 | 6 | US |
| 5310-00-877-5972 | 2011-12-362 | 1000 | United States |
| 5310-00-877-5972 | 2011-06-178 | 7 | DIBBS |
| 5310-00-877-5972 | 2011-06-178 | 13 | DIBBS |
| 109101743 | 2011-03-84 | 1000 | United States |
| 5310-00-877-5972 | 2011-03-63 | 200000 | United States |
| 109101743 | 2010-08-222 | 1400 | United States |
| 5310-00-877-5972 | 2010-02-32 | 952 | DIBBS |
| 5310-00-877-5972 | 2009-12-345 | 3360 | DIBBS |
| 5310-00-877-5972 | 2009-07-202 | 975 | DIBBS |
| 5310-00-877-5972 | 2009-06-159 | 975 | DIBBS |
| 5310-00-877-5972 | 2009-05-138 | 100 | US |
| 5310-00-877-5972 | 2009-05-127 | 975 | DIBBS |
| 5310-00-877-5972 | 2009-04-119 | 145 | United States |
| 5310-00-877-5972 | 2009-03-84 | 125 | US |
| 5310-00-877-5972 | 2009-03-76 | 6000 | US |
| 109101743 | 2009-01-23 | 500 | US |
| 5310-00-877-5972 | 2009-01-12 | 609 | DIBBS |
| 109101743 | 2008-12-340 | 2380 | US |
| 5310-00-877-5972 | 2008-06-178 | 100 | US |
| 5310-00-877-5972 | 2008-06-178 | 100 | US |
| 109101743 | 2008-06-178 | 90 | United States |
| 5310-00-877-5972 | 2008-06-168 | 538 | DIBBS |
| 5310-00-877-5972 | 2008-03-91 | 707 | DIBBS |
| 109101743 | 2008-02-43 | 3050 | United States |
| 5310-00-877-5972 | 2007-11-310 | 1400 | us |
Cross Reference | NSN 5310-00-877-5972
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10910174-3 | 19200 | US ARMY ARDEC RDECOM |
| 10910174-3 | 19204 | ARMY UNITED STATES DEPARTMENT OF THE |
| 10910174-3 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 5310008775972 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 5310PL0945180 | 9009H | INSPEKTORAT WSPARCIA SIL ZBROJNYCH |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-877-5972
Related Products | NSN 5310-00-877-5972
Technical Data | NSN 5310-00-877-5972
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4130 OR STEEL COMP 4140 OR STEEL COMP 8640 OR STEEL COMP 1050 OR STEEL COMP 8740 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-624 FED SPEC 1ST MATERIAL RESPONSE OR QQ-S-626 FED SPEC 1ST MATERIAL RESPONSE OR QQ-S-627 FED SPEC 1ST MATERIAL RESPONSE AND QQ-S-624 FED SPEC 2ND MATERIAL RESPONSE OR QQ-S-626 FED SPEC 2ND MATERIAL RESPONSE OR QQ-S-627 FED SPEC 2ND MATERIAL RESPONSE AND QQ-S-624 FED SPEC 3RD MATERIAL RESPONSE OR QQ-S-626 FED SPEC 3RD MATERIAL RESPONSE OR QQ-S-627 FED SPEC 3RD MATERIAL RESPONSE AND QQ-S-635 FED SPEC 4TH MATERIAL RESPONSE OR QQ-S-700 FED SPEC 4TH MATERIAL RESPONSE AND QQ-S-624 FED SPEC 5TH MATERIAL RESPONSE OR QQ-S-626 FED SPEC 5TH MATERIAL RESPONSE OR QQ-S-627 FED SPEC 5TH MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE 2,CLASS 1 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HOLE DIAMETER | 0.396 INCHES MINIMUM AND 0.416 INCHES MAXIMUM |
| PERIPHERAL SHAPE STYLE | 1 ROUND |
| OVERALL DIAMETER | 0.740 INCHES MINIMUM AND 0.760 INCHES MAXIMUM |
| CENTER HOLE SHAPE STYLE | 1 ROUND |
| CROSS-SECTIONAL SHAPE STYLE | 1 RECTANGULAR |
| THICKNESS | 0.112 INCHES MINIMUM AND 0.126 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5310-00-877-5972
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194160 | WASHER OR GASKETS, IRON OR STEEL, |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-877-5972
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 HD : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 HD : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Echelon Identification Code | B | Consumable Repair Parts |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 HD : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 HD : Each |
